Wave Tempest 660D LRF Thermal Scope
- Regular price
- $4,999.00
- Sale price
- $4,999.00
- Regular price
-

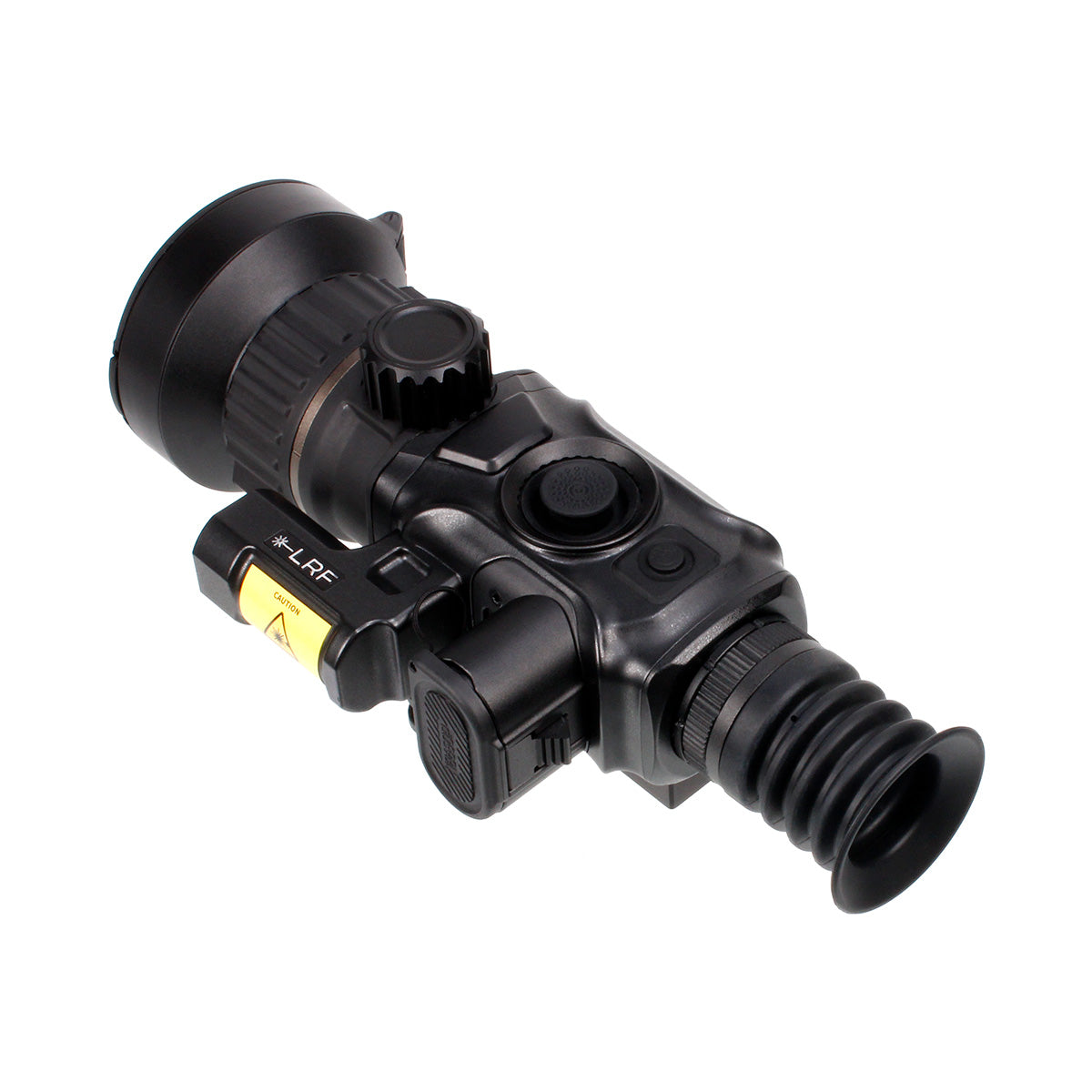

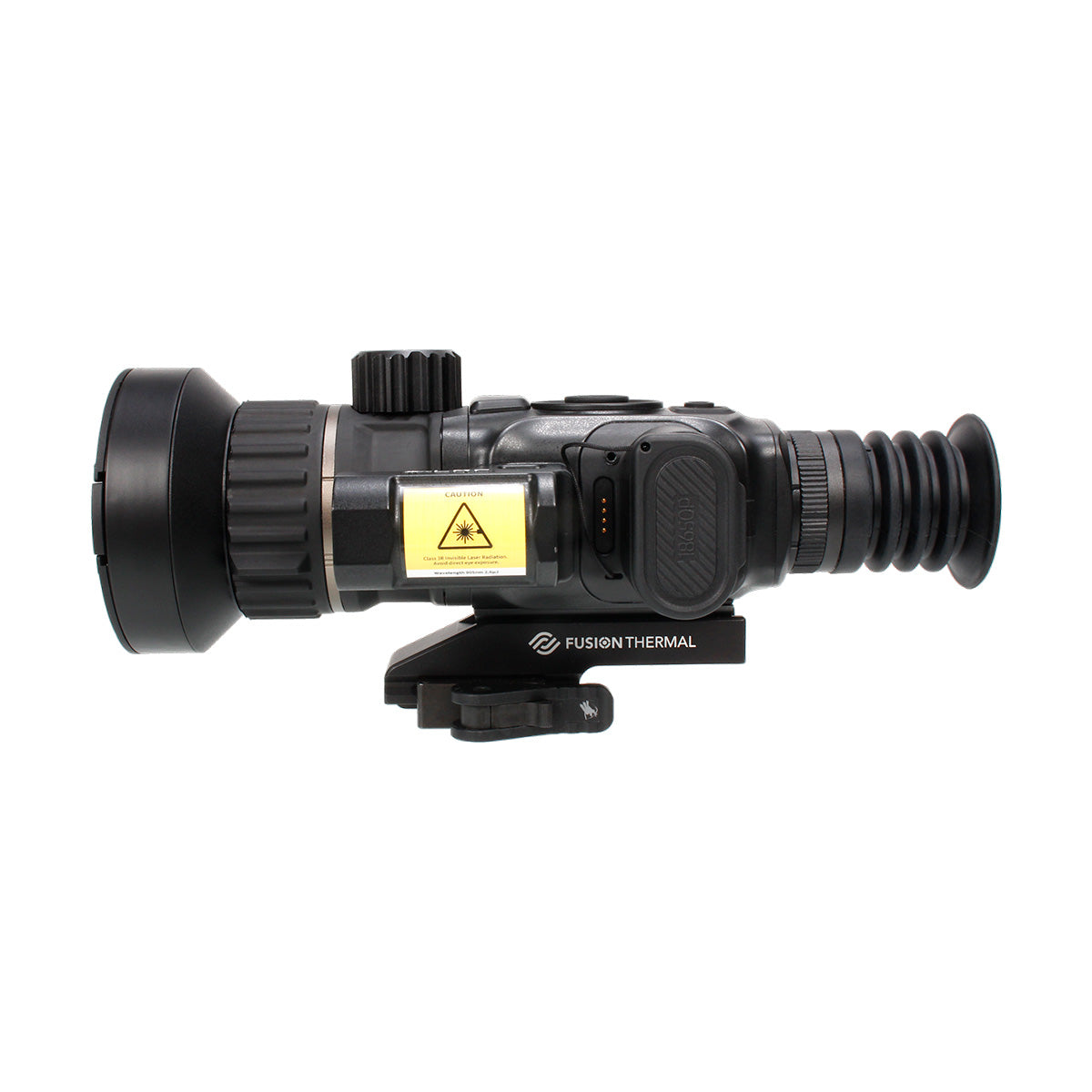

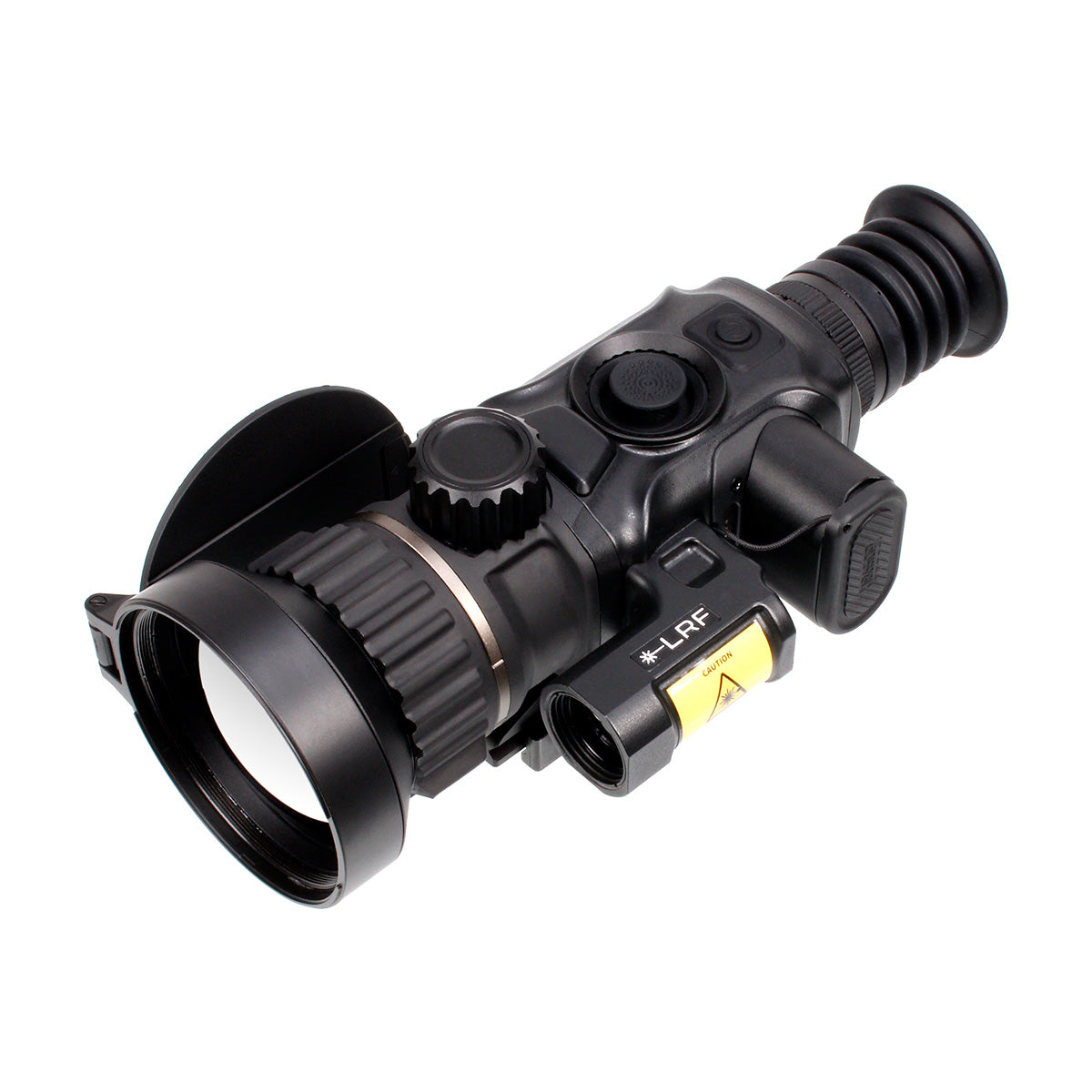

Wave Infrared Tempest 660D LRF Thermal Scope
The Tempest 660D takes everything great about the 650 and pushes it further with a dual-lens system that functions like two scopes in one. Its 20mm lens offers an ultra-wide field of view ideal for close-range awareness, while the 60mm lens provides sharp 3.4X magnification paired with a laser rangefinder and auto ballistics for long-range precision. Designed to transform your night hunting experience, the 660D includes everything you need and is backed by a 5-Year Transferable Warranty.
Features

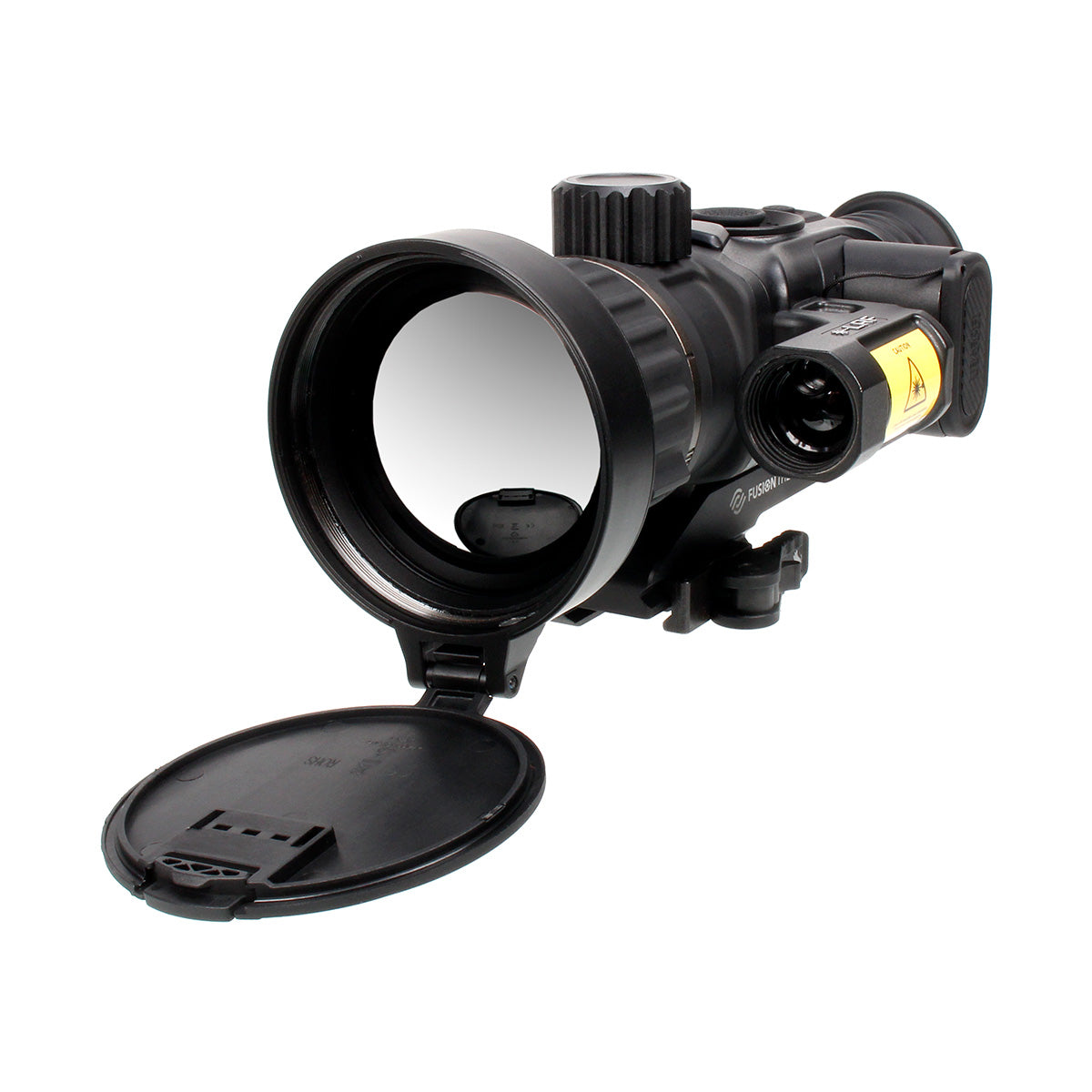

- UPG (Ultra-Pure Germanium) Objective Lens – Exceptional lens for maximum thermal energy transfer, achieving 100% sensor capacity utilization.
- G6 (Sixth Generation) 12-Micron Thermal Sensor – True sub-18mk NETD for incredible performance in high humidity and fog.

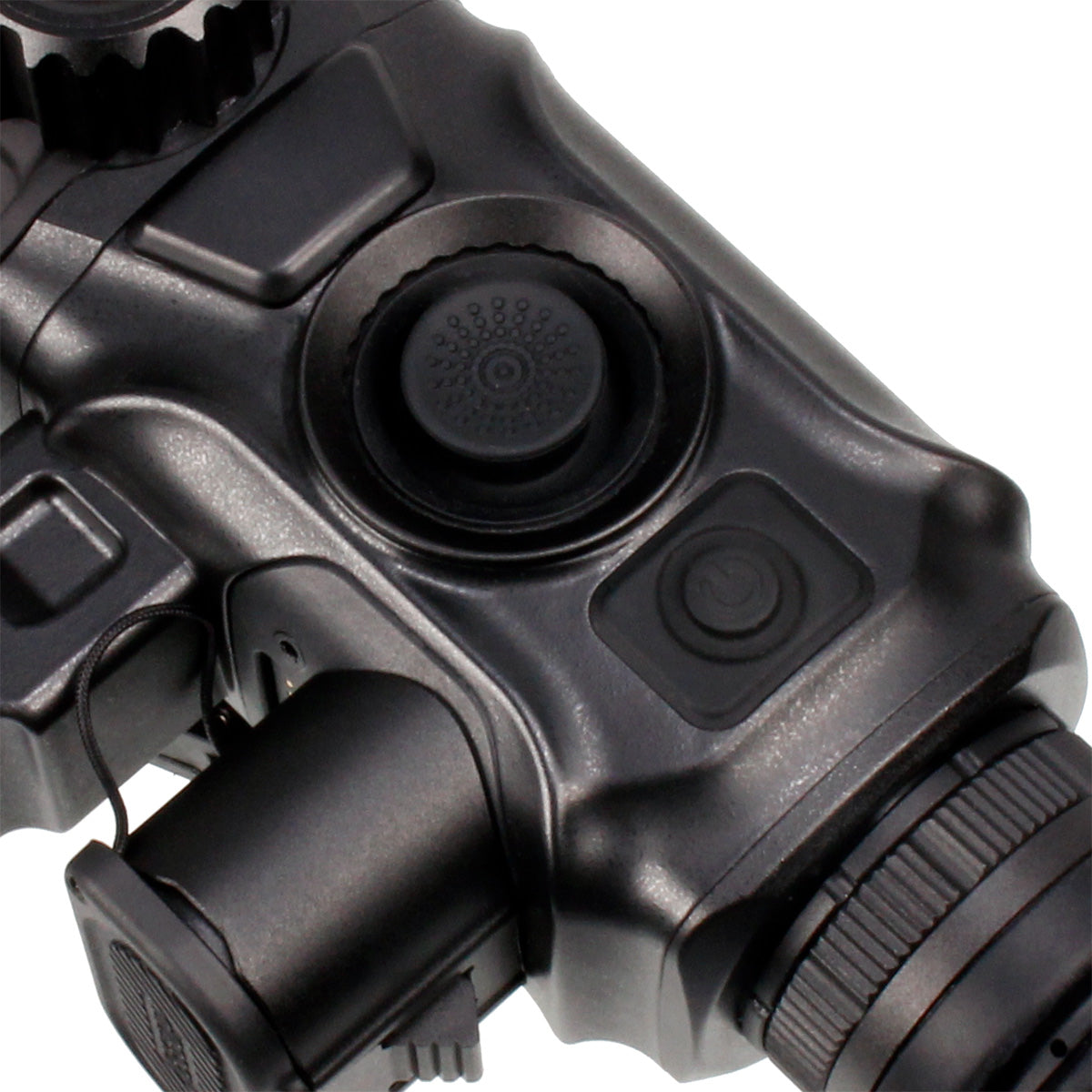

- Military-Style Joystick Control – No fumbling through buttons; easy-use joystick for simplified in-the-dark operation.
- Easy Zeroing Process – Simple zeroing with freeze function, all completed from a single screen.
- Compact Design – Extremely compact build for a lighter, smaller overall device.
- Large Top Knob Focus – Superior design for faster, more precise target focusing, even with heavy gloves.

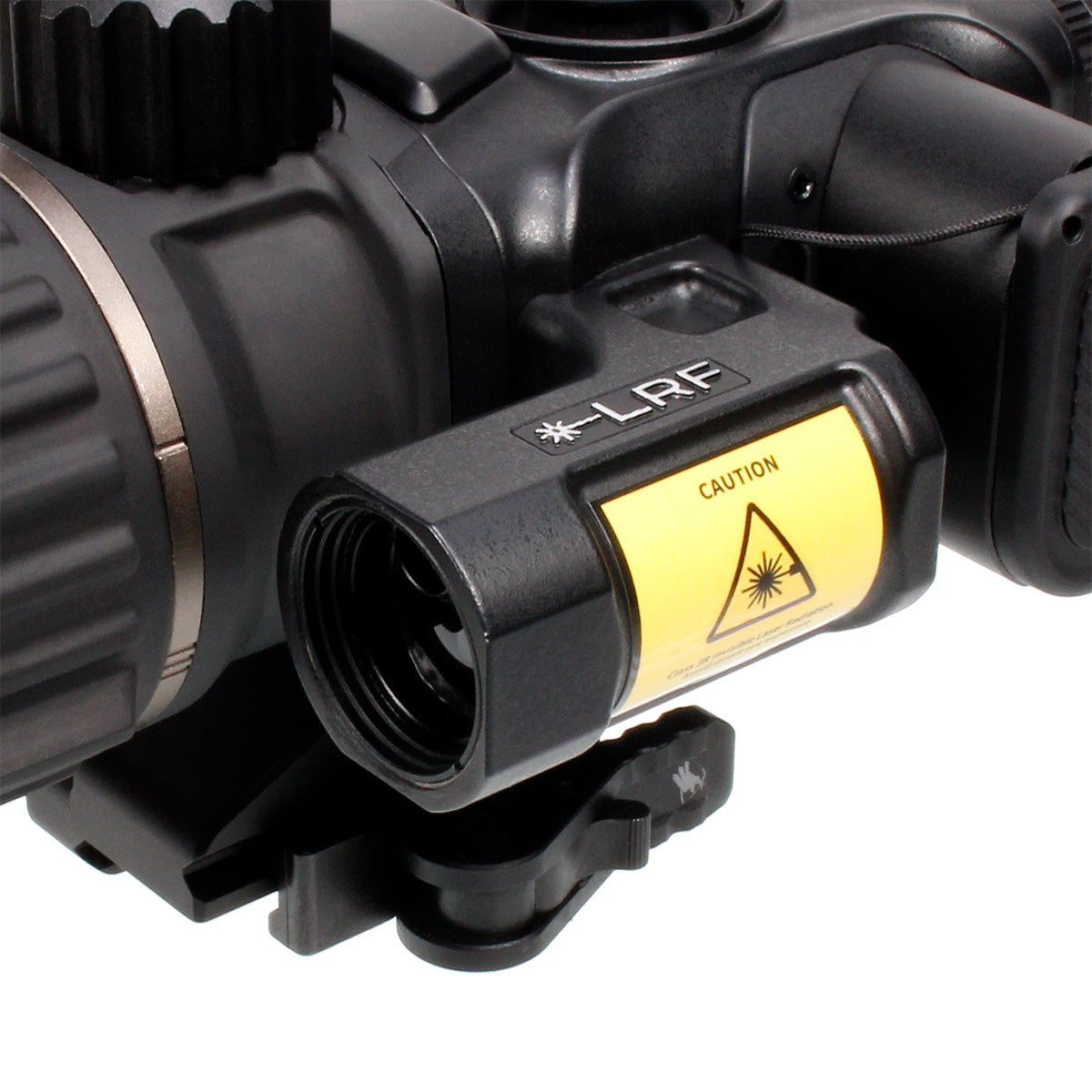

- Integrated Laser Range Finder – Powerful and precise laser for quick, accurate target distance measurement.
- Advanced Smooth Zoom – Smooth zoom provides precise control and a more traditional scope experience.
- Two Laser Operating Modes – Scan mode for continuous measurement and Ballistic Mode with single pulse and auto ballistics.
- Automatic Ballistic Compensation – Onboard ballistic calculations for accurate long-range shot placement.
- Gun Profile Nicknaming – Save gun name and zero distance to each profile for quick recall.
- Industry-Leading Reticle Management – Nine reticle options with 1st or 2nd focal plane, polarity reversal, and illuminated center dot.
- Ambidextrous Design – Intuitive joystick layout allows comfortable right- or left-hand operation.
- Rugged Mil-Spec Aluminum Construction – Durable housing designed for maximum strength and heat dissipation.

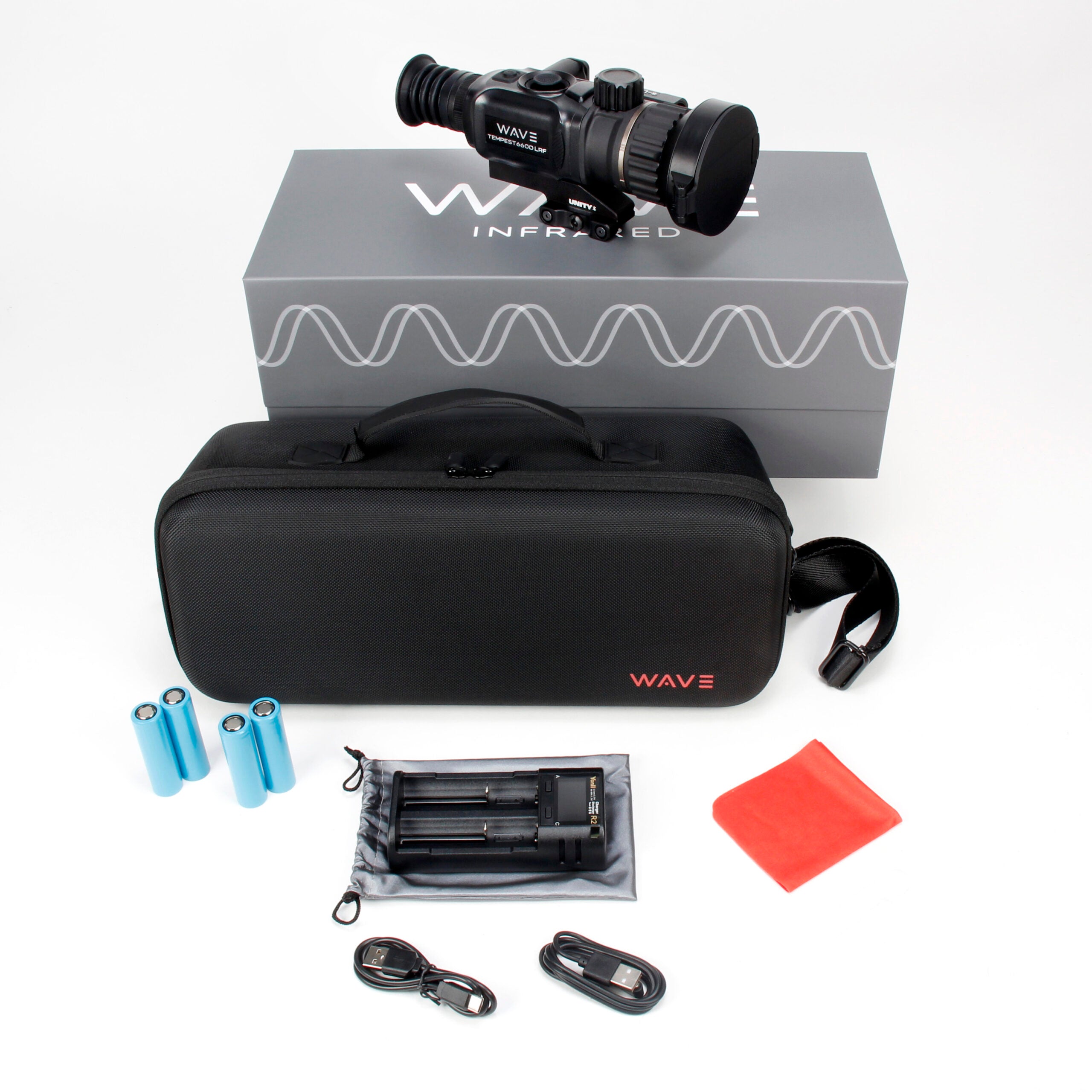

- Uses Commonly Available Rechargeable Batteries – Powered by two protected-style 18650 batteries (four included) with a premium charging cradle.
- Exceptionally Long Run Times – Expect 13+ hours of runtime between recharges.
- Free Phone App (Android & iOS) – Live streaming, image management, ballistic uploads, and firmware updates.
- Onboard Media File Management – View and manage photos and videos directly on the device.

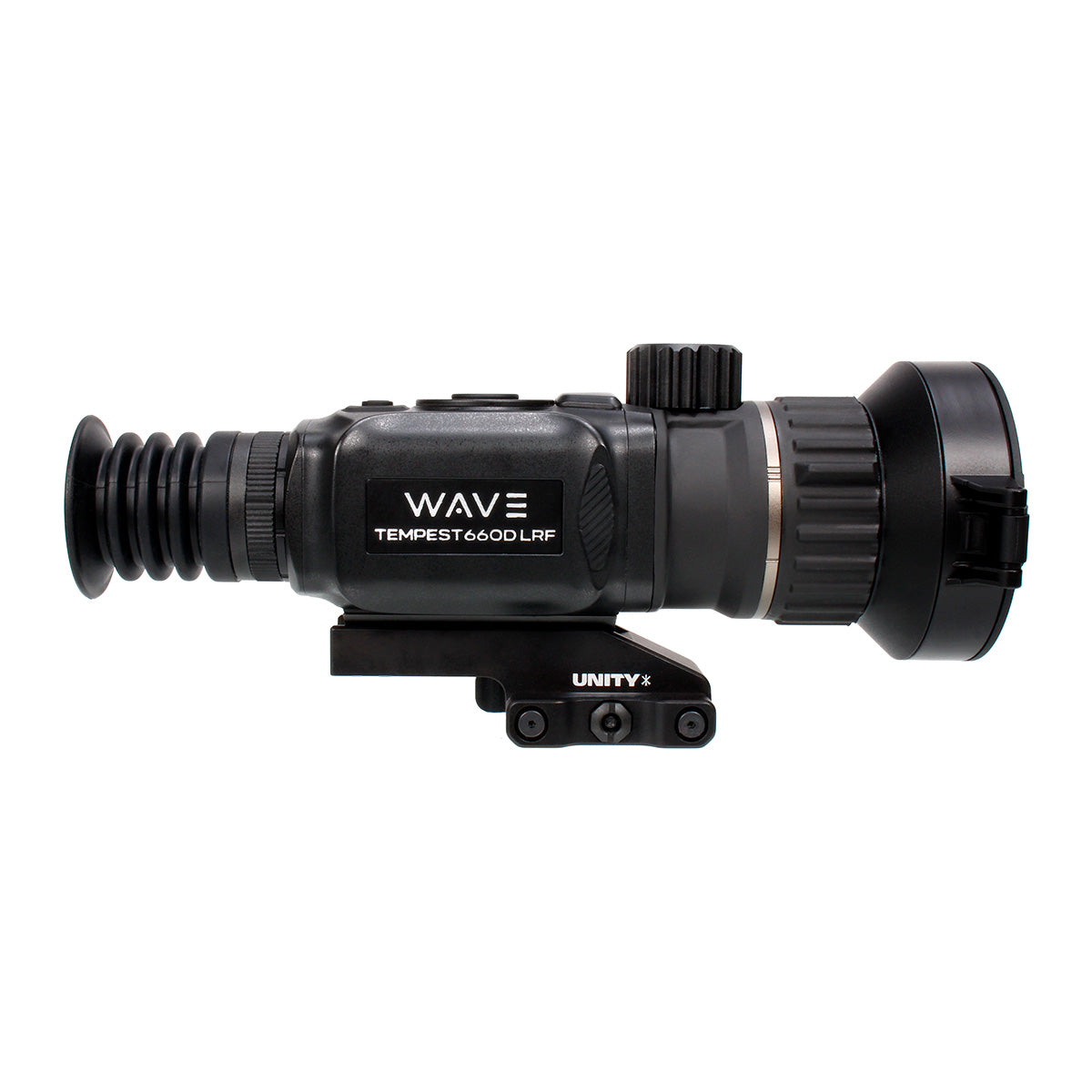

- Premium QD Scope Mount – Quick-disconnect mount with repeatable return to zero and adjustable rail fit.
- 5-Year Transferable Warranty – Industry-leading transferable warranty for peace of mind and easy resale.
Specifications
| Thermal Sensor | 640 × 512 |
| Sensor Pixel Size / Frame Rate | 12 Micron / 50 Hz |
| Objective Lens Diameter | 60 mm (Dual Lens 60mm / 20mm) |
| NETD | <15 mK |
| Field of View | 1170′ @ 1000 yds (1x) / 380′ @ 1000 yds (3.4x) |
| Base Magnification | 3.4x (before digital zoom at 60mm) |
| Digital Magnification | 3.4x – 13.6x (Rapid & Smooth) |
| Display Type / Resolution | HD AMOLED / 1024 × 768 |
| OLED Display Adjustment | Yes – 4 hue options (Grey, Blue, Purple, Red) |
| Color Palette Modes | 6 (White, Black, Red, Green, Golden, Violet) |
| Picture-in-Picture (PIP) | Yes |
| Recoil Activated Recording | Yes (adjustable sensitivity) |
| Hot Tracking | Yes |
| Outline Mode | Yes |
| Reticle Options | 8 + No Reticle option (9 total) |
| Reticle Colors | Black, White, Red, Green, Blue |
| Reticle Polarity Reversal | Yes (optional on/off) |
| Illuminated Reticle Dot | Yes (4 designs) |
| Center Dot Colors | Red, Blue, Green (3 levels) |
| Reticle Focal Plane | Front or Second Focal Plane |
| Laser Class | Class 3R |
| Laser Rangefinder Distance | Up to 1300 yards (reflective target) |
| Ballistic Calculation | Yes (auto drop compensation to 600 yards) |
| Gun Profiles | Up to 5 saved profiles |
| Gun Profile Nicknaming | Yes (caliber & zero distance) |
| Detection Range | Up to 2900 yards |
| Start-Up Time | 3 seconds (cold start) |
| Auto Shutdown | Yes (Off / 30 / 60 / 90 min) |
| Media Recording | Photo, video & audio (on/off) |
| Media File Management | On-board viewing & deletion |
| WiFi / Hotspot | Yes |
| Battery Type | (2×) 18650 – non polarity-sensitive |
| Battery Life | 13+ hrs (3500 mAh, WiFi off @ 78°F) |
| Recoil Rating | 6,000 J (300 Win Mag max) |
| Nitrogen Purged | Yes |
| Scope Length | 9″ |
| Weight | 36 oz (without batteries) |
| Waterproof Rating | IP67 |
| Phone App | WAVE IR |
| UPC | 850030459329 |
