Sightmark Wraith Mini 2-16×35 Thermal Riflescope

Regular price
$1,499.99
Sale price
$1,499.99
Regular price
Shipping calculated at checkout.

Sightmark Wraith Mini 2-16×35 Thermal Riflescope

The Wraith Mini Thermal offers the same peerless quality of Sightmark’s Wraith Mini digital night vision models on a digital thermal riflescope. The new Wraith Mini Thermal comes equipped with a powerful 384×288 sensor resolution which enhances imaging algorithms to create a crisp picture, a 1024×768 OLED display, a built-in video recorder with sound to capture the best moments of a hunt and a battery life of 3.5 hours on video mode and 4.4 hours on preview mode, the Wraith Mini Thermal proves to be a durable thermal scope with enhanced imaging capabilities and a long battery life for the field. With its 1400 yard detection range, 2x optical magnification and 1-8x digital zoom, the Wraith Mini Thermal is optimized for medium range engagements.

Features

• 384X288 THERMAL RESOLUTION
• OLED DISPLAY
• 5 COLOR PALETTES
• 10 RETICLES
• 9 RETICLE COLORS
• LIGHTWEIGHT AND COMPACT

Specifications

Sightmark Wraith Mini Thermal Scope
Brand Name Sightmark
Model Name Sightmark Wraith Mini 2-16×35 Thermal Riflescope
Category Name Thermal Riflescope
SKU Number SM17001
UPC Number 810119010469
Electronic components
Type of sensor Thermal sensor
Sensor resolution, pixels 384×288
Display type OLED
Display Resolution 1024×768
Built-In Video Recorder Availability Yes
Maximum memory card supported, Gb 256
Pixel Pitch (µm) 17
Spectral Range (μm) 8-14
NEDT (50 Hz, 300 K, F/1) (mK) 40
Optical characteristics
Magnification 2x optical
Aperture F1
Lens diameter, mm 35
Digital zoom 1-8x
Field of View (degrees) 13
Detection Range (yards/meters) 1400
Eye Relief, in/mm 2.4 / 60
Diopter adjustment, dptr. -3 to +3
Power Supply
Power Supply, v 6

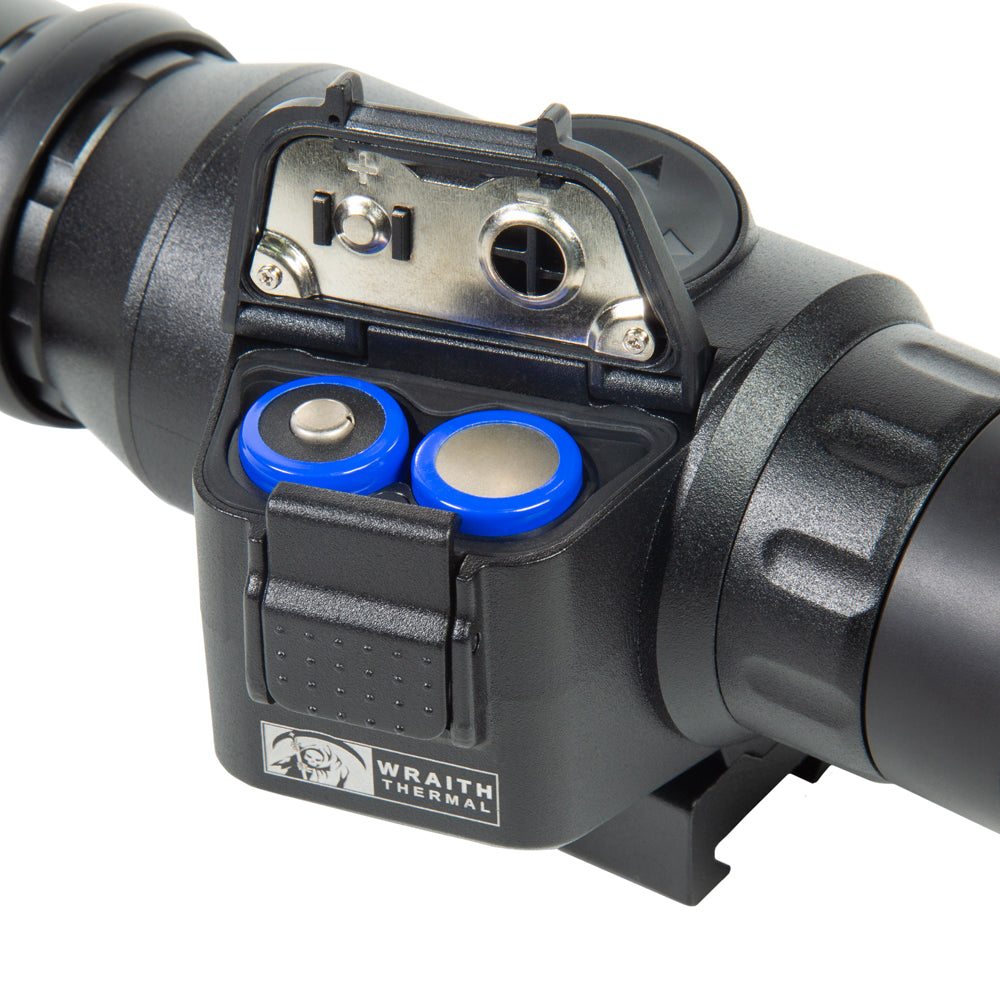

Battery type 2x CR123A
Battery life 3.5Hrs Video Mode/ 4.4Hrs Preview Mode
External Power Supply 5V via USB
Physical & operational characteristics
Body Material Aluminum
Accessory rail mount Picatinny
Length, in/mm (with flip up caps) 6.653/169
Width, in/mm 3.031/77
Height, in/mm 2.913/74
Weight, oz 19.3 oz
Operating Temperature Range -20C – 50C

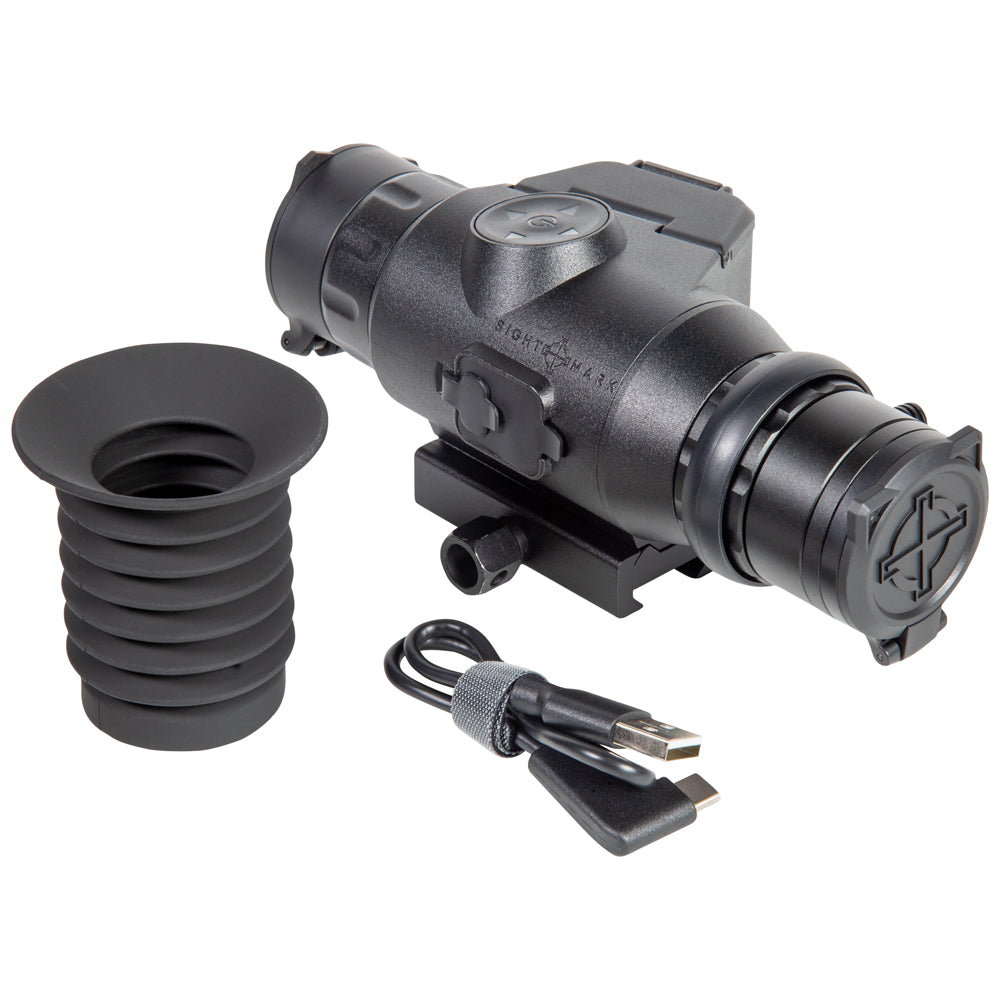

Accessories
Flip-up Covers (Front and Back)
Removable Throw Lever
Rubber Eyecup
2x CR123A
USB Cable
Features Benefits
384×288 Thermal Resolution Enhanced algorithms create crisp image quality
Lightweight and Compact Reduces overall firearm weight
OLED Display Rich color and cold temperature operation
5 Color Palettes (White Hot, Black Hot, Green Hot, Rainbow, Magenta) Various modes for improved contrast for various scenarios/preferences
9 Reticle Colors Creates contrast between reticle and object for quicker aiming
10 Reticles Multiple reticles for preferences from minimalist design to complex for holdovers
5 Weapon Profiles Ability to hold multiple zeroes for different bullet grains or weapons
Built-in Recording w/ Sound Relive or share the experience with sound
