SECUTOR LRF-C 50-640 Clip-on
- Regular price
- $4,495.00
- Sale price
- $4,495.00
- Regular price
-

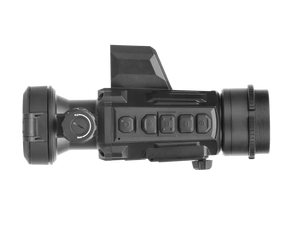

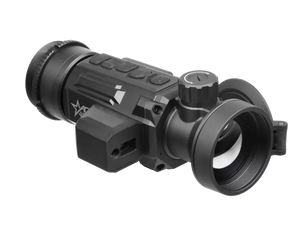

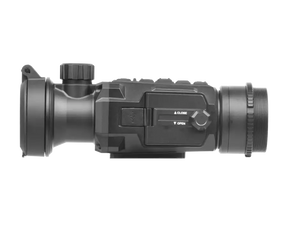

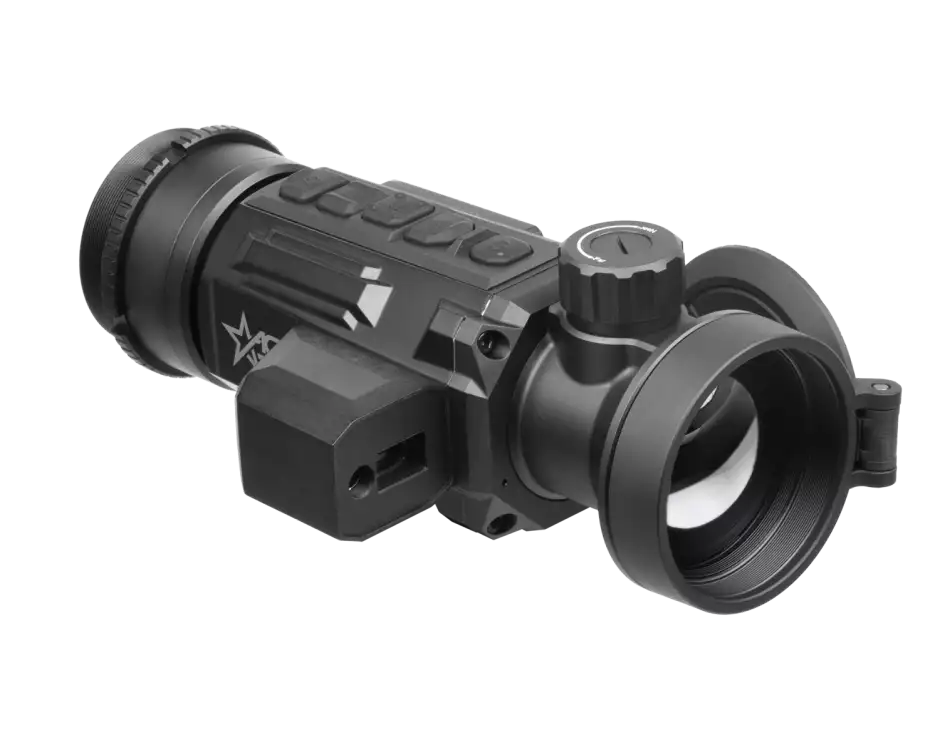

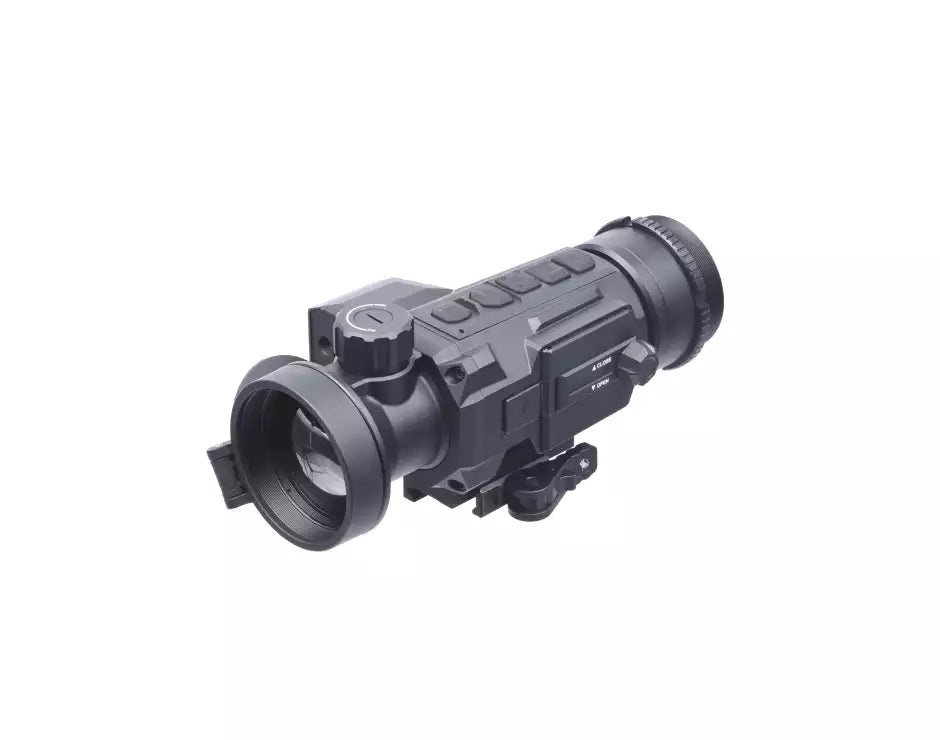

SECUTOR LRF-C 50-640

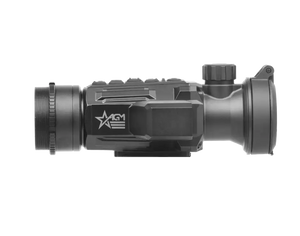

The Secutor LRF-C is a compact thermal imaging clip-on system with a built-in precision laser rangefinder that allows quick transformation of day optics into a thermal imaging device without any special tools or equipment. Equipped with a highly sensitive 12μm thermal detector and 1024×768 OLED monitor, the AGM Secutor LRF-C provides a clear image under harsh environmental conditions including darkness, fog, smoke, dust, rain, snow, brush, camouflage, etc. The user-friendly interface and ergonomic controls make the Secutor LRF-C incredibly easy to use. It can be easily attached in front of rifle scopes with magnification up to 10x for medium-range use. The built-in laser rangefinder is designed to determine the exact distance between the observer and the target, with results displayed on the scope’s monitor. Four replaceable Li-Ion batteries provide more than 6 hours of continuous operation. An external 5V power bank can also be connected via USB to USB-C for extended use. The device features fast EMMC storage for on-board video and image recording, and an onboard Wi-Fi module for live streaming and mobile app access.
Features
-
Quick conversion of daytime optics into a thermal imaging scope
-
12μm thermal detector
-
High sensitivity (NETD < 20 mK)
-
Fast 50Hz imaging refresh rate
-
Built-in laser rangefinder
-
Adjustable color palettes
-
High-resolution OLED display
-
On-board video/audio recording and image capture
-
Built-in 16 GB EMMC storage
-
Wi-Fi data transmission
-
Standby mode for power conservation
-
Over 6 hours of battery life
-
Compatible with external power supply
-
Waterproof and shockproof design
-
Backed by a 5-year warranty
Specifications
Feature | Specification |
---|---|
Palettes | Black Hot, White Hot, Red Hot, Fusion |
Dimensions | 193 × 104 × 74 mm (7.6 × 4.1 × 2.9 in) (w/o mount) |
Exit Pupil Diameter | 22 mm |
Video Recording | Yes |
Audio Recording | Yes |
Magnification | 1x |
Detector Type | 12μm VOx Uncooled Focal Plane Array |
Response Waveband | 8 μm to 14 μm |
FFC (Flat Field Correction) | Auto, Manual, External Correction |
Highest Temperature Spot Tracking | Yes |
Standby Mode | Yes |
Refresh Rate | 50 Hz |
Resolution | 640 × 512 |
Laser Rangefinder | Up to 1000 m, ±4 m accuracy |
Laser Wavelength | 905 nm |
Detection Range (6' object) | 2,600 m/yd |
Lens System | 50 mm; F1.0 |
NETD | Less than 20 mk (@25°C), F#=1.0 |
Field of View (H × V) | 8.8° × 7.0° |
Monitor | 1024×768, 0.39 inch, OLED |
Storage | 16 GB EMMC |
Capture Snapshot | Yes |
Battery Type | Four CR123A Lithium Battery |
Wi-Fi | Yes |
Battery Operating Time | More than 6 hours |
External Power Supply | 5 VDC/2 A, USB Type-C |
Operating Temperature Range | -30°C to 55°C (-22°F to 131°F) |
Weight | 0.63 kg (1.38 lb) |
Protection Level | IP67 |
