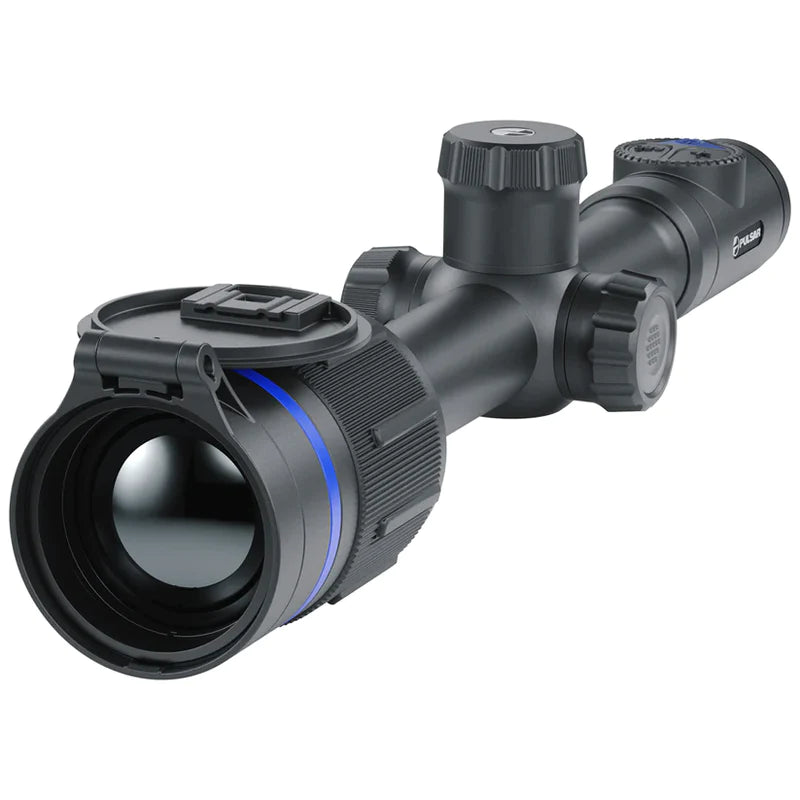

Pulsar Thermion 2 XG50 PL76549
Pulsar Thermion 2 XG50 PL76549
Couldn't load pickup availability
Thermion 2 XG50 thermal imaging riflescopes are designed for use both at night-time and during the day. They provide exceptional image quality even in adverse weather conditions such as fog, smog and rain without being hindered by obstacles like branches, tall grass, dense foliage, or other debris.
Unlike riflescopes based on electrical-to-optical converters, thermal imaging riflescopes do not require an external light source and are resistant to high levels of illumination.
These riflescopes are designed for hunting, target shooting and recreational shooting, observation and orientation.
Specifications
|
Model |
XG50 |
|
SKU |
76549 |
|
Microbolometer |
|
|
Type |
uncooled |
|
Resolution, pixels |
640x480 |
|
Pixel Pitch, µm |
12 |
|
NETD, mK |
< 40 |
|
Frame refresh rate, Hz |
50 |
|
Optical Specifications |
|
|
Lens, mm |
F50 F/1.0 |
|
Magnification, x |
3-24 |
|
Eye relief, mm/inch |
50/1.96 |
|
Field of view (H), °/m@100 |
8.8/15.4 |
|
Diopter adjustment, D |
-3/+5 |
|
Detection distance (Object of "deer" type), m/y |
2300 / 2515 |
|
Aiming Reticle |
|
|
Click value, mm@100 m – when magnifying, x |
15 mm – 3х 7.5 mm – 6х 3.75 mm – 12х 1.86 mm – 24х |
|
Click range (H/V), mm@100 m (H/V) |
3000/3000 |
|
Display |
|
|
Type |
AMOLED |
|
Resolution, pixels |
1024х768 |
|
Operating Features |
|
|
Diameter of the riflescope body to assemble the mounting rings, mm |
30 |
|
Power Supply, V |
3–4.2 |
|
Battery type / Capacity / Rated Output Voltage |
Li-Ion Battery Pack АPS2 / 2000 mAh / DC 3.7 V (removable) or Li-Ion Battery Pack APS3 / 3200 mAh / DC 3.7 V (removable)* Li-Ion Battery Pack APS5 / 4900 mAh / DC 3.7 V (built-in) |
|
External Power Supply |
5 V, 9 V (USB Type-C Power Delivery) |
|
Battery Packs (built-in APS5 and removable APS2) operating time at temp. = 22 °C, hrs** |
10 |
|
Max. recoil power on rifled weapon, Joules |
6000 |
|
Max. recoil power on smoothbore weapon, caliber |
12 |
|
Degree of protection IP code (IEC60529) |
IPX7 |
|
Operating temperature, °С / °F |
-25 – +50 / -13 – +122 |
|
Dimensions with an eyecup, mm/inch |
412x78x83 / 16.22x3.07x3.27 |
|
Weight (without removable battery), kg/oz |
0.9 / 31.75 |
|
Video Recorder |
|
|
Photo / video resolution, pixels |
1024x768 |
|
Video / photo format |
.mp4 / .jpg |
|
Built-in memory |
16 GB |
|
Wi-Fi Channel*** |
|
|
Frequency |
2.4/5 GHz |
|
Standard |
IEEE 802.11 b/g/n/ac |
5 year warranty
