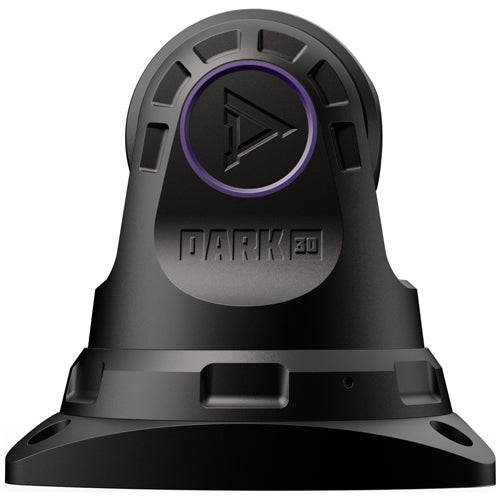

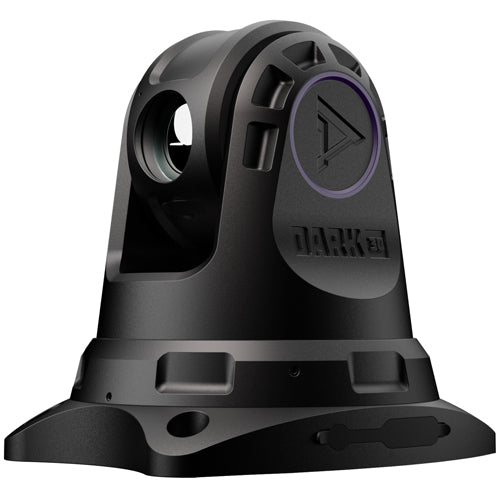

Dark30 Defiance 640 PTZ Vehicle-Mounted Thermal Camera
The Dark 30 Defiance is an innovative PTZ vehicle-mounted thermal camera for mobile scouting. Eliminate the need for handheld observation and overcome the limitations of thermal-blocking windshield and window glass with this roof-mounted camera, providing a full 360° scan from an elevated vantage point.

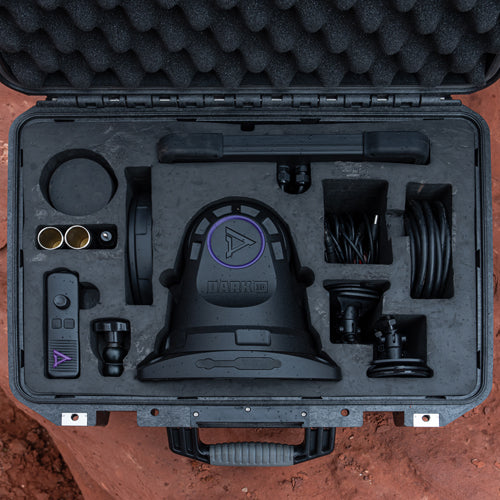

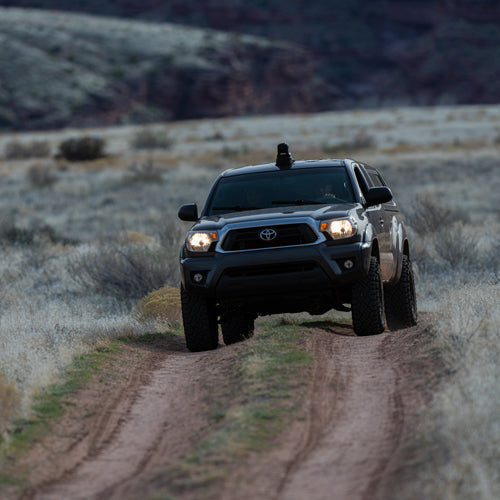

Mounted atop your vehicle, the Defiance offers a broader, clearer view compared to handheld or gun-mounted scanning. Its versatile mounting options—magnets, suction cups, or direct screws—ensure compatibility with any vehicle, with all hardware included. The 360-degree rotation and integrated directional indicator make it effortless to track and pinpoint targets.

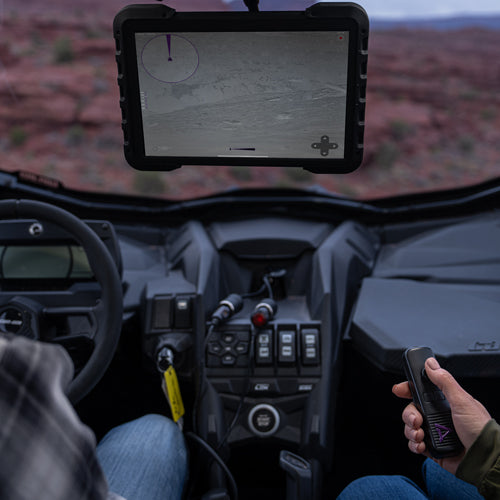

Utilize the wired screen for solo hunts or the Dark 30 app for dual viewing in larger groups. Adjust panning speeds for fast-moving hogs in open fields or slow, meticulous scanning in dense woods, maintaining unparalleled clarity on-the-move. Built to withstand the rigors of the outdoors, the Defiance features a rugged design and a Lynred sensor for exceptional image quality.
The Defiance integrates seamlessly into your hunting setup, powered through your vehicle’s 12v cigarette lighter and controlled via the app. Water-resistant and durable, it is perfect for wildlife monitoring, law enforcement thermal observation, border patrol, solar panel inspection, and hog hunting.
Features
- Detachable/ Interchangeable base to allow for easy removal and use on multiple vehicles
- Variable rotation speeds
- Supports both wired screen and app-based viewing, with simultaneous dual viewing capability
- Multiple mounting options available (suction cup, magnetic, bolts)
- Optional Picture in picture
- Scan mode (continues 360 rotation)
- Directional indication
- Dual Control: Use the App or Remote
- Recording with sound
- Rugged Aluminum Build
- Adjustable Brightness Display
- Screen power off to help with night blindness
- Sleep Mode
- 8X digital zoom
- Wireless Remote
Specifications
Device Technology | Thermal Imaging |
Sensor Resolution | 640x480 pixels |
Frame Rate | 60 fps |
Pixel Size | 17 micron |
Spectral Range | 8 - 14μm |
Detector NEDT | <30 mK |
Color Palettes | 5 |
Detection Range | 1250 yds |
Water Resistance | IP66 |
Pan Angle | Continuous 360° |
Tilt Angle | Straight downward to 45° above horizontal |
Body Material | Aluminum |
Width | 6.65” |
Depth | 7.68” |
Height | 7.8” |
Weight | 111 oz |
Operating Temperature Range | -4°F to 122°F |
Ports | 1 TF card slot, 2 HDMI ports, 2 DC ports |
Display Type | LCD |
Screen Size | 10.1” |
Lens Material | Germanium |
F/# Number | 1 |
Lens Diameter | 32 mm |
Focal Length | 30 mm |
Digital Zoom | 1-8x |
Magnification | n/a |
Field of View Horizontal | 20° |
Field of View Vertical | 15° |
Field of View Diagonal | 25° |
Power Supply | 12VDC |
Camera Amperage @ 12VDC | 750mA |
Display Amperage @ 12VDC | 320mA |
Adaptor Connection (Camera & Display) | 1200mA |
