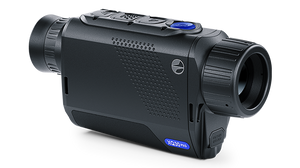

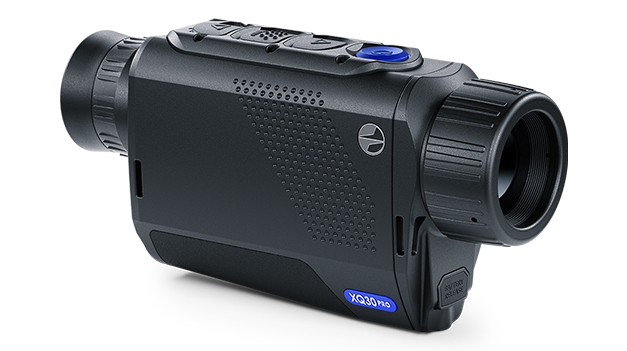

Pulsar Axion XQ30 PRO Monocular
Axion XQ Pro thermal imaging monocular can be used for both day and night-time activities, even under challenging weather conditions (such as fog, smog, and rain) and in areas with obstacles like branches, tall grass, and dense shrubs. Unlike night-vision devices that rely on electron-optical converters, thermal vision monoculars do not need an external light source and are not affected by bright light. They are perfect for night-time hunting, observation, terrain orientation, and rescue operations.
Features
- Highly sensitive thermal imaging sensor
- Wide FOV for easy scanning
- Compact pocket-sized design
- Rugged magnesium alloy housing
- Photo and video recording
- Sensitivity amplification levels
- A selection of 8 color palettes
- Stream Vison 2 app support for iOS and Android
- Frost-resistant AMOLED display
- Long-life removable battery
- Fast charting with USB Type-C
- IPX7 Waterproof rated
- Picture-in-picture Function
Specifications
|
Model |
XQ30 Pro |
|
|
SKU |
77506 |
|
|
Microbolometer |
||
|
Type |
uncooled |
|
|
Resolution, Pixels |
384х288 |
|
|
Pixel Pitch, µm |
17 |
|
|
NETD, mK |
< 25 |
|
|
Frame Rate, Hz |
50 |
|
|
Optical Characteristics |
||
|
Optical Magnification, x |
2 |
|
|
Smooth Digital Zoom |
2-8 |
|
|
Digital Zoom, x |
x1, x2, x4 |
|
|
Relative Aperture, D/f' |
1.2 |
|
|
Minimum Observation Distance, m/y |
3/3.28 |
|
|
Exit Pupil Diameter, mm |
4 |
|
|
Angular Field of View (Horizontal x Vertical), degree |
13.3x10 |
|
|
Linear Field of View (Horizontal x Vertical), m at 100 m |
23.3x17.5 |
|
|
Eyepiece Focus Range, Diopter |
+4 / -5 |
|
|
Detection Distance for Deer-Sized Objects, m/y |
1050/1148 |
|
|
Display |
||
|
Type |
AMOLED |
|
|
Resolution, Pixels |
640x400 |
|
|
Operational Characteristics |
||
|
Power Supply, V |
3 - 4.2 |
|
|
Battery Type/Capacity/Nominal Output Voltage |
APS 3 Li-ion Battery Pack / 3200 mAh / DC 3.7 V |
|
|
External Power Supply |
5 V (USB Type-C) |
|
|
Battery Run Time at t=22°C, hours* |
7.5 |
|
|
Degree of Protection, IP Code (IEC60529) |
IPX7 |
|
|
Operating Temperature Range, °C / °F |
-25 … +40 / -13 – +104 |
|
|
Dimensions, mm/inch |
144x41x69 / 5.67x1.6x2.72 |
|
|
Weight (without battery), kg/oz |
0.31/10.93 |
|
|
Video Recorder |
||
|
Photo/Video Resolution, Pixels |
528х400 |
|
|
Video/Photo Format |
.mp4 / .jpg |
|
|
Built-in Memory |
16 GB |
|
|
Frequency |
2.4/5 GHz |
|
|
Standard |
IEEE 802.11 b/g/n/ac |
|
