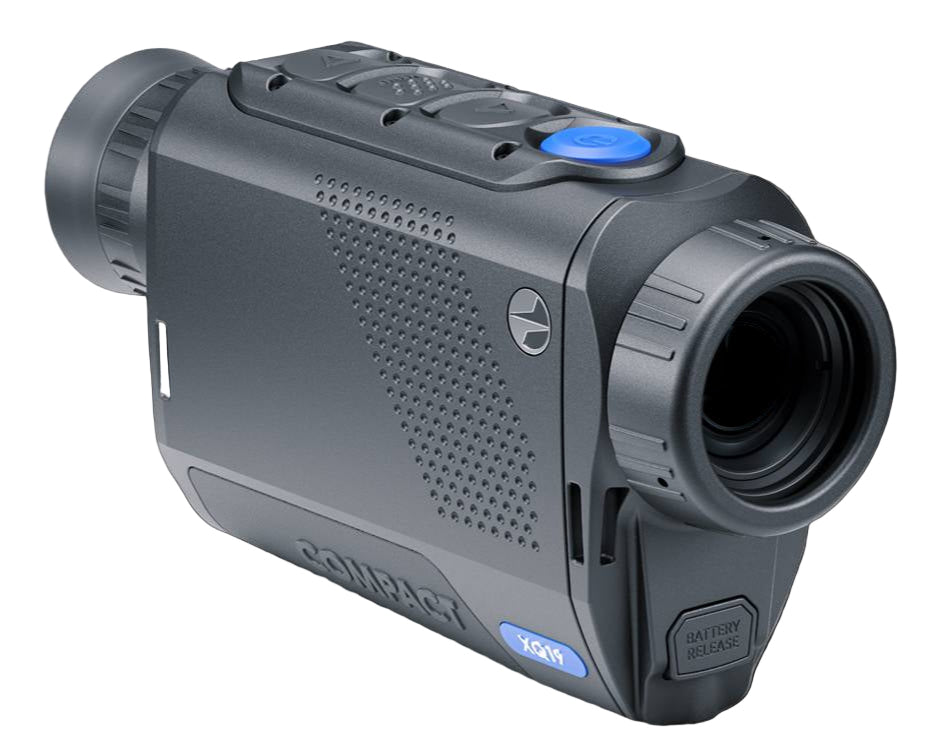

Pulsar Axion XQ19 Compact Thermal Imaging Monocular - 77517
- Regular price
- $999.97
- Sale price
- $999.97
- Regular price
-
Shipping calculated at checkout.
Pulsar Axion XQ19 Thermal Imaging Monocular
The Pulsar Axion XQ19 Compact is an entry-level thermal monocular offering reliable thermal performance and advanced features at an unbeatable price point. Designed for compactness and portability, it provides superior value for hunters.
Features
- Widest field of view in the market – 19.5° – allows you to quickly find and track animals
- Lightweight and compact – weighing just around 300 g – it is easy to carry all day without adding bulk to your setup
- High thermal sensitivity – sNETD <18 mK – ensures reliable spotting of animals even in tough weather
- Long battery life – up to 8 hours – allows you to complete long hunting sessions without recharging
Specifications
| Overview | |
| Sensor | 17 µm, 384×288 |
| Objective lens | F19 / 1.0 |
| Magnification | 1.5 – 6× (4× digital zoom) |
| Field of view (H×V), degrees | 19.5° × 12.3° |
| Field of view (H×V), m @ 100 m | 34.7 × 21.5 m |
| Diopter adjustment | +4 / −5 D |
| Detection range | 750 m |
| Sensor | |
| Type | Uncooled |
| Resolution | 384 × 288 px |
| Pixel pitch | 17 µm |
| Sensor NETD | < 25 mK |
| System NETD | < 18 mK |
| Frame rate | 50 Hz |
| Optics | |
| Objective lens | F19 / 1.0 |
| Magnification | 1.5 – 6× (4× digital zoom) |
| Field of view (H×V), degrees | 19.5° × 12.3° |
| Field of view (H×V), m @ 100 m | 34.7 × 21.5 m |
| Diopter adjustment | +4 / −5 D |
| Eye relief | 14 mm |
| Display | |
| Type | AMOLED |
| Resolution | 640 × 400 px |
| Range Performance | |
| Detection range | 750 m |
| Video Recorder | |
| Video / photo resolution | 960 × 600 px |
| Video / photo format | .mp4 / .jpg |
| Built-in memory | 64 GB |
| Wi-Fi | |
| Wireless protocol | Wi-Fi |
| Wireless standard | IEEE 802.11 b/g/n/ac |
| Environmental | |
| Degree of protection | IPX7 (waterproof) |
| Operating temperature | −25 to +40 °C |
| Connections & Compatibility | |
| Mount type | 1/4" socket |
| Supported application | Stream Vision 2 |
| Power | |
| Output voltage | 3.0 – 4.2 V |
| Battery type | APS 3 Li-ion Battery Pack |
| Capacity | 3200 mAh |
| Operating time (at 22 °C) | Up to 8 h |
| External power supply | 5 V (USB Type-C) |
| Weight & Size | |
| Body material | Aluminum alloy |
| Dimensions (L×W×H) | 134.5 × 38 × 71 mm |
| Weight | 0.25 kg (without battery) |
| SKU | |
| Item number | 77517 |
