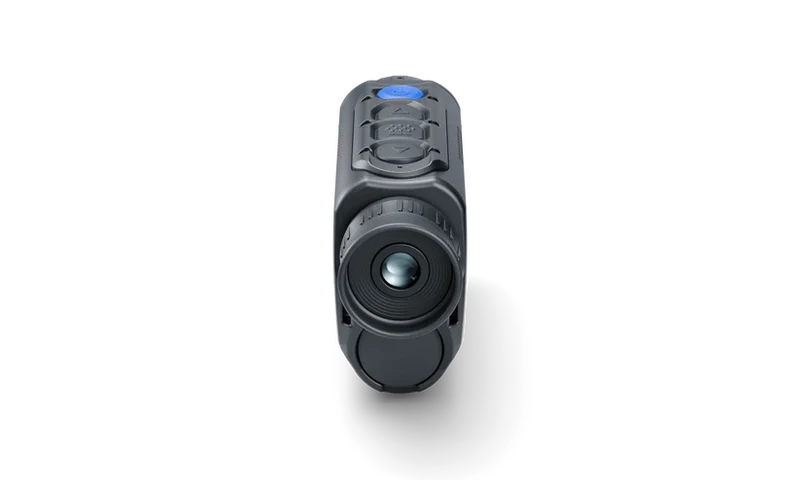

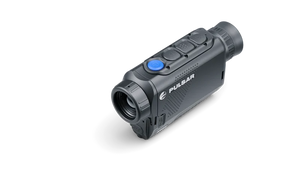

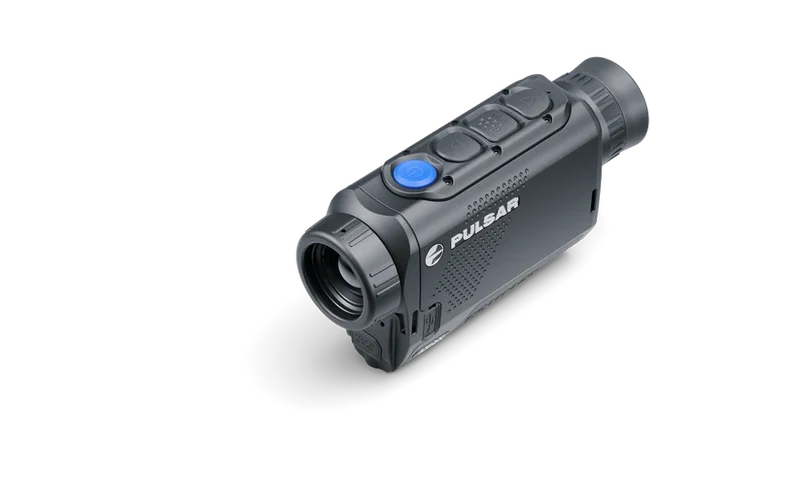

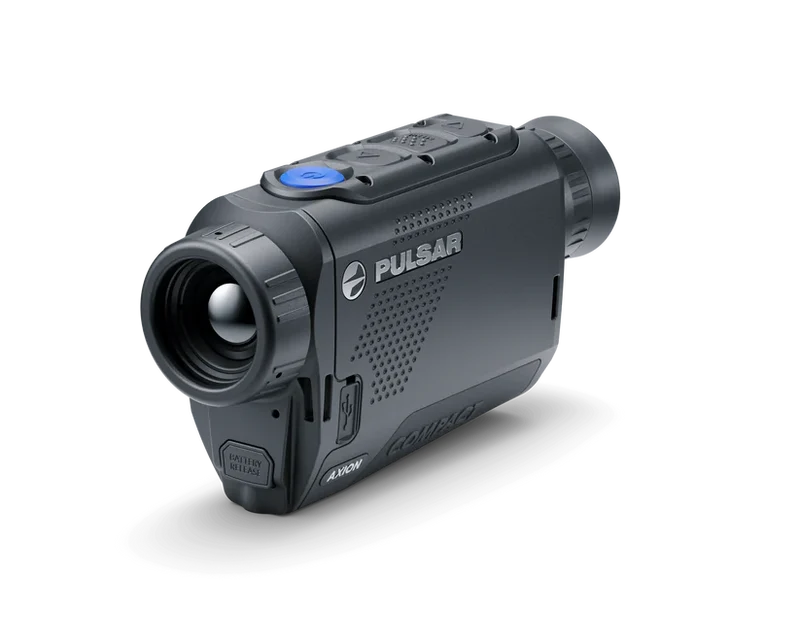

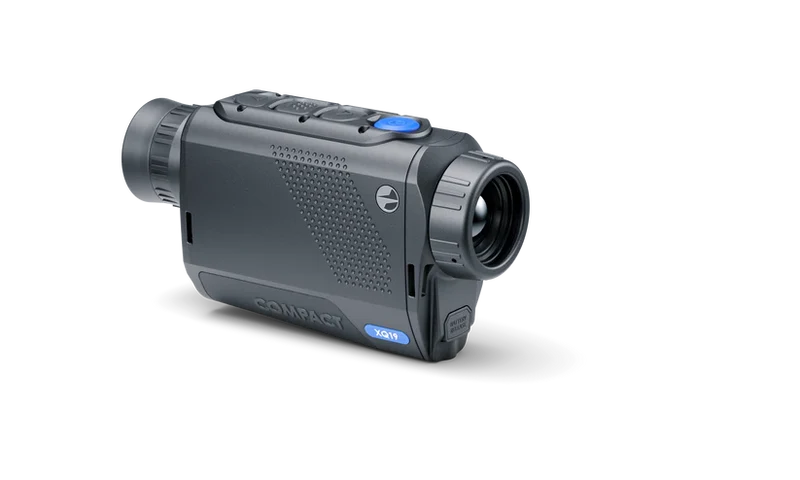

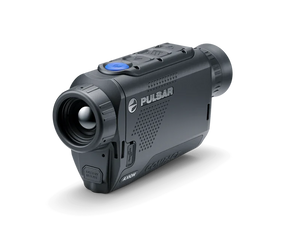

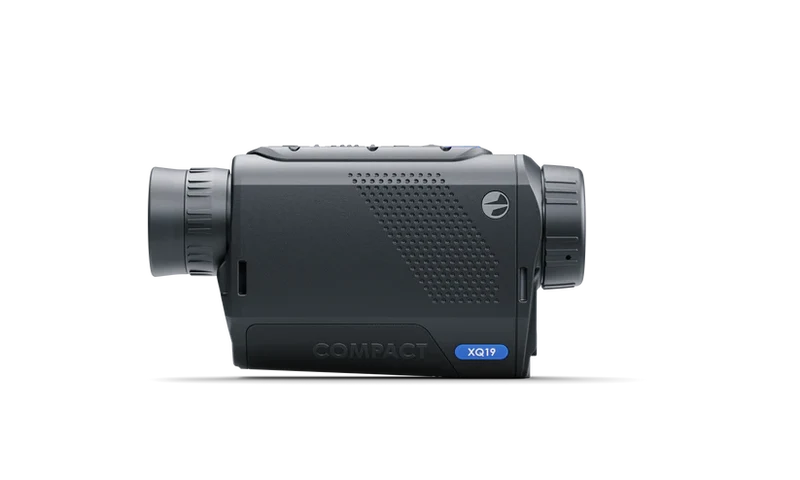

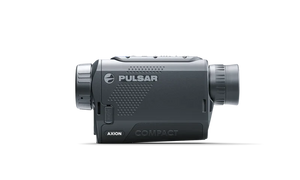

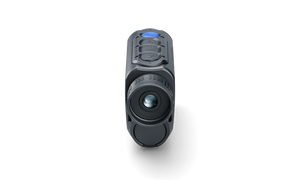

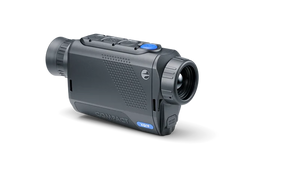

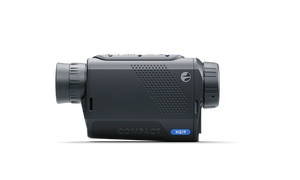

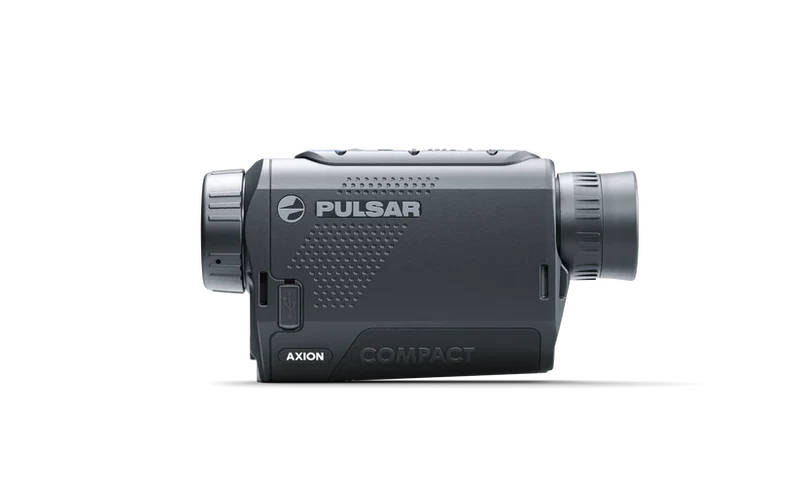

Pulsar Axion XQ19 Compact Thermal Monocular

The Axion is designed for constant, often hard use. Its magnesium alloy housing is light and strong at the same time. The housing reliably protects the internal components of a thermal imaging device from shocks, drops, moisture, heat or cold. At the same time, its metal housing effectively removes the heat from electronics, minimizes image noise and increases consistency of the device operation during long-term observation.

Specifications

Main

• Sensor: 384x288 pix. @ 17μm (sNETD <18 mK)
• Objective lens: F19/1.0
• Magnification: 1.5-6x
• Field of view (HxV): 19.5° degrees
• Detection range: 820yds

Sensor

• Type: uncooled
• Resolution: 384x288 pixels
• Pixel pitch: µm17
• NETD: mK<18
• Frame rate: Hz50000
• sNETD: mK<25

Optics

• Objective lens: F19/1.0
• Magnification: 1.5-6x
• Field of view: 19.5° degrees
• Eye relief: 14mm

Display

• Type: AMOLED
• Resolution: 640x400 pixels

Range Performance

• Detection range: 820yds

Video Recorder

• Video / photo resolution: 960x600 pixel
• Video / photo format: .mp4 / .jpg
• Built-in memory: GB64

Wi-Fi

• Wireless Protocol: Wi-Fi
• Wireless Standard: IEEE 802.11 b/g/n/ac
• Frequency: GHz2.4 / 5

Environmental Characteristics

• Degree of protection: IP code (IEC60529)IPХ7(waterproof)
• Operating temperature range: °F-13...+104

Connections and Compatibilities

• Mount: type 1/4"
• Supported Application: Stream Vision 2

Power Supply

• Output voltage: V3.0 – 4.2
• Battery type: APS3 External
• Capacity: mAh3200
• Operating time on battery pack (at t=22°C): h *8
• External power supply: V5 USB-C

Weight & Size

• Body material: Magnesium alloy
• Dimensions: 5.3x1.5x2.8in
• Weight: 8.8oz (with battery)
