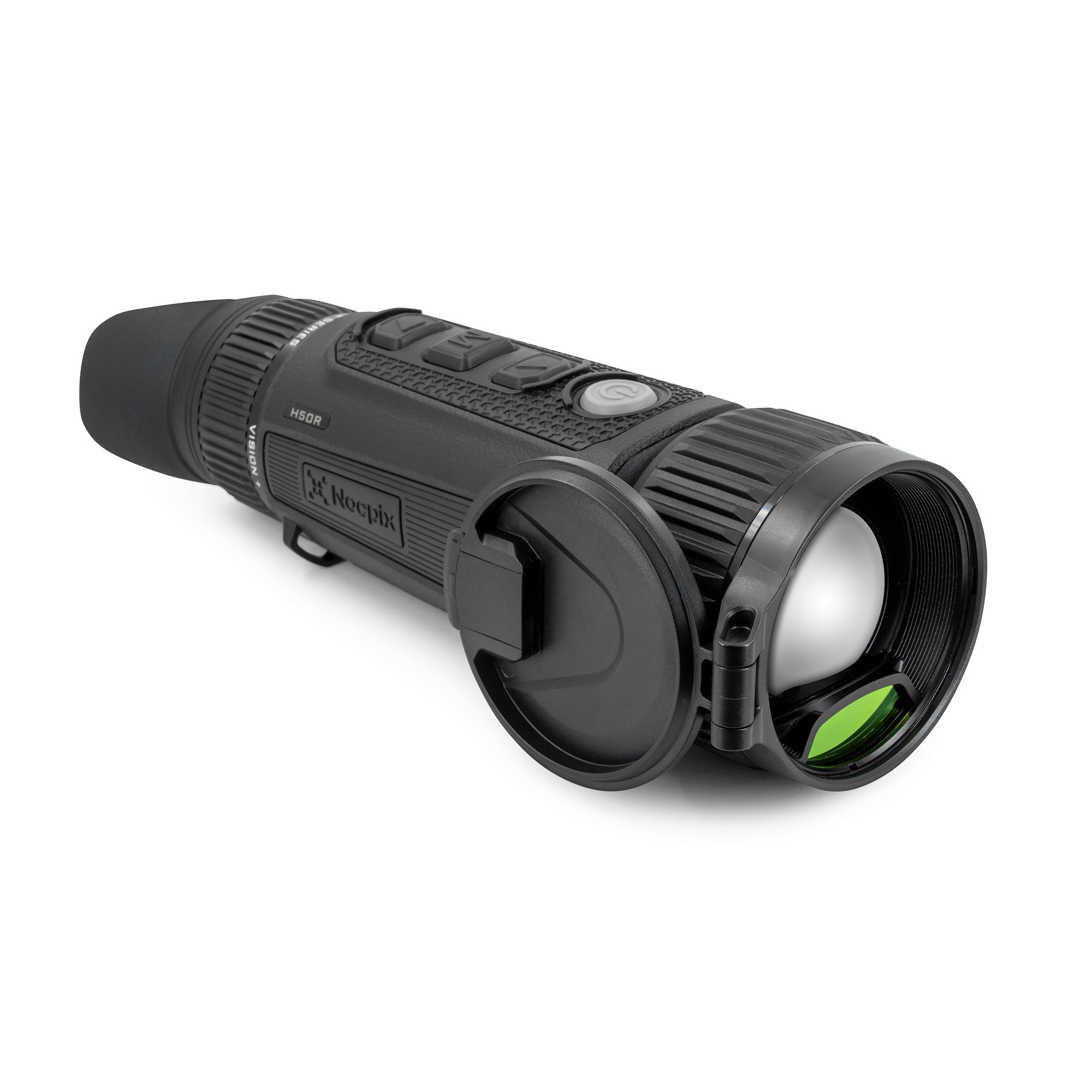

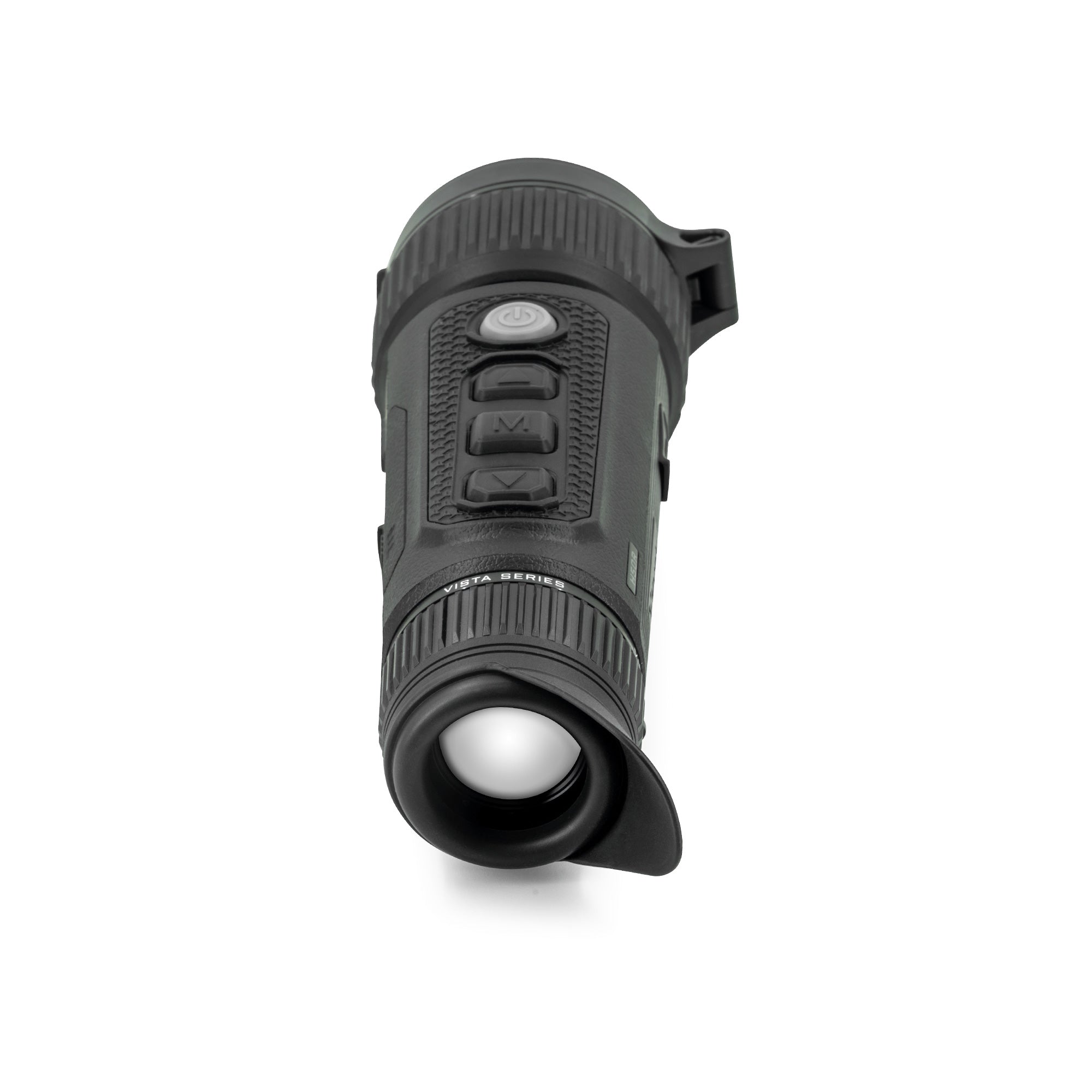

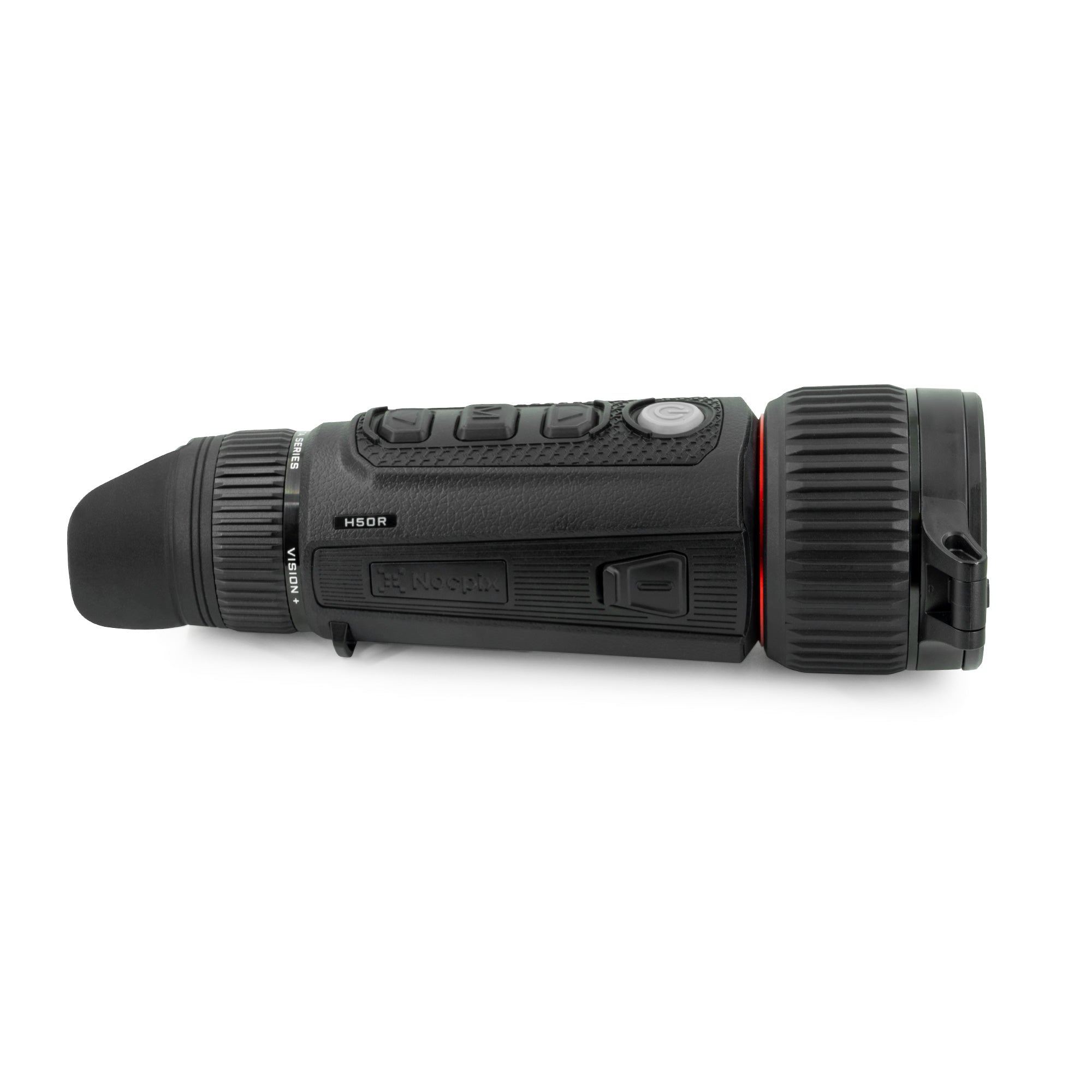

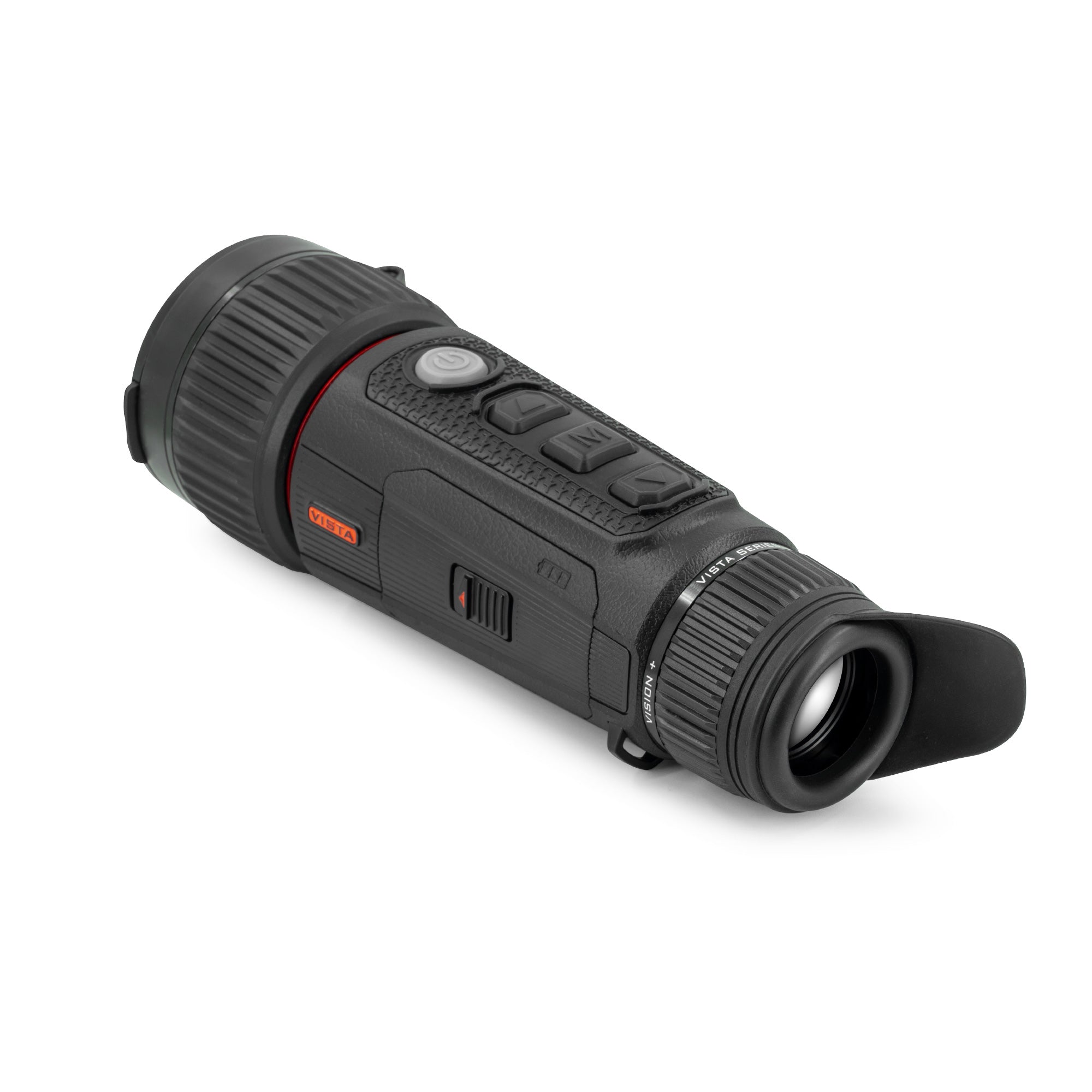

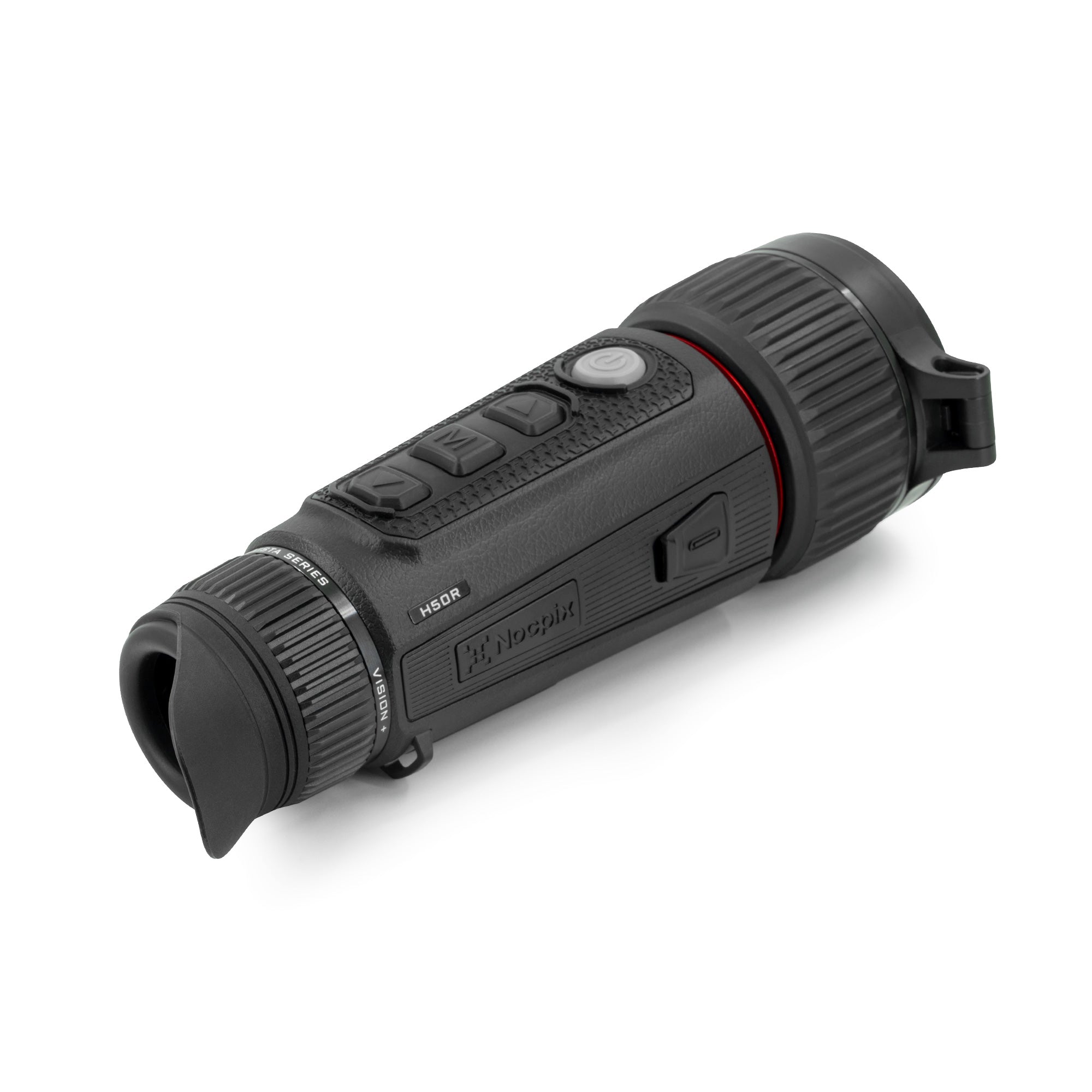

Nocpix VISTA H50R Rangefinding LRF Thermal Monocular (640)

Nocpix VISTA H50R Rangefinding LRF Thermal Monocular (640)

Regular price $3,499.00 USD
Regular price Sale price $3,499.00 USD
SALE! Sold Out: Contact Us
Shipping calculated at checkout.

Nocpix VISTA H50R RangefindingThermal Monocular (640x512)

Introducing the new Nocpix VISTA H50R distributed and supported by iRay USA.

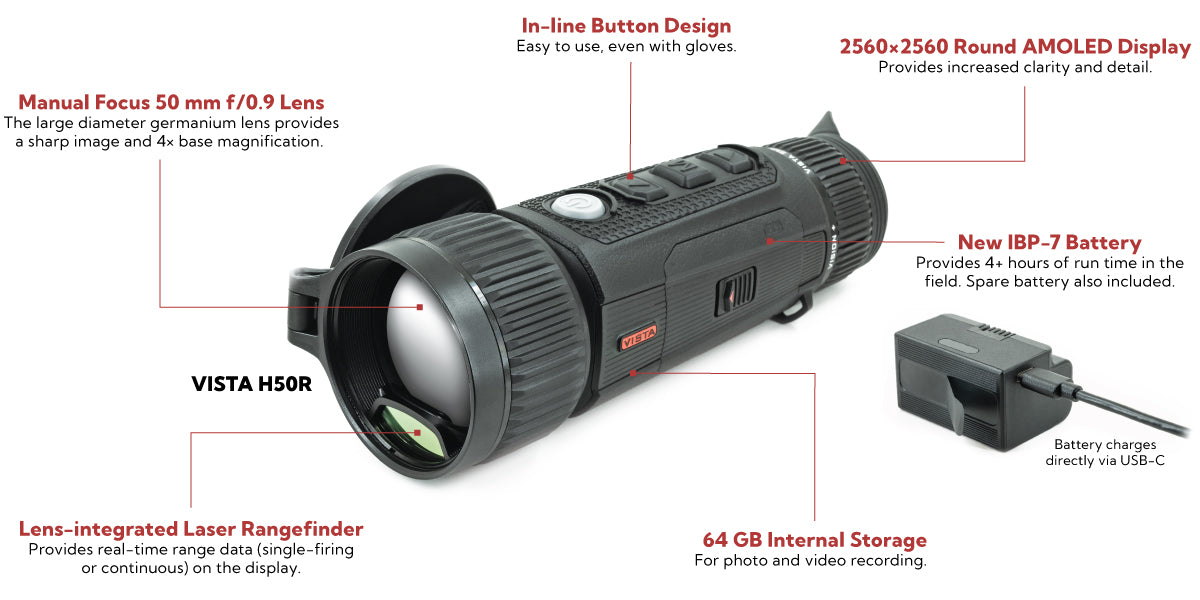

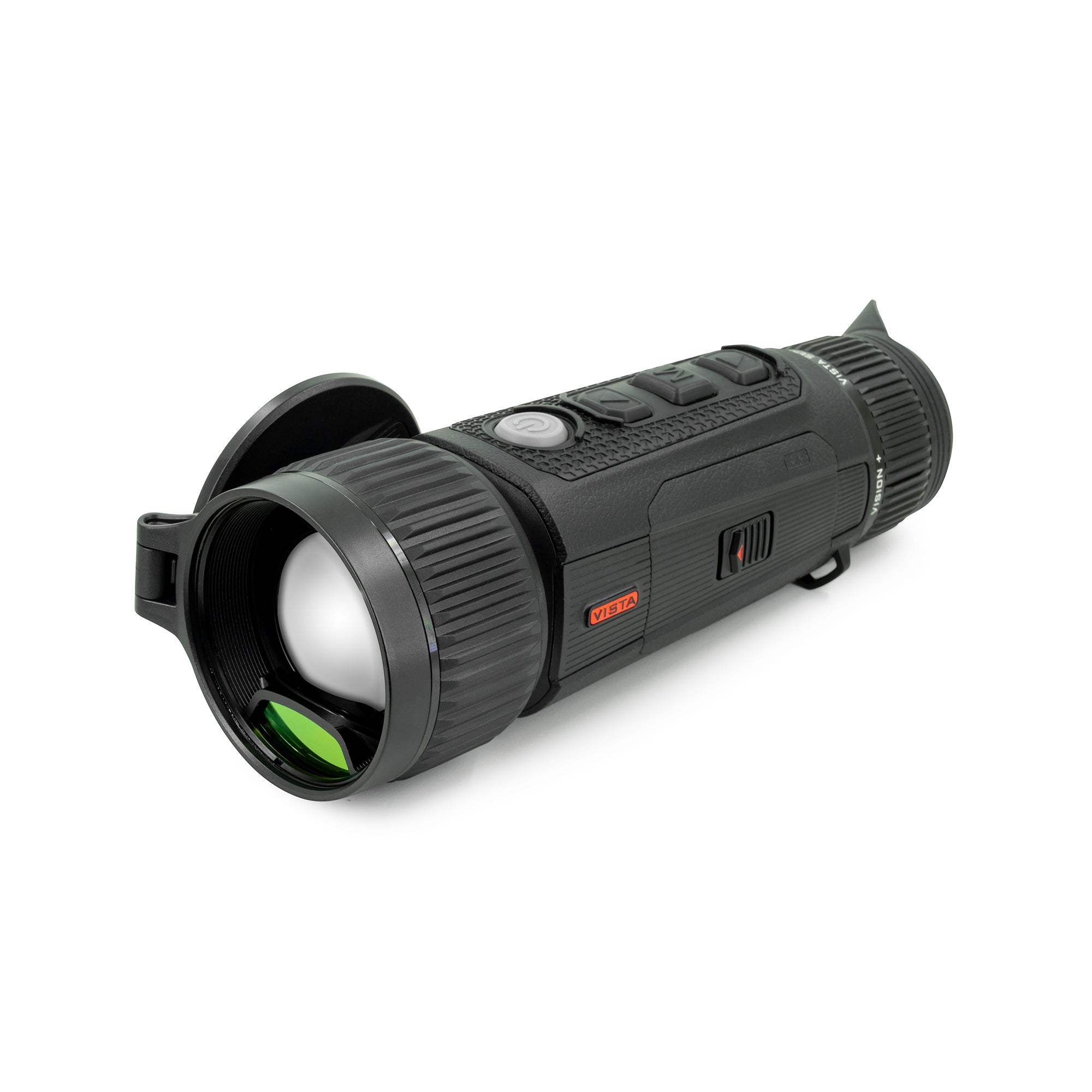

The all-new VISTA Series handheld thermal monocular features an advanced 35mm or 50 mm f/0.9 germanium lens, offering exceptional clarity and detail. Equipped with a high-resolution 640×512 thermal sensor and an impressive ≤15mK NETD sensitivity rating, the lightweight and ergonomic monocular delivers crystalclear images with remarkable detail and contrast, making it perfect for wildlife observation and security applications. The integrated laser rangefinder enhances its functionality, boasting a maximum detection range of 1,200 yards with a remarkable sensitivity of ±1 yard. This ensures accurate distance measurements, crucial for effective scouting and scanning. Its ergonomic design ensures comfortable handling, while the intuitive interface allows for seamless operation. Perfect for long range observation, the VISTA Series now features the new IBP-7 battery with direct USB-C charging. Whether you’re scanning for coyotes or conducting night-time surveillance, this is your go-to tool for unparalleled thermal imaging performance.

Features

  • 12 μm high-performance thermal detector
  •  ≤15 mK sensitivity

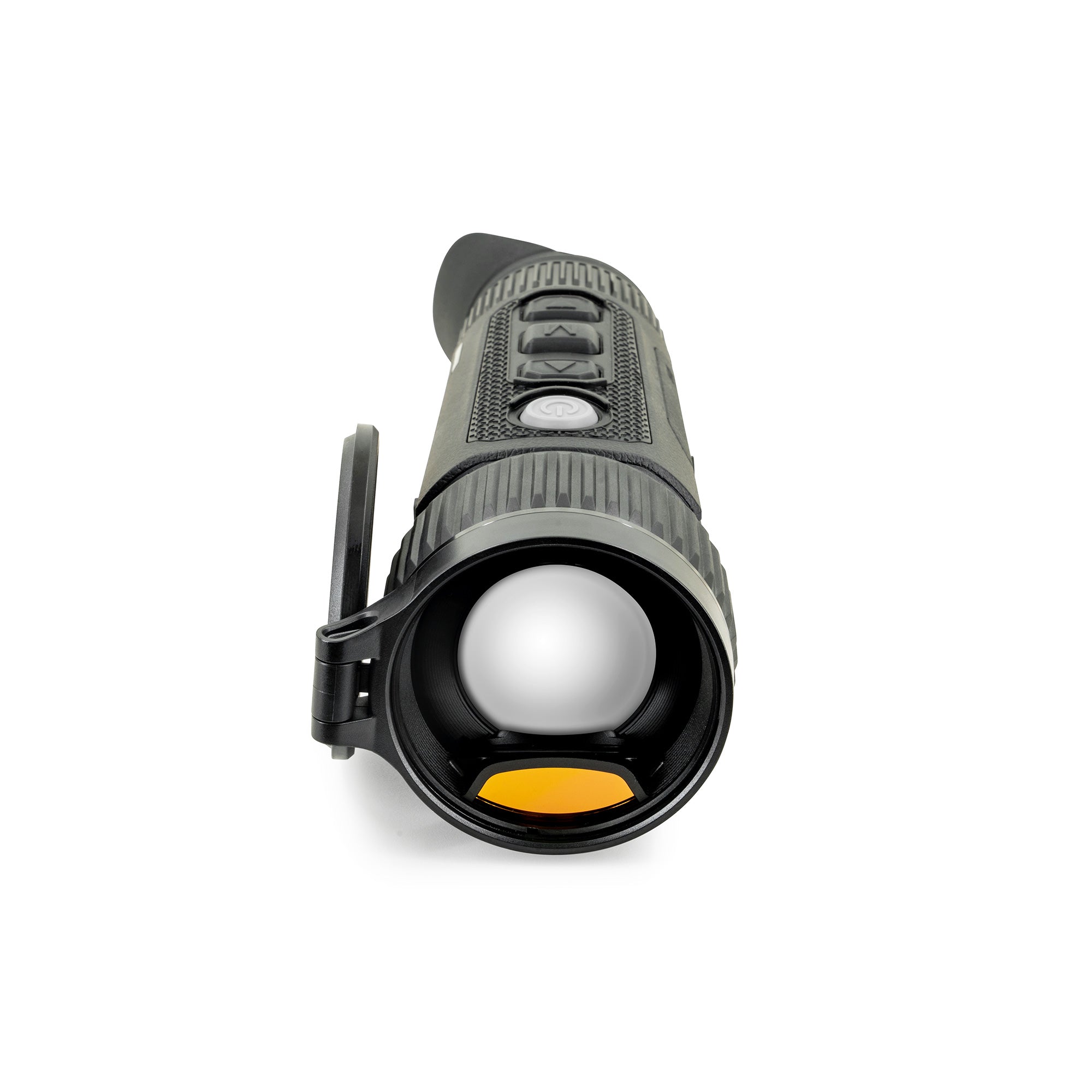

  • 1200-yard laser rangefinder integrated into the objective lens
  • Digital zoom from 1.0×–8.0×
  • Polymer housing with rubber overmold

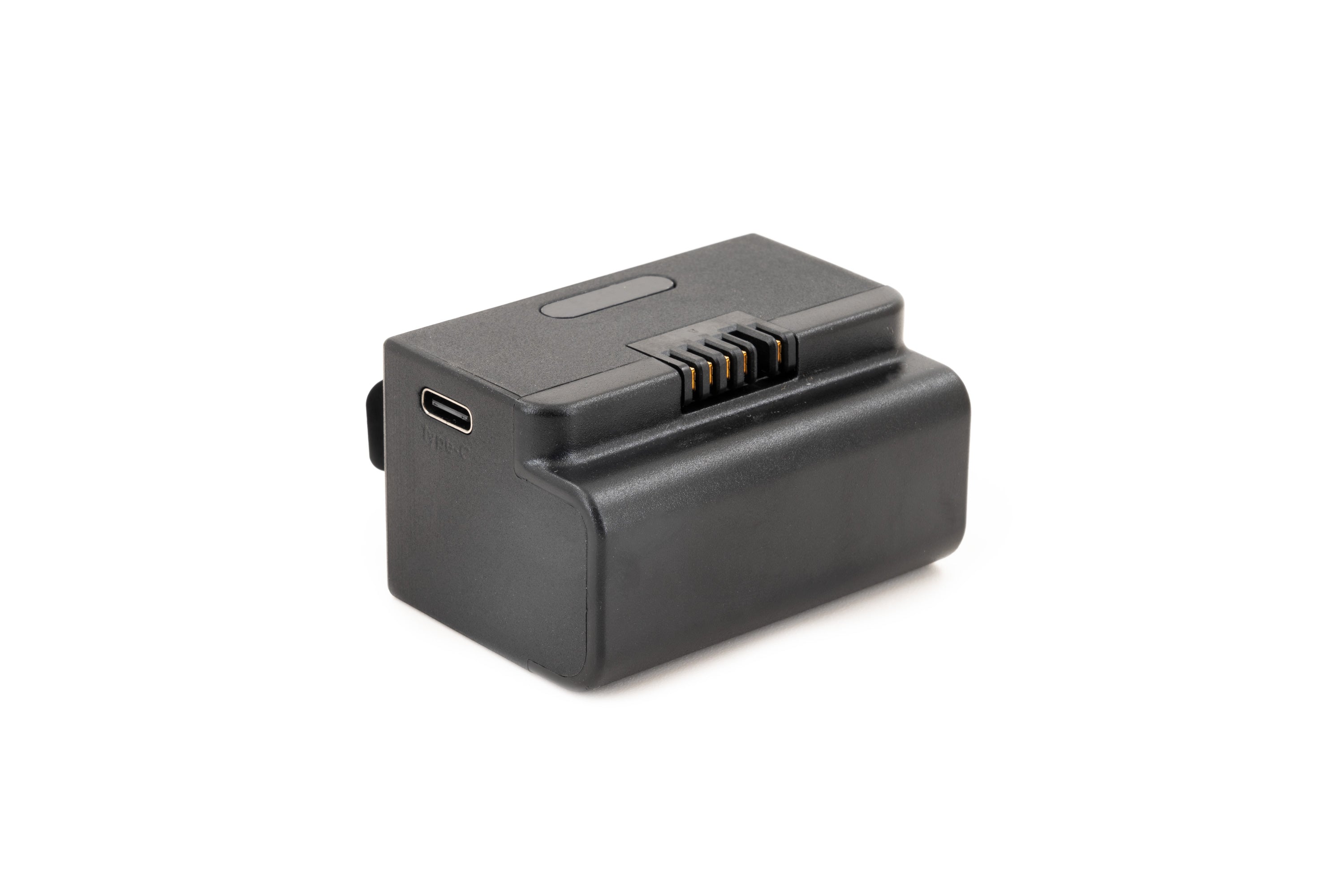

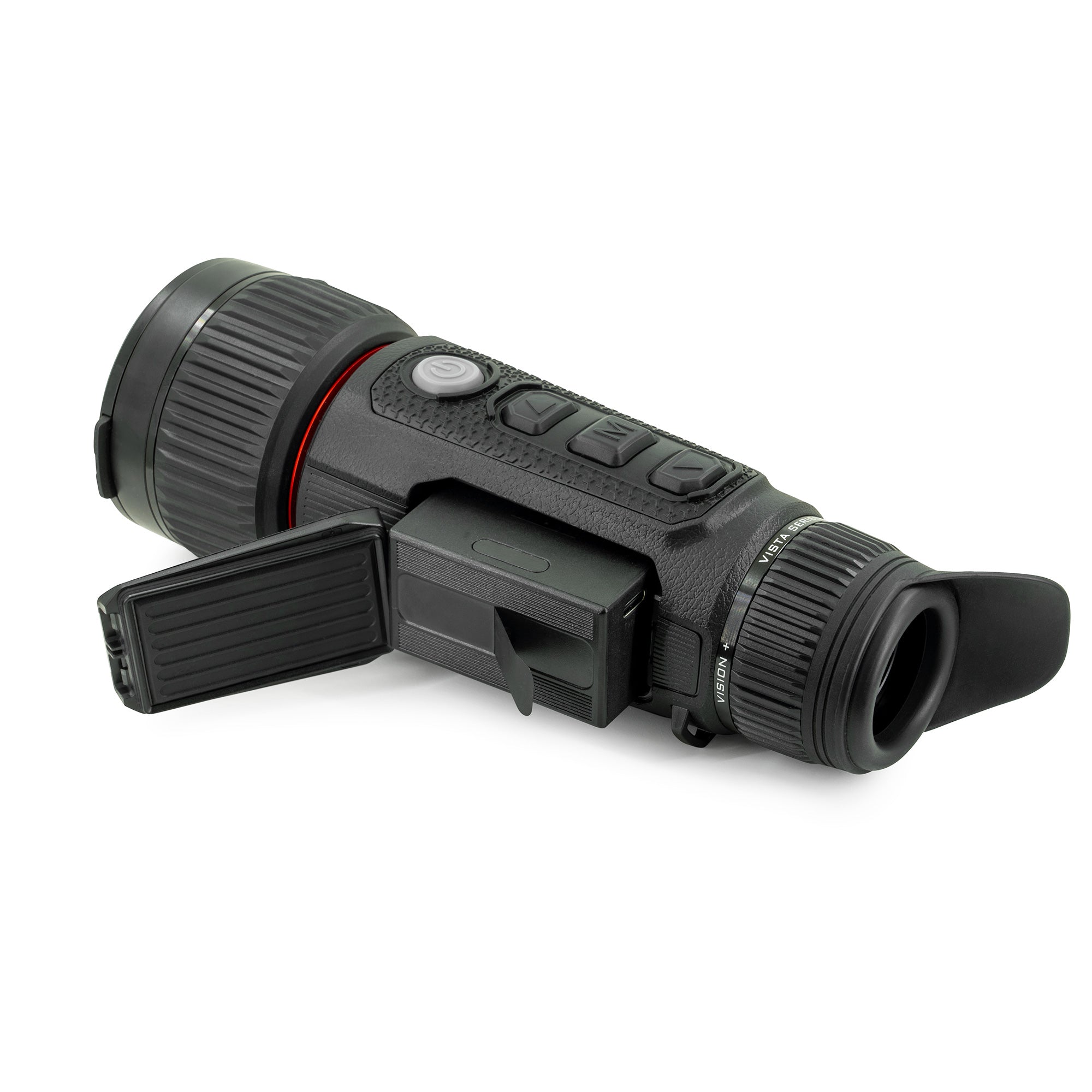

  • Two quick-change rechargeable IBP-7 battery packs
  • Maximum detection range 2400 yards
  • 2560×2560 AMOLED display
  • High frame frequency: 60Hz
  • Built-in 64 GB storage to support image capture and
    video recording
  • Built-in Wi-Fi module
  • Mobile device App compatible
  • Picture in Picture (PIP)
  • User-friendly interface
  • Ultra-clear mode for advanced image detail
  • Warm and cool image-hue options
  • Pixel calibration function

Specifications

Resolution 640x512
Pixel Size 12 μm
Frame Rate 60hz
Sensor Sensitivity  ≤15 mK
Image Processing Reality+
Core Nocpix 640
Objective Lens 50 mm f/0.9
Magnification 4x
Digital Zoom 8x
Field of View 8.8"x6.6"
Detection Range 2400 yards
Display Type 1.03-inch Large-format AMOLED
Display Resolution 2560x2560
Color Palettes White Hot, Black Hot, Red Hot, Color, Crimson, Viridian, Violet
P.I.P. Yes
Rangefinder Integrated 1,200 yard LRF
Eye Relief 25mm
Diopter Range -4 to +6
Onboard Recoding Video and Image
Onboard Storage 64GB
Wireless Connectivity Image and Video via App
Power/Data Connector USB-C
Power Supply USB-C External, IBP-7 Li-ion Batteries ×2 (5+ Hours Each)
Start up time <10 seconds, instant from standby
Size 7.83” × 2.72” × 3.23”
Weight 22.93 OZ
Warranty 5 years
Housing Material Polymer with Rubber Over mold
Ingress Protection IP67
Operation Temperature -4°F~122°F
