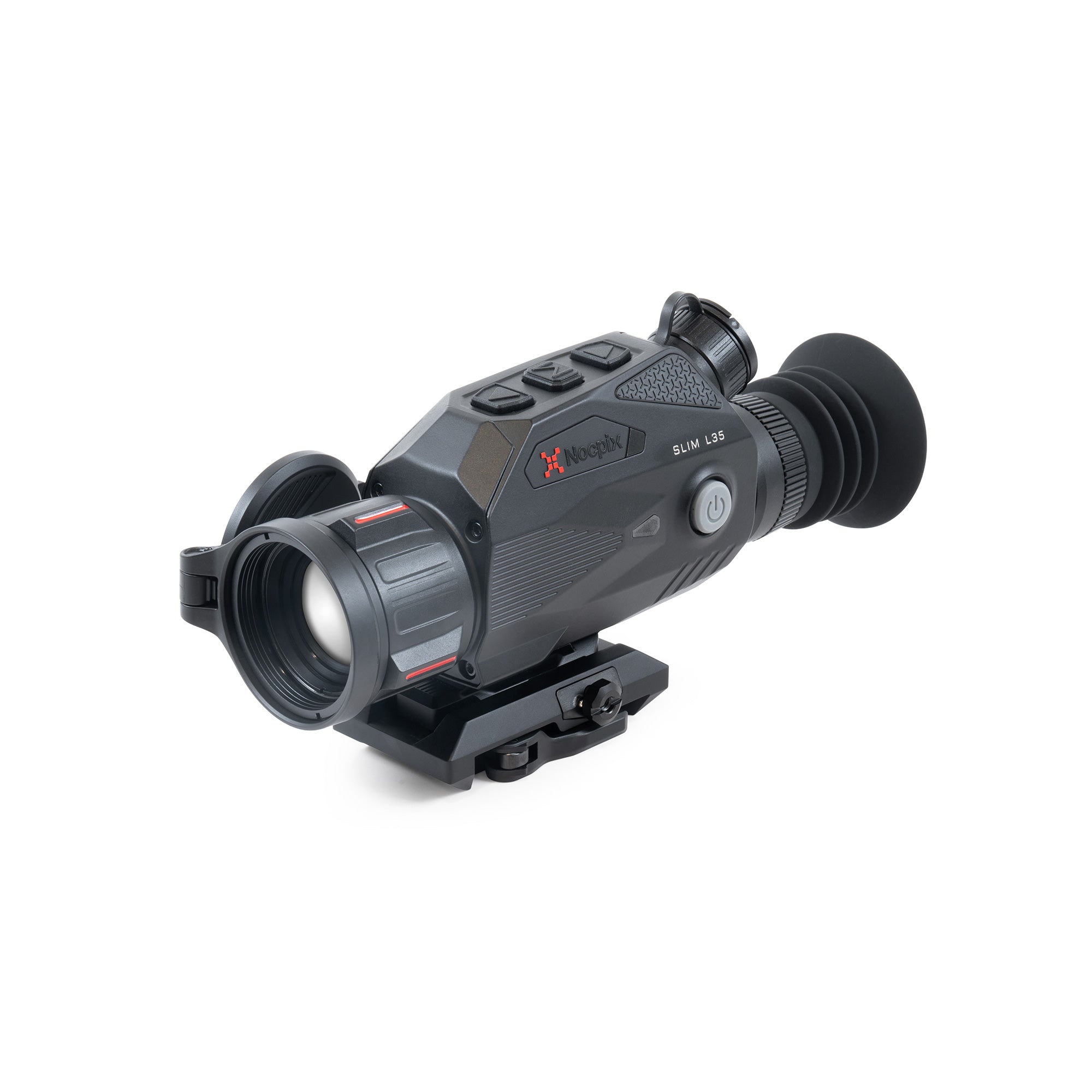

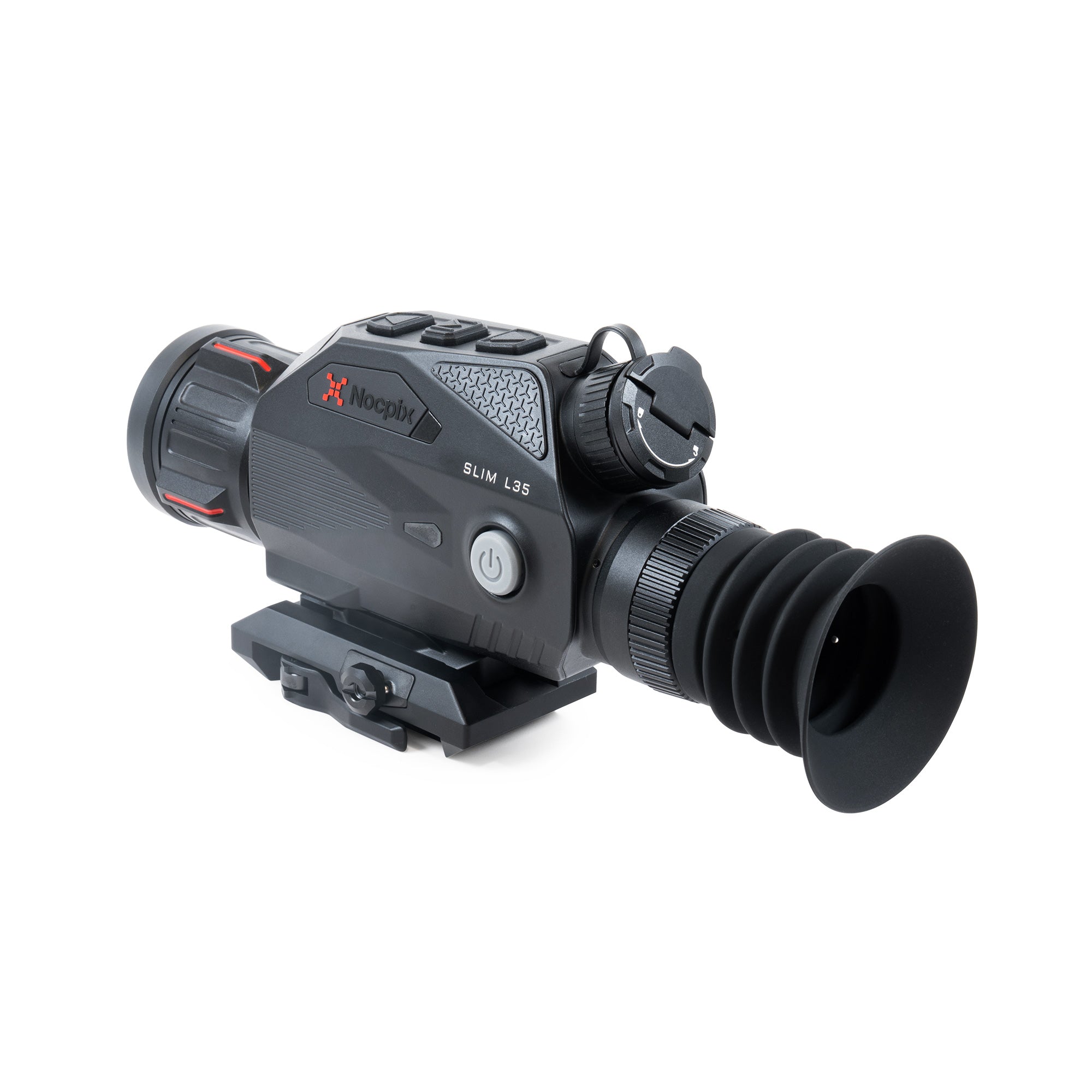

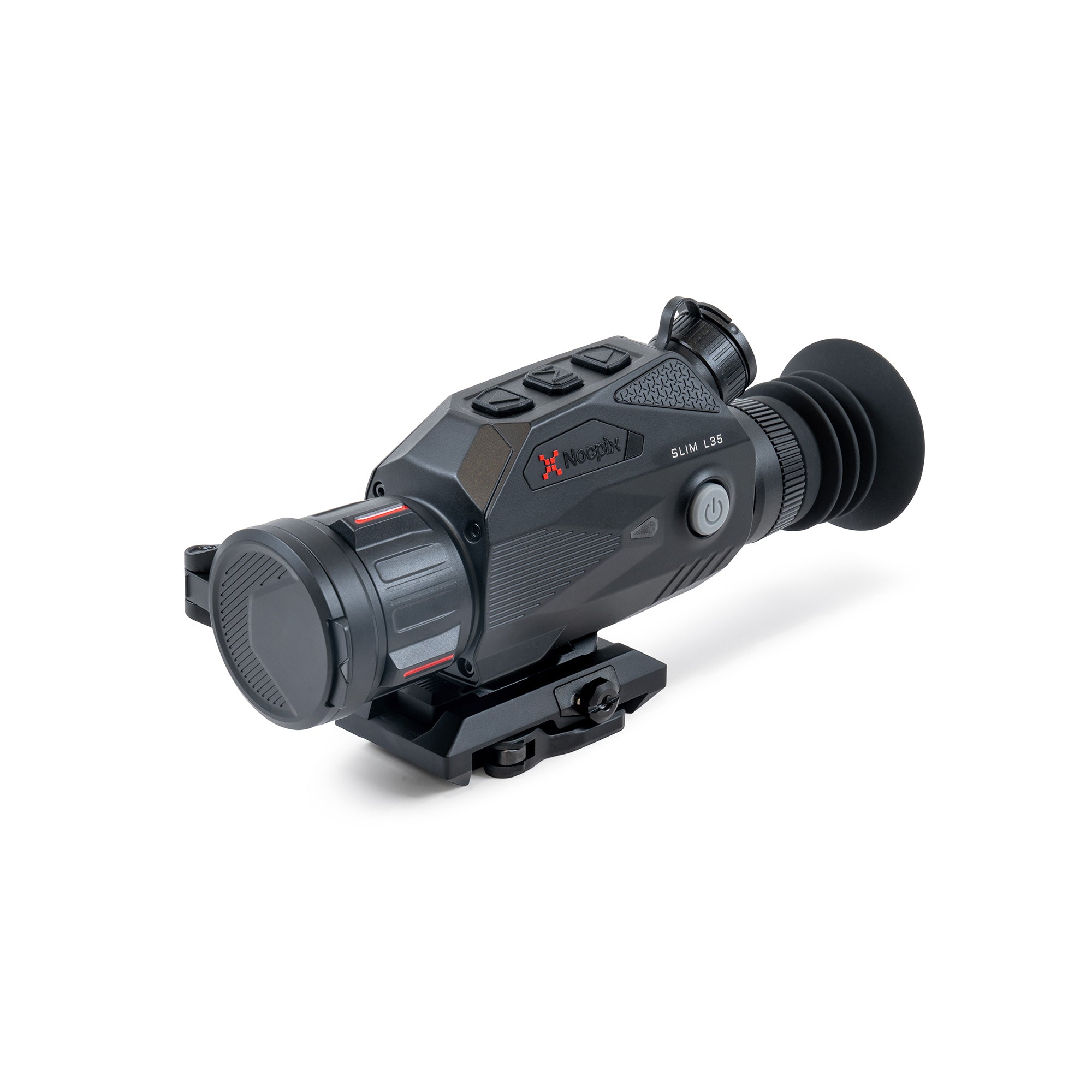

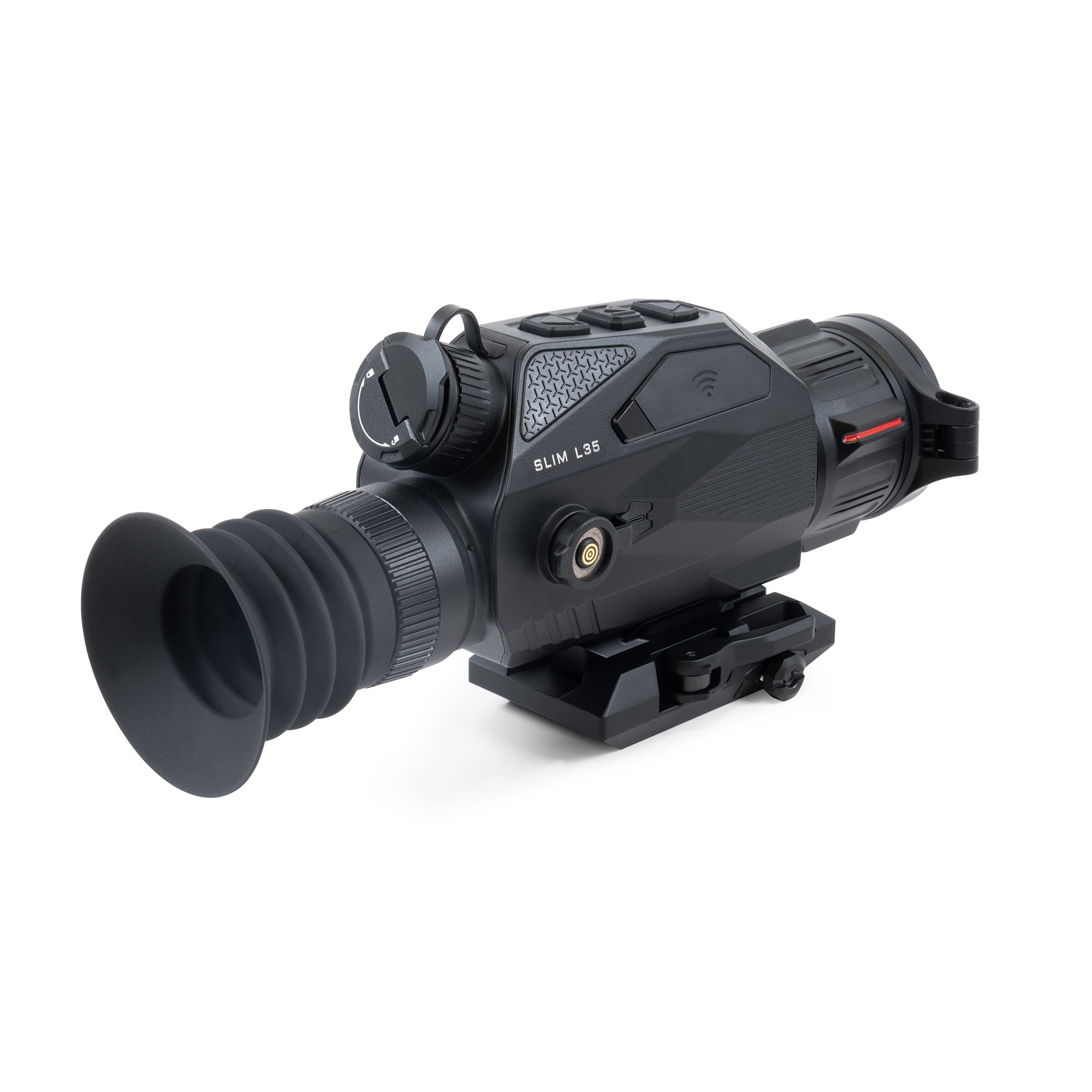

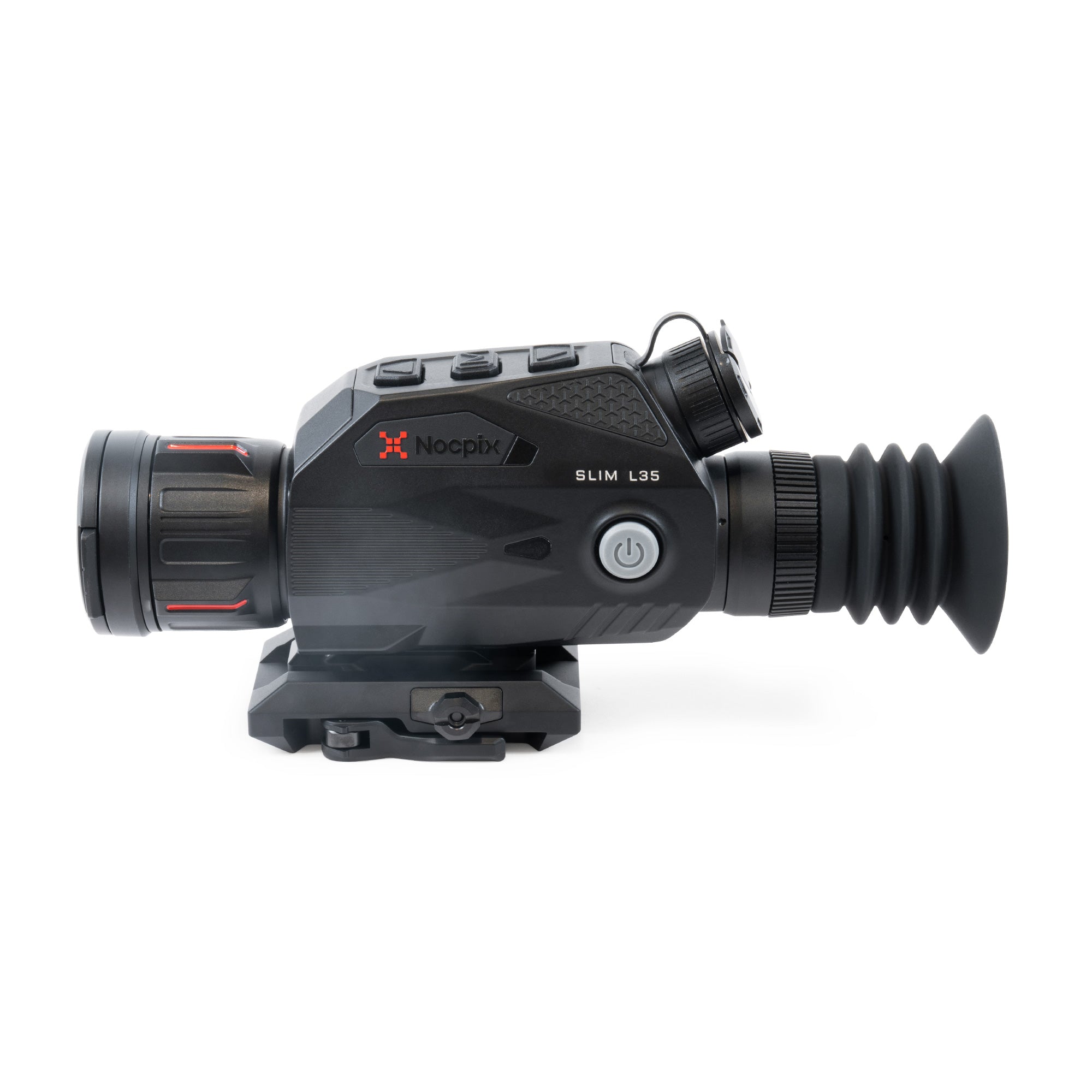

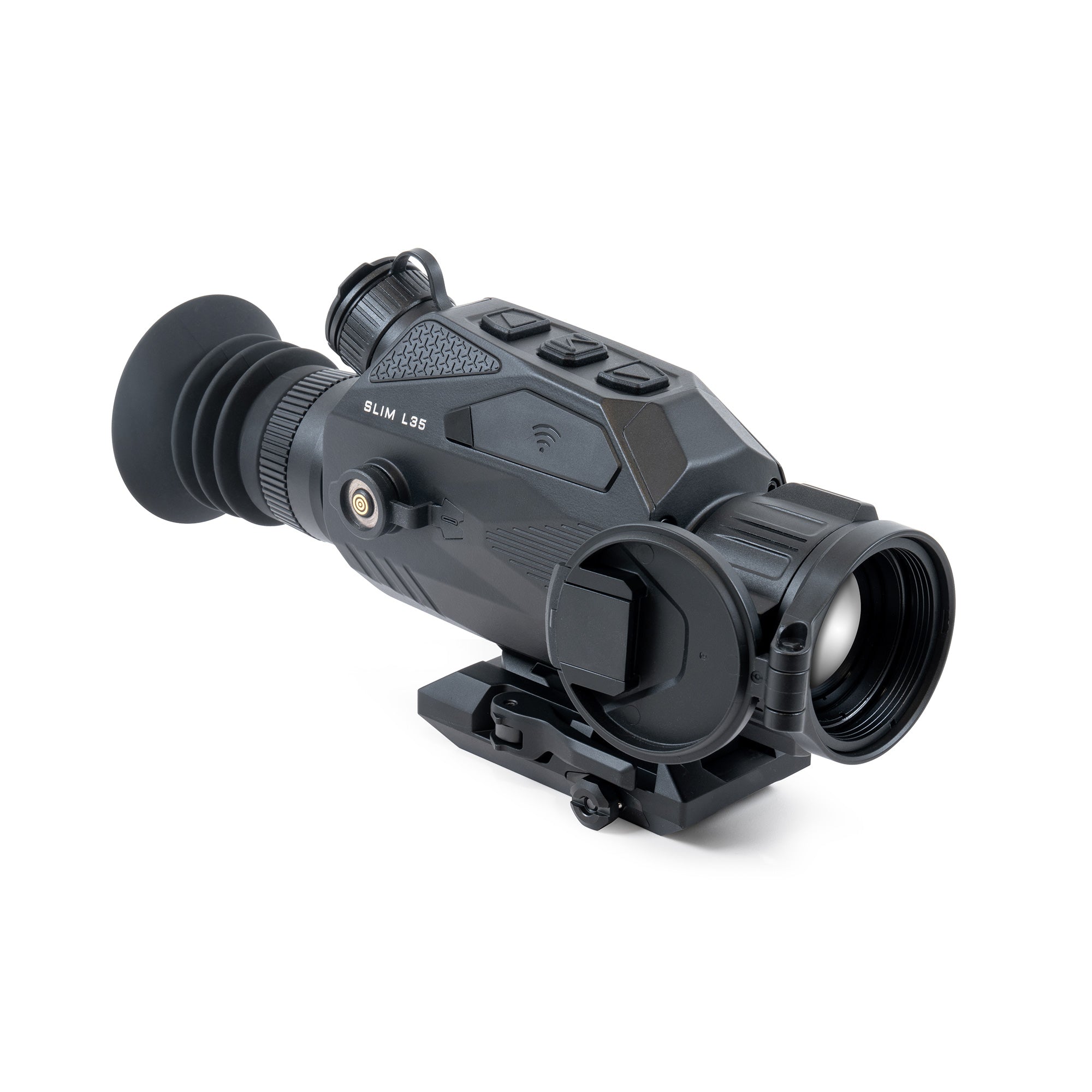

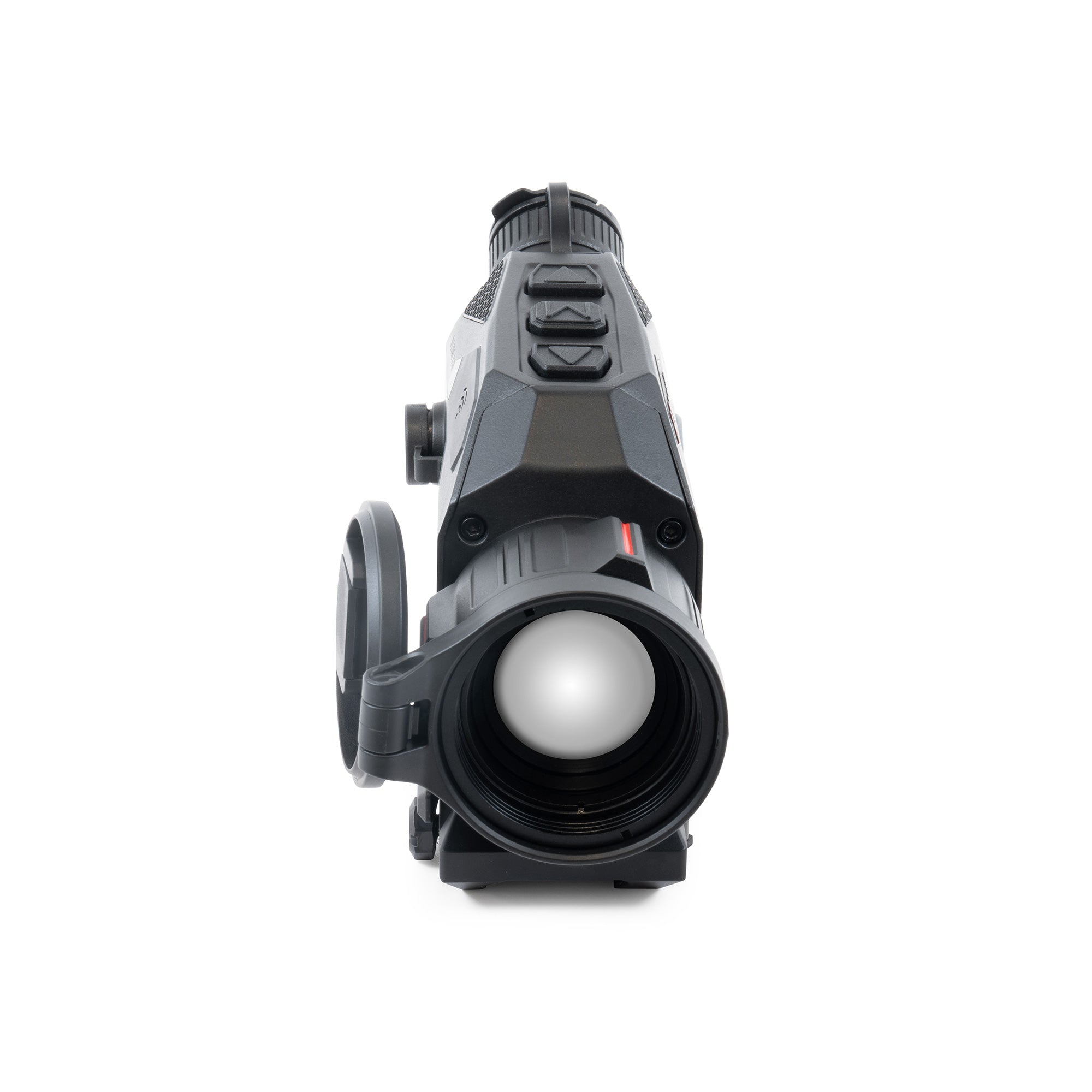

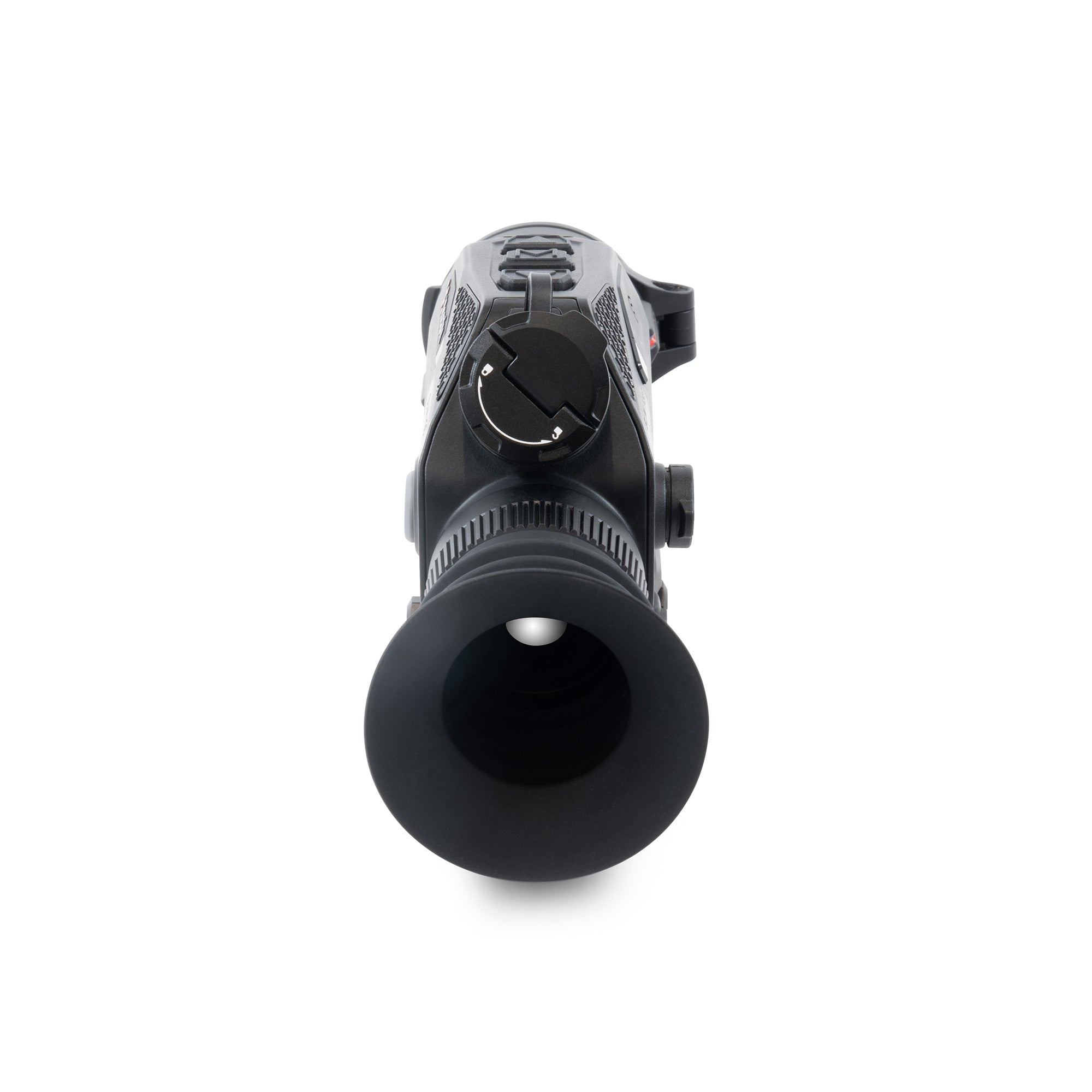

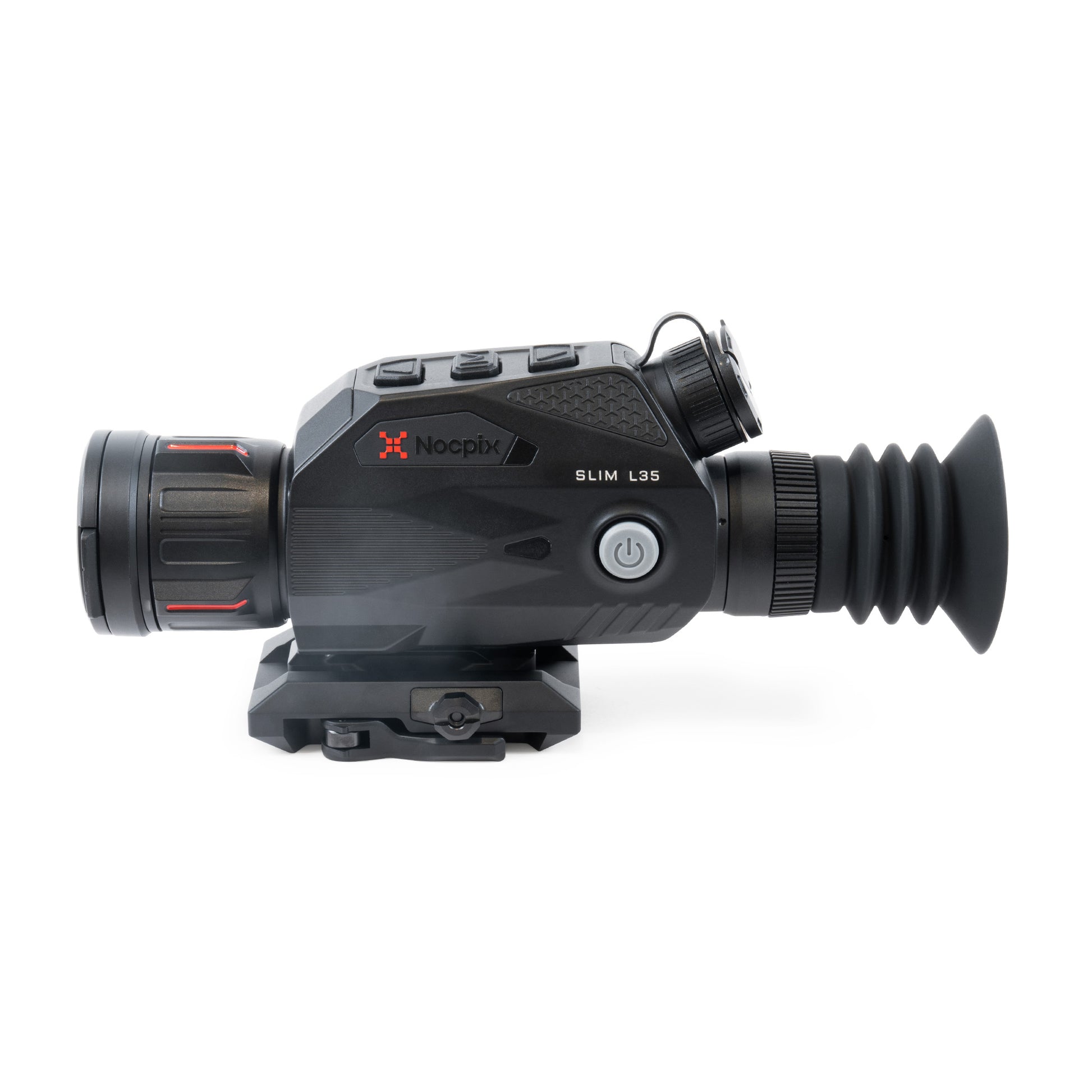

New! Nocpix SLIM L35 Multi-function Thermal Optic (384 35MM)

New! Nocpix SLIM L35 Multi-function Thermal Optic (384 35MM)

Regular price $1,999.00 USD
Regular price Sale price $1,999.00 USD
SALE! Sold Out: Contact Us
Shipping calculated at checkout.

Nocpix SLIM L35 Multi-function Thermal Optic (384x288)

Introducing the new Nocpix Slim L35 distributed and supported by iRay USA.

The all-new SLIM series from Nocpix provides the best value and features in a compact optic. These units can be used as both a handheld monocular and a weapon sight. With the included proprietary quick-detach mounting system a hunter can quickly scan and then re-attach the optic to the rifle while maintaining zero. A magnesium alloy body and quiet, soft-touch buttons provide excellent ergonomics in both handheld and weapon-mounted configurations. The included 18650 batteries ensure a longer time in the field, and the ability to charge through the optic using a magnetic cable keeps the process streamlined. Generous eye relief and a 1024×768 AMOLED display provide a comfortable and highly detailed viewing experience.

Features

  • 12 μm high-performance thermal detector
  •  ≤18 mK sensitivity
  • Quickly change optic from a handheld scanner to a
    weapon sight
  • Digital zoom from 1.0×–4.0×
  • Magnesium alloy housing
  • Includes two rechargeable 18650 batteries
  • Maximum detection range 1750 yards
  • 1024×768 AMOLED display
  • High frame frequency: 50Hz
  • Multiple reticle types and color options
  • Supports multiple charging options, including a durable
    magnetic charging cable
  • Recoil activated video
  • Multiple zero profiles and ranges
  • Built-in 32 GB storage to support image capture
    and video recording
  • Built-in Wi-Fi module
  • Mobile device App compatible
  • Picture in Picture (PIP)
  • User-friendly interface
  • Pixel calibration functions

Specifications

Resolution 384x288
Pixel Size 12 μm
Frame Rate 50hz
Sensor Sensitivity  ≤18 mK
Image Processing Reality+
Core Nocpix 384
Objective Lens 35 mm f/0.9
Magnification 3.5x
Digital Zoom 4x
Field of View 7.5"x5.7"
Detection Range 1750 yards
Display Type AMOLED
Display Resolution 1024x768
Color Palettes White Hot, Black Hot, Red Hot, Color, Crimson, Viridian, Violet
Reticle Types 8 (1 Dynamic, 6 Static, 1 DIY)
Reticle Colors Black Red, Black Green, White Red, White Green,
Black White, White Black, Crimson, Viridian
Mounting System Picatinny MIL-STD 1913 Rail
P.I.P. Yes
Rangefinder No
Eye Relief 48mm
Diopter Range -5 to +5
Onboard Recoding Video and Image
Onboard Storage 32GB
Wireless Connectivity Image and Video via App
Power/Data Connector USB-C
Power Supply USB-C External, 18650 Batteries ×2 (4+ Hours Each)
Start up time <10 seconds, instant from standby
Size 8.50” × 2.99” × 1.81”
Weight 18.70 OZ
Warranty 5 years
Housing Material Magnesium Alloy
Ingress Protection IP67
Operation Temperature -4°F~122°F
Max Recoil 1000 g/s² (300 Win./7mm Mag)
