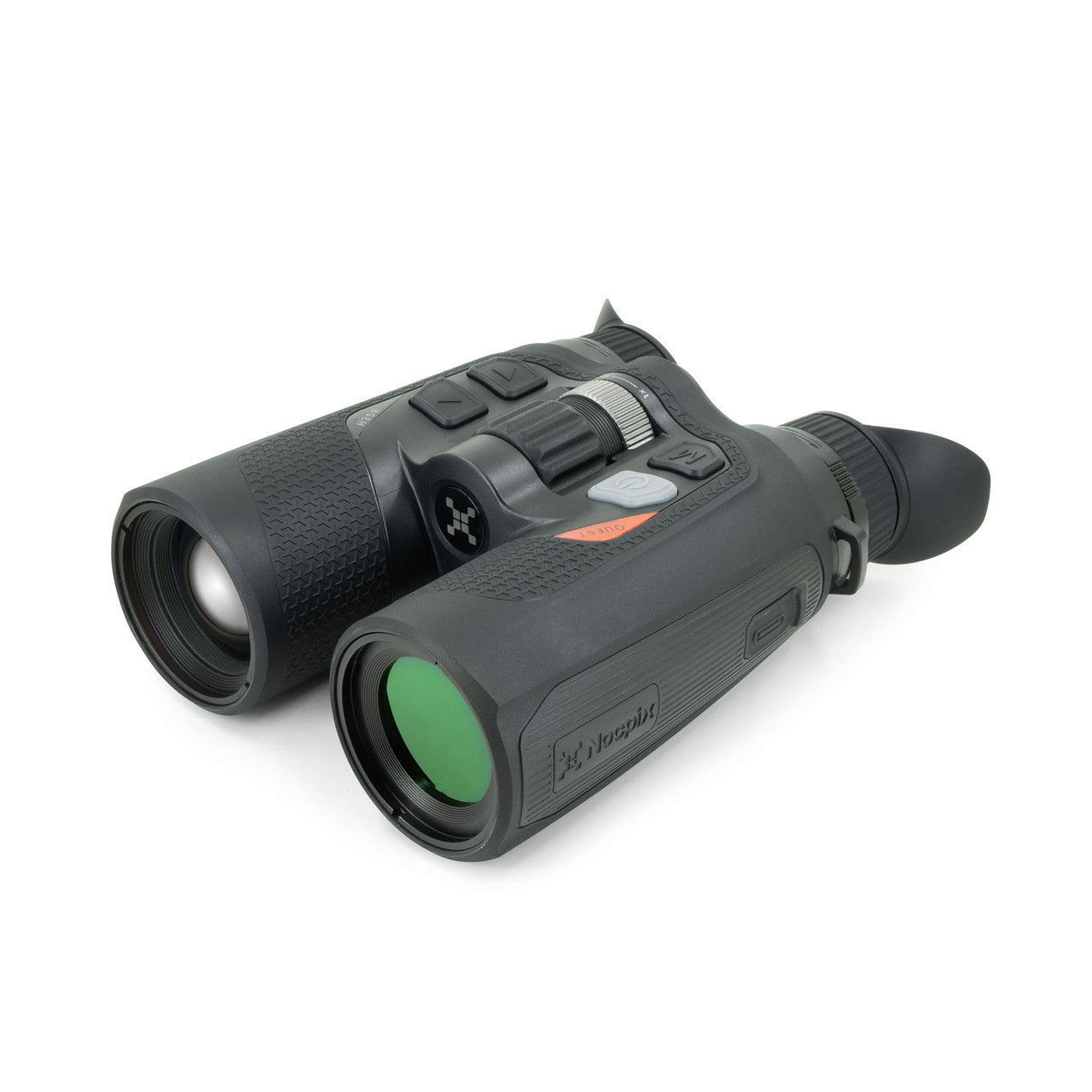

NOCPIX QUEST H50R Rangefinding Thermal Binocular 640x512 50 mm

NOCPIX QUEST H50R Rangefinding Thermal Binocular 640x512 50 mm

Regular price $3,499.00 USD
Regular price Sale price $3,499.00 USD
SALE! Sold Out: Contact Us
Shipping calculated at checkout.

Nocpix Quest H50R Rangefinding Thermal Binocular

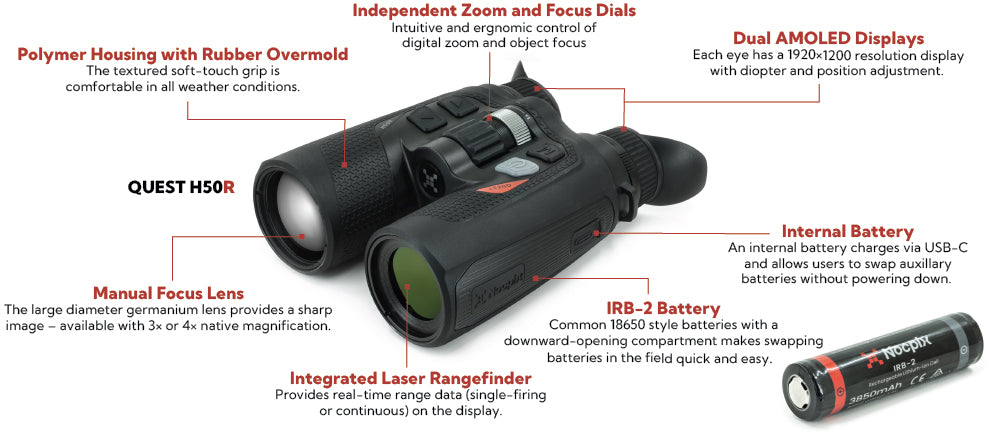

All new for 2025, QUEST binoculars deliver a comfortable and intuitive viewing experience. Unlike thermal monoculars, the QUEST binoculars allow users to use both hands and both eyes while scanning - providing a smooth and comfortable feel, just like traditional daylight binoculars. A 12 μm ≤15mK 640×512 thermal sensor captures every detail, while the Reality+ image processing algorithm delivers a vivid picture to the 1920x1200 displays (full resolution per each eyepiece). Each display has a dedicated diopter and position adjustment.

QUEST binoculars also include an easy-to-use 1,000 yard laser rangefinder that can run in either single-firing or continuous modes to show target distance on the display. The combination of an internal USB-C rechargeable battery and an auxiliary IRB-2 (18650 style) rechargeable battery allows users to hot-swap the power source and keep running all night long. The QUEST is available with a 50 mm objective lens (model H50R) or a 35 mm germanium objective lens (H35R). Each comes with everything you would expect from high-end binoculars, including a comfortable and fully adjustable binocular harness.

Features

  • 640×512 12μm detector (H50R / H35R)
  • NETD 15mK
  • 60Hz high frame rate
  • Built-in LRF (Laser Range Finder)
  • Electronic anti-shake
  • AMOLED 1920×1200 round display
  • Replaceable and rechargeable 18650 battery
  • Smooth digital zoom: 1×–8×
  • Ultra clear mode
  • Eye protection with low brightness, color palette, and warm hue

Specifications

Model Quest H50R
Thermal Sensor 640×512, 12μm
Image Sensor VOx Uncooled
Response Waveband 8~14μm
NETD, mK <15
Frame rate, Hz 60
Objective lens, mm 50 F1.1
Field of view(H×V), °/m@100m 8.8×7.0/15×12
Magnification, x 4~32
Detective range, m (Target size: 1.7m×0.5m, P(n)=99%) 2600
Exit relief, mm 25
Exit pupil diameter, mm 10
Diopter, D ±5
Display AMOLED 1920×1200
Battery Type Built-in battery/4200mAh + replaceable 18650 battery
Max. operation time, (t=22°C)h 6
Safety Class for Laser Class 1
