Nocpix ACE H50R Thermal Scope

Nocpix ACE H50R Thermal Scope

Regular price $5,499.00 USD
Regular price Sale price $5,499.00 USD
SALE! Sold Out: Contact Us
Shipping calculated at checkout.
 More payment options

Nocpix ACE H50R (640x512)

Introducing the all new Nocpix ACE H50R distributed by iRayUSA.

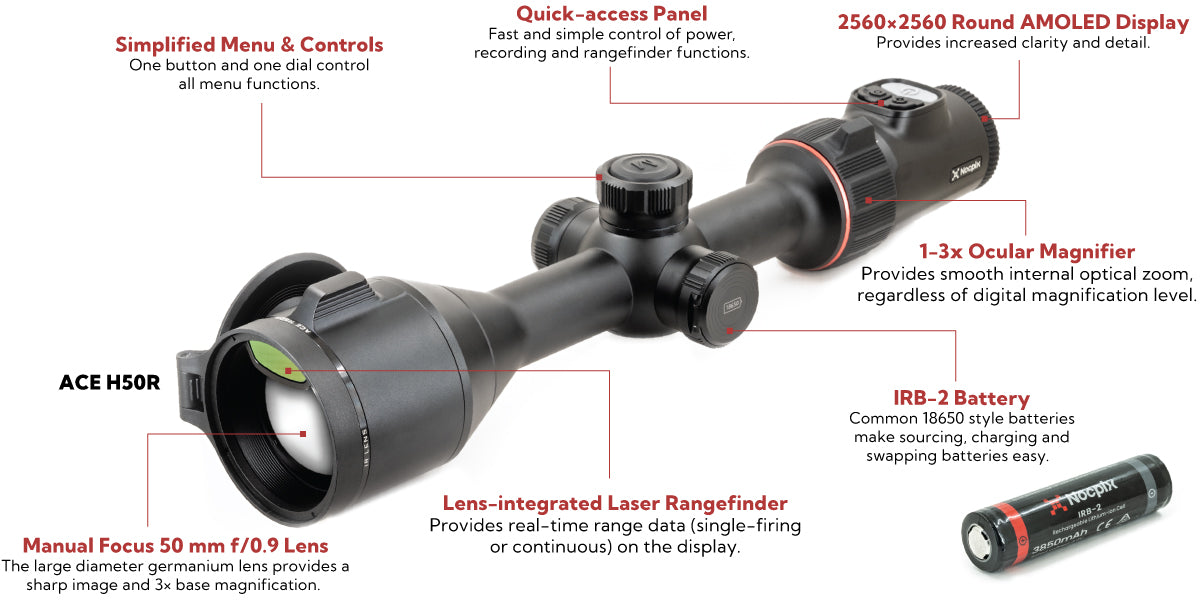

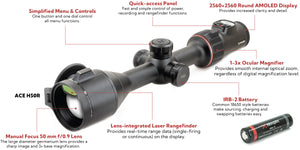

The Nocpix ACE H50R is a thermal scope series that offers unique features and a familiar design to enhance your night hunting experience. Its integrated lens laser rangefinder maintains a sleek appearance while improving its long-range capabilities. With a magnifier up to 1-3x, a 2560x2560 display, a 30mm tube-style housing, a 60hz refresh rate, and Reality+ image processing, this optic truly stands out. Its internal battery, along with an 18650 battery, provides up to 7 hours of run time for extended use in the field. Plus, the integrated LRF and built-in ballistics software make it easier to take shots at long distances, while the Gallery function allows for instant replay of recordings.

Features

  • 12 μm high-performance thermal detector
  • ≤15 mK sensitivity

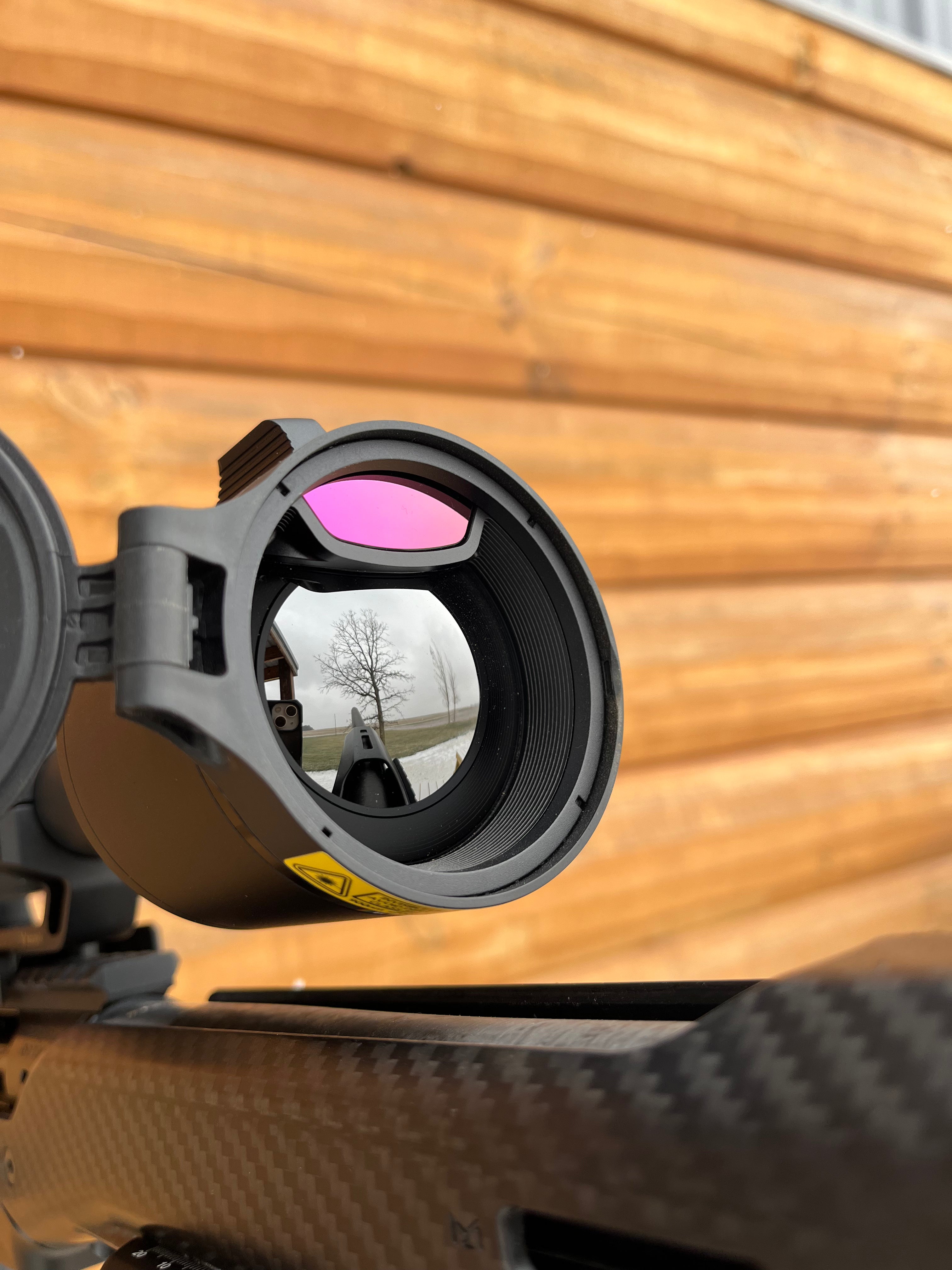

  • 1300-yard laser rangefinder integrated into the objective lens
  • Stepped digital zoom from 3×–24×
  • Ocular magnification from 1-3×
  • T-6063 Aluminum housing
  • Dual power supply solution for extended operation
  • Maximum detection range: 2850 yards
  • 2560×2560 AMOLED display
  • High frame frequency: 60Hz
  • Recoil activated video
  • Five ballistics profiles and a user-defined, multi-variable
    ballistics calculator
  • Multiple zero profiles and ranges
  • Traditional 30 mm diameter housing design
  • Built-in 64 GB storage to support image capture and
    video recording
  •  Built-in Wi-Fi module
  • Mobile device App compatible
  • Gallery function for photo/video playback
  • Picture in Picture (PIP)
  • User-friendly interface
  • Ultra-clear mode for advanced image detail
  • Warm and cool image-hue options
  • Pixel calibration function

Specifications

Feature Details
Resolution 640×512
Pixel Size 12 μm
Frame Rate 60hz
Sensor Sensitivity ≤15 mK
Image Processing Reality+
Core Nocpix 640

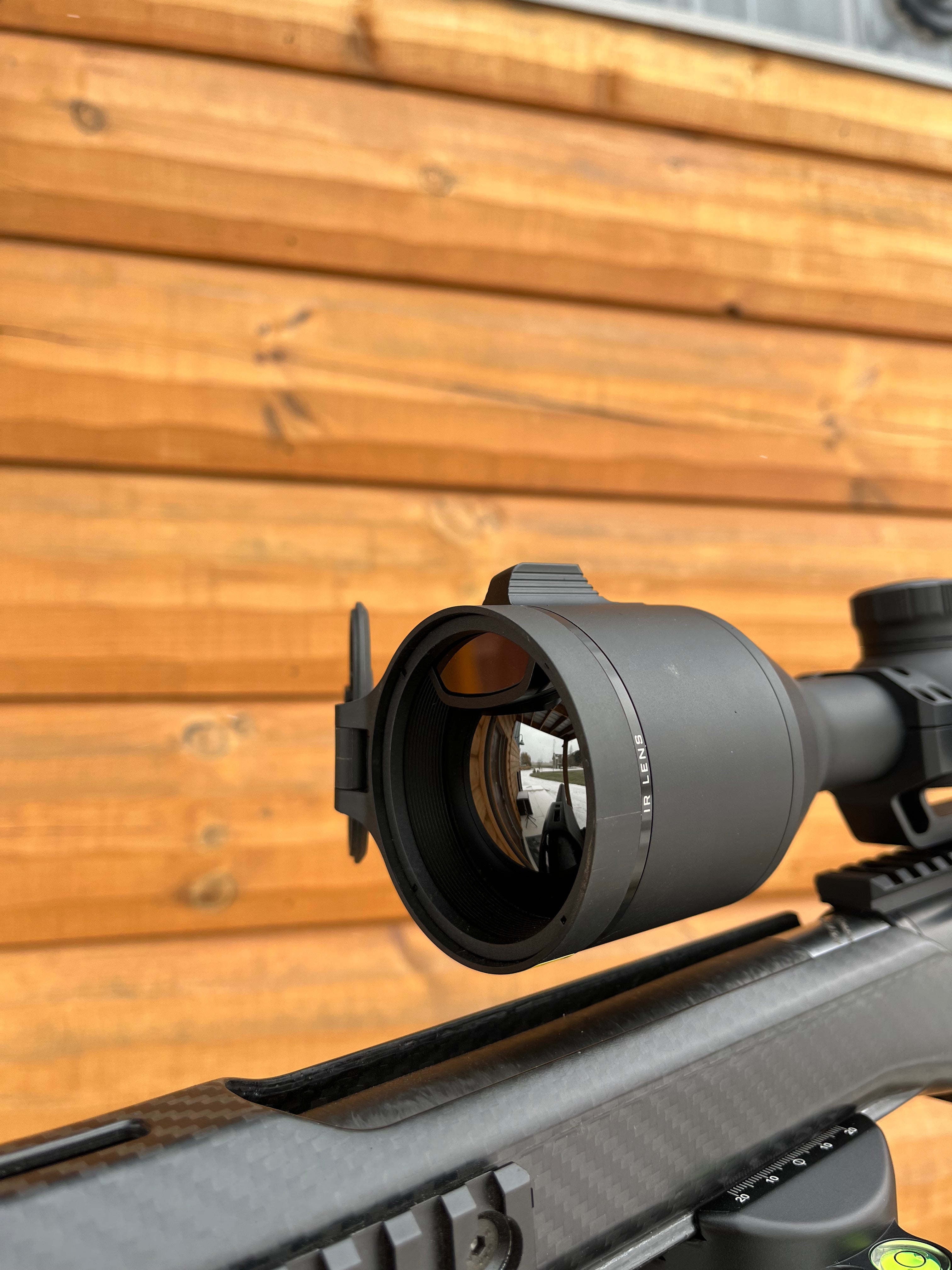

Objective Lens 50 mm f/0.9
Magnification
Digital Zoom
Field of View 8.8° × 7.0°
Detection Range 2850 Yards
Display Type 1.03-inch Large-format AMOLED
Display Resolution 2560×2560
Color Palettes White Hot, Black Hot, Red Hot, Color, Crimson, Viridian, Violet
P.I.P. Yes
Rangefinder Integrated 1,300 yd LRF
Eye Relief 50 mm
Diopter Range -5 to +5
Onboard Recording Video, Recoil-Activated Video, and Image
Onboard Storage 64 GB
Wireless Connectivity Image and Video via App.

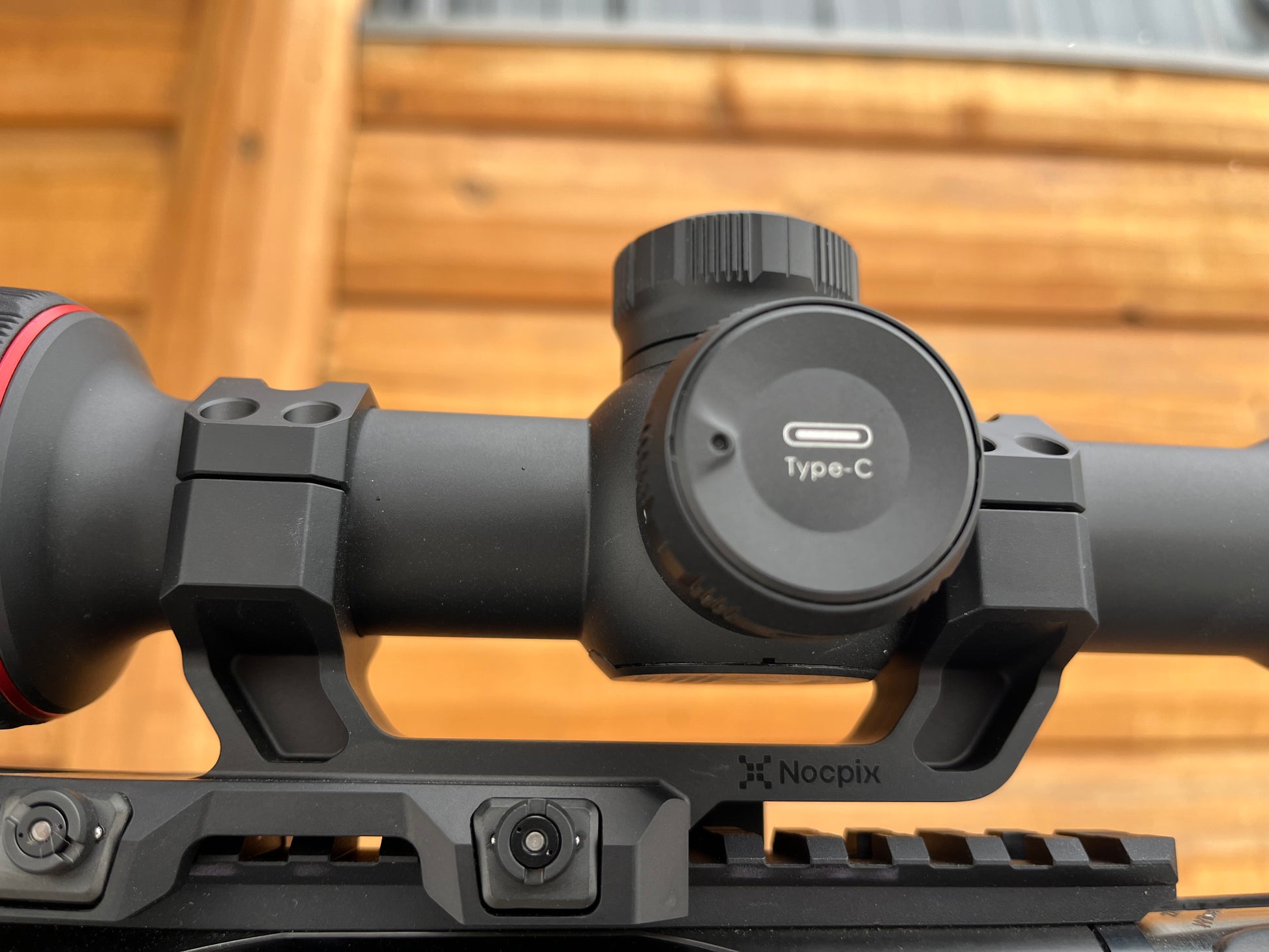

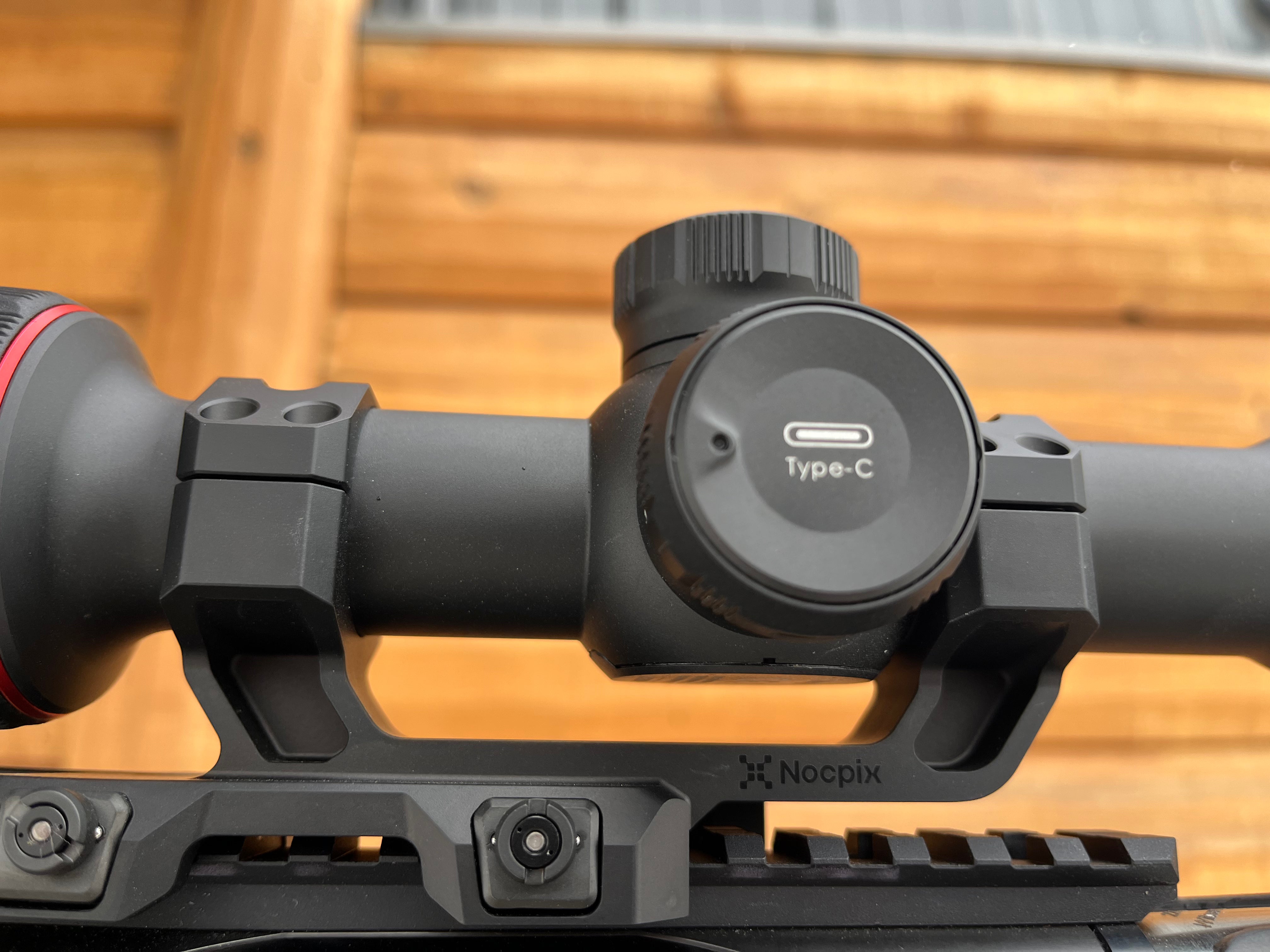

Data/Power Connector USB-C

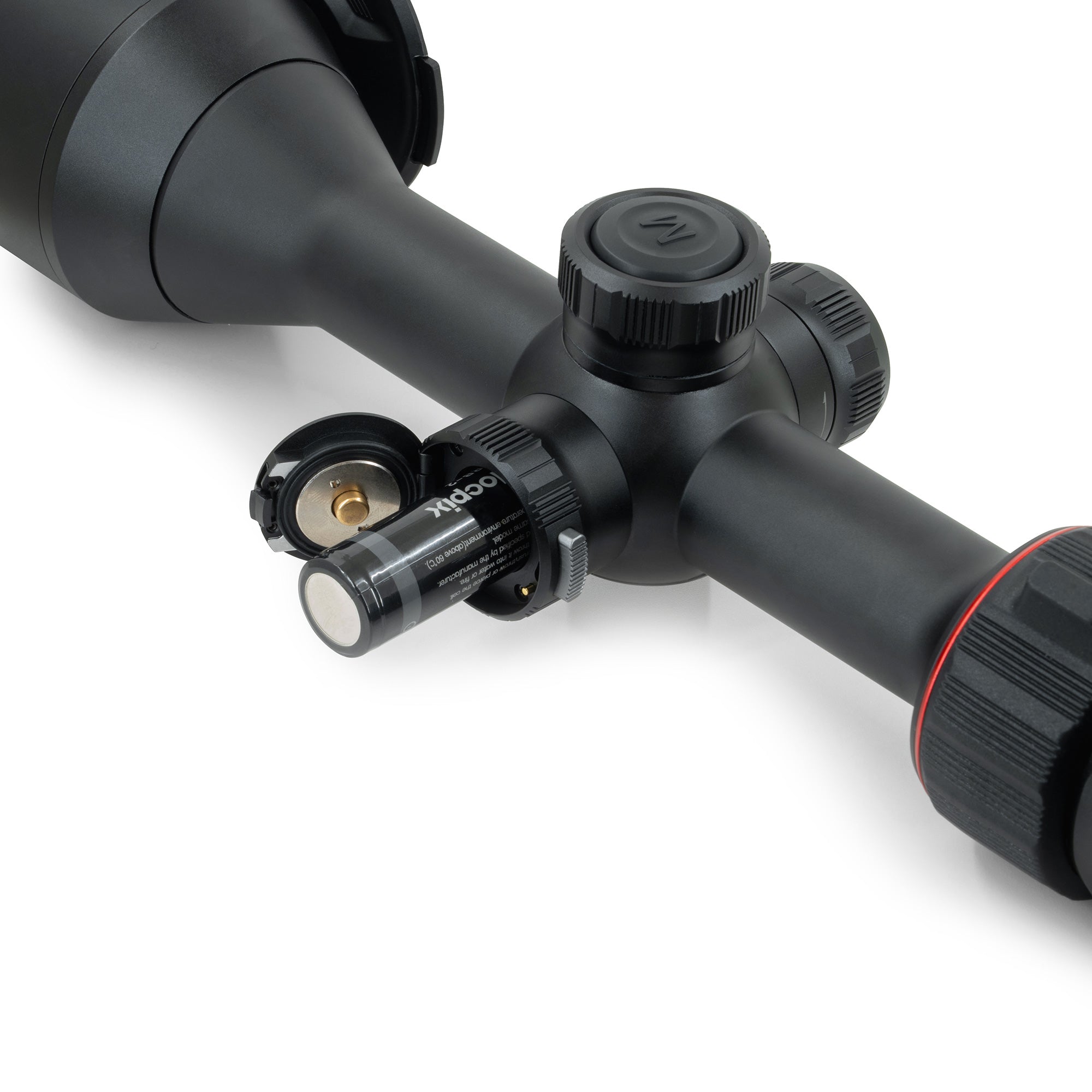

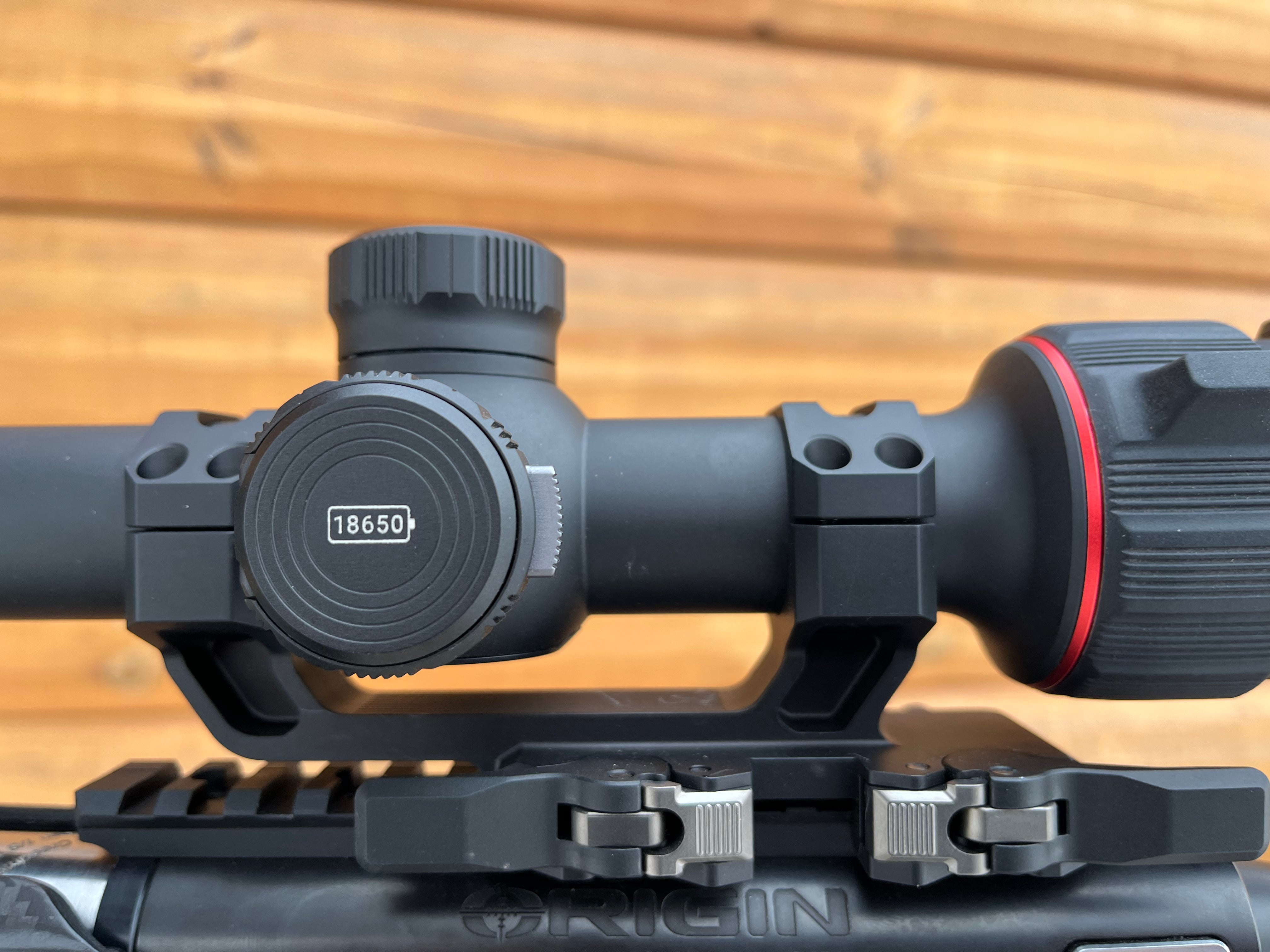

Power Supply USB-C External, Built-In Battery Pack (3.5+ Hours), 18650 Batteries ×2 (3.5+ Hours Each)
Start Up Time <10 Seconds, Instant from Standby
Size 14.37” × 3.54” × 2.68”
Weight 39.5 Oz
Warranty 5 Years
Housing Material T-6063 Aluminum
Ingress Protection IP67
Operation Temperature -4°F~122°F

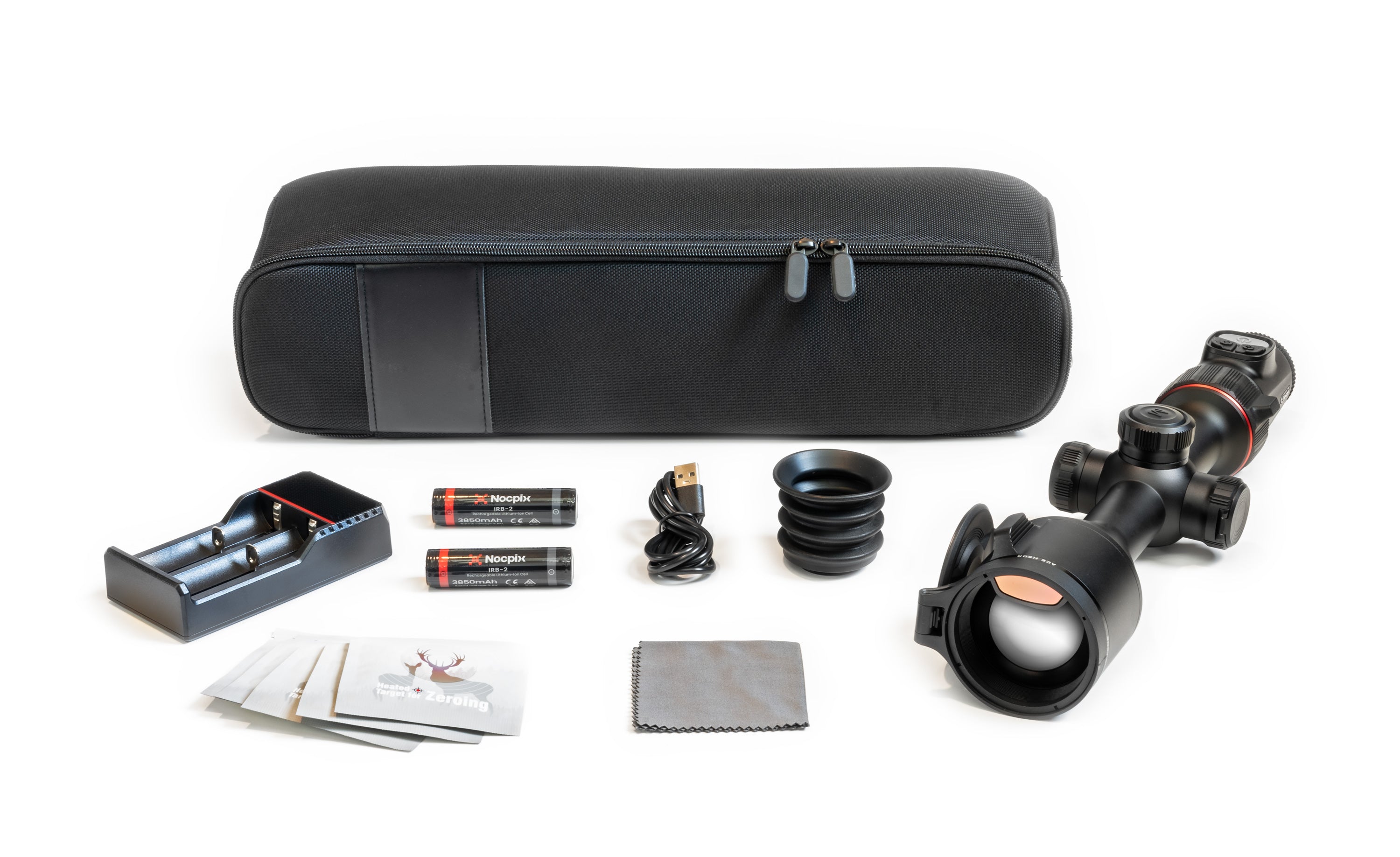

Accessories

The ACE H50R thermal imaging rangefinder ships with
everything you need to get out and hunt.

  • 50mm Objective Lens Cap
  • Standard Rubber Eyeguard
  • 18650 Battery ×2
  • Battery Charger
  • USB-C Cable for Data/Video
  • Soft Case and Straps
  • Lens Cloth
  • User Manual
