N-Vision Optics NOX18

N-Vision Optics NOX18

Regular price $5,195.00 USD
Regular price $6,195.00 USD Sale price $5,195.00 USD
SALE! Sold Out: Contact Us
Shipping calculated at checkout.

FREE SHIPPING

FREE POCKET DRAG

FREE MIDWEST THERMAL T-SHIRT(include size in the notes)


Features:

• BAE 12 micron 640x480, 60 Hz core
• 2 models: 18mm and 35 mm (focusable)
• Weapon and helmet mountable
• One CR123 or off-the shelf 18650 rechargeable battery

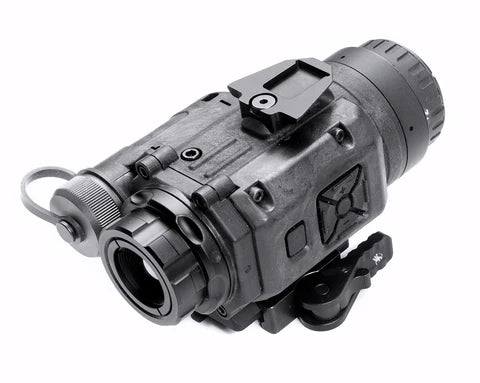

Nox is a small 12-micron 60Hz fully functional thermal weapon sight that can serve double duty as a head-mounted monocular or a scanner. This unique product is proudly designed and built in the USA, using the best commercially available BAE thermal imaging cores and the highest grade optical components. Nox is available in an 18mm or 35mm lens configuration, allowing for the best magnification and field of view combination, depending on your environment.

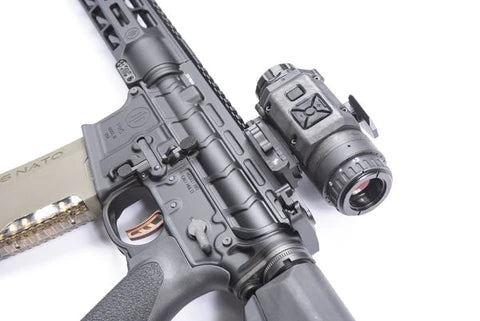

Nox can be user-configured for the right or left eye, dual-mounted with another Nox or with a night vision monocular, such as PVS-14. Weapon and/or dovetail mounts are removable to reduce the size and weight of the unit to help achieve optimal NOX configuration.

Power Supply Options
Each NOX ships with a standard CR123 battery and a rechargeable 18650 battery (and charger). Depending on ambient temperature, you can expect up to an hour and a half of run time with a standard CR123 battery and from four to 7+ hours on the rechargeable 18650 battery. For the ultimate power solution, Nox can be powered with an external USB battery bank via the provided USB-C cable.

User Interface

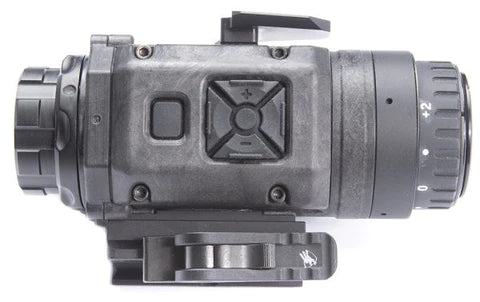

NOX has five highly ergonomic control buttons that permit immediate access to the frequently used functions (calibration, polarity, zoom, photo, power) and allow access to the user-friendly menu system for zeroing and/or customization of device parameters. This includes a standalone calibration button that provides the user with the ability to calibrate the unit with one hand in under one second.



Specifications
Sensor Pixel Pitch

12 um

Resolution

640 x 480

Refresh Rate

60 Hz

Lens

18mm F1.0

Focus

Manual, non-rotating

Field of View

18mm: 24.3(H) x 18.3(V); 30.4 (diagonal)

Digital Zoom

1x/2x/4x/8x

Display Type

OLED 640×480 B&W

Power

One CR123 or one 18650

Remote power

USB 5.0V

External connector

Waterproof USB-C

Calibration (NUC)

Manual

Weight, CR123 Battery:

13.5 oz (w/o weapon mount)
16 oz (w/ weapon mount)

Weight, 18650 Battery:

15.3 oz (w/o weapon mount)
17.6 oz (w/ weapon mount)

Size, CR123 Battery:

5.0×2.9×2.4 (w/o weapon mount)
5.0×2.9×3.0 (w/ weapon mount)

Size, 18650 Battery:

6.4×2.9×2.4 (w/o weapon mount)
6.4×2.9×3.0 (w/ weapon mount)

Detection range

753 yards

Recognition range

267 yards

Identification range

136 yards
