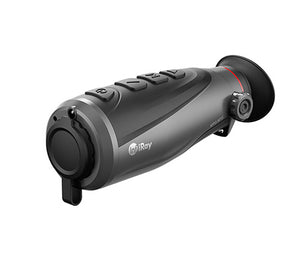

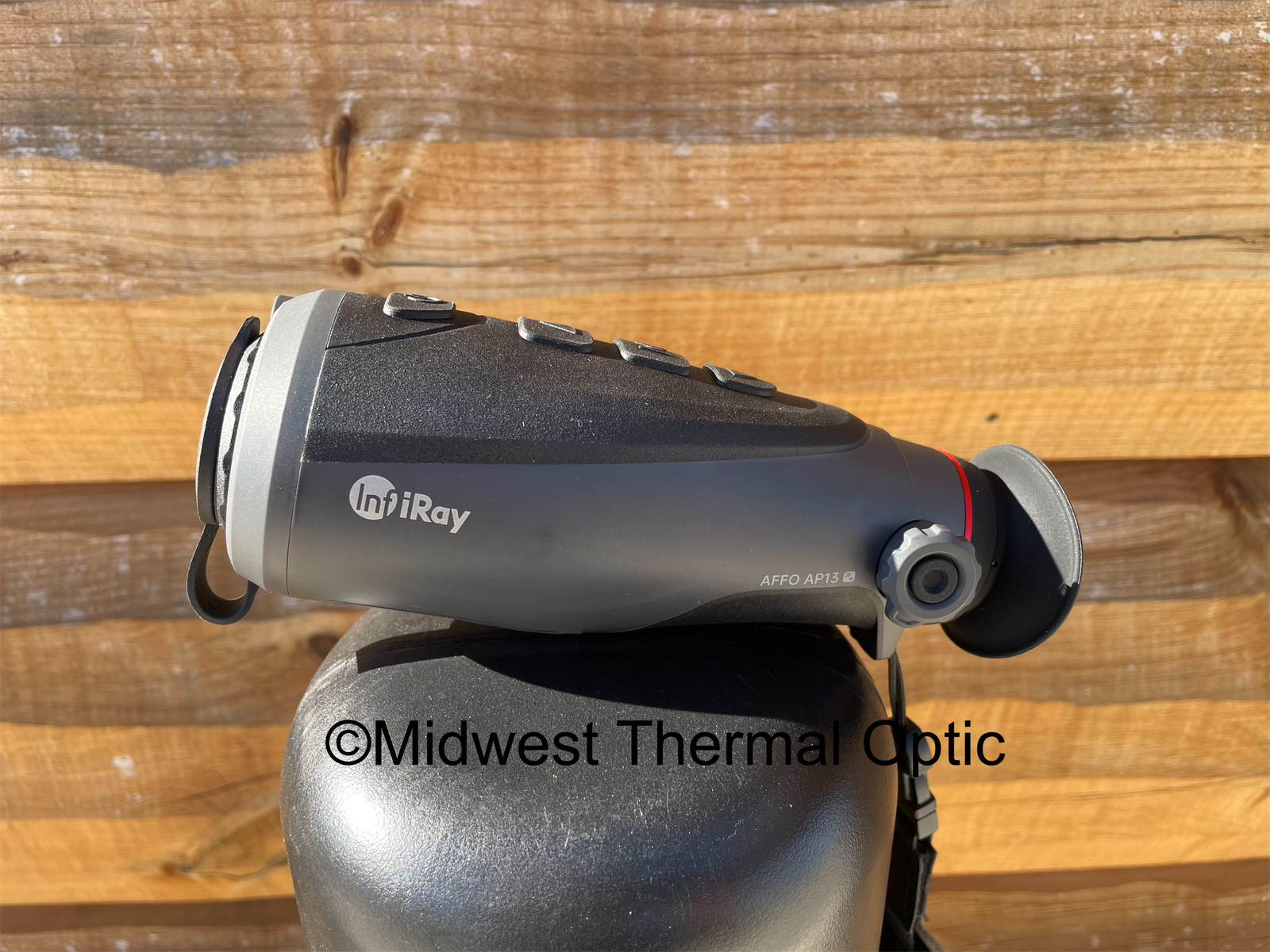

InfiRay Outdoor AFFO R+ AP13 256 Thermal Monocular

The InfiRay Outdoor AFFO R+ AP13 256 thermal monocular is an affordable and compact thermal imager designed for easy one-handed operation. This highly versatile imager is rugged yet lightweight, making it ideal for many applications such as law enforcement, hunting, search and rescue, and security. Powered by a high-performance 12µm sensor, the AFFO series uses next-generation Reality+ image processing to provide a crisp, clear viewing experience that outperforms comparable economy imagers. The user-friendly interface has a built-in stadiametric rangefinder, picture-in-picture function, hotspot tracking, internal recording, and a 9+ hour run-time. Capture vivid, realistic photos and videos in any weather or lighting conditions, taking your thermal imaging experience to the next level. It has a build-in high-speed 32GB storage capacity.

InfiRay Outdoor Thermal Monocular AFFO Series Features

High-performance Detector

The AFFO Series adopts a 12µm uncooled Vox thermal imaging sensor, the self-developed high-performance sensor enables crisp HD images.

New Appearance Design & Compact Size

The rounded curve-design body fits the human hand shape, making it more comfortable to hold. With the compact size, it is easier to carry with you along your adventure.

Long Battery Life

Low-power elements used in AFFO Series provide sufficient operation time. Up to 9.5 hours of operational battery life.

Additional Practical Functions

The AFFO Series features additional practical functions including stadia metric rangefinding and PIP. Its adapter is equipped with multiple travel charging headers to meet the needs of users in different countries and regions.

• Stadiametric Rangefinding: Facilitate confirmation of prey distance and provide position reference for hunting.
• PIP:: The screen of the cursor position is magnified twice to highlight the target and assist in observing the target details.

More Image Modes To Cope With Different Scenarios

Hot target highlight mode provides better object highlighting capability with more options of white hot, black hot, red-hot, and color palette. Wider detection and operating temperature range with hotspot tracking function.

Upgraded Protection

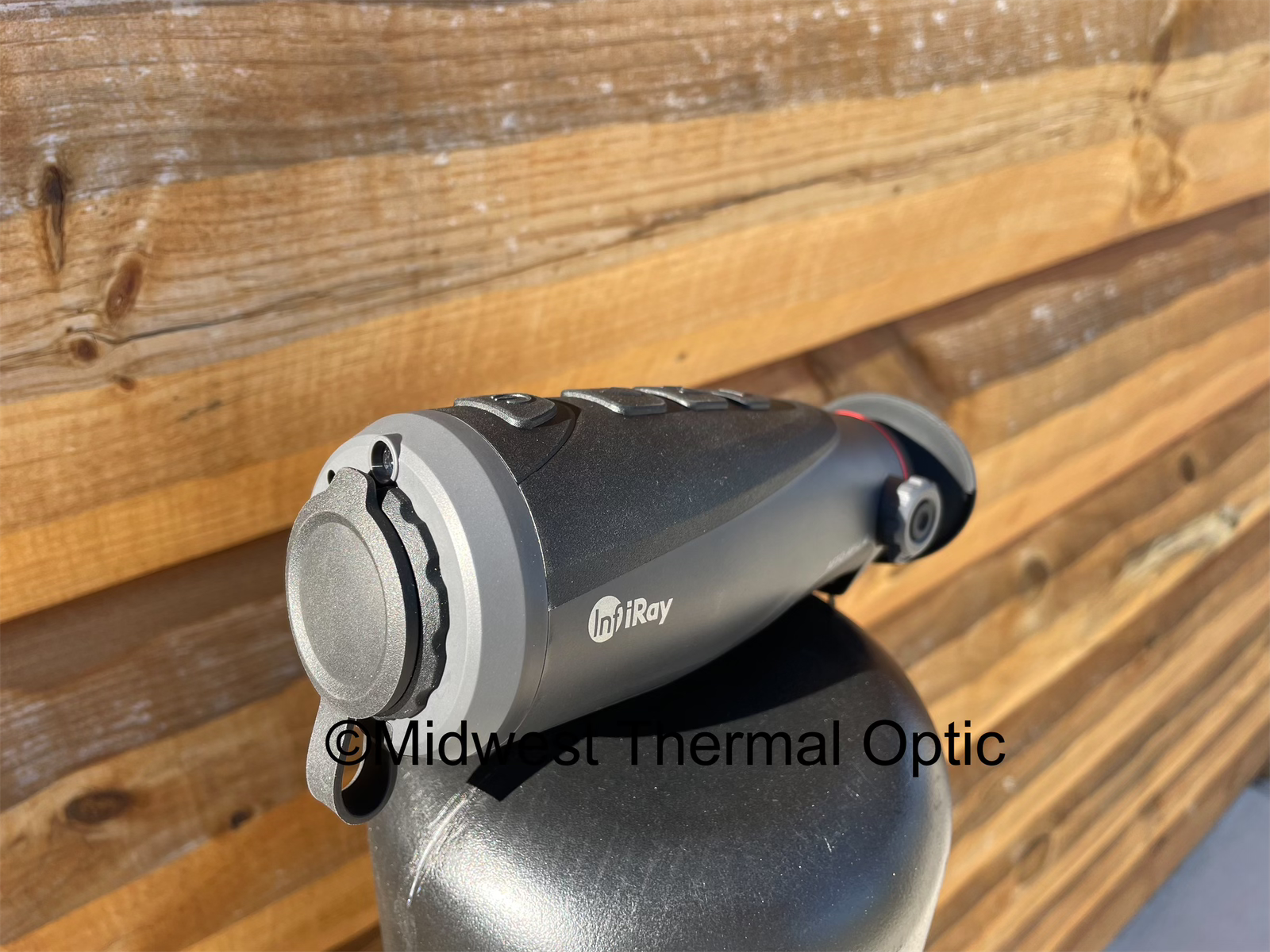

• Upgraded lens protection: Durable rigid plastic lens cap with higher hardness and impact resistance.
• Upgraded waterproofing: External screen is used on rainy days for outdoor scenarios to prevent water from flowing into the interface.

AFFO AP13 Technical Specifications

• Model: AP13
• Type: Uncooled Vox
• Resolution: 256 × 192
• Pixel Pitch, μm: 12
• NETD, mK: ≤40
• Refresh Rate, Hz: 25
• Objective Lens, mm: 13
• Field of View, °: 13.5 × 8.4
• Magnification, x: 2.0
• Digital Zoom, x: 1/2
• Diopter, D: -7 ~ +2
• Detection Range, m (Target Size: 1.7m × 0.5m, P(n) = 99%): 670
• Display Type: AMOLED
• Display Resolution: 640 × 400
• Battery Type / Capacity / Output Voltage: Built-in Li-ion Battery / 3.6Ah / 3.6V
• Working Hours (22°C), h: 9.5
• External Power Supply: 5V (TypeC)
• Ingress Protection Rating: IP67
• Memory Capacity, GB: 8
• Wi-Fi / APP: Support (InfiRay Outdoor)
• Operating Temperature, ºC: -20 ~ +50
• Weight, g: <340
• Dimensions, mm: 160 × 60 × 60

About InfiRay Outdoor

InfiRay Outdoor makes professional outdoor thermal imaging scopes, night vision optics, thermal monoculars, laser rangefinders, and more. From research and development to production and delivery, InfiRay Outdoor is using the most stringent requirements to guarantee quality and provide trustworthy high-quality products to customers in more than 89 countries.
