Complete RIX ST6 Thermal Monocular Helmet Kit
- Regular price
- $3,399.99
- Sale price
- $3,399.99
- Regular price
-

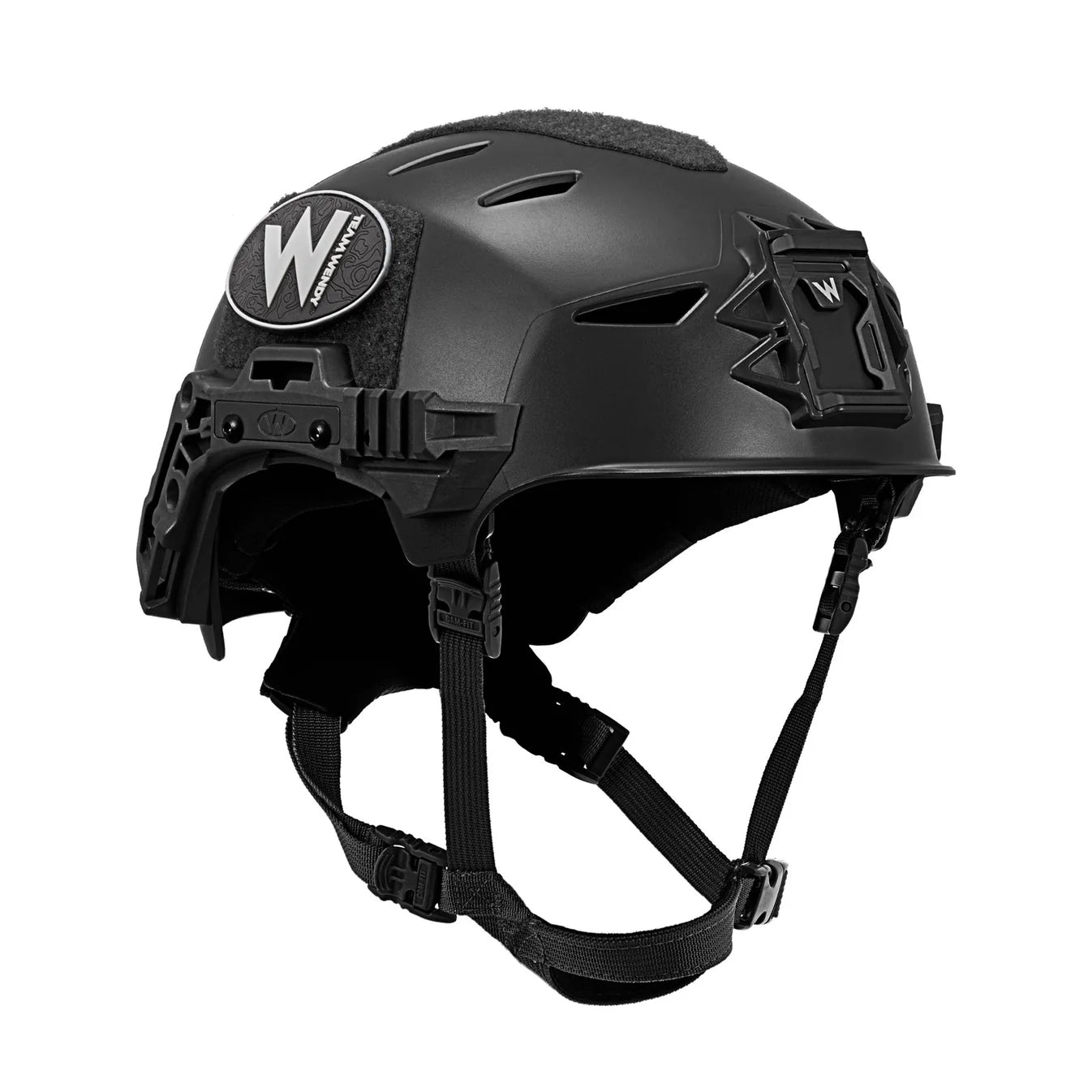

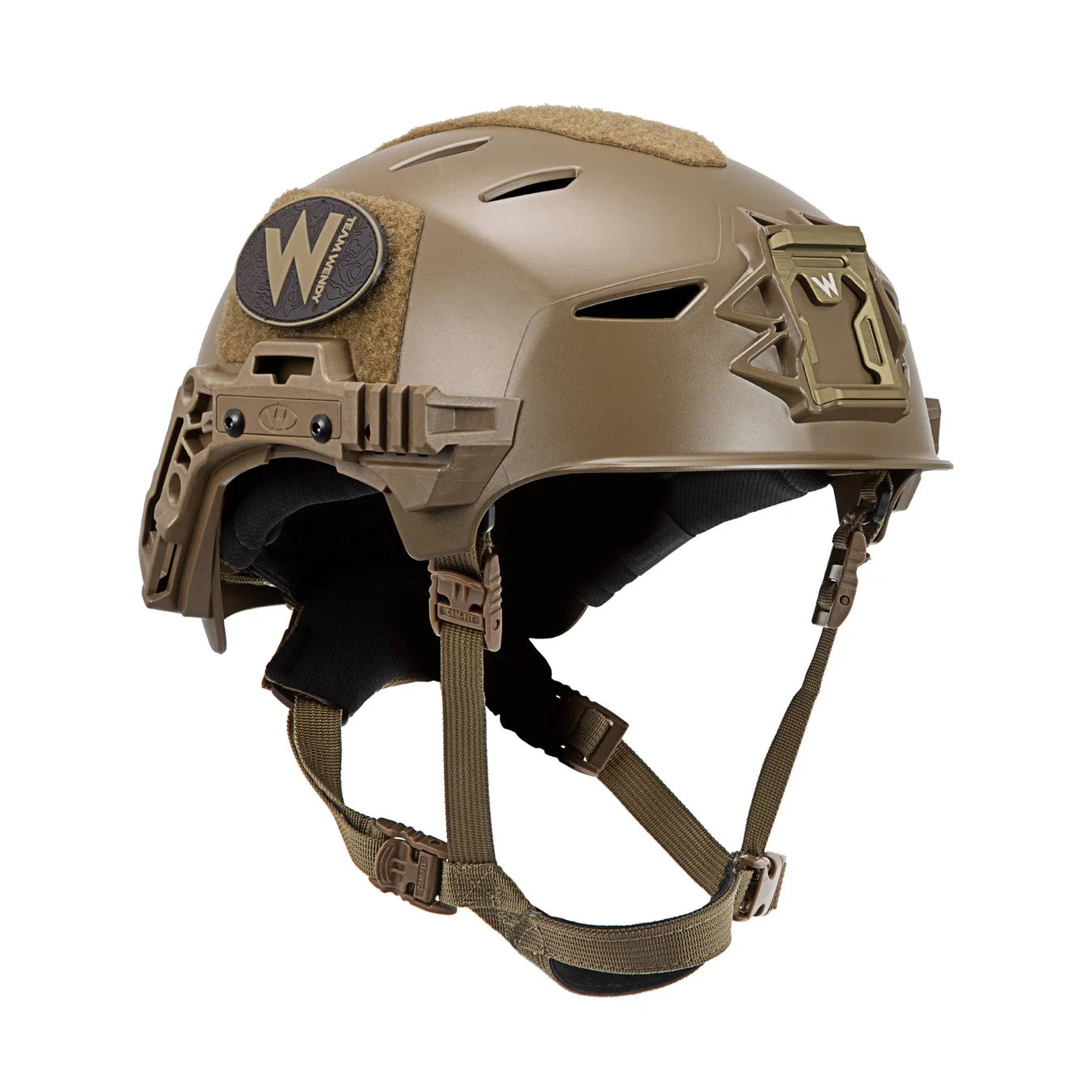

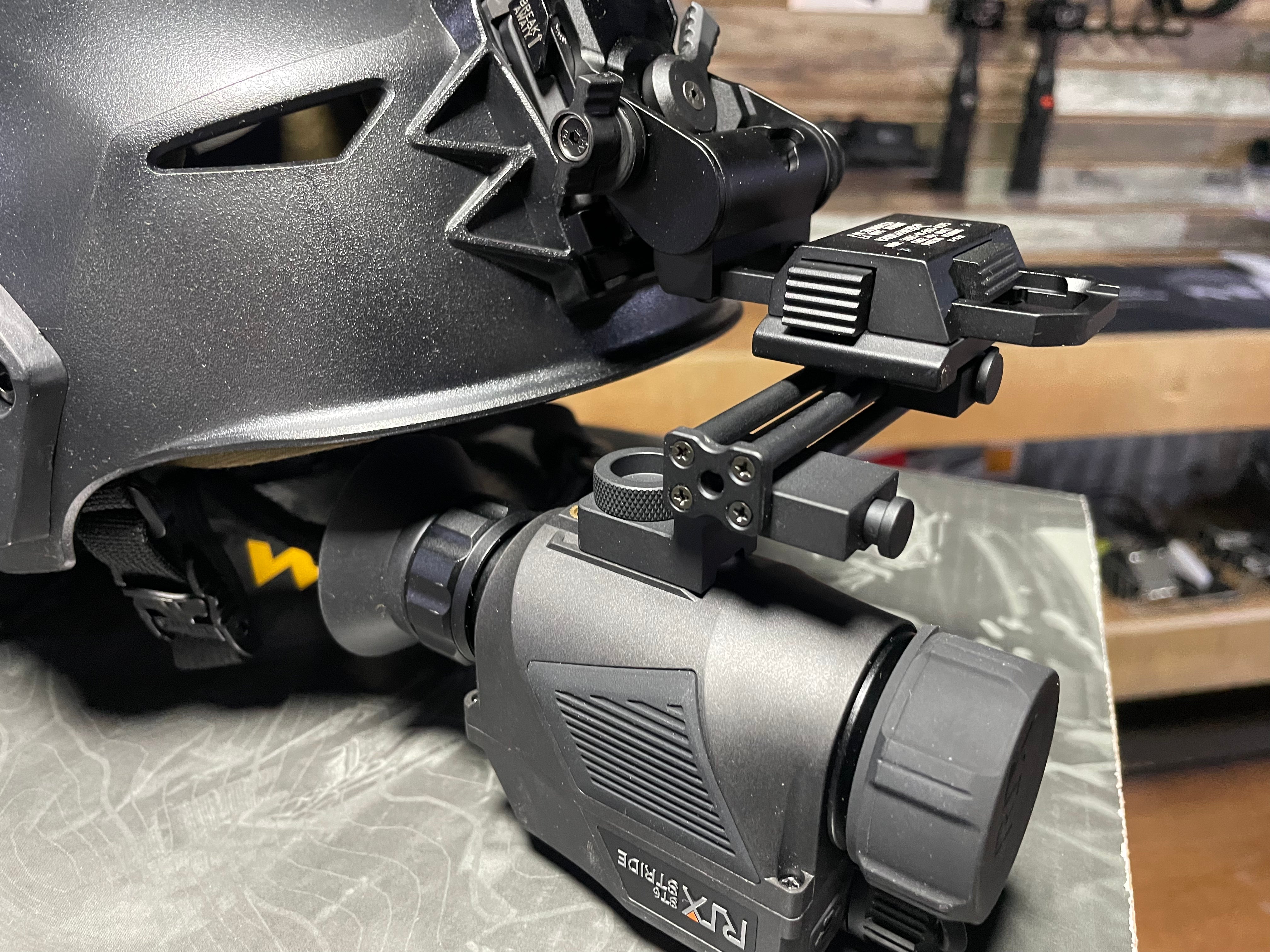

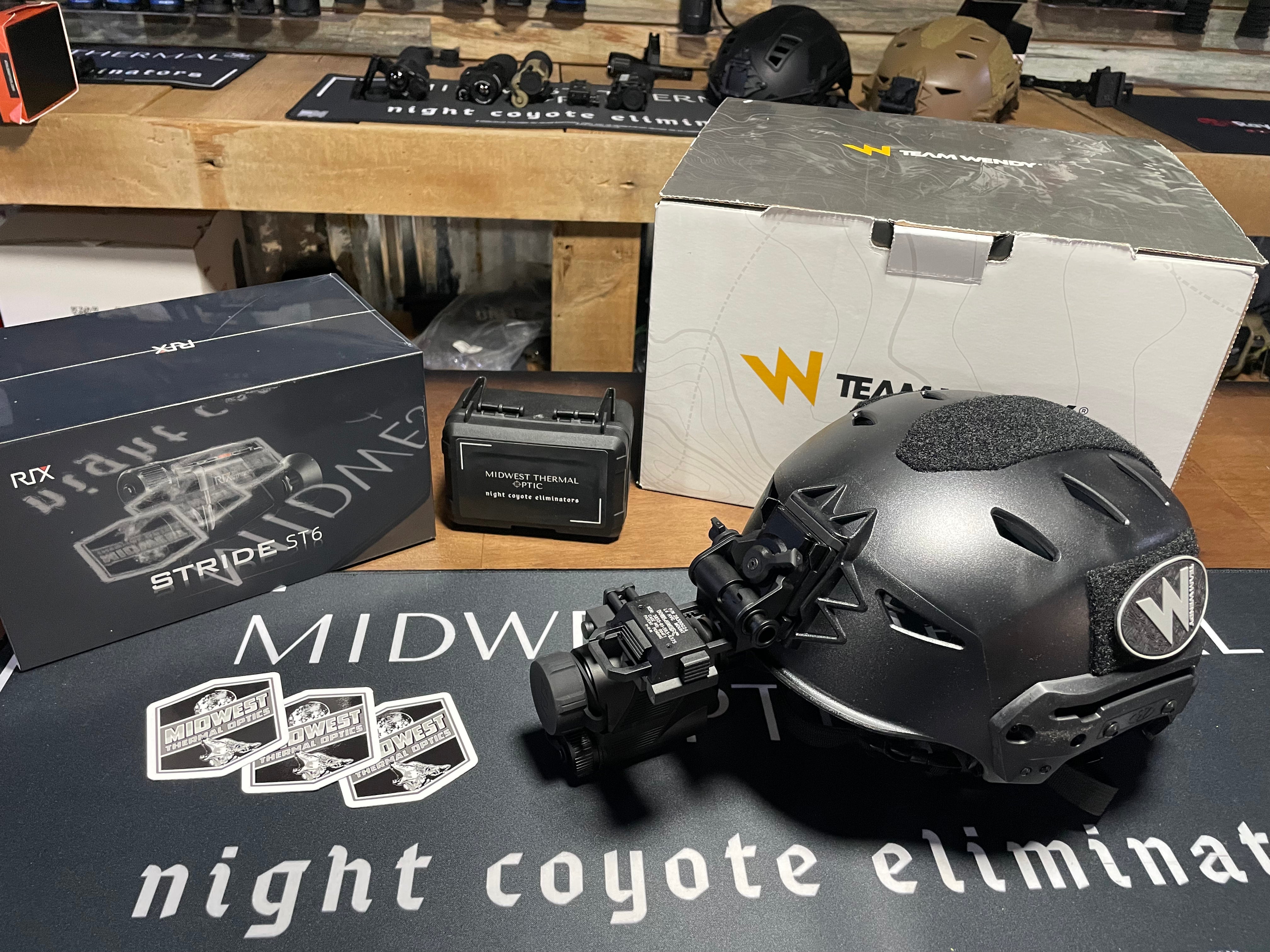

Complete Thermal Helmet Setup – Includes your choice of helmet (color & size), a RIX ST6 Thermal Monocular (see specs below), and a rugged G24 mount.

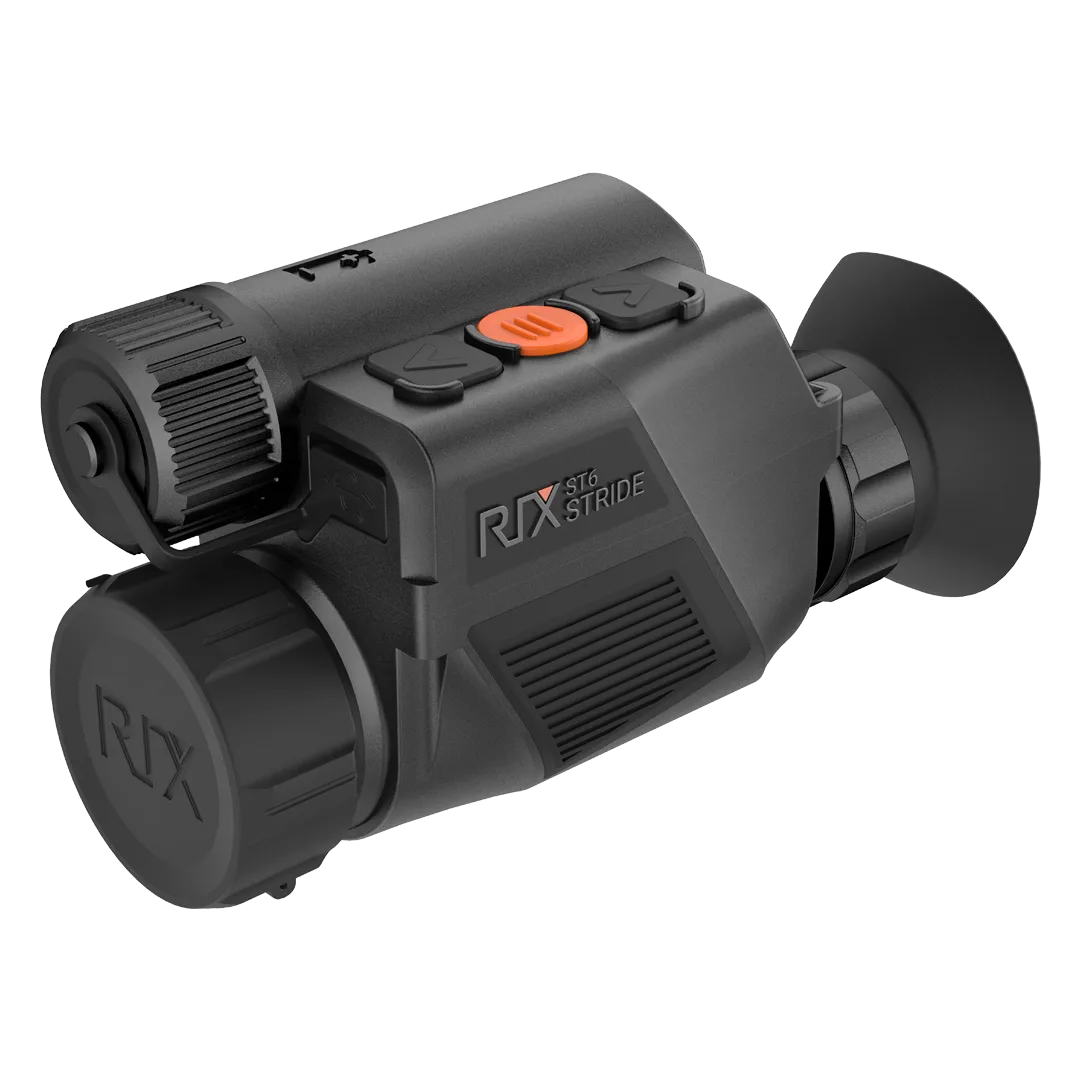

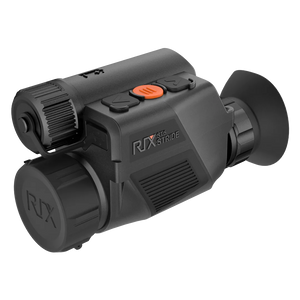

STRIDE ST6 Thermal Imaging Monocular
- Sensor Resolution: 640×512
- Optical Zoom: 1
- Detection Range: 1969yds
- Operating Time: 10h
- Weight: 0.6lb
RIX thermal imaging monocular, the STRIDE ST6, is equipped with a high-performance 640x512 resolution detector, a 50Hz refresh rate, and a thermal resolution o f NETD<25Mk, ensuring you always receive clearer, smoother, and more detailed images. Also features a 0.39-inch full-color OLED display with 1024x768 resolution, providing a stunning visual experience while observing with the device. Thanks to this excellent lens structure and powerful detector, the ST6 achieves a detection range of up to 1969YDS.
The ST6 comes with six different image modes, each designed for a specific purpose.
- White Hot, Black Hot, and Red Hot help you easily find targets
- Edge enhances target recognition
- Iron helps increase chances of recognition and identification
- Green Hot reduces discomfort during prolonged use and movement
The STRIDE has built-in photo and video recording capabilities and a large 64GB internal storage. You can connect to external devices via Wi-Fi or a data capable for easy content transfer.
| Model | ST6 | |
| Sensor Specifications | Type | VOx Uncooled |
| Resolution, pixels | 640×512 | |
| Pixel Pitch, µm | 12 | |
| NETD, mK | <25 | |
| Frame Rate, Hz | 50 | |
| Optical Specifications | Objective Lens, mm | 26.7 |
| Optic Zoom, x | 1 | |
| Field of View | 16.3° × 12.3° | |
| Digital Zoom, x | 1 to 6 | |
| Eye Relief, mm | 20 | |
| Diopter Adjustment, D | -5 to +2 | |
| Detection Range,m/yd | 1800/1969 | |
| Display Specifications | Type | OLED |
| Resolution, pixels | 1024x768 | |
| Wi-Fi | Wireless Protocol | Wi-Fi |
| Frequency, GHz | 2.4 | |
| Video Recorder | Video / Photo Resolution, pixels | 640×512 |
| Video / Photo Format | .mp4 / .jpg | |
| Built-in Memory, GB | 64 | |
| Physical Specifications | Degree of Protection, IP code | IP67 |
| Operating Temperature Range, °F | -4 to +122 | |
| Dimensions, inch | 4.5x2.8x1.9 | |
| Weight, lb | ＜0.6 (without battery) | |
| Connections and Compatibilities | Battery Type | 18650 |
| Operating Time on Battery Pack (at t=72°F), h | Up to 10 | |
| External Power Supply | 5V (Type-C USB) | |
