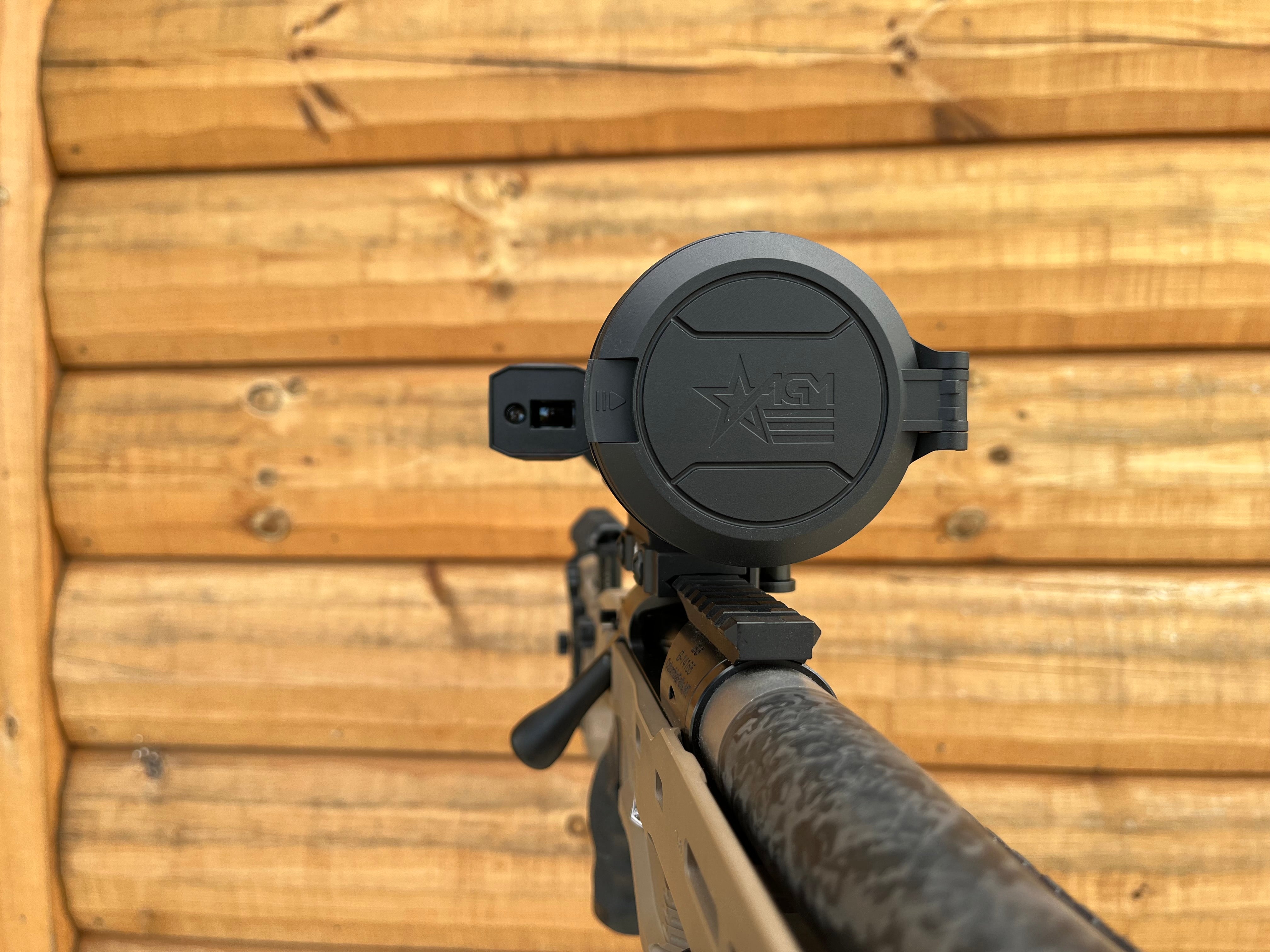

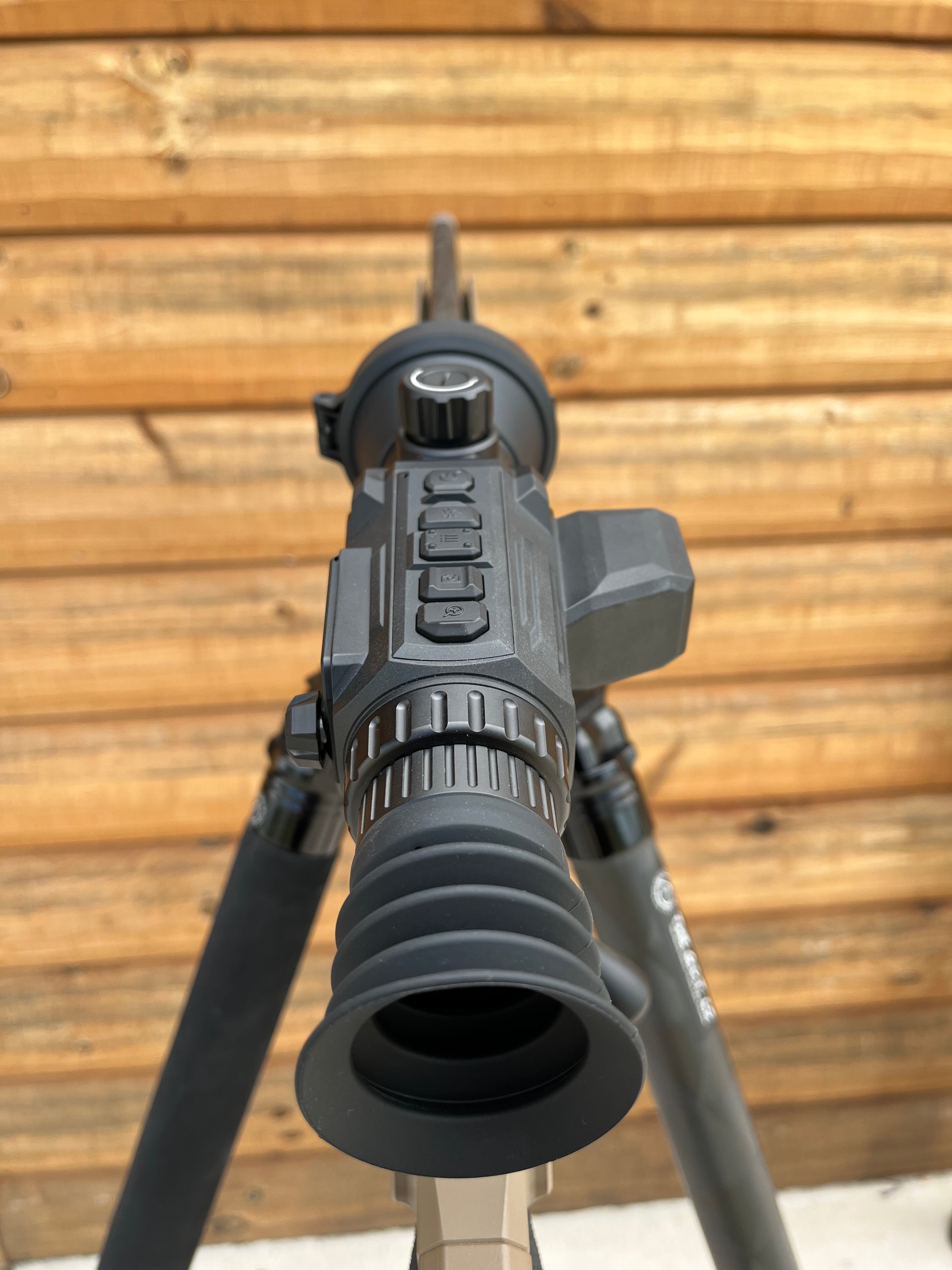

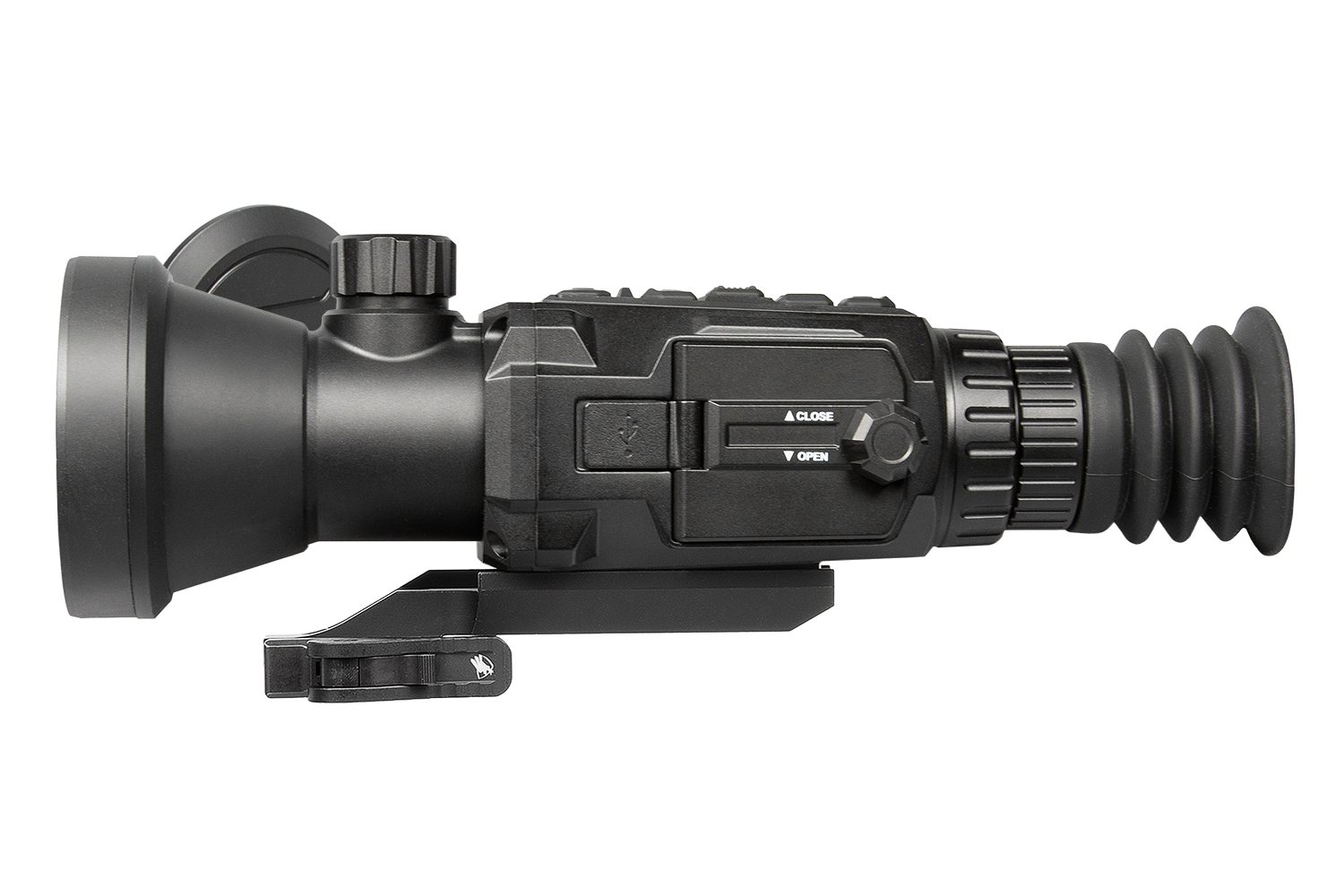

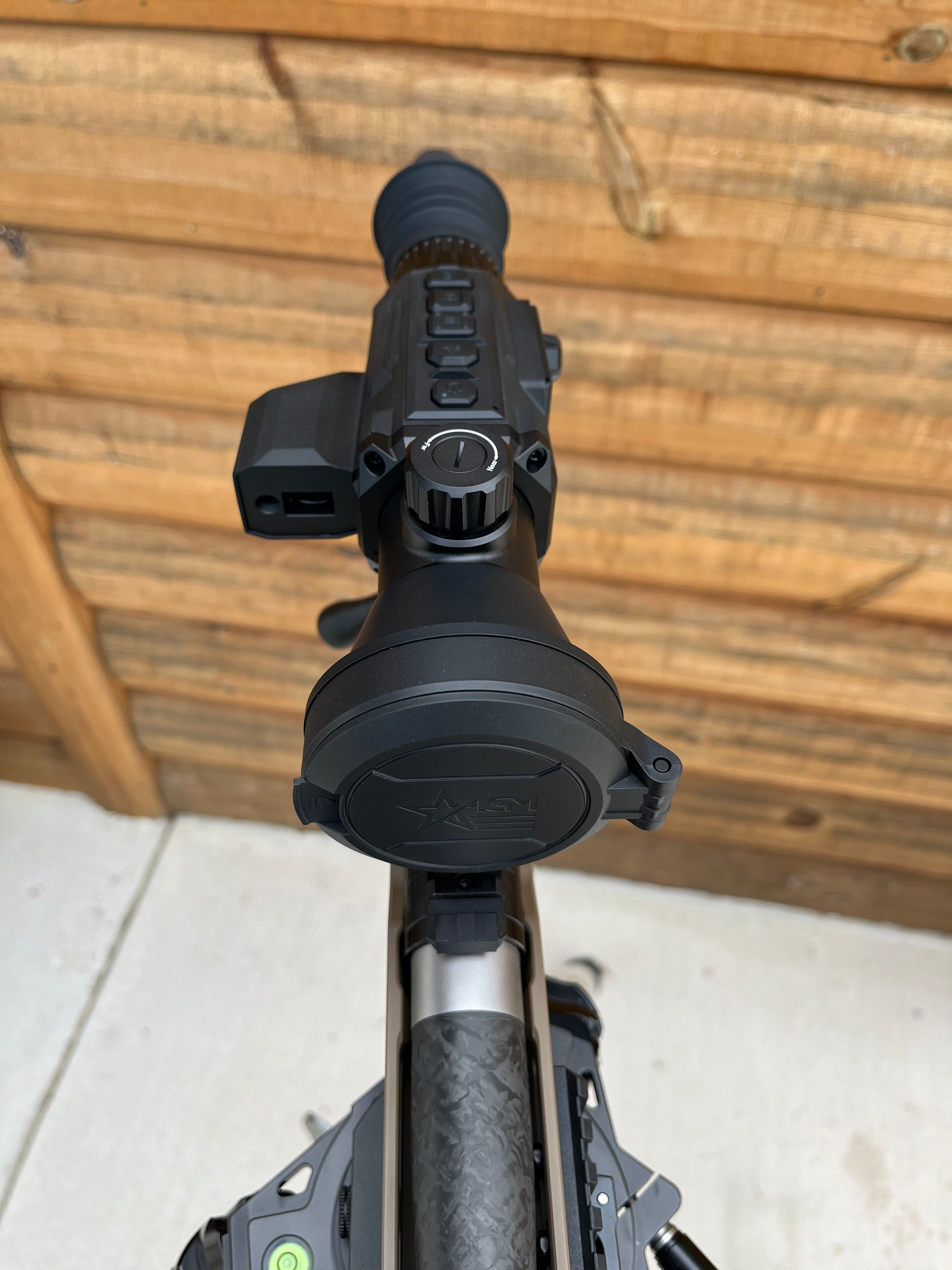

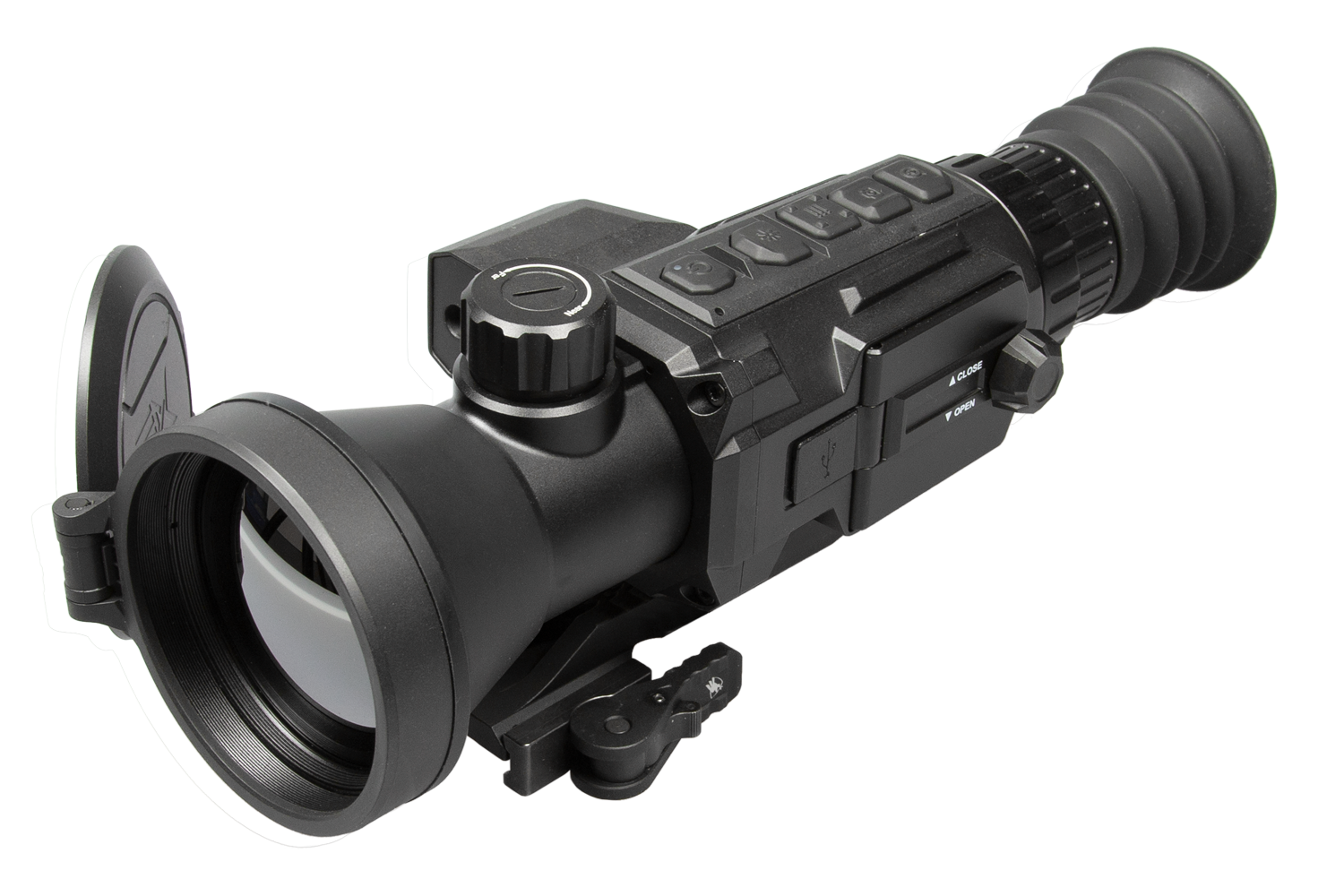

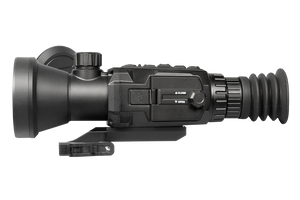

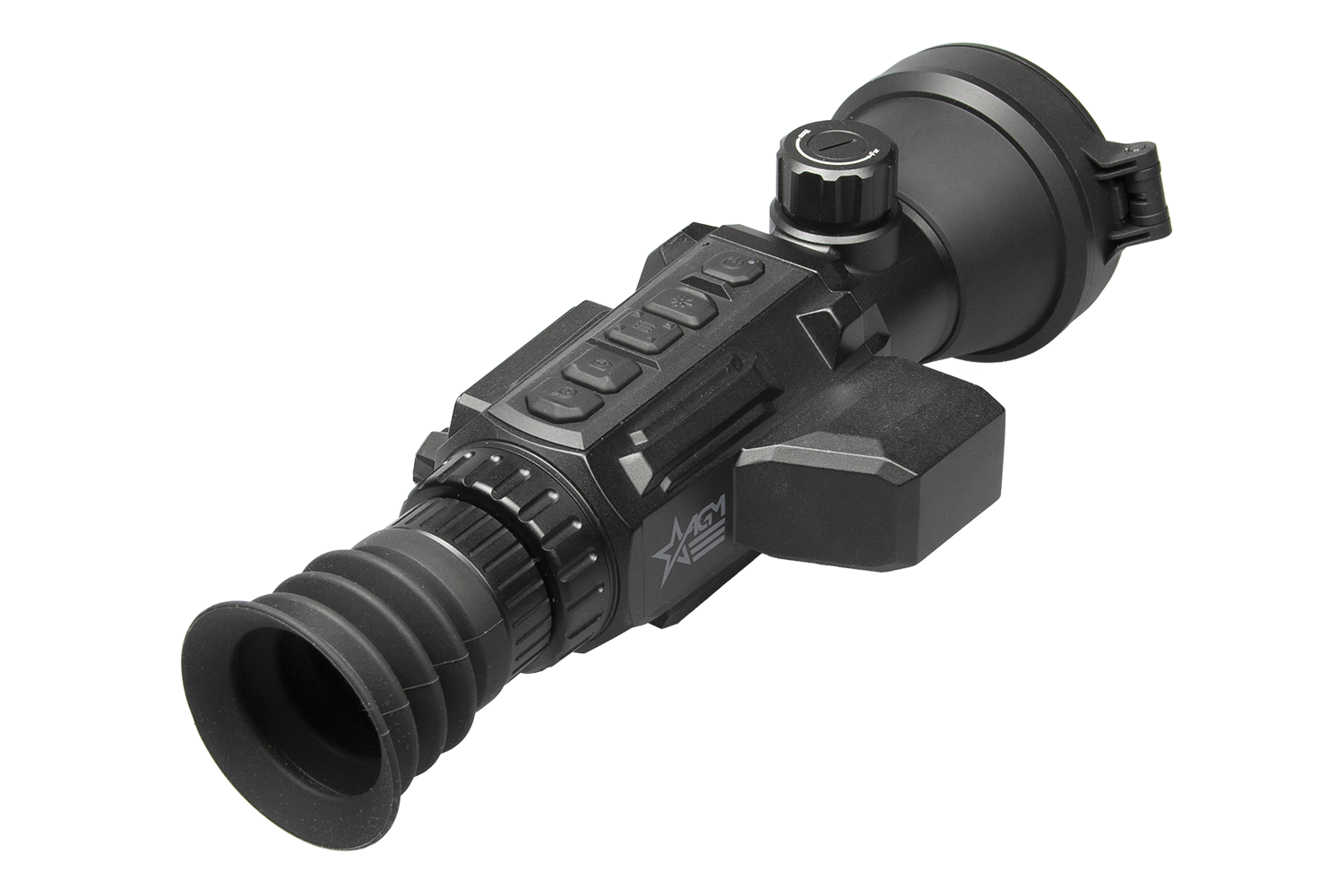

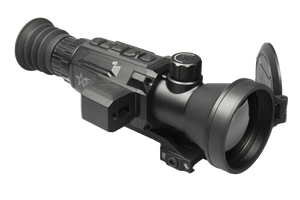

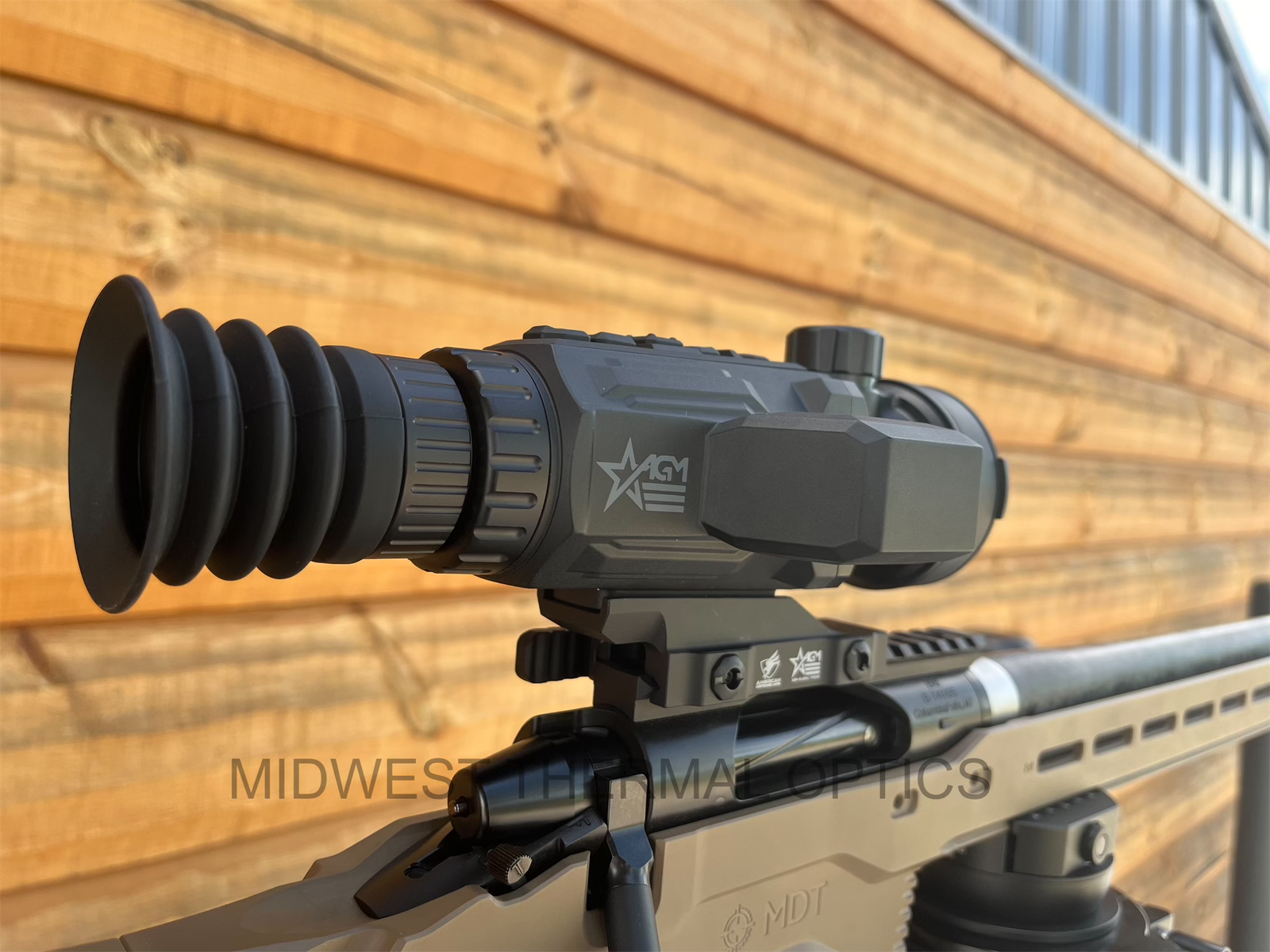

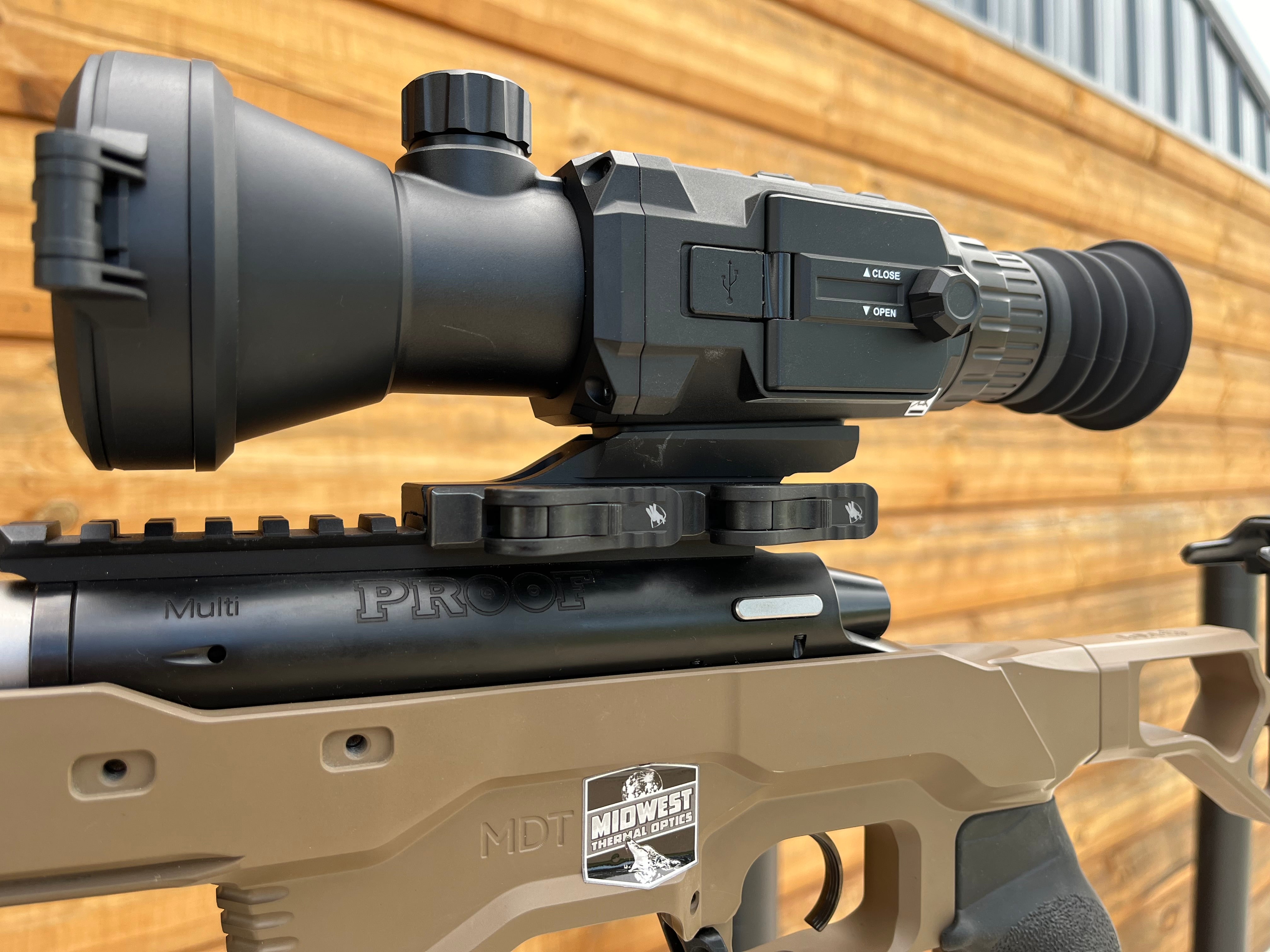

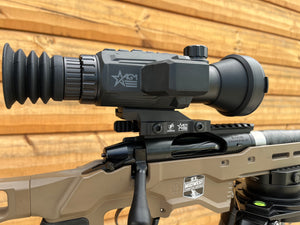

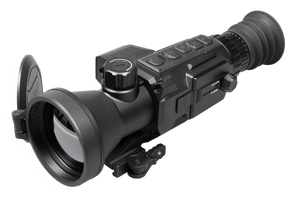

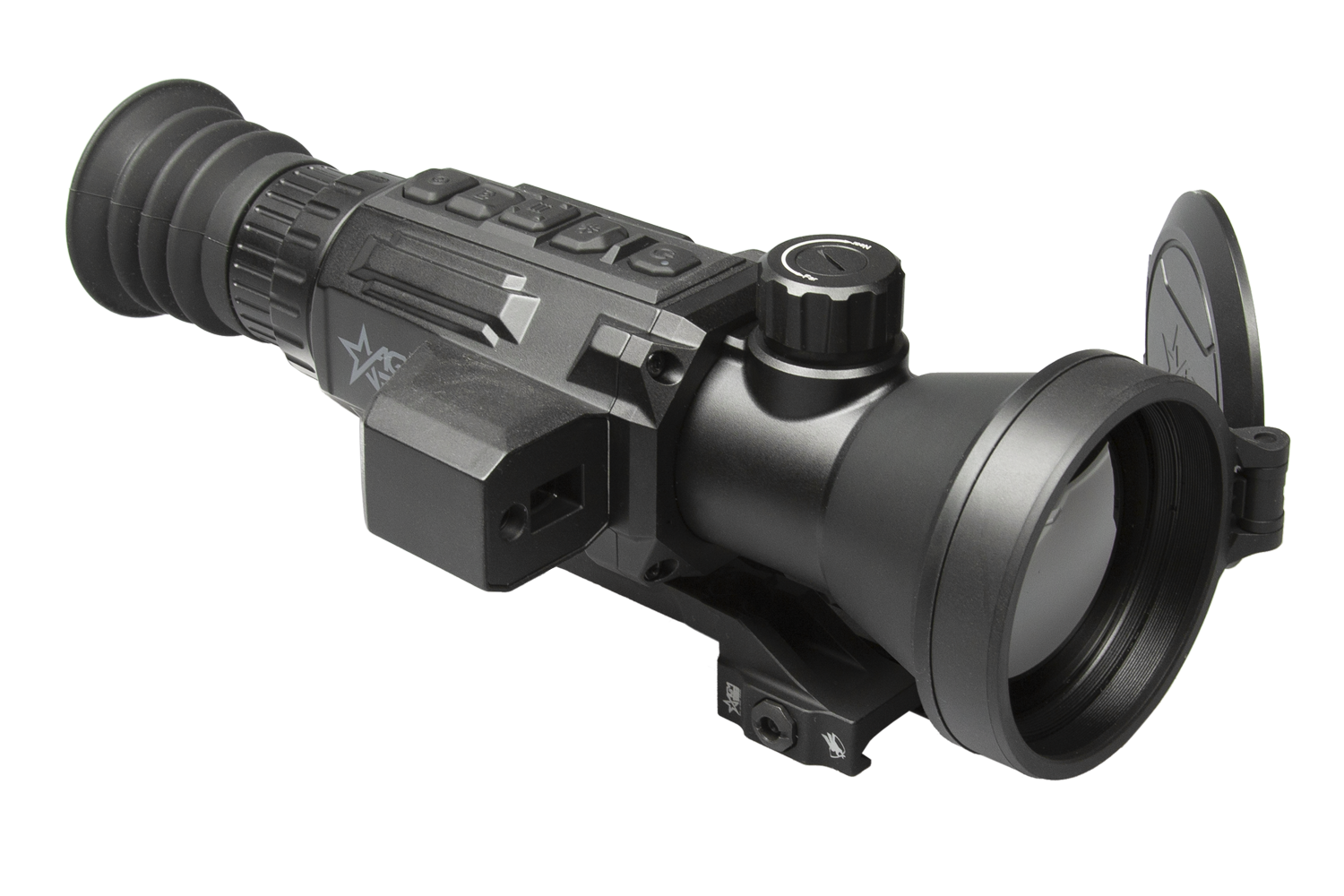

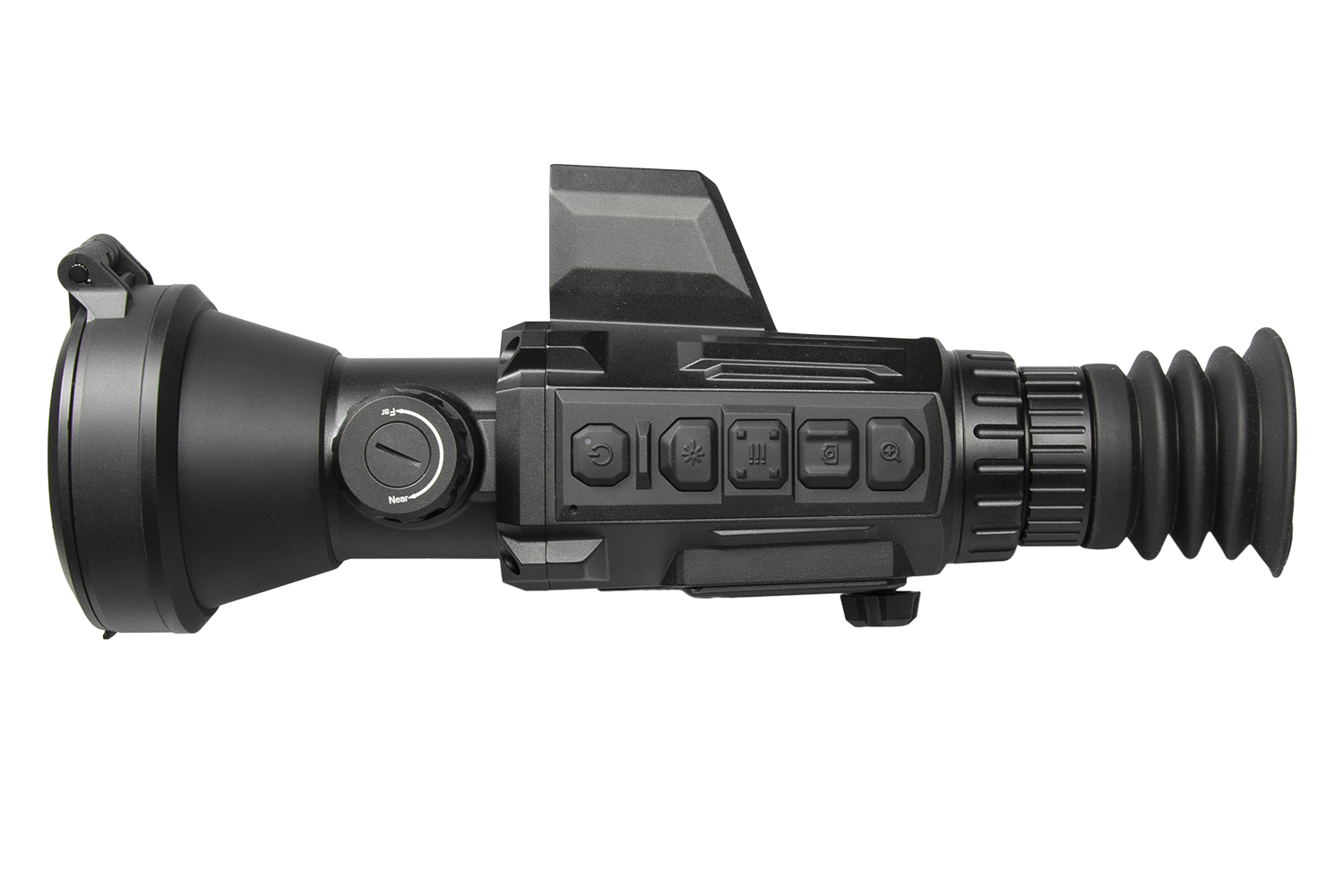

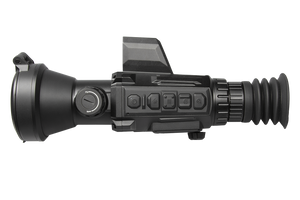

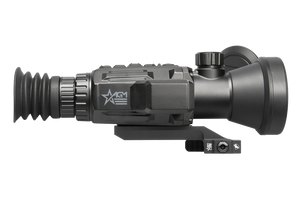

AGM Secutor LRF 75-640 Thermal Scope

AGM Secutor LRF 75-640 Thermal Scope

Regular price $5,995.00 USD
Regular price Sale price $5,995.00 USD
SALE! Sold Out: Contact Us
Shipping calculated at checkout.

AGM Secutor LRF 75-640 Thermal Scope

The Secutor LRF series was designed to expand and diversify AGM's line of thermal riflescopes equipped with rangefinders, using the same upgraded thermal sensors found in many of their other products. The three main differences include an upgraded 1000m laser rangefinder, a digital compass, and a CR123A based power system. These features cater to both tactical and commercial applications, offering extended range and familiar battery use. The range and power system make the Secutor LRF series suitable for law enforcement and defense use, while the integrated compass adds an extra level of situational awareness for shooters. Additionally, the newly introduced sub-20 milikelvin thermal sensors enhance ranging capabilities and improve target detection and identification at longer distances. Available in both 50 and 75mm options, the Secutor LRF series brings authenticity to the phrase "long range."

Features

  • 12μm thermal detector
  • High thermal sensitivity, NETD < 20mK
  • Fast 50Hz imaging
  • Built-in laser rangefinder
  • Adjustable color palettes
  • High resolution OLED display
  • Various reticle types and colors
  • 1x, 2x, 4x, 8x digital zoom
  • On-board video/audio recording and image capture
  • Built-in EMMC storage (16 GB)
  • Wi-Fi data transmission
  • Standby mode
  • More than 6 hours battery life
  • External power supply compatibility
  • Waterproof & shockproof
  • 5-year warranty

Specifications

Detector Type 12μm VOx Uncooled Focal Plane Array
Resolution 640 x 512
Refresh Rate 50 Hz
Response Waveband 8 μm to 14 μm
NETD Less than 20 mK (@25°C), F#=1.0
Lens System 75 mm; F1.2
FOV 5.9° × 4.7°
Magnification  4× – 32×
Digital Zoom 1×, 2×, 4×, 8×
Detection Range 3800 m/yd
Eye Relief 45 mm
Eye Pupil 6 mm
Diopter Adjustment -5 to +3 dpt
Monitor 1024x768, 0.39 inch, OLED
FFC  Auto, Manual, External Correction
Palettes Black Hot, White Hot, Red Hot, Fusion
Reticle 10 types, 4 colors, on/off
Boresight Adjustment Digital Controlled
Laser Range Finder Up to 1000 m, ±4 m accuracy
Laser Wavelength 905 nm
Laser Safety Class Class 1
Highest Temp Spot tracking Yes
Defective Pixel Correction Yes
Wifi Hotspot Yes
Standby mode Yes
Picture in Picture Mode Yes
Burn Prevention Yes
Built-in Storage 16 GB EMMC
Video/Audio Recoding Yes
Image Capture Yes
SAR Yes
Battery Type Four CR123A Lithium batteries
Battery Op Time (Wifi OFF) More than 6 hours
External Power 5 VDC/2 A, USB Type-C
Working Temp -30°C to 55°C (-22°F to 131°F)
Protection Level IP67
Max/Recoil 1000g / 0.4ms
Dimensions (w/o mount) 261 × 111 × 79 mm (10.3 × 4.4 × 3.1 in)
Weight (w/o battery/mount) 0.7 kg (1.55 lb)
