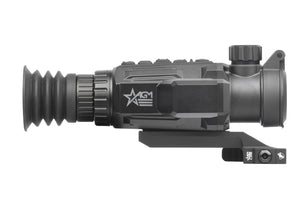

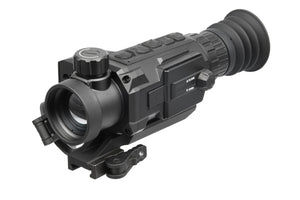

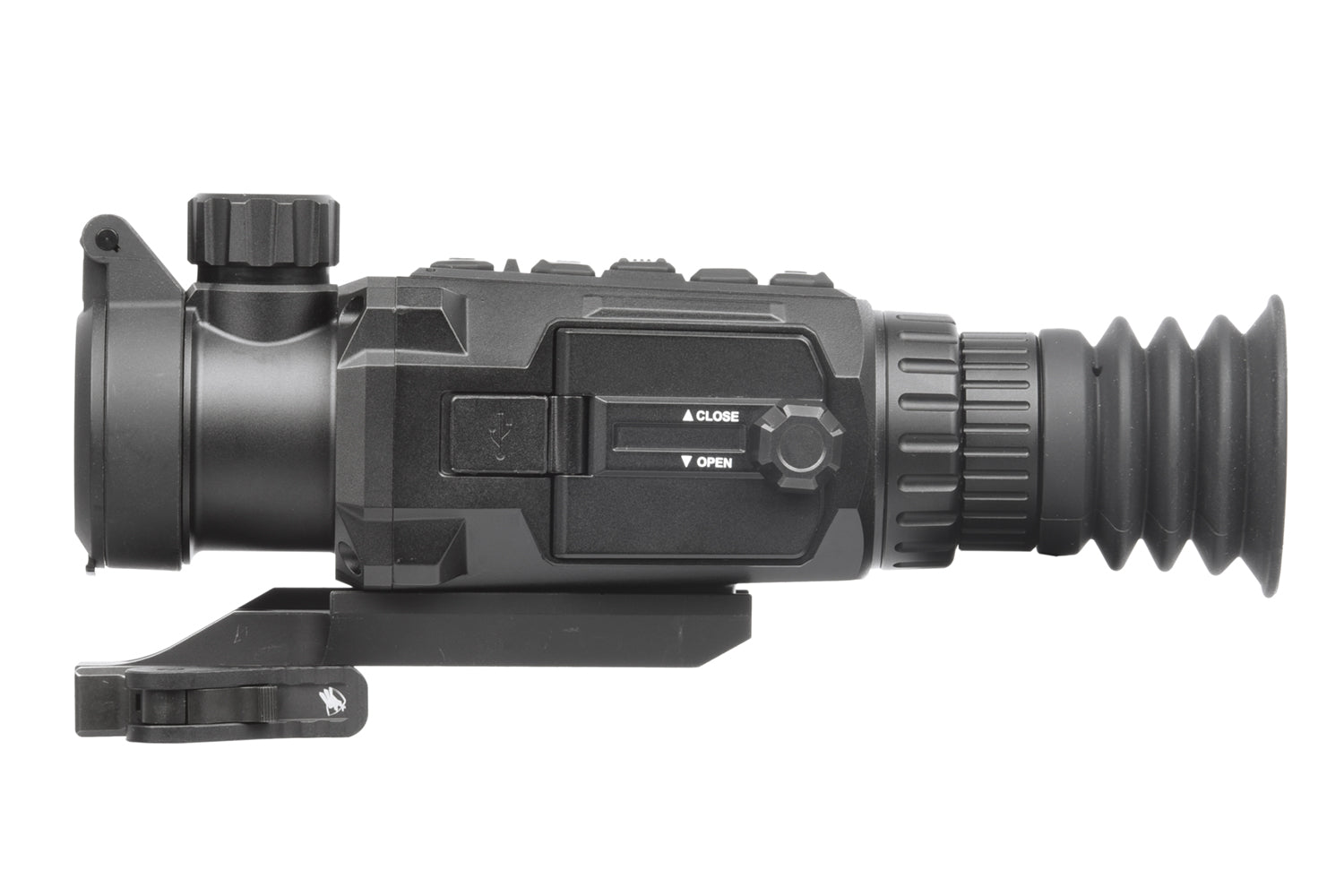

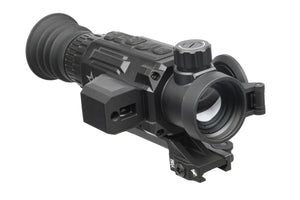

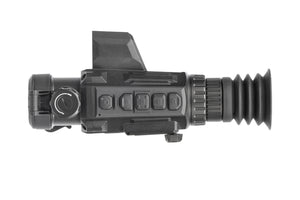

AGM Secutor LRF 35-384 Thermal Scope
AGM Secutor LRF 35-384 Thermal Scope
AGM Secutor LRF 35-384 Thermal Scope
The Secutor LRF series was designed to expand and diversify AGM's line of thermal riflescopes equipped with rangefinders, using the same upgraded thermal sensors found in many of their other products. The three main differences include an upgraded 1000m laser rangefinder, a digital compass, and a CR123A based power system. These features cater to both tactical and commercial applications, offering extended range and familiar battery use. The range and power system make the Secutor LRF series suitable for law enforcement and defense use, while the integrated compass adds an extra level of situational awareness for shooters. Additionally, the newly introduced sub-20 milikelvin thermal sensors enhance ranging capabilities and improve target detection and identification at longer distances. Available in both 50 and 75mm options, the Secutor LRF series brings authenticity to the phrase "long range."
Features
- 12μm thermal detector
- High thermal sensitivity, NETD < 20mK
- Fast 50Hz imaging
- Built-in laser rangefinder
- Adjustable color palettes
- High resolution OLED display
- Various reticle types and colors
- 1x, 2x, 4x, 8x digital zoom
- On-board video/audio recording and image capture
- Built-in EMMC storage (16 GB)
- Wi-Fi data transmission
- Standby mode
- More than 6 hours battery life
- External power supply compatibility
- Waterproof & shockproof
- 5-year warranty
Specifications
Detector Type | 12μm VOx Uncooled Focal Plane Array |
Resolution | 384 x 288 |
Refresh Rate | 50 Hz |
Response Waveband | 8 μm to 14 μm |
NETD | Less than 20 mK (@25°C), F#=1.0 |
Lens System | 35 mm; F1.0 |
FOV | 7.5° × 5.6° |
Magnification | 3× – 24× |
Digital Zoom | 1×, 2×, 4×, 8× |
Detection Range | 1800 m/yd |
Eye Relief | 45 mm |
Eye Pupil | 6 mm |
Diopter Adjustment | -5 to +3 dpt |
Monitor | 1024x768, 0.39 inch, OLED |
FFC | Auto, Manual, External Correction |
Palettes | Black Hot, White Hot, Red Hot, Fusion |
Reticle | 10 types, 4 colors, on/off |
Boresight Adjustment | Digital Controlled |
Laser Range Finder | Digital Controlled |
Laser Wavelength | 905 nm |
Laser Safety Class | Class 1 |
Highest Temp Spot tracking | Yes |
Defective Pixel Correction | Yes |
Wifi Hotspot | Yes |
Standby mode | Yes |
Picture in Picture Mode | Yes |
Burn Prevention | Yes |
Built-in Storage | 16 GB EMMC |
Video/Audio Recoding | Yes |
Image Capture | Yes |
SAR | Yes |
Battery Type | Four CR123A Lithium batteries |
Battery Op Time (Wifi OFF) | More than 7 hours |
External Power | 5 VDC/2 A, USB Type-C |
Working Temp | -30°C to 55°C (-22°F to 131°F) |
Protection Level | IP67 |
Max/Recoil | 1000g / 0.4ms |
Dimensions (w/o mount) | 215 × 101 × 74 mm (8.5 × 4.0 × 2.9 in) |
Weight (w/o battery/mount) | 0.6 kg (1.32 lb) |
