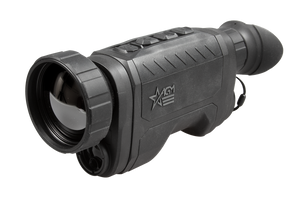

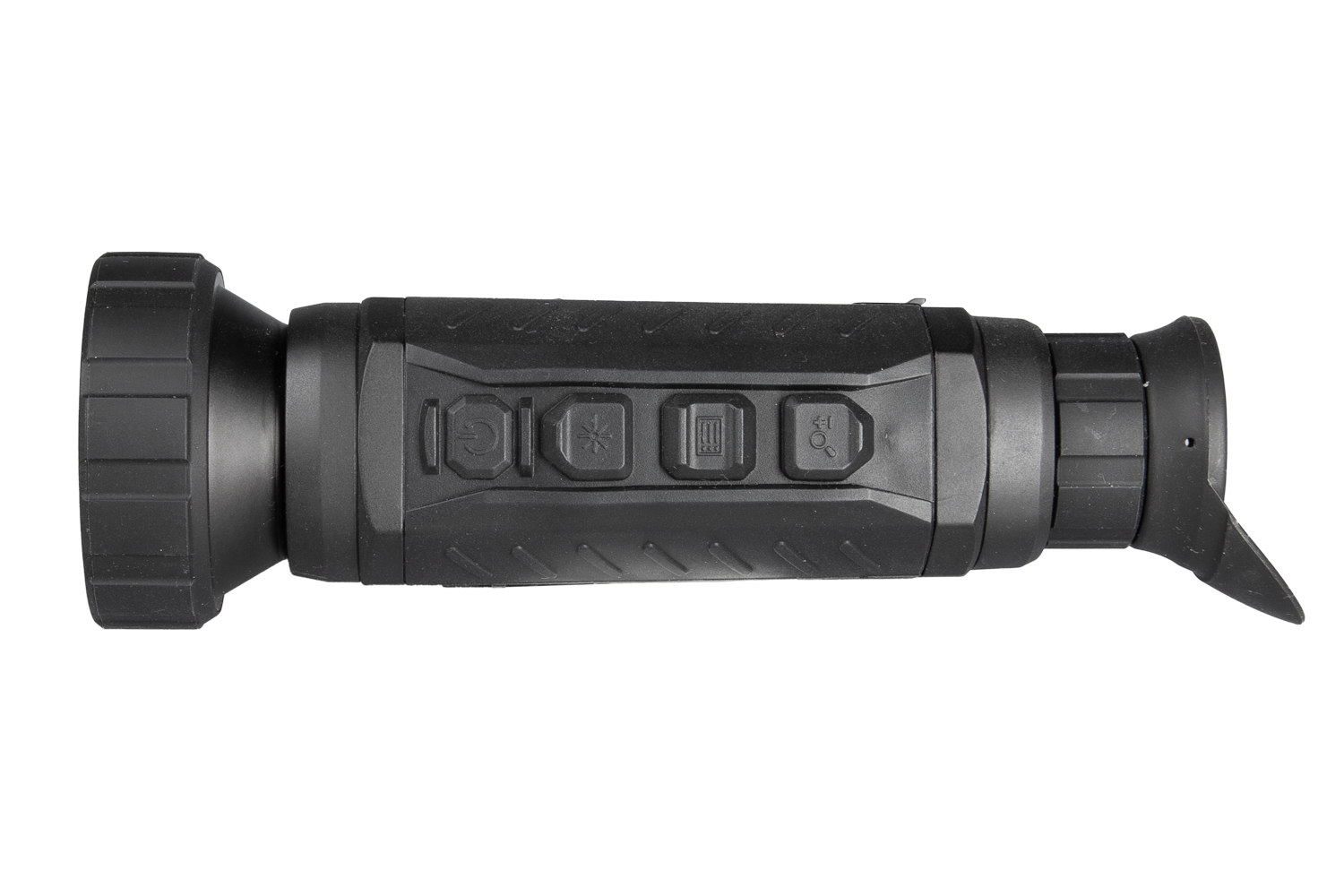

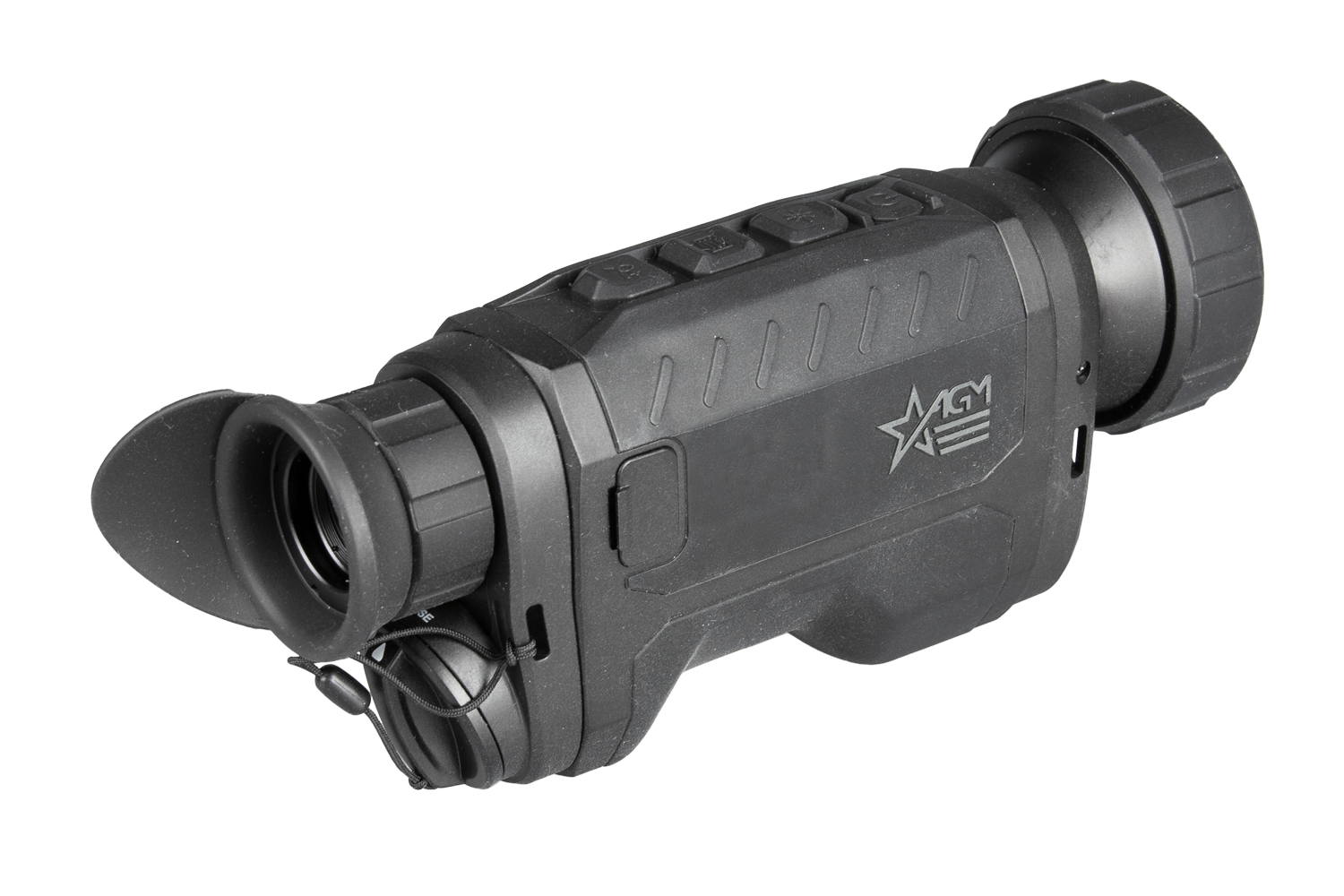

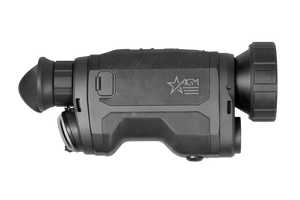

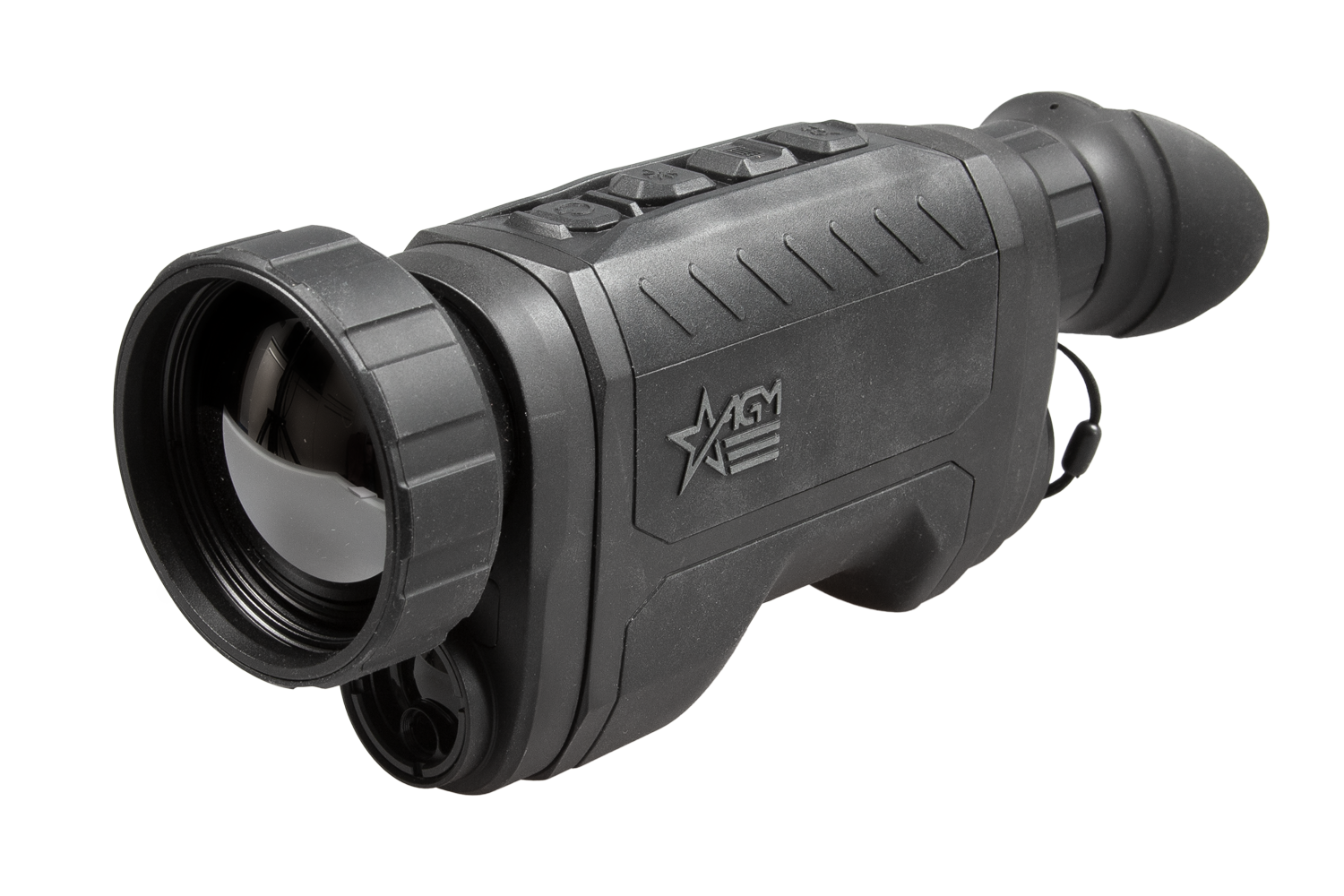

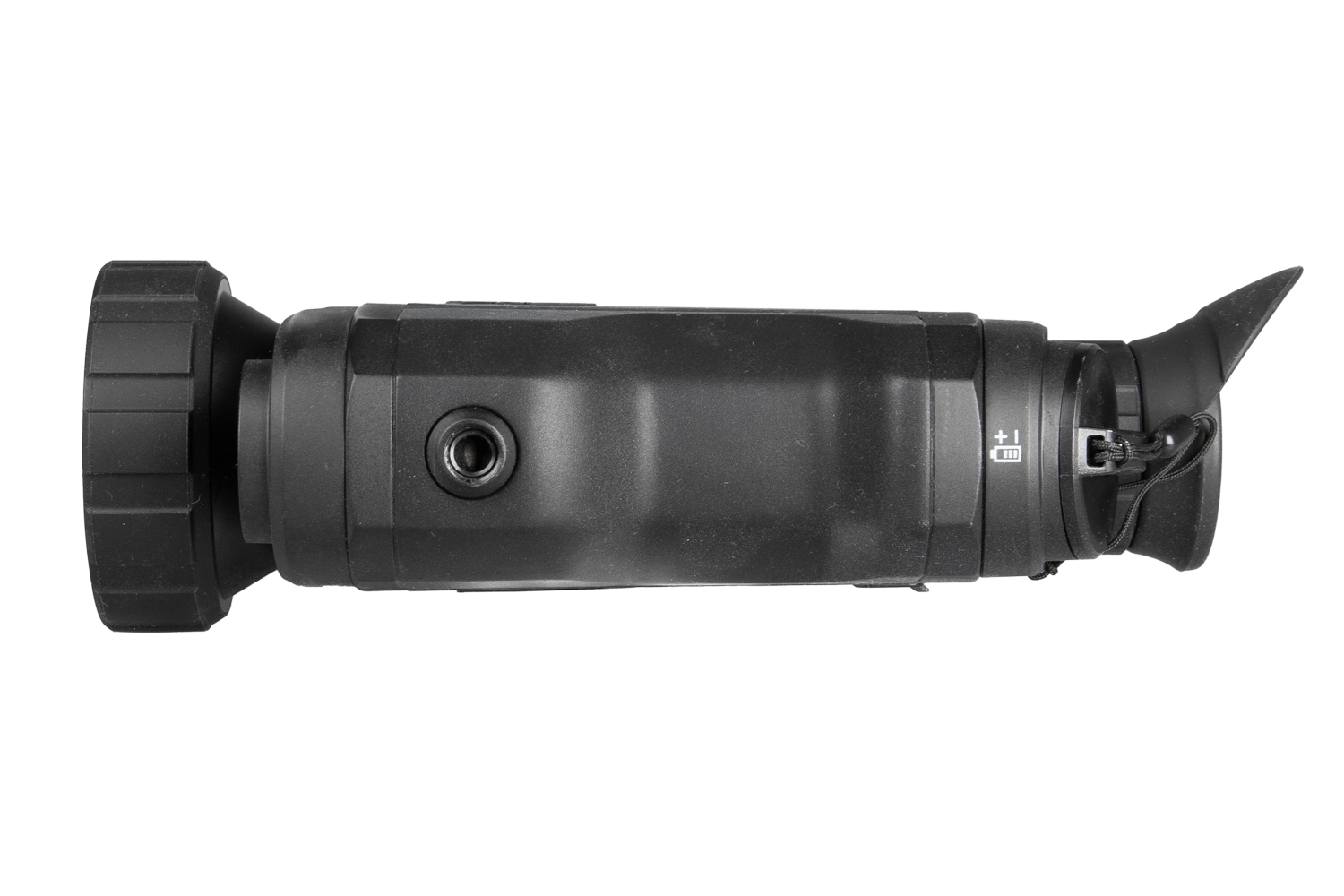

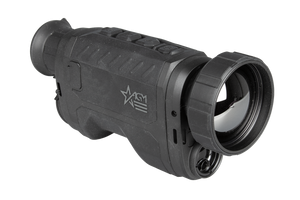

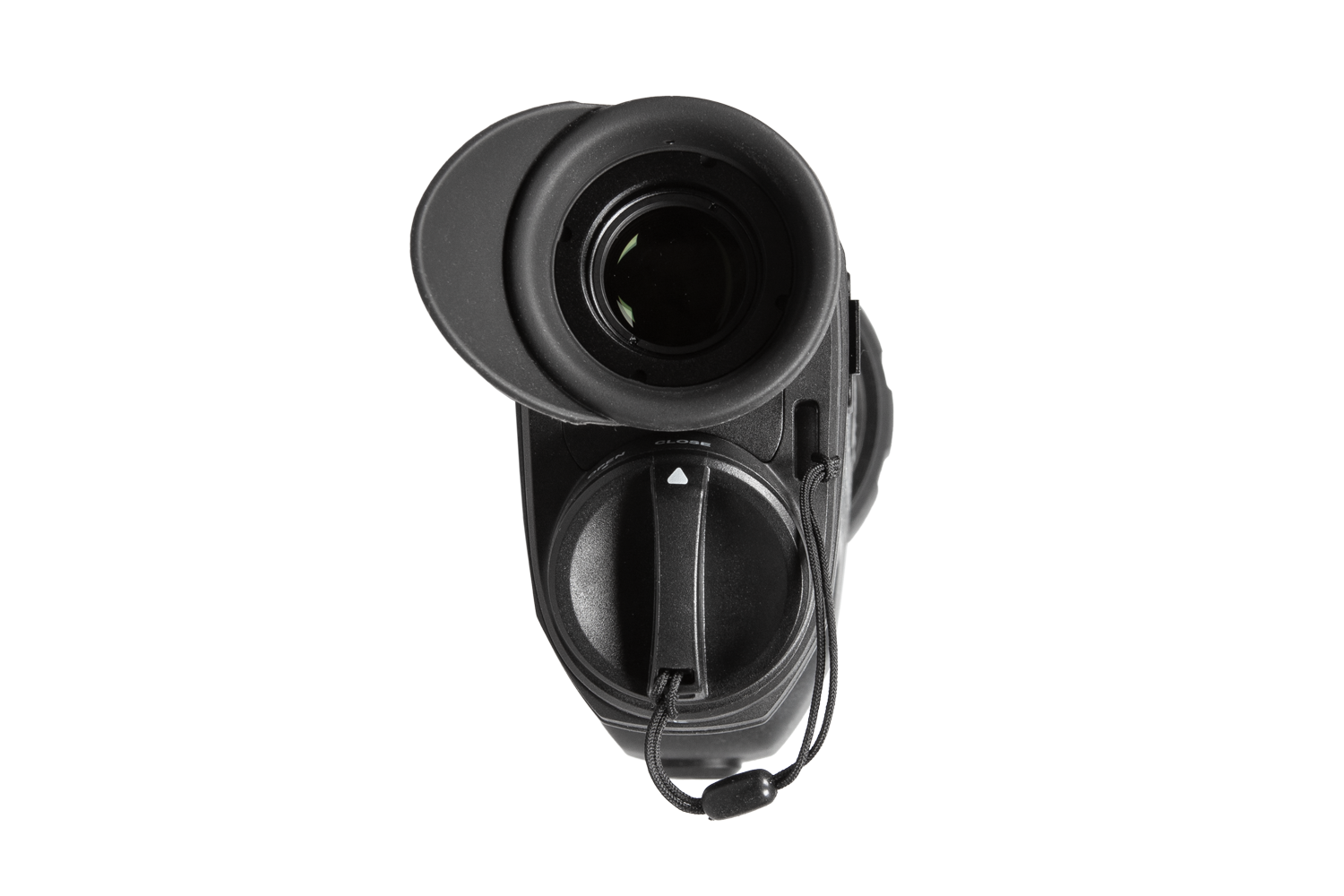

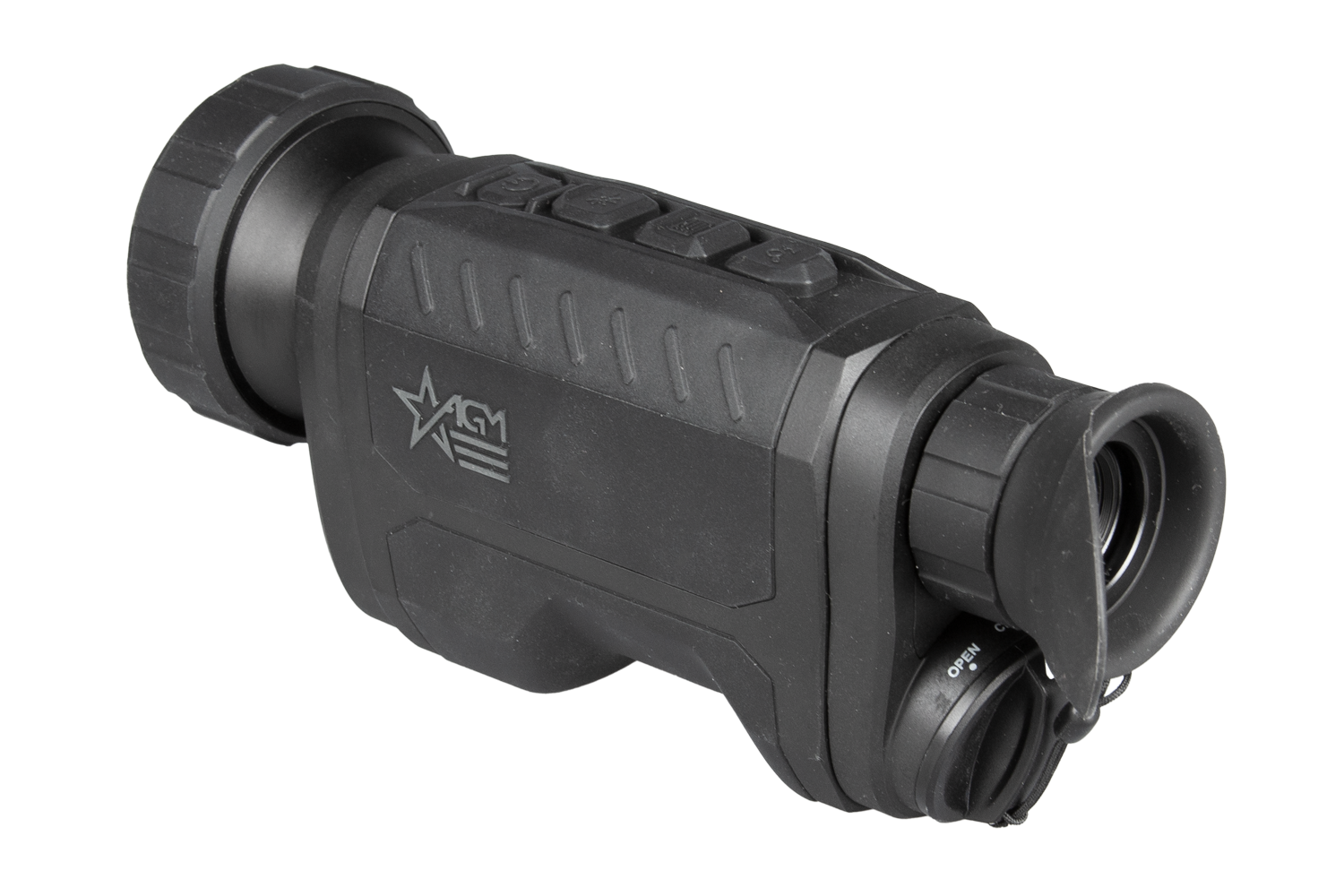

AGM ReachIR LRF 50-640 Thermal Imaging Monocular with LRF
AGM ReachIR LRF 50-640 Thermal Imaging Monocular with LRF
AGM ReachIR LRF 50-640 Thermal Imaging Monocular with built-in Laser Range Finder, 20mK, 12 Micron, 640x512 (50 Hz)

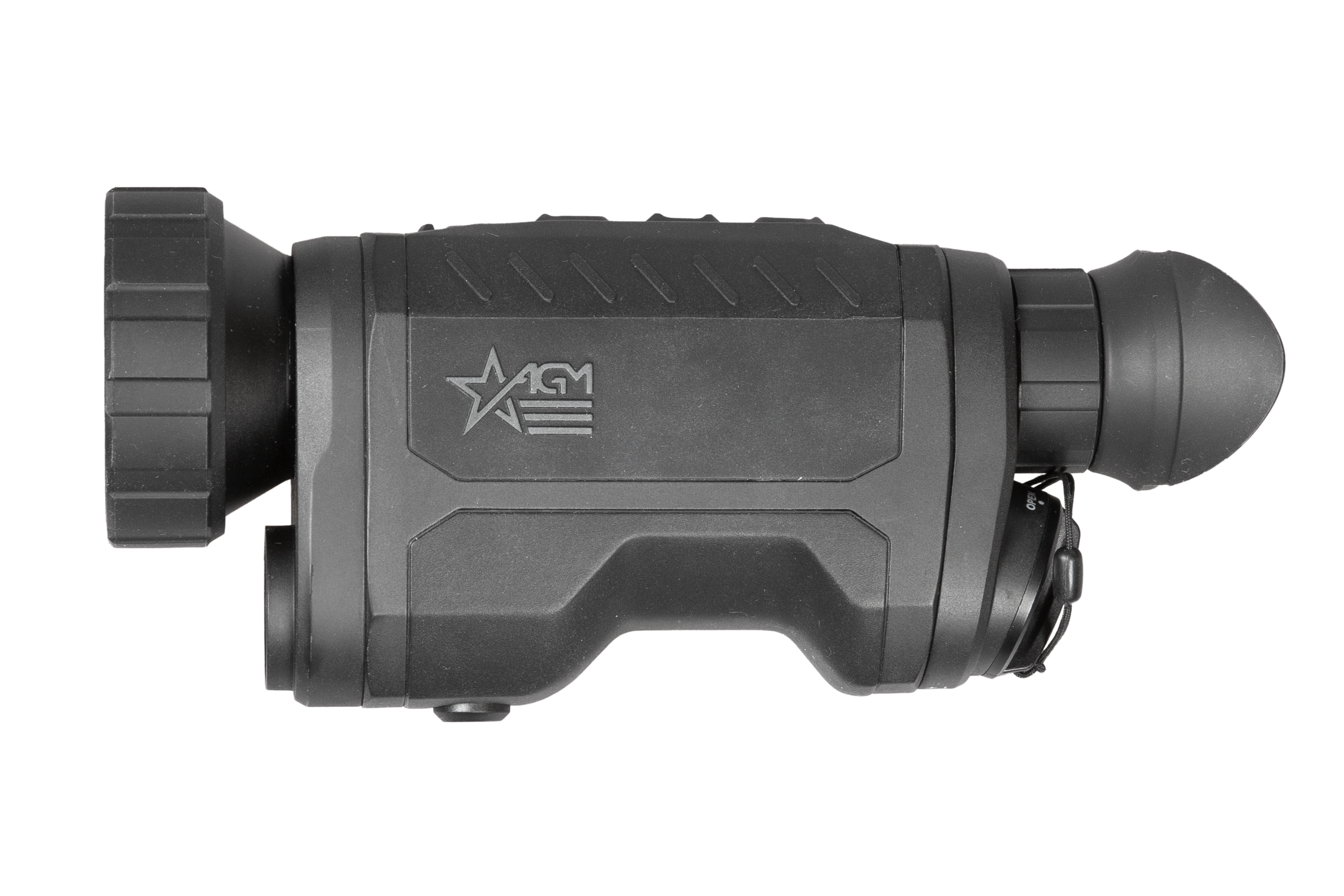

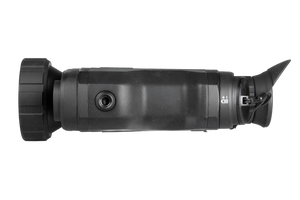

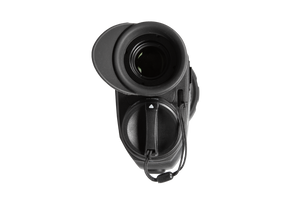

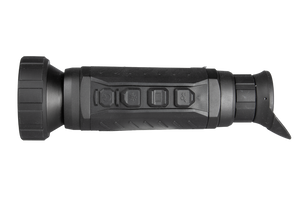

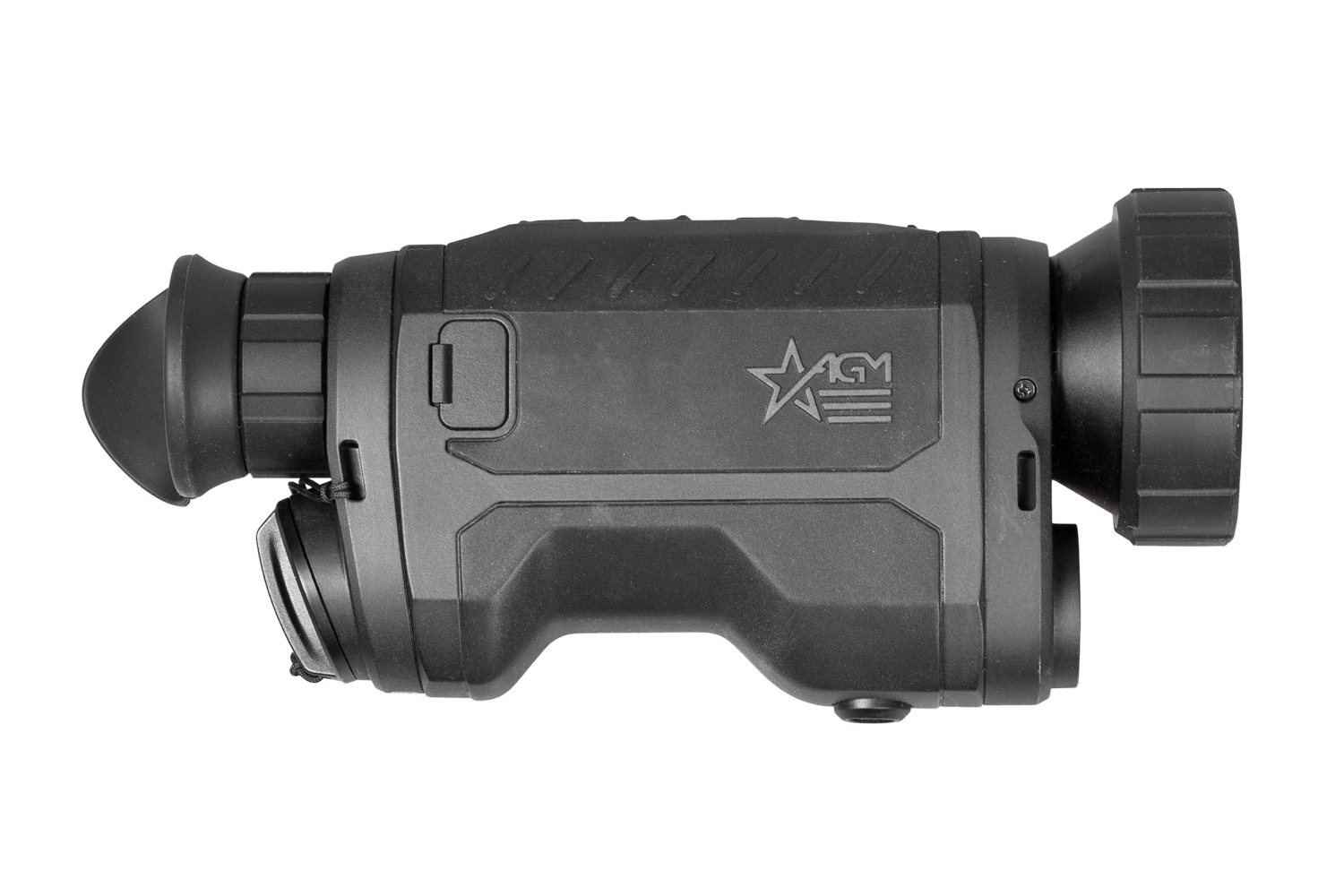

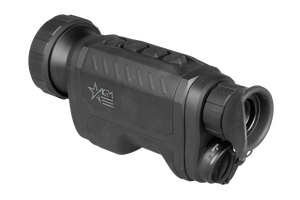

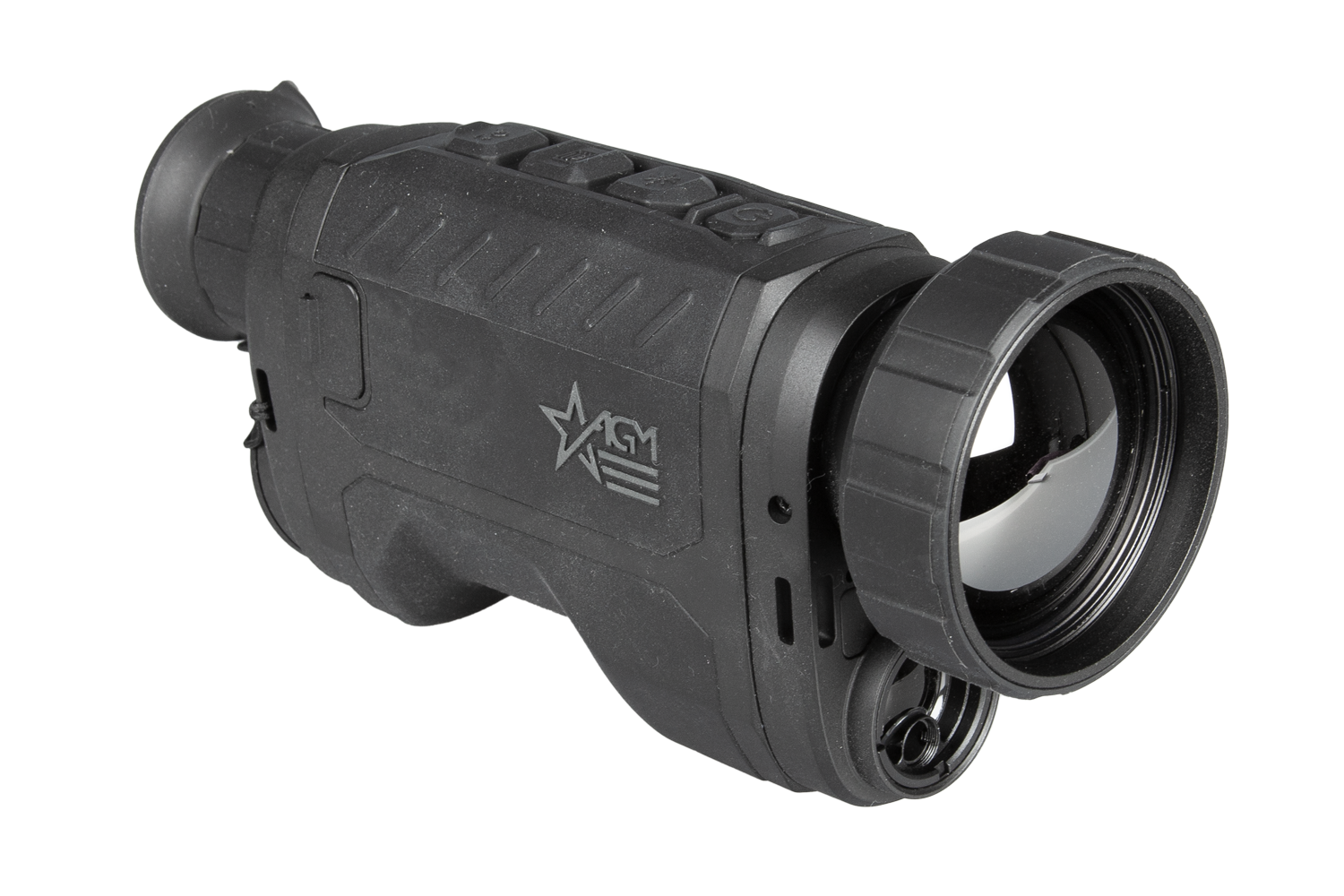

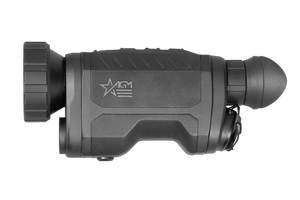

The AGM ReachIR LRF 50-640 Thermal Imaging Monocular with LRF is a new, top-of-the-line series of handheld thermal monoculars. These models feature a 12-micron infrared detector and a 1024×768 OLED display for enhanced color accuracy. With the most sensitive temperature ratings in its class, these thermal sensors offer sub-20 millikelvin across all models. Additionally, the monoculars include a 1,000-meter integrated laser rangefinder, a durable body, and a removable 18650 battery. Moreover, these units have an impressive waterproof rating, providing peace of mind for users in various weather conditions. Advanced image processing algorithms result in optimized images and exceptional details. With built-in 64 GB memory, these thermal monoculars are unmatched in their class and offer advanced software for video/audio recording and image capture. These monoculars are ideal for hunting, law enforcement, search-and-rescue, personal security, conservation, anti-poaching, camping, hiking, and different marine applications.
Features
- 640-512, 12-micron sensor
- Sub-20mK thermal sensitivity
- Fast 50 Hz imaging
- Built-in 1,000-meter laser rangefinder
- New optimized image processing algorithms
- 1x, 2x, 4x, 8x digital zoom
- 1024×768 resolution, 0.39-inch OLED display
- Video/audio recording and image capture
- 64 GB built-in memory
- Wi-Fi hotspot
- Standby mode
- Replaceable and rechargeable 18650 Lithium battery
- Up to 4 hours continuous running
- Auto screen-off function
- Robust magnesium alloy housing
- Waterproof
- 5-Year Warranty
Specifications
Detector Type |
12μm VOx Uncooled Focal Plane Array |
Resolution | 640 x 512 |
Refresh Rate | 50 Hz |
NETD | Less than 20 mK (25°C, F#=1.0) |
Response Waveband | 8 μm to 14 μm |
Lens System | 50mm; F1.0 |
Field of View (HxV) | 8.7° × 7.0° |
Magnification | 3.0x-24x |
Digital Zoom | 1x, 2x, 3x, 4x |
Diopter Adjustment | -5 to +3 |
Detection Range (6' object) | 2,600m/yd |
Monitor | 1024x768, 0.39 inch, OLED, 50 FPS |
FFC | Auto, Manual, External Correction |
Palettes | Black Hot, White Hot, Red Hot, Fusion |
Highest Temp Spot Tracking | Yes |
Scene Mode | Jungle, Recognition |
Distance Measurement | Laser Rangefinder: up to 1,000 m, ±1 m accuracy |
Laser Wavelength | 905 nm |
Laser Safety Class | Class 1 |
Hotspot | Yes |
Sleep Mode | Yes |
Built-in Storage | 64 GB EMMC |
Video/Audio Recording | Yes/Yes |
Image Capture | Yes |
PIP | Yes |
Battery Type | One 18650 rechargeable battery (removable) |
Battery Operating Time | Up to 4 hours continuous running (@25°C, WiFi and LRF off) |
Battery Capacity Display | Yes |
External Power | 5 VDC/2 A, USB Type-C interface. Supports external power supply. |
Working Temp | -30°C to 55°C (-22°F to 131°F) |
Protection Level | IP67 (Waterproof) |
Dimensions | 197 × 60 × 95 mm (7.76” × 2.36” × 3.74”) |
Weight (w/o batteries) | 1.0lb (450g) |
