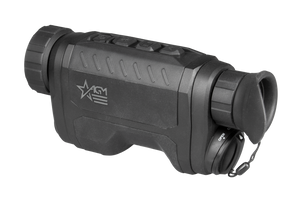

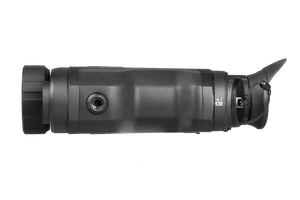

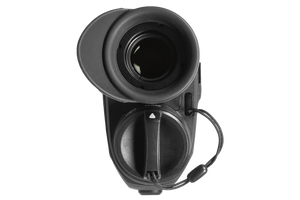

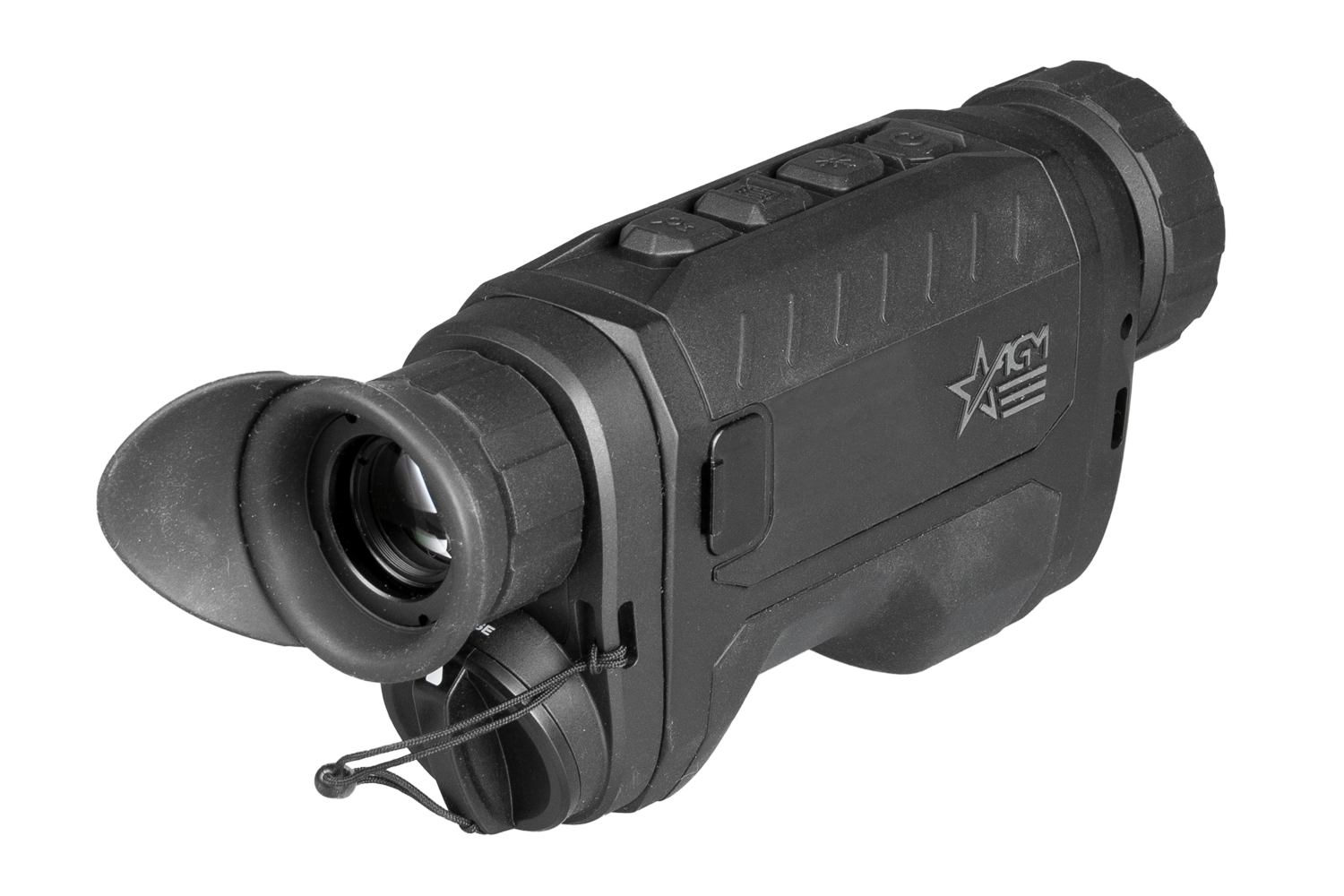

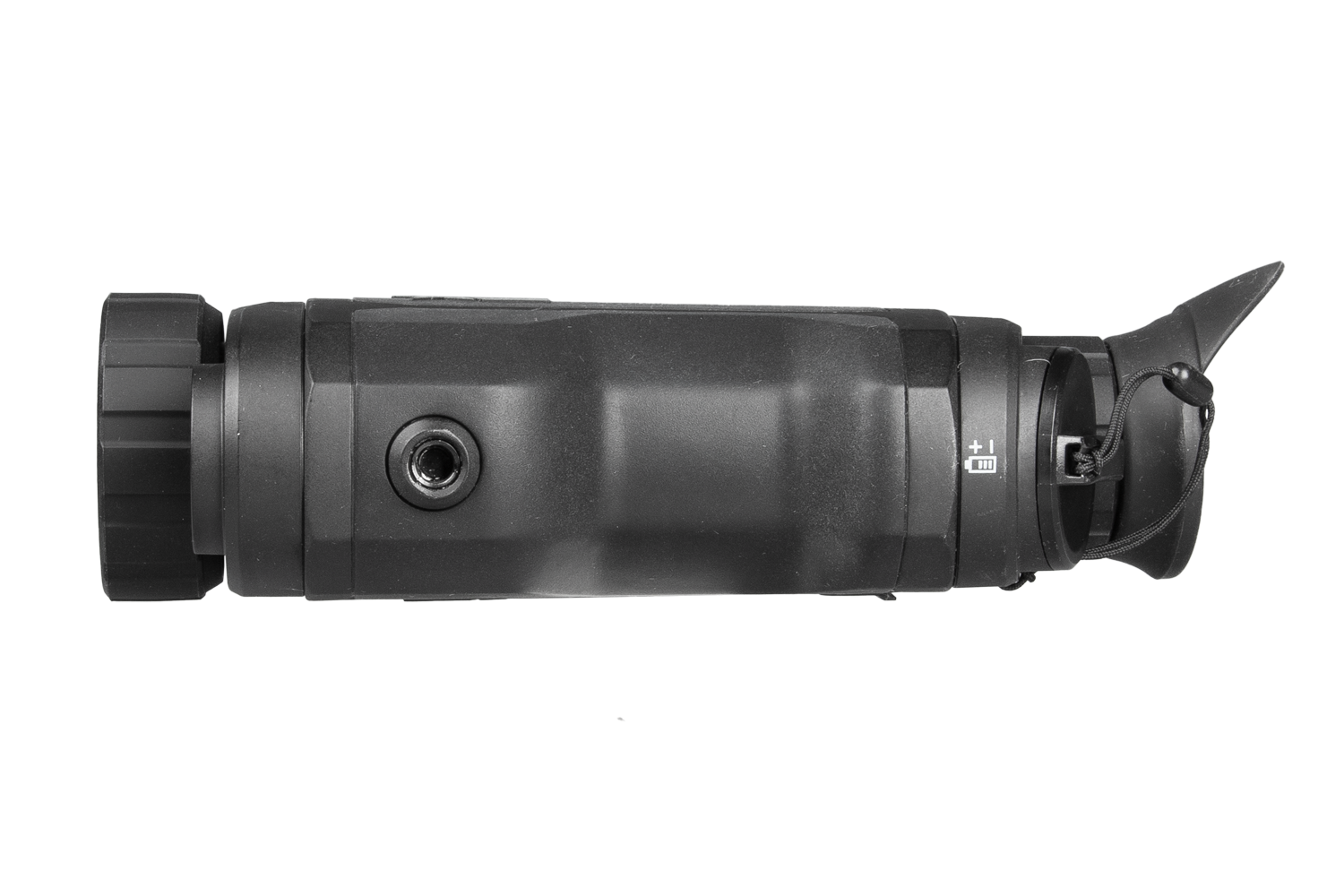

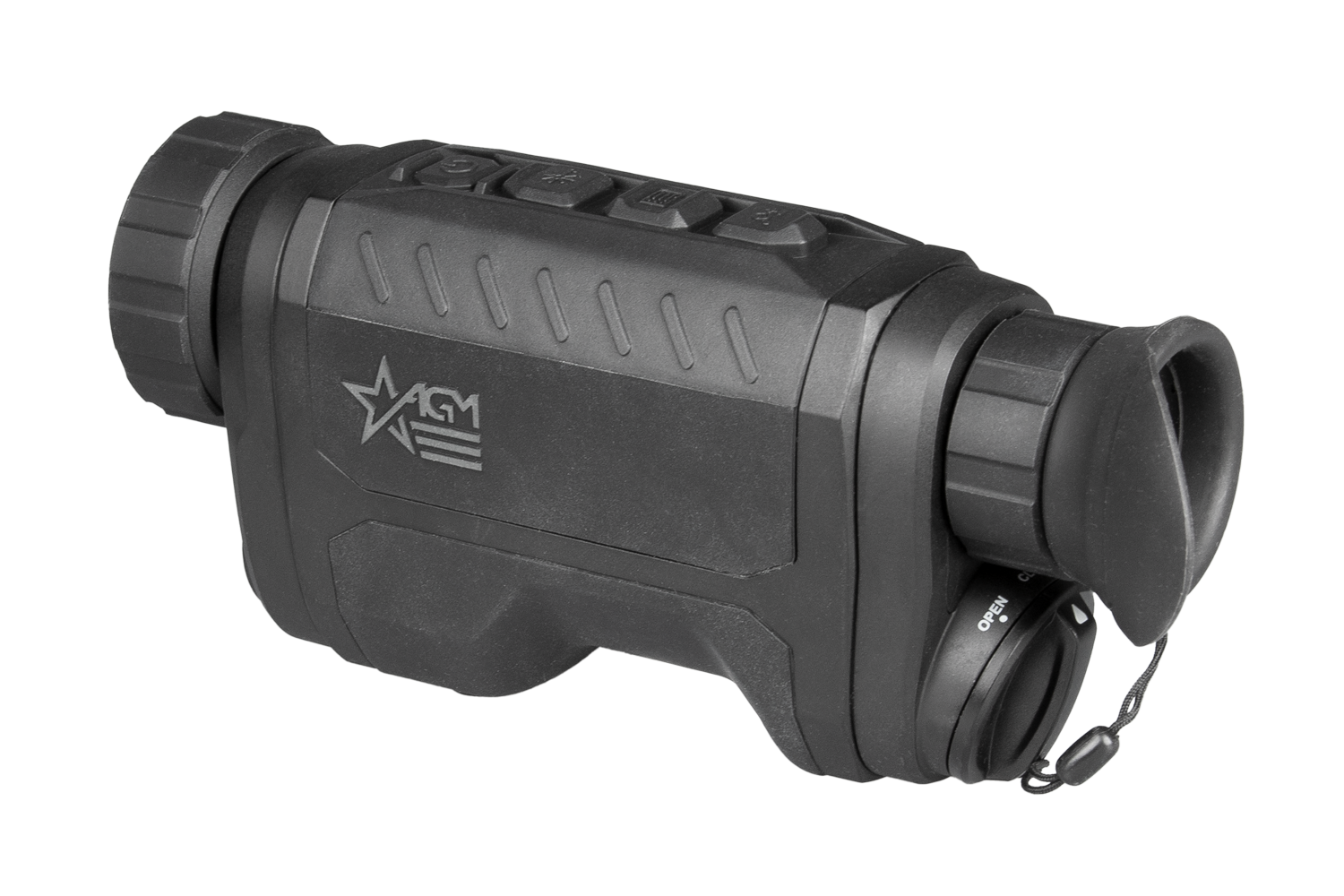

AGM ReachIR LRF 35-640 Thermal Imaging Monocular with LRF

AGM ReachIR LRF 35-640 Thermal Imaging Monocular with LRF

Regular price $2,695.00 USD
Regular price Sale price $2,695.00 USD
SALE! Sold Out: Contact Us
Shipping calculated at checkout.

AGM ReachIR LRF 35-640 Thermal Imaging Monocular with built-in Laser Range Finder, 20mK, 12 Micron, 640x512 (50 Hz)

The AGM ReachIR LRF 35-640 Thermal Imaging Monocular series offers professional-grade performance. With a 1024×768 OLED display and a twelve micron infrared detector, this device provides enhanced color rendering. Its advanced thermal sensors have incredibly sensitive temperature ratings, achieving sub-20 millikelvin across all models. Additional features include a 1,000-meter integrated laser rangefinder (LRF), durable construction, and a removable, rechargeable 18650 battery. These thermal monoculars have a superior waterproof rating, making them suitable for use in all weather conditions. With optimized image processing algorithms, this device produces highly detailed images. It also has a top-of-the-line 64 GB memory and supports video and image capture. Whether for hunting, law enforcement, search-and-rescue, personal security, conservation, anti-poaching, camping, hiking, or marine applications, the AGM ReachIR has you covered.

Features

  • 640-512, 12-micron sensor
  • Sub-20mK thermal sensitivity
  • Fast 50 Hz imaging
  • Built-in 1,000-meter laser rangefinder
  • New optimized image processing algorithms
  • 1x, 2x, 4x, 8x digital zoom
  • 1024×768 resolution, 0.39-inch OLED display
  • Video/audio recording and image capture
  • 64 GB built-in memory
  • Wi-Fi hotspot
  • Standby mode
  • Replaceable and rechargeable 18650 Lithium battery
  • Up to 4 hours continuous running
  • Auto screen-off function
  • Robust magnesium alloy housing
  • Waterproof
  • 5-Year Warranty

Specifications

Detector Type

12μm VOx Uncooled Focal Plane Array
Resolution 640 x 512
Refresh Rate 50 Hz
NETD Less than 20 mK (25°C, F#=1.0)
Response Waveband 8 μm to 14 μm
Lens System 35mm; F1.0
Field of View (HxV) 12.5° × 10.0°
Magnification 2x-16x
Digital Zoom 1x, 2x, 3x, 4x
Diopter Adjustment -5 to +3
Detection Range (6' object) 1,800m/yd
Monitor 1024x768, 0.39 inch, OLED, 50 FPS
FFC Auto, Manual, External Correction
Palettes Black Hot, White Hot, Red Hot, Fusion
Highest Temp Spot Tracking Yes
Scene Mode Jungle, Recognition
Distance Measurement Laser Rangefinder: up to 1,000 m, ±1 m accuracy
Laser Wavelength 905 nm
Laser Safety Class Class 1
Hotspot Yes
Sleep Mode Yes
Built-in Storage 64 GB EMMC
Video/Audio Recording Yes/Yes
Image Capture Yes
PIP Yes
Battery Type One 18650 rechargeable battery (removable)
Battery Operating Time Up to 4 hours continuous running (@25°C, WiFi and LRF off)
Battery Capacity Display Yes
External Power 5 VDC/2 A, USB Type-C interface. Supports external power supply.
Working Temp -30°C to 55°C (-22°F to 131°F)
Protection Level IP67 (Waterproof)
Dimensions 185 × 53 × 88 mm (7.28 × 2.09 × 3.46 in)
Weight (w/o batteries) 0.88lb (400g)
