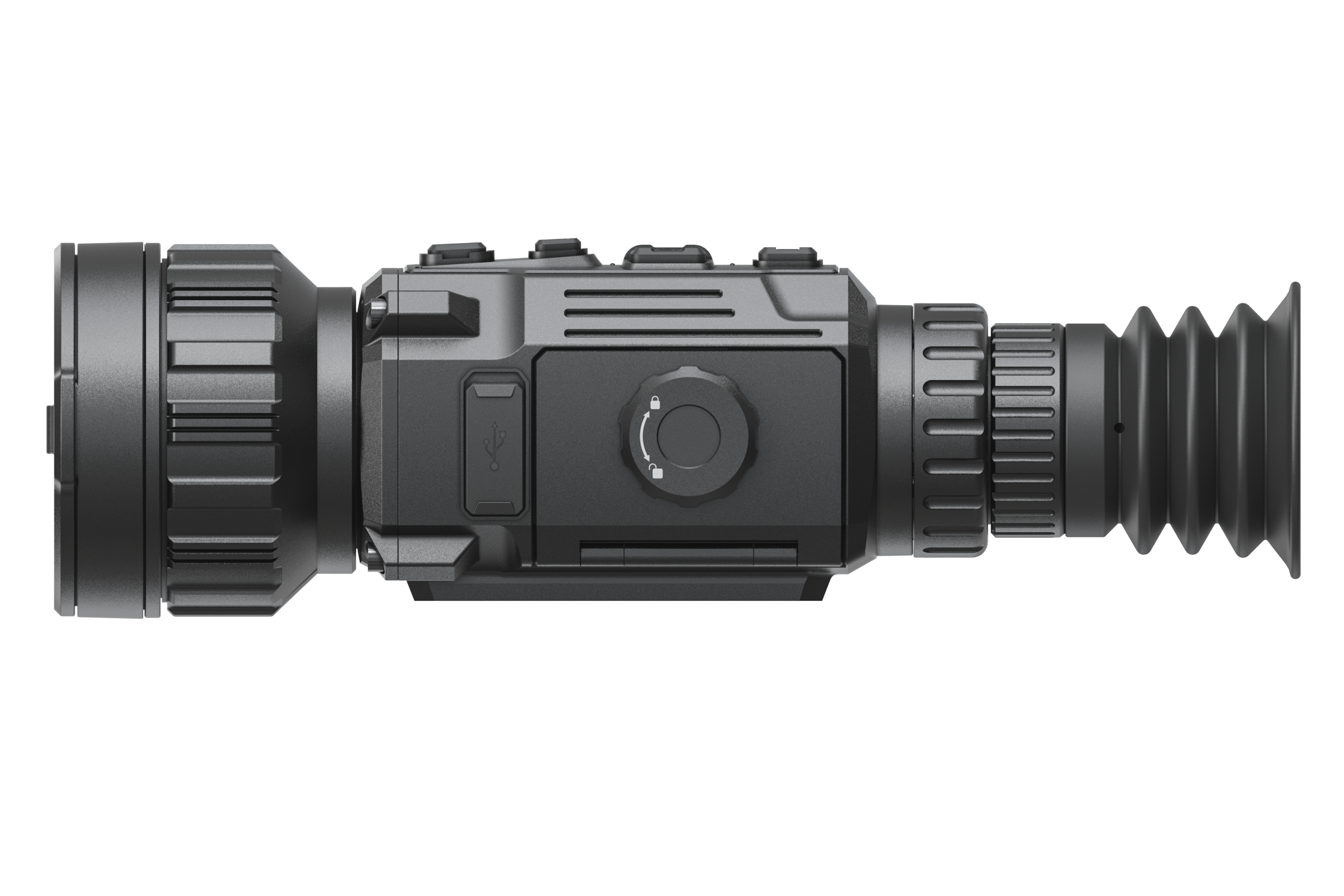

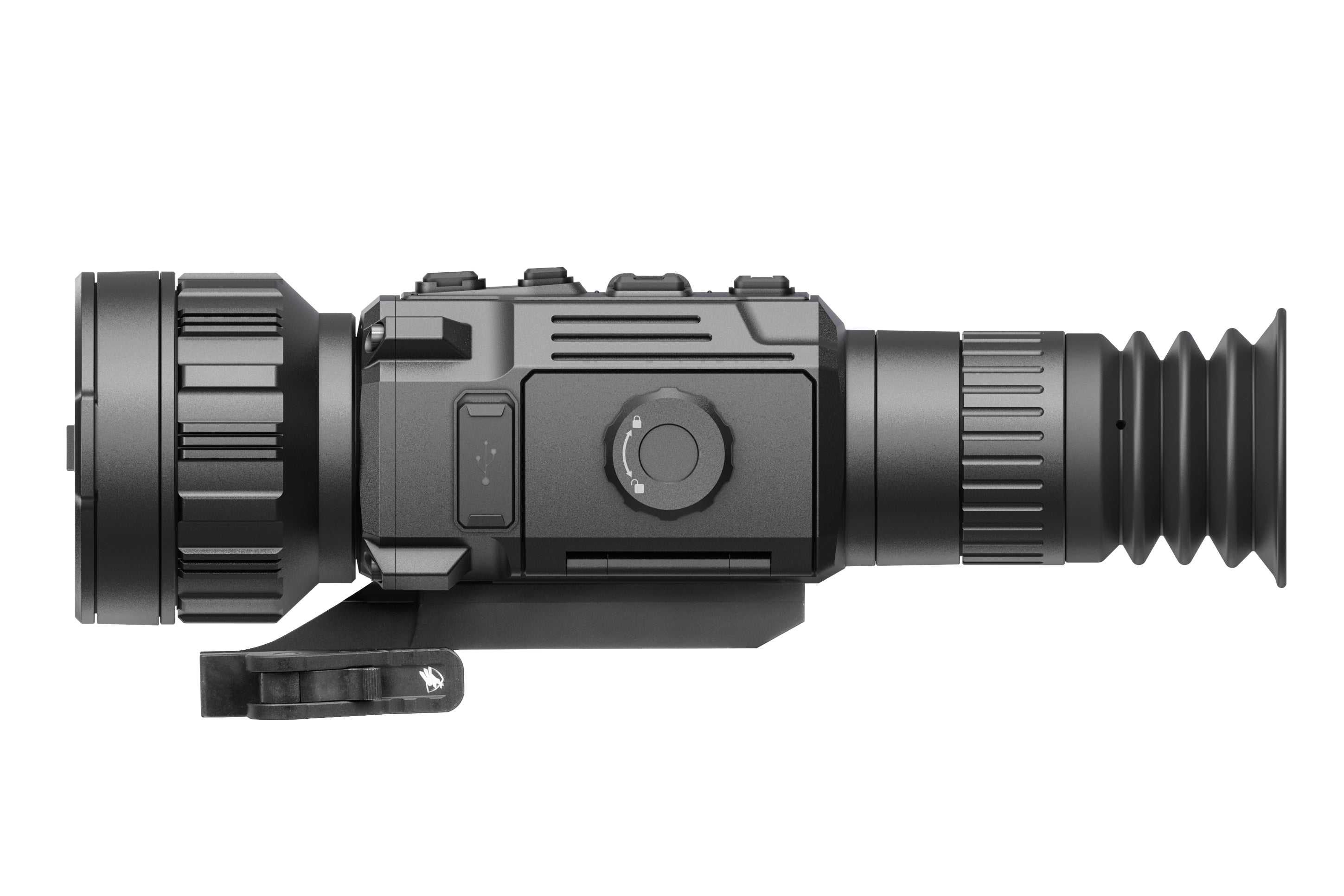

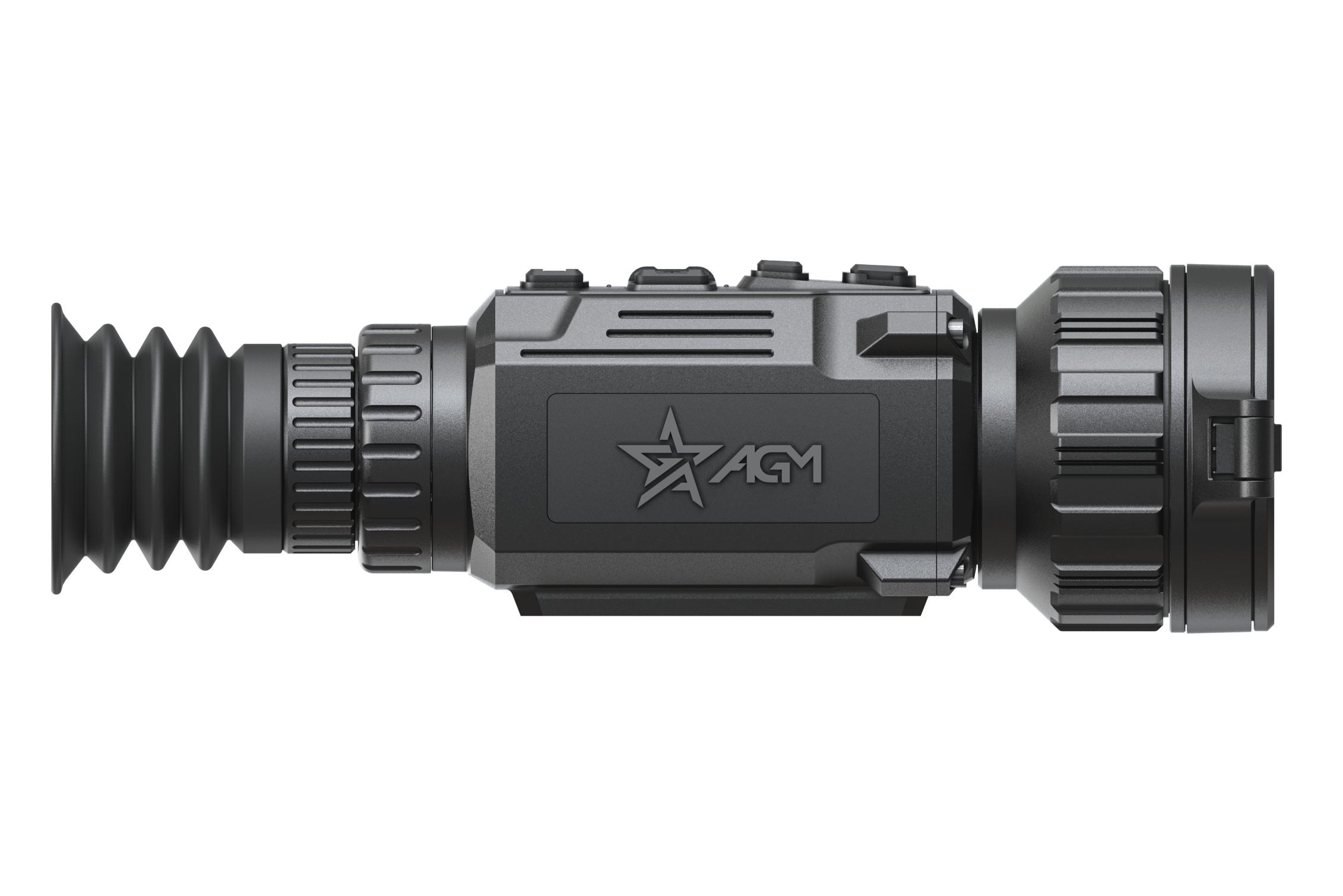

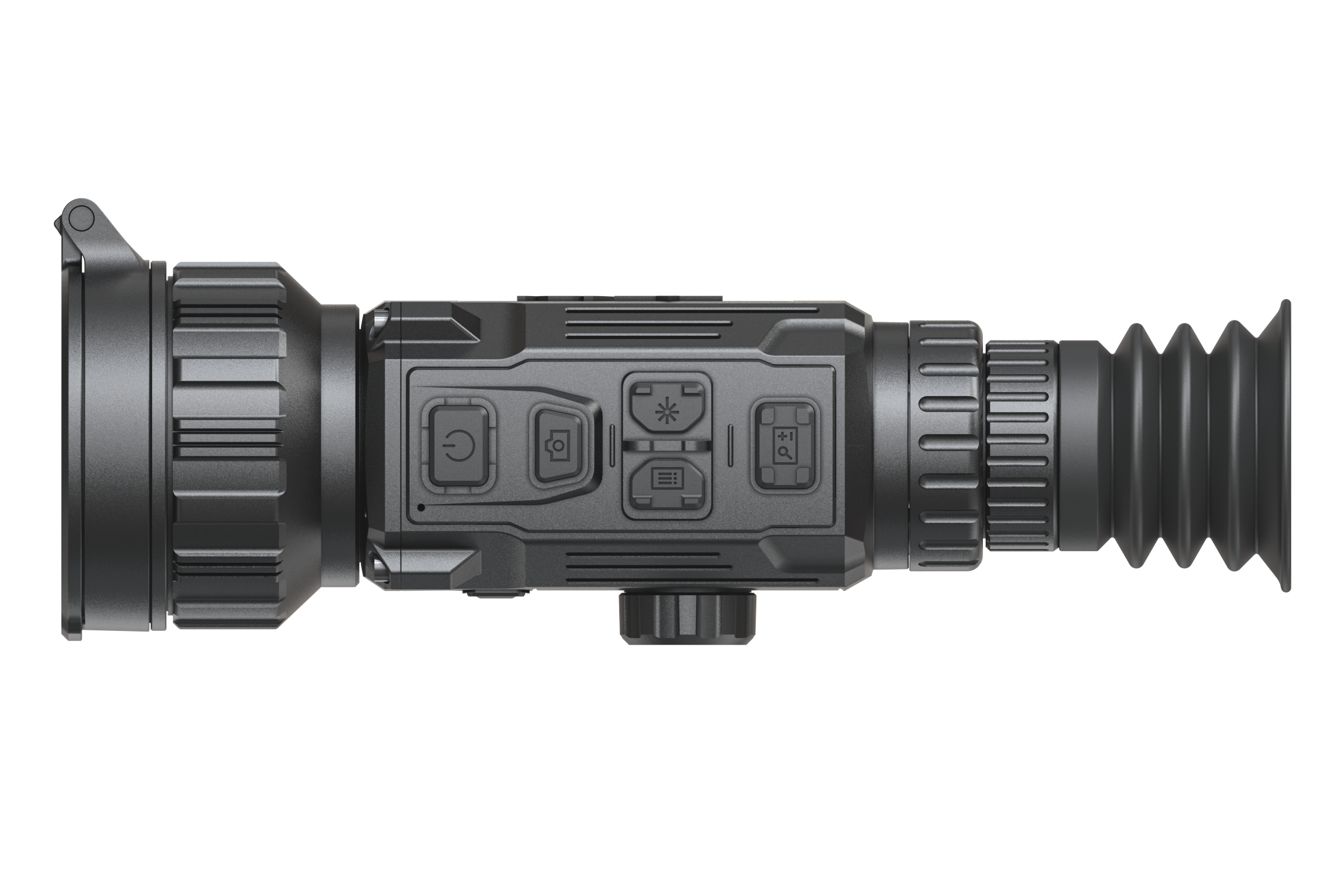

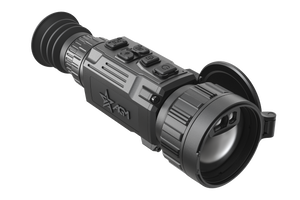

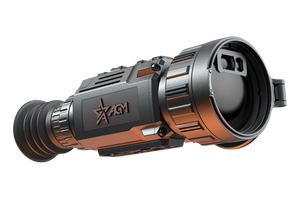

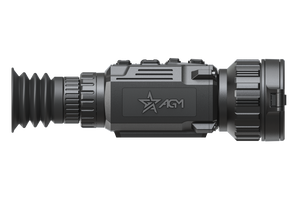

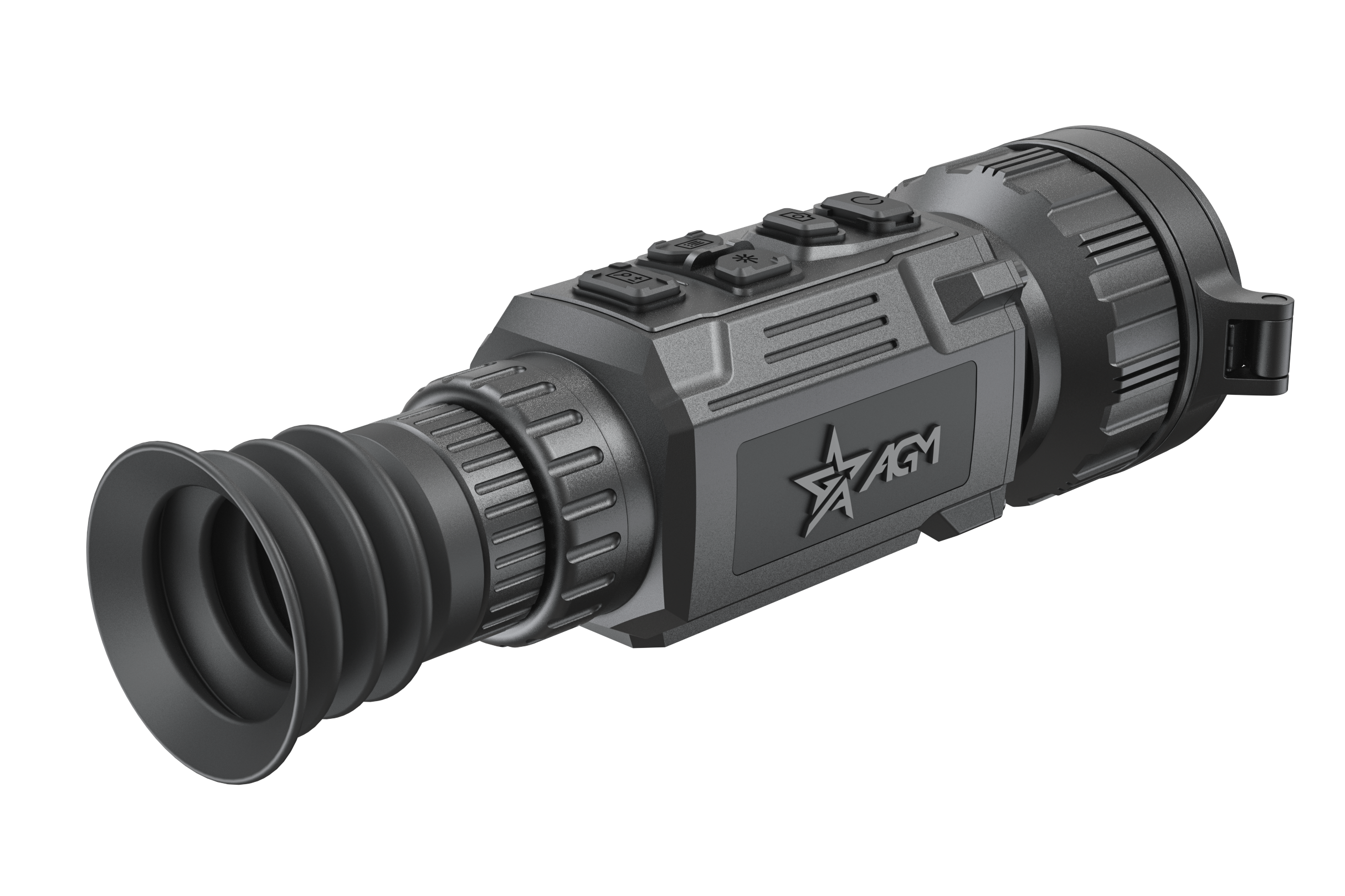

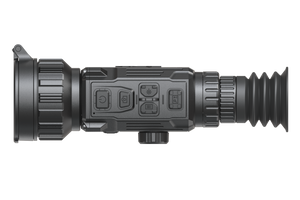

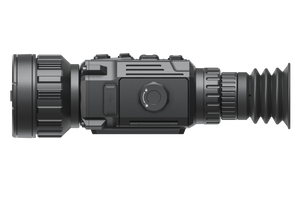

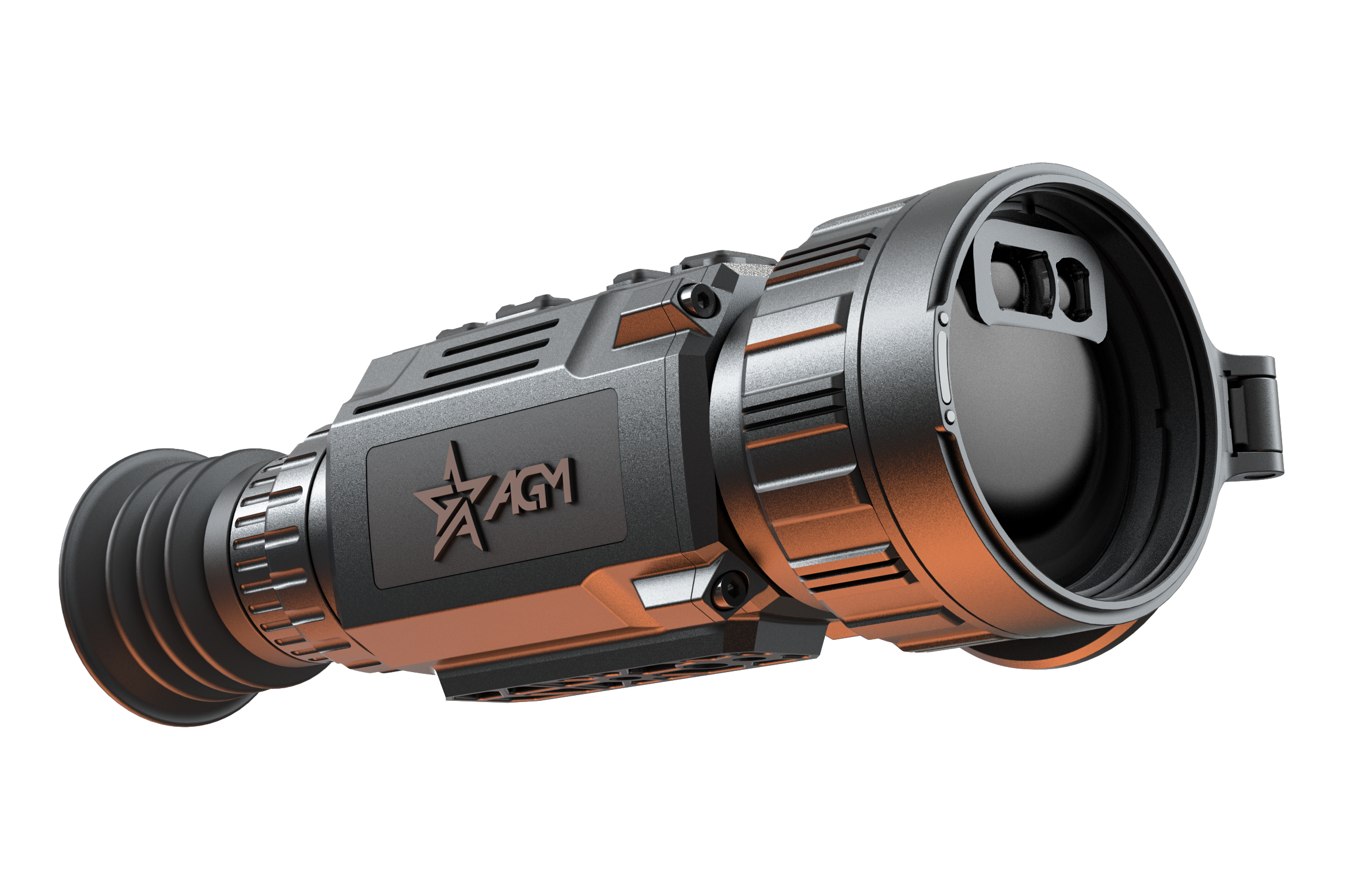

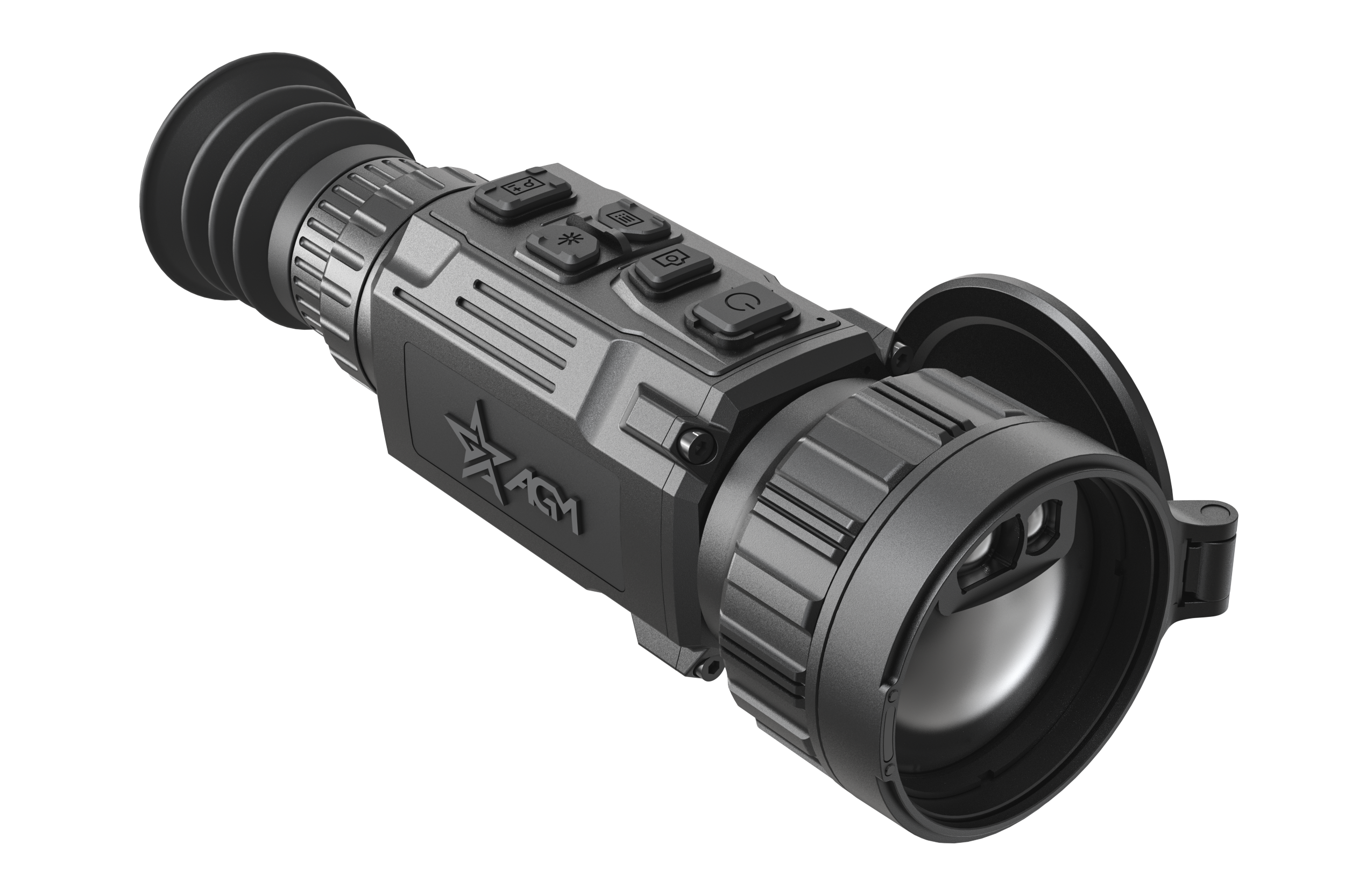

AGM Rattler V3 LRF 50-640 Thermal Riflescope
- Regular price
- $4,895.00
- Sale price
- $4,895.00
- Regular price
-
AGM RattlerV3 LRF 50-640 Thermal Imaging Riflescope with Built-in Laser Rangefinder
Although it seems like just yesterday the celebrated AGM Rattler thermal riflescope family got upgraded with the introduction of the RattlerV2’s, the NEW RattlerV3 LRF testifies to the fact that evolution never stops. The RattlerV3 LRF 50-640 brings the once inconceivable new in-lens LRF technology to the compact Rattler series as well. Not only that, but the RattlerV3 LRF 50-640 also pairs a new 1920 high resolution display with an industry-leading sub-15mK thermal sensor, which combines to produce the best 640 resolution thermal image that we have ever produced. These technical parameters work together to produce a detection range 1.6 MILES. Its also the first Rattler ever to come with a shutterless NUC and an adjustable display which users can change from rectangular to semi-circular. It also works to raise the base magnification of the RattlerV2 50-640 from 2.5X to 3.5X, making it an optimal option for predator hunters in wide-open terrain, which entices longer range engagements. Flip on the new image boost 2.0 within the menu and users will be happy to concede that the AGM brand, which started five years ago as a new and exciting entry-level competitor, has quickly evolved into one of the most advanced thermal image producers on the planet.
Features
- Superior sub-15 milikelvin thermal sensitivity
- 640×512 resolution with 12-micron sensor
- Built-in 1,000m laser rangefinder in the lens
- Integrated ballistic calculator
- Large OLED display with 2560x2560 resolution
- Shutterless technology
- Various reticle types and colors
- 3.5x to 28x magnification
- On-board video/audio recording and image capture
- Built-in EMMC storage (64 GB)
- Shot Activated Recording (SAR)
- Wi-Fi data transmission
- Standby mode
- Over 5.5 hours battery life
- External power supply compatibility
- Waterproof & shockproof
- 5-year warranty
Specifications
AGM RattlerV3 LRF 50-640 — Specifications | |
---|---|
Image Sensor | 12μm VOx Uncooled Focal Plane Array |
Resolution | 640 × 512 |
Frame Rate | 50 Hz |
NETD | < 15 mK (@25 °C, F#=1.0) |
Lens System | 50 mm; F/1.0 |
Detection Range (6’ object) | 3540 m (3870 yd) |
Magnification | 3.5× – 28× |
Field of View (H × V) | 8.7° × 7.0° (15.2 × 12.3 @ 100 m) |
Exit Pupil | 6 mm |
Eye Relief | 45 mm |
Diopter Adjustment | −5 D to +5 D |
Minimum Focusing Distance | 15 m |
Display | 2560 × 2560, 1.03 in OLED |
Picture-in-Picture (PiP) | Yes |
Hot Tracking | Yes |
Palettes | Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome |
Brightness / Tone Adjustment | Yes (Cold / Warm) |
Image Boost 2.0 | Yes |
Zoom Pro | Yes |
Shutterless Technology | Yes |
Flat Field Correction (FFC) | Semi-Auto, Manual |
Defective Pixel Correction | Yes |
Ballistic Calculator | Yes |
Reticle Options | 10 types, 4 colors, on/off |
Zeroing Profiles | 5 |
Freeze Zeroing | Yes |
Wi-Fi Hotspot | Yes |
Video Recording / Image Capture | Yes (1280 × 1280) |
Audio Recording | Yes |
Shot-Activated Recording (SAR) | Yes |
Storage | Built-in EMMC (64 GB) |
Battery Type | Replaceable & Rechargeable Li-ion NE-4400 |
Battery Life | ≥ 5.5 h (25 °C, Wi-Fi off) |
External Power | 5 V DC / 2 A |
Operating Temperature | −30 °C to +55 °C (−22 °F to 131 °F) |
Max Recoil | 1000 g / 0.4 ms |
Protection Level | IP67 |
Dimensions | 239 × 72 × 70 mm (9.4 × 2.8 × 2.8 in) |
Weight (w/o battery) | 0.77 kg (1.7 lb) |
Laser Safety Class | Class 1 |
Wavelength | 905 nm |
Measuring Range | 10 – 1000 m |
Measurement Accuracy | ±1 m |
Specifications are subject to change without notice. |
