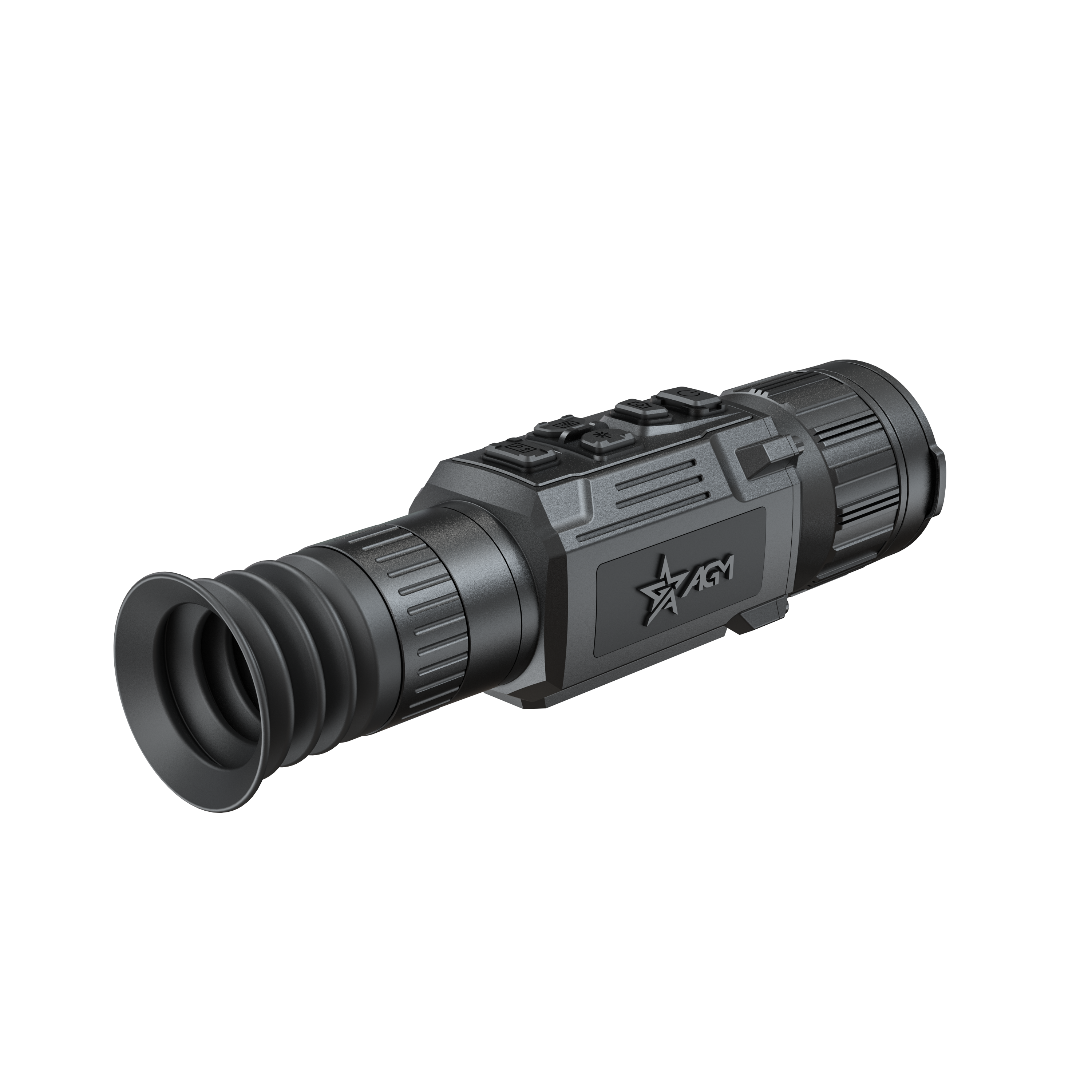

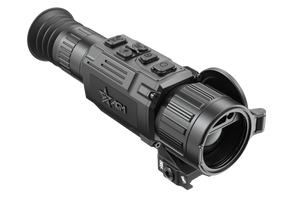

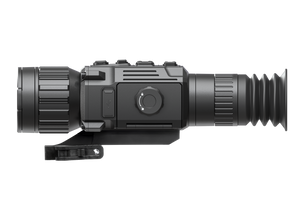

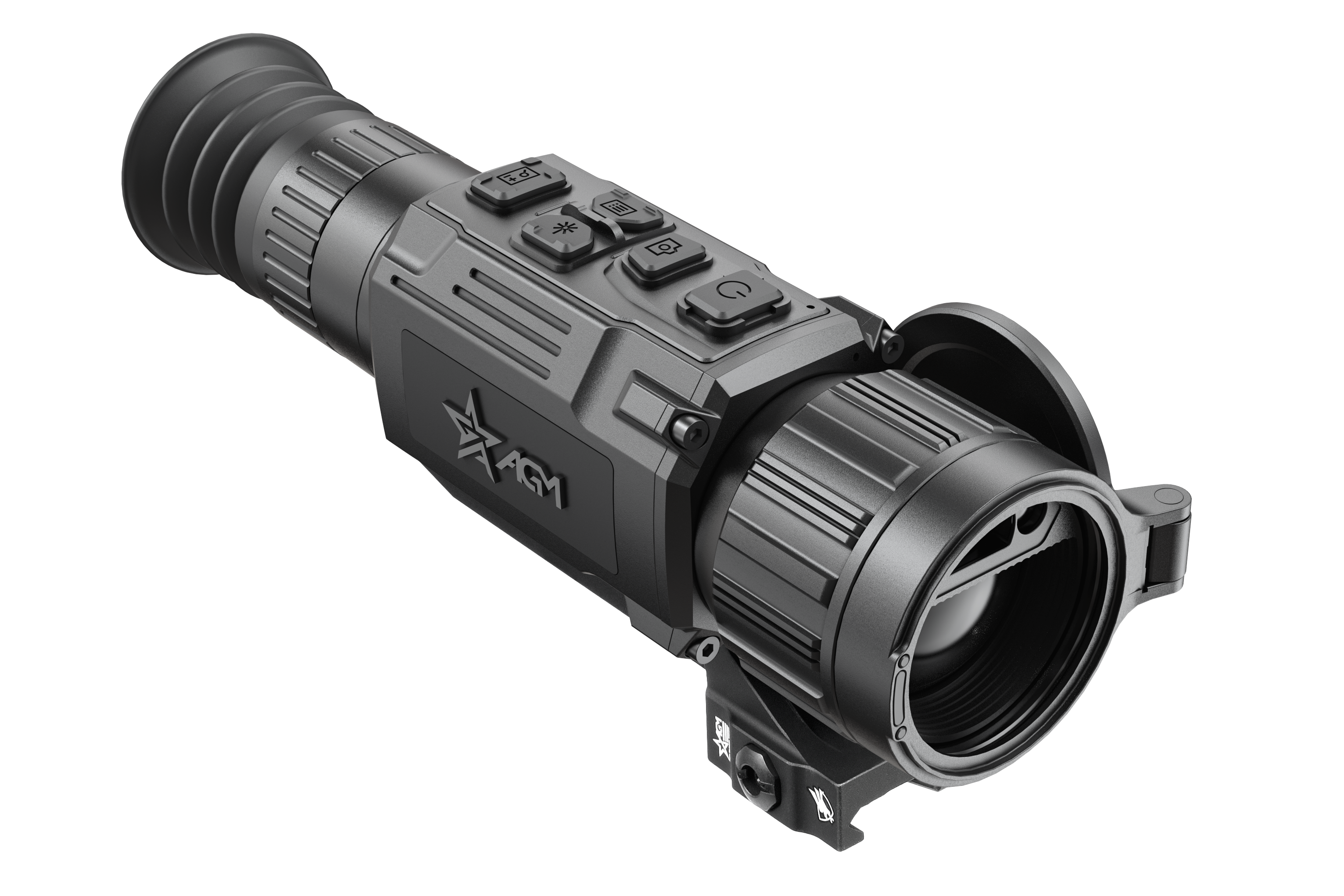

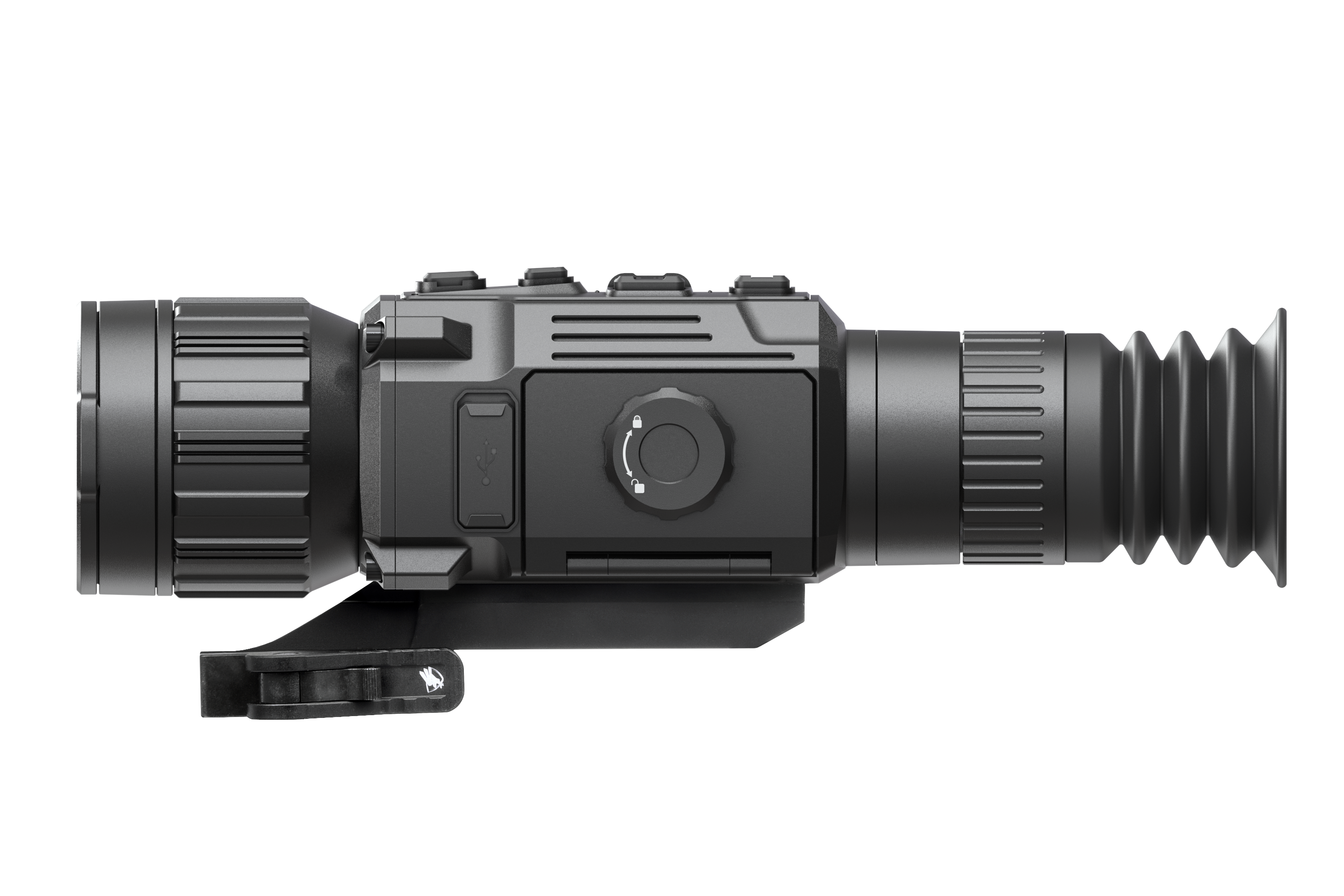

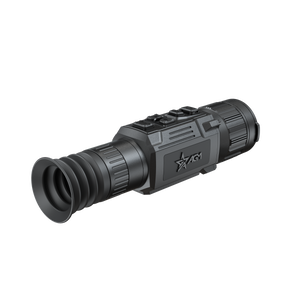

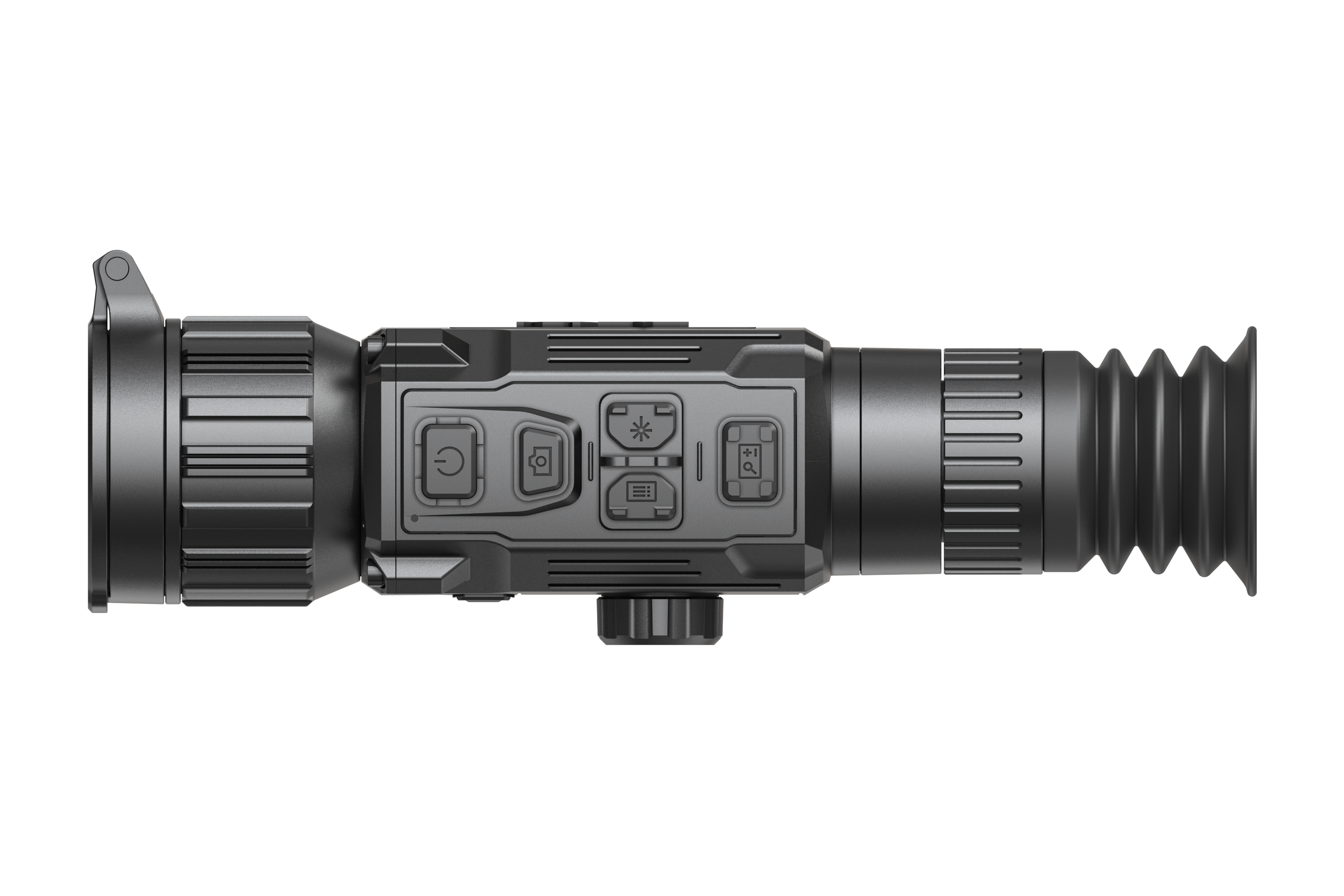

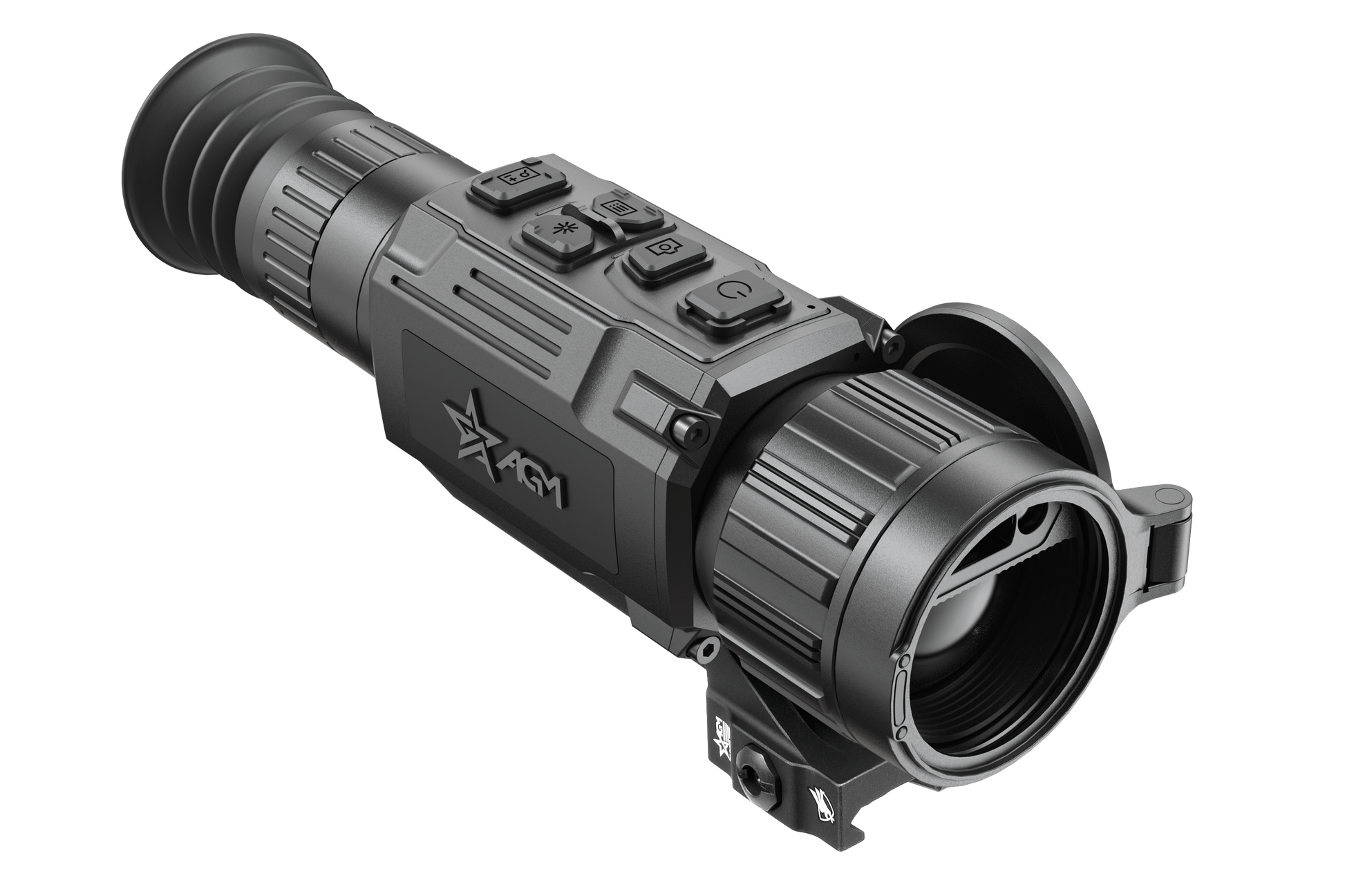

AGM Rattler V3 LRF 35-640 Thermal Imaging Rifle Scope
- Regular price
- $4,295.00
- Sale price
- $4,295.00
- Regular price
-

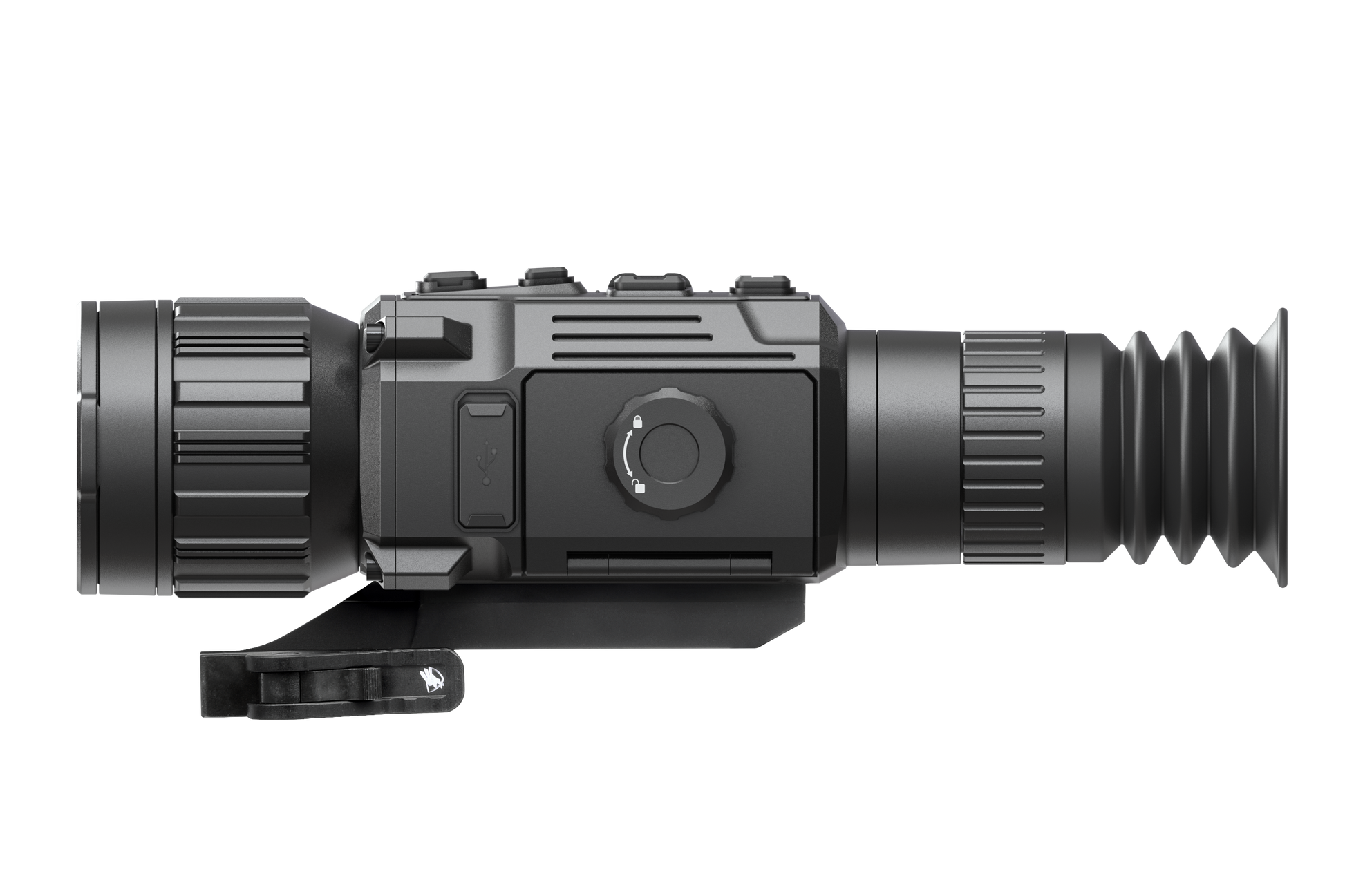

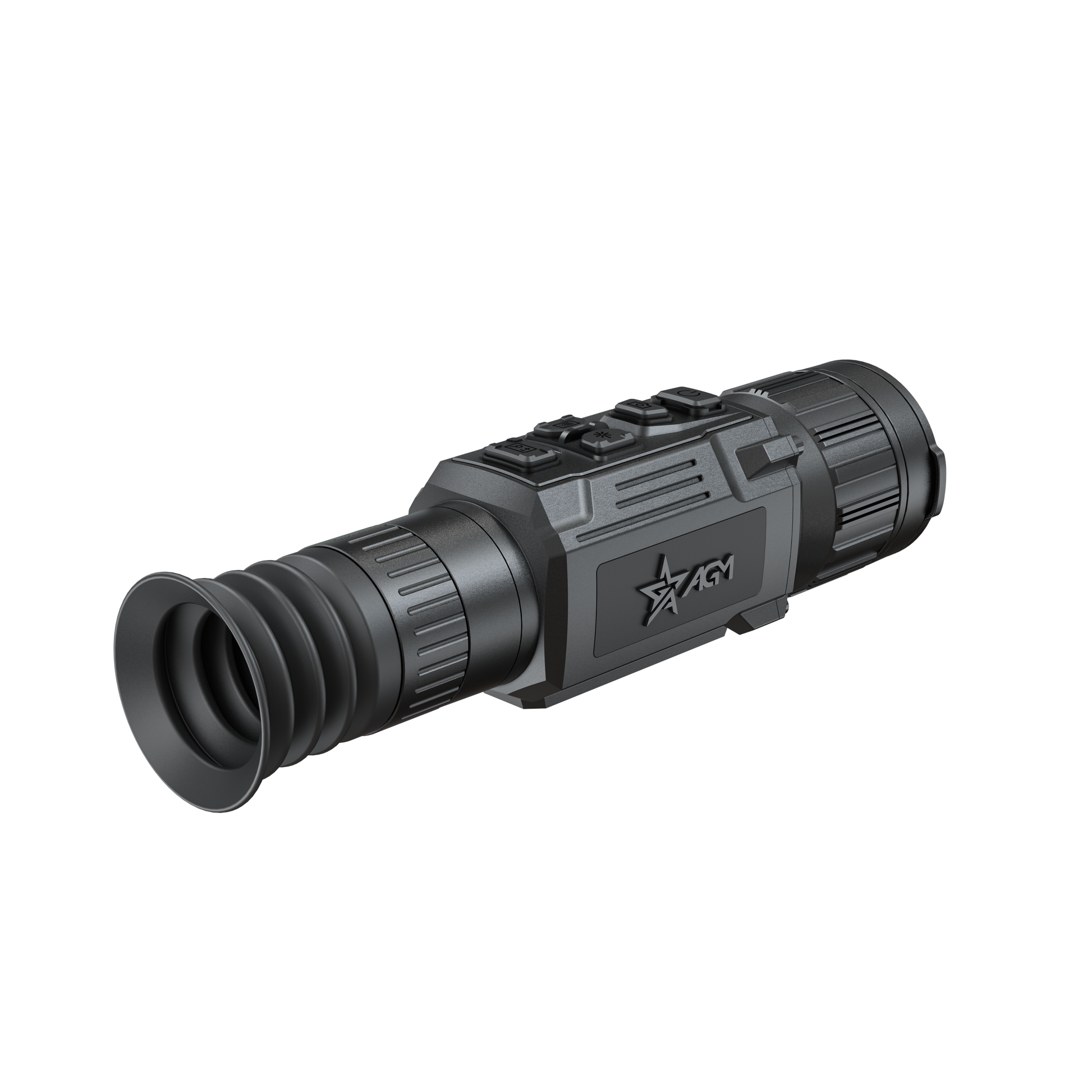

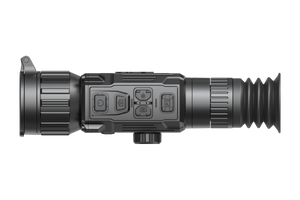

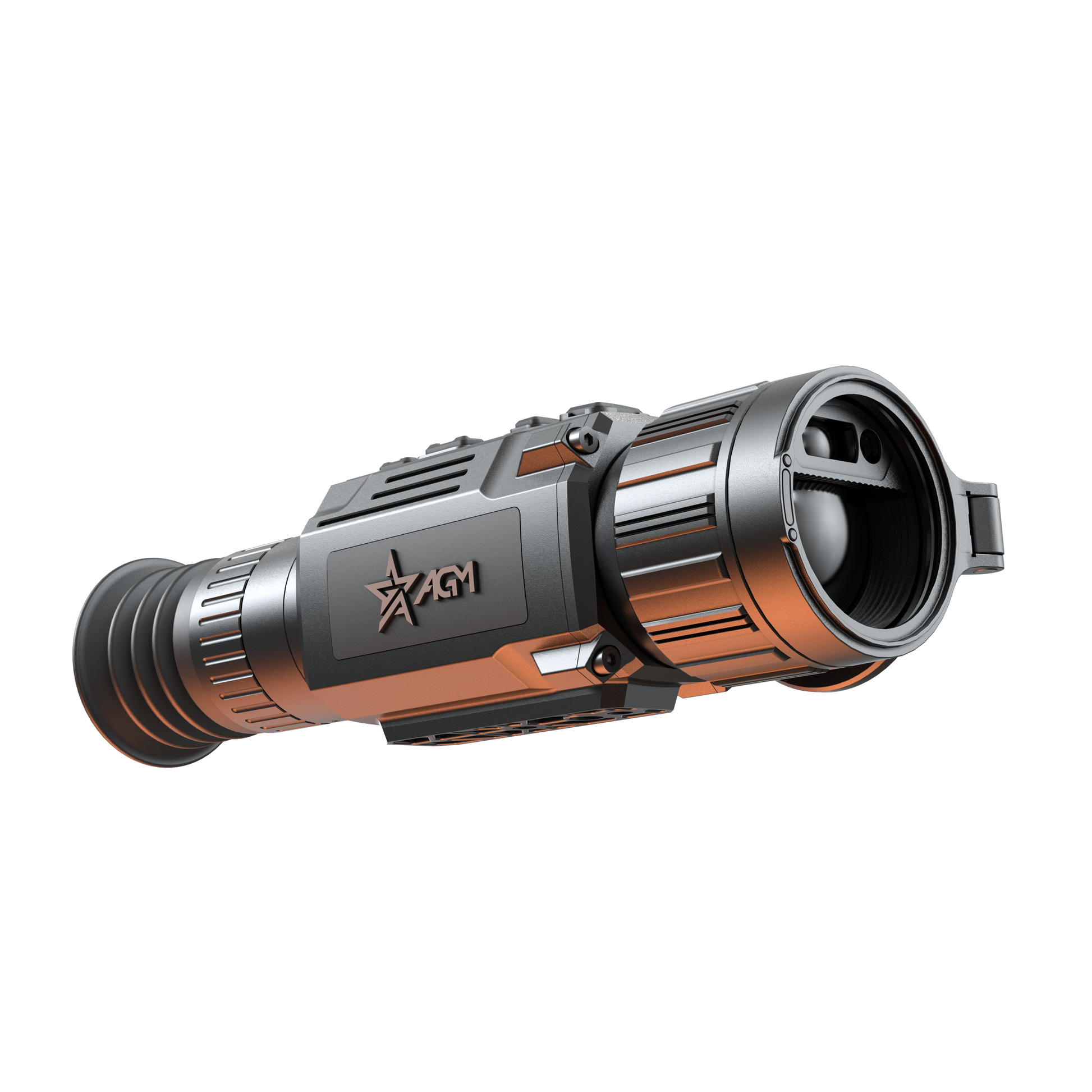

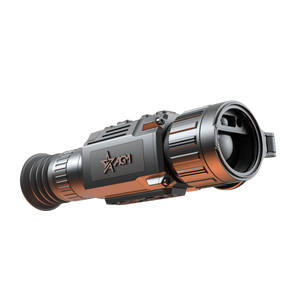

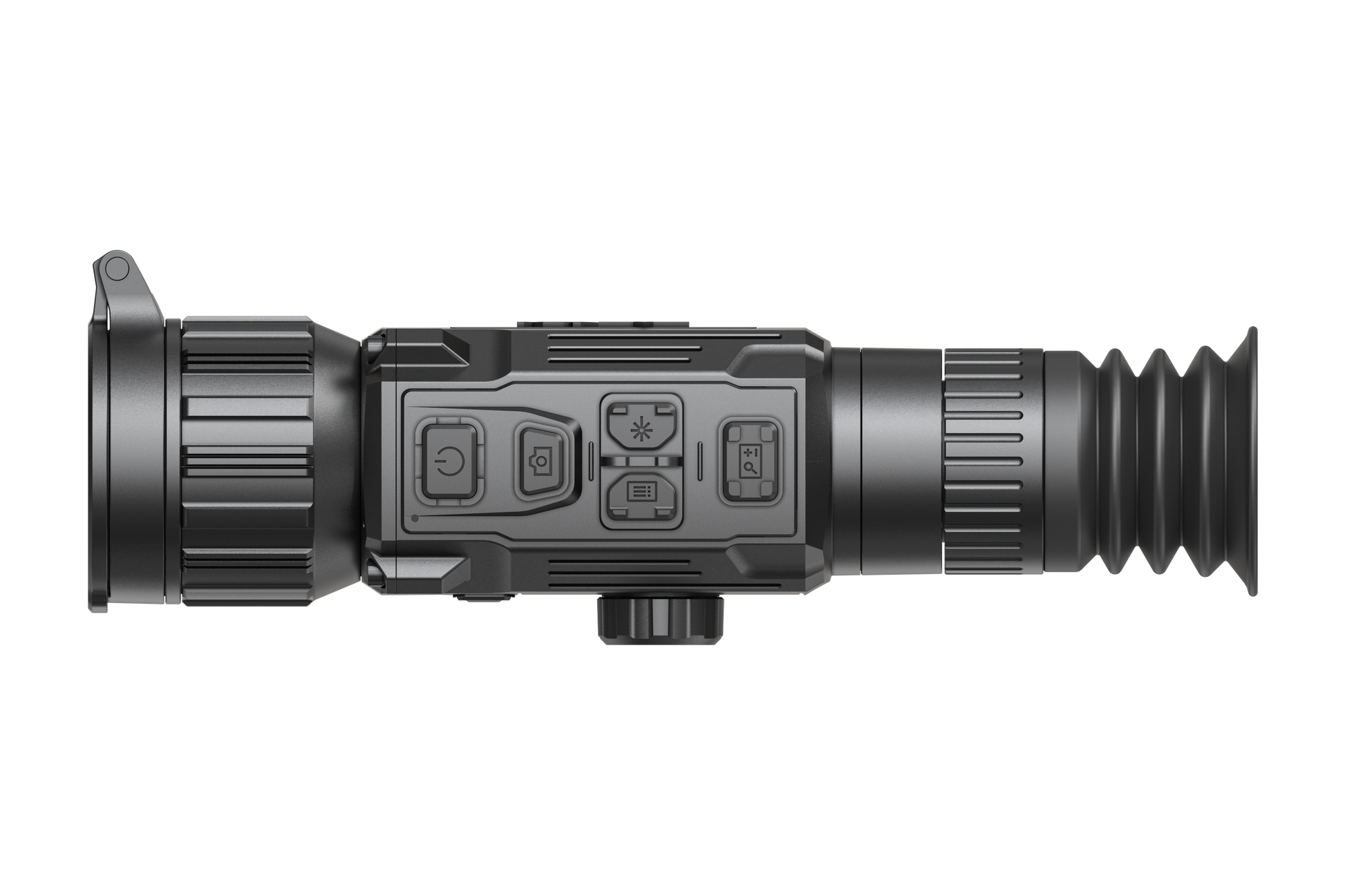

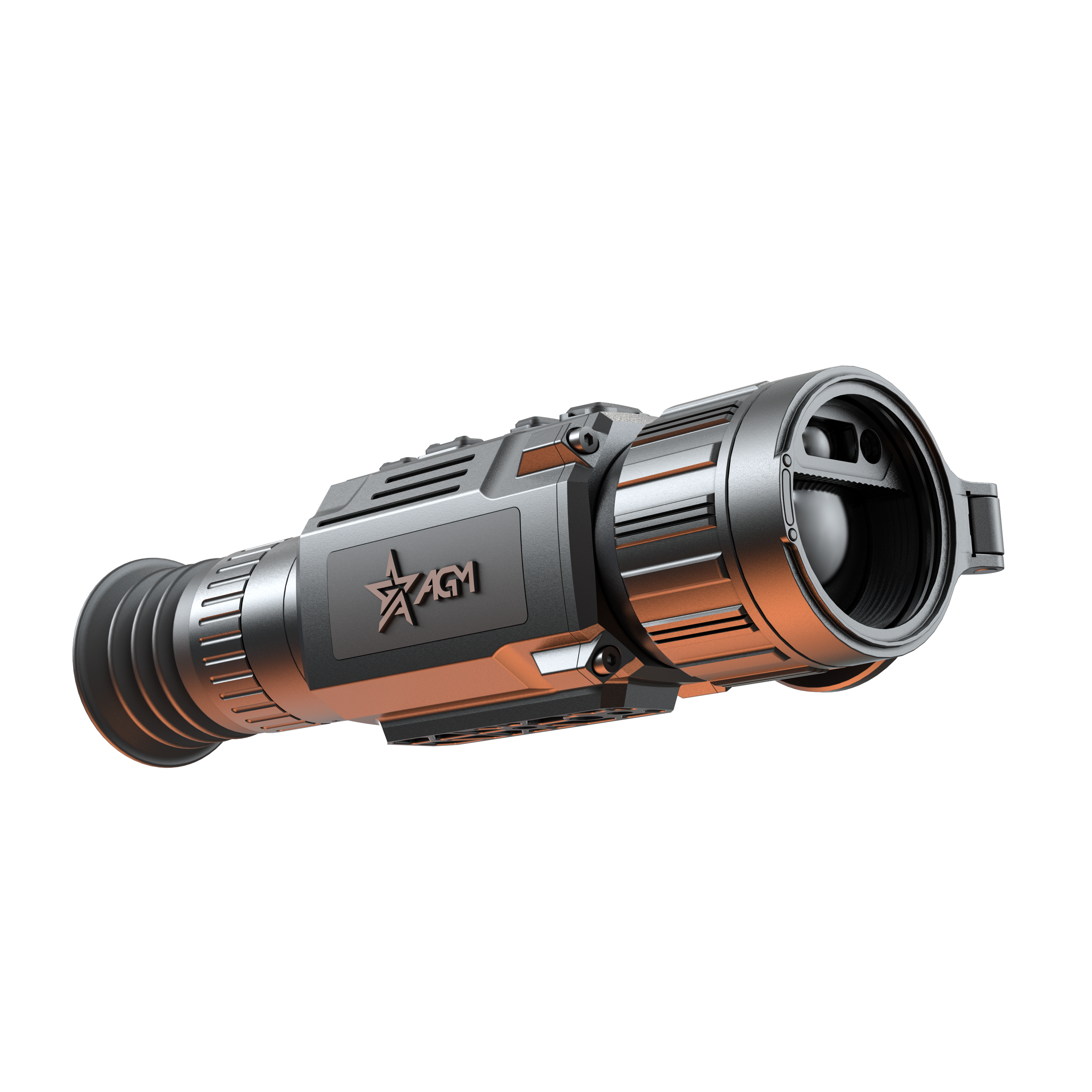

AGM Rattler V3 LRF 35-640 Thermal Imaging Rifle Scope
Although it seems like just yesterday the celebrated AGM Rattler thermal riflescope family got upgraded with the introduction of the RattlerV2’s, the NEW RattlerV3 LRF testifies to the fact that evolution never stops.The RattlerV3 LRF 35-640 pairs a 35 mm Germanium lens with an industry-leading sub-15mK thermal sensor and a new 2560x2560 high resolution display, which combines to produce the best 640 resolution thermal image. These technical parameters work together to produce a detection range 1.5 miles. The RattlerV3 LRF also brings the once inconceivable new in-lens LRF technology to the compact Rattler series. A fully integrated 1,000m laser rangefinder is paired with a new on-board ballistic calculator. A newly designed eyepiece gives the RattlerV3 LRF 35-640 a base magnification of 2.5X, making it an optimal option for predator hunters in wide-open terrain, which entices longer range engagements. Its also the first Rattler ever to come with a shutterless NUC and AGM’s powerful new Image Boost 2.0 imaging algorithm. Large sturdy buttons were designed to aid gloved fingers in cold winter weather, while the removable rechargeable NE-4400 battery offers one of the most robust and easy to install battery systems on the market. The firmware package allows users an amazing level of customization: on-board pitch scale, 10 brightness and contrast settings, warm cold viewing modes, multiple color palettes, picture in picture, ballistic calculation, on-board video recording with sound, WiFi hotspot, multiple zeroing profiles, shot activated video recording, defective pixel repair, hotspot locator and multiple laser range finding modes. Also included is an American-made ADM mounting system.
Features
• 12 micron detector with 640x512 or 384x288 resolution
• Sub-15mK thermal sensitivity
• Shutterless technology
• Built-in 1,000m laser rangefinder
• Ballistic calculator
• Various reticle types and colors
• 1x, 2x, 4x, 8x digital zoom
• Large OLED display
• On-board video/audio recording and image capture
• Shot Activated Recording (SAR) function
• Built-in EMMC storage (64 GB)
• WiFi data transmission
• Standby mode
• More than 7 hours of battery life (depends on the model)
• External power supply compatibility
• Waterproof shockproof
Specifications
RattlerV3 LRF 35-640 — Specifications | |
---|---|
Image Sensor | 12 µm VOx Uncooled Focal Plane Array |
Resolution | 640 × 512 |
Frame Rate | 50 Hz |
NETD | < 15 mK (@25 °C, F# = 1.0) |
Lens System | 35 mm; F/1.0 |
Detection Range (6’ object) | 2,480 m (2,710 yd) |
Magnification | 2.5× – 20× |
Field of View (H × V) | 12.5° × 10.0° (21.9 × 17.6 @ 100 m) |
Exit Pupil | 6 mm |
Eye Relief | 45 mm |
Diopter Adjustment | −5 D to +5 D |
Minimum Focusing Distance | 10 m |
Display | 2560 × 2560, 1.03 in, OLED |
Picture-in-Picture (PiP) | Yes |
Hot Tracking | Yes |
Palettes | Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome |
Brightness Adjustment | Yes |
Tone Adjustment | Cold, Warm |
Image Boost 2.0 | Yes |
Zoom Pro | Yes |
Shutterless Technology | Yes |
Flat Field Correction (FFC) | Semi-Auto, Manual |
Defective Pixels Correction (DPC) | Yes |
