Black Friday Sale AGM Rattler TS50-640 Thermal Scope

Black Friday Sale AGM Rattler TS50-640 Thermal Scope

Regular price $3,200.00 USD
Regular price $3,995.00 USD Sale price $3,200.00 USD
SALE! Sold Out: Contact Us
Shipping calculated at checkout.



RATTLER

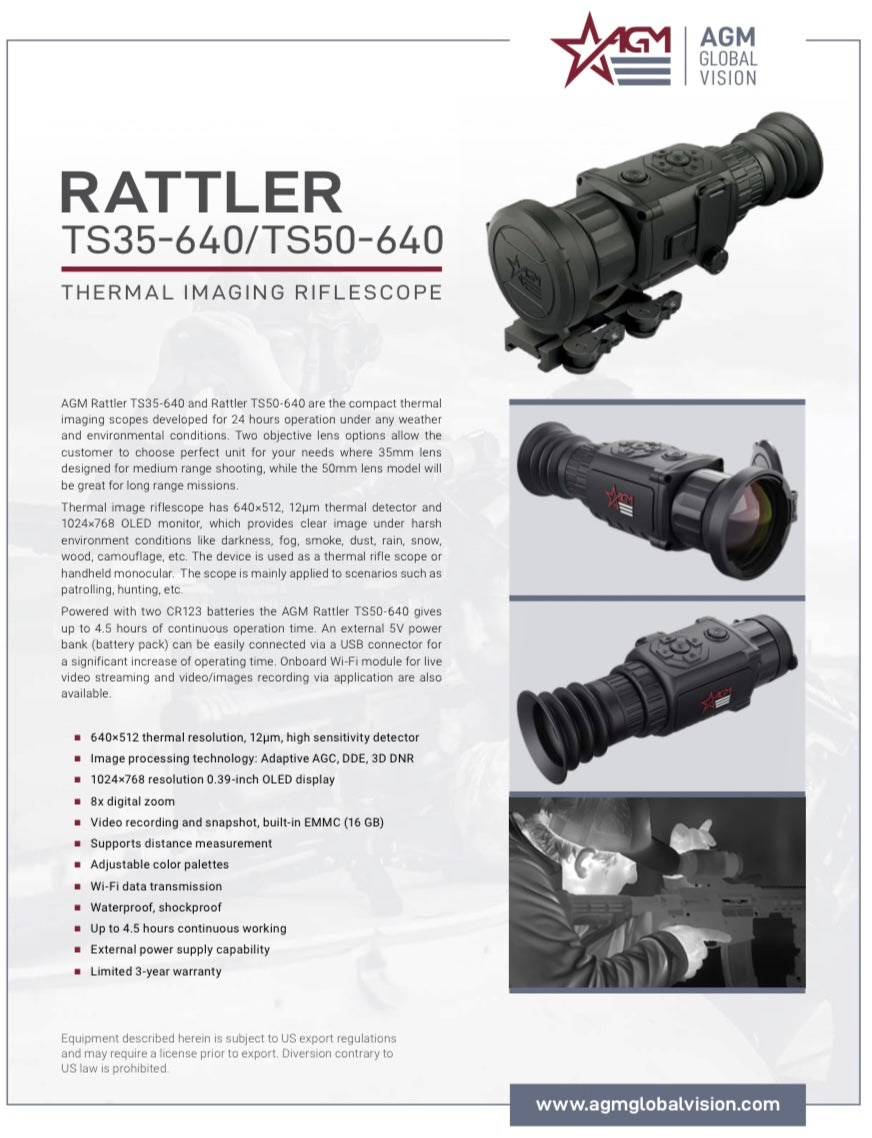

TS35-640/TS50-640 THERMAL IMAGING RIFLESCOPE
AGM Rattler TS35-640 and Rattler TS50-640 are the compact thermal imaging scopes developed for 24 hours operation under any weather and environmental conditions. Two objective lens options allow the customer to choose perfect unit for your needs where 35mm lens designed for medium range shooting, while the 50mm lens model will be great for long range missions.
Thermal image riflescope has 640×512, 12μm thermal detector and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The device is used as a thermal rifle scope or handheld monocular. The scope is mainly applied to scenarios such as patrolling, hunting, etc.
Powered with two CR123 batteries the AGM Rattler TS50-640 gives up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB connector for a significant increase of operating time. Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.
■ 640×512 thermal resolution, 12μm, high sensitivity detector
■ Image processing technology: Adaptive AGC, DDE, 3D DNR
■ 1024×768 resolution 0.39-inch OLED display
■ 8x digital zoom
■ Video recording and snapshot, built-in EMMC (16 GB)
■ Supports distance measurement
■ Adjustable color palettes
■ Wi-Fi data transmission
■ Waterproof, shockproof
■ Up to 4.5 hours continuous working
■ External power supply capability
■ Limited 3-year warranty
Equipment described herein is subject to US export regulations and may require a license prior to export. Diversion contrary to US law is prohibited.
www.agmglobalvision.com

SPECIFICATIONS
Resolution
Detector
Lens System Magnification
Field of View
Digital Zoom Observation Distance Eye Relief
Display
Reticle
Boresight Adjustment
Boresight Increment
Distance Measurement
Palettes
Scene Mode
Picture In Picture Mode (PIP) Hotspot
Standby Mode
Video Recording
Picture Snapshot
CVBS Output
Defective Pixels Correction (DPC) Uniformity Correction
Storage
Battery Type
Battery Life (Operating, 20°C) External Power Supply Operating Temperature Range Degree of Protection
Drop Test Height Weight (w/o battery) OverallDimensions
Package Includes
Rattler TS35-640
640 × 512
12μm, Uncooled, 50 Hz
35 mm; F/1.0
2.4× - 19.2×
12.5° × 10.0°
1×, 2×, 4×, 8×
1,750 m
45 mm
0.39-inch, OLED, 1024×768, 50 Hz
5 types, 3 colors, on/off
Digital Controlled
0.21 mil / 0.73 MOA
Yes (Stadiametric Rangefinder)
Black Hot, White Hot, Red Hot, Fusion Jungle, Recognition
Yes (2× Zoom)
Yes
Yes
Yes
Yes
Yes (via USB)
Yes
Auto, Manual, External Correction
Built-in EMMC (16 GB)
Two CR123 (3V) Lithium or two RCR123 (up to 4.2V)
Rechargeable Batteries
Up to 4.5 hr
5 VDC/2 A, USB Type-C interface
-20°C to +55°C (-4°F to +131°F)
IP67
1.5m (4.9 feet)
480 g ( 1.06 lb) 187×62×59mm(7.4×2.5×2.3in) Thermal Imaging Rifle Scope, Mount, USB Cable,
Lens Cloth, Manual
Rattler TS50-640
640 × 512
12μm, Uncooled, 50 Hz
50 mm; F/1.0
2.6× - 20.8×
8.8° × 7.0°
1×, 2×, 4×, 8×
2,500 m
45 mm
0.39-inch, OLED, 1024×768, 50 Hz
5 types, 3 colors, on/off
Digital Controlled
0.15 mil / 0.52 MOA
Yes (Stadiametric Rangefinder)
Black Hot, White Hot, Red Hot, Fusion Jungle, Recognition
Yes (2× Zoom)
Yes
Yes
Yes
Yes
Yes (via USB)
Yes
Auto, Manual, External Correction
Built-in EMMC (16 GB)
Two CR123 (3V) Lithium or two RCR123 (up to 4.2V)
Rechargeable Batteries
Up to 4.5 hr
5 VDC/2 A, USB Type-C interface
-20°C to +55°C (-4°F to +131°F)
IP67
1.5m (4.9 feet)
487 g ( 1.07 lb) 200×78×66mm (7.9×3.1×2.6in) Thermal Imaging Rifle Scope, Mount, USB Cable,
Lens Cloth, Manual
Specifications are subject to change without notice.
