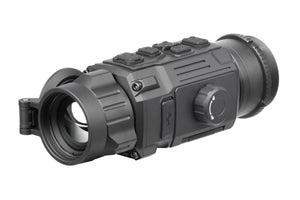

AGM Rattler-C V2 35-384 Thermal Imaging Clip-On
- Regular price
- $2,195.00
- Sale price
- $2,195.00
- Regular price
-
$1,689.00
AGM Rattler-C V2 35-384 Thermal Imaging Clip-On System
The AGM Rattler-C V2 series of thermal clip-ons boasts a industry-leading 12 micron, sub-20mk thermal detectors (NETD <20mK for 384 and 640 models). These physical attributes provide users with some of the best image quality AGM has produced to date with potential detection ranges up to 2600 yards. The Rattler-C V2 thermal clip-ons have a high-sensitivity sensor, which provides a clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The Rattler-C V2 clip-on can easily be attached in front of day scopes to quickly convert a day optic into a thermal imaging device without any special tools or equipment required. Powered replaceable and rechargeable Li-ion battery the AGM Rattler-C V2 provides up to 11 hours of continuous battery life on a single charge (2 batteries included). An external 5V power bank (battery pack) can be easily connected via a USB-C connector for a significant increase of operating time. Onboard Wi-Fi module is also available for live video streaming and video/images recording via mobile application.
Features
-
Quick conversion of daytime optics into thermal imaging scope
-
12μm high-sensitivity thermal detector (NETD < 20mK for 384 and 640 models)
-
Fast 50Hz imaging
-
High resolution OLED display
-
Adjustable color palettes
-
On-board video/audio recording and image capture
-
Built-in EMMC storage (16 GB)
-
Shot Activated Recording (SAR)
-
Wi-Fi data transmission
-
Stadiametric rangefinder
-
Standby mode
-
9–11 hours battery life (depending on model)
-
External power supply compatibility
-
Waterproof & shockproof
-
5-year warranty
Specifications
AGM Rattler-C V2 35-384 — Specifications | |
---|---|
Resolution | 384 × 288 |
Detector | 12μm VOx Uncooled Focal Plane Array |
NETD | < 20 mK (25°C, F# = 1.0) |
Refresh Rate | 50 Hz |
Lens System | 35 mm; F/1.0 |
Optical Magnification | 1× |
Field of View | 7.5° × 5.6° |
Focus Range | 2 m to infinity |
Exit Pupil | 22 mm |
Eye Relief | 10 mm |
Detection Range (6’ object) | 1800 m/yd |
Display | 0.39-inch, OLED, 1024 × 768 |
Palettes | Black hot, White hot, Red hot, Fusion |
Flat Field Correction | Auto, Manual, External Correction |
Scene Mode | Cold, Warm |
Video/Audio Recording | Yes |
Image Capture | Yes |
Standby Mode | Yes |
Storage | Built-in EMMC (16 GB) |
Defective Pixel Correction | Yes |
WiFi Hotspot | Yes |
Hot Track | Yes |
Distance Measurement | Yes (Stadiametric) |
Shot Activated Recording (SAR) | Yes |
Battery Type | 4400mAh Replaceable & Rechargeable Li-ion Battery |
Battery Life (Operating, 20°C) | 11 h (25°C, with hotspot off) |
External Power Supply | 5 VDC, 2 A, USB Type-C |
Operating Temperature Range | -30°C to +55°C (-22°F to 131°F) |
Protection Level | IP67 |
Max. Recoil | 1000 g/0.4 ms |
Weight (w/o mount & battery) | 0.54 kg (1.19 lb) |
Dimensions (w/o mount) | 184 × 68 × 67 mm (7.2 × 2.7 × 2.6 in) |
Package Includes | Thermal Imaging Clip-On, Mount, Two Rechargeable Battery, Charger, USB Cable, Lens Cloth, Manual, Carrying Case |
