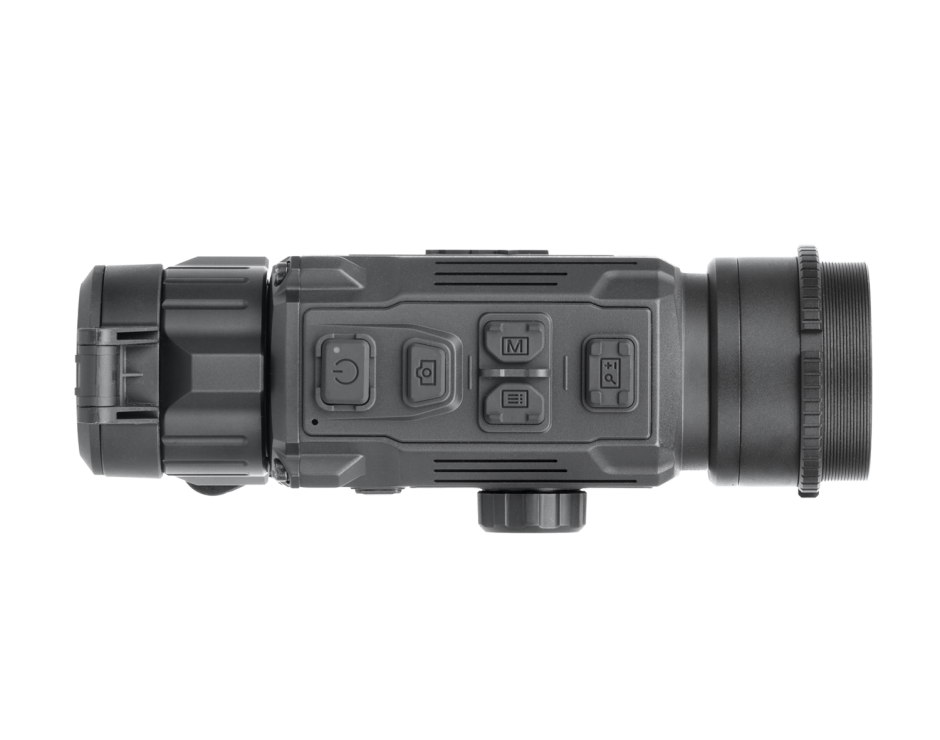

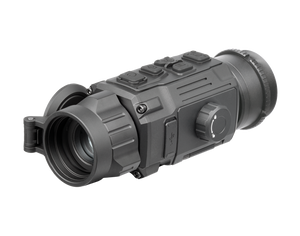

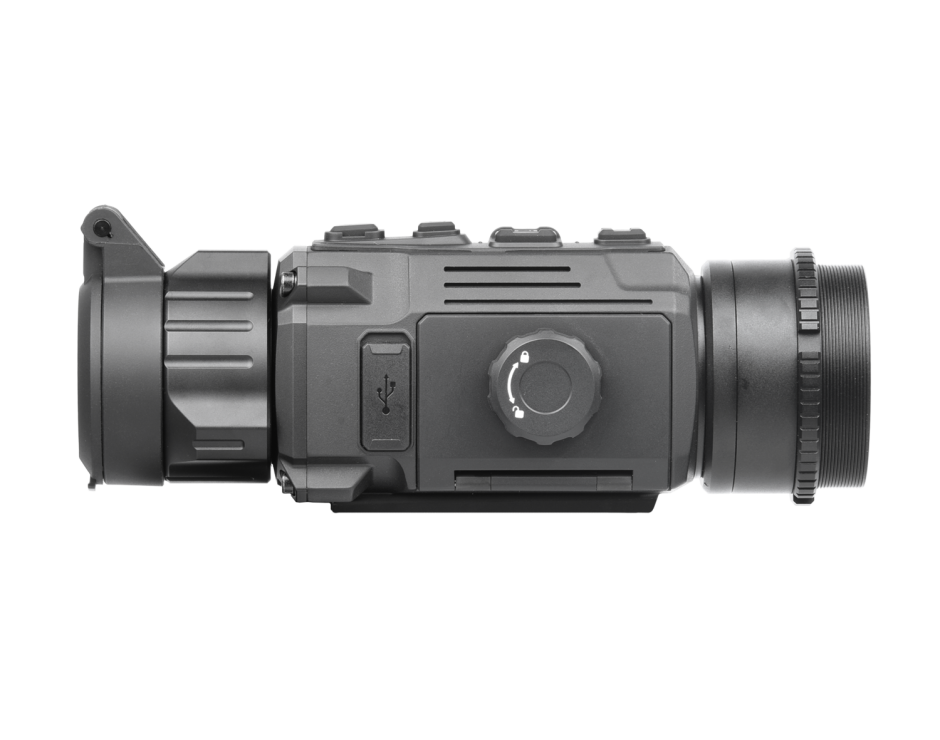

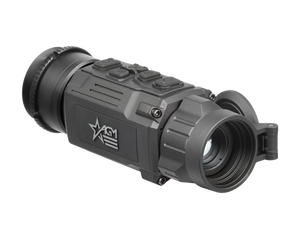

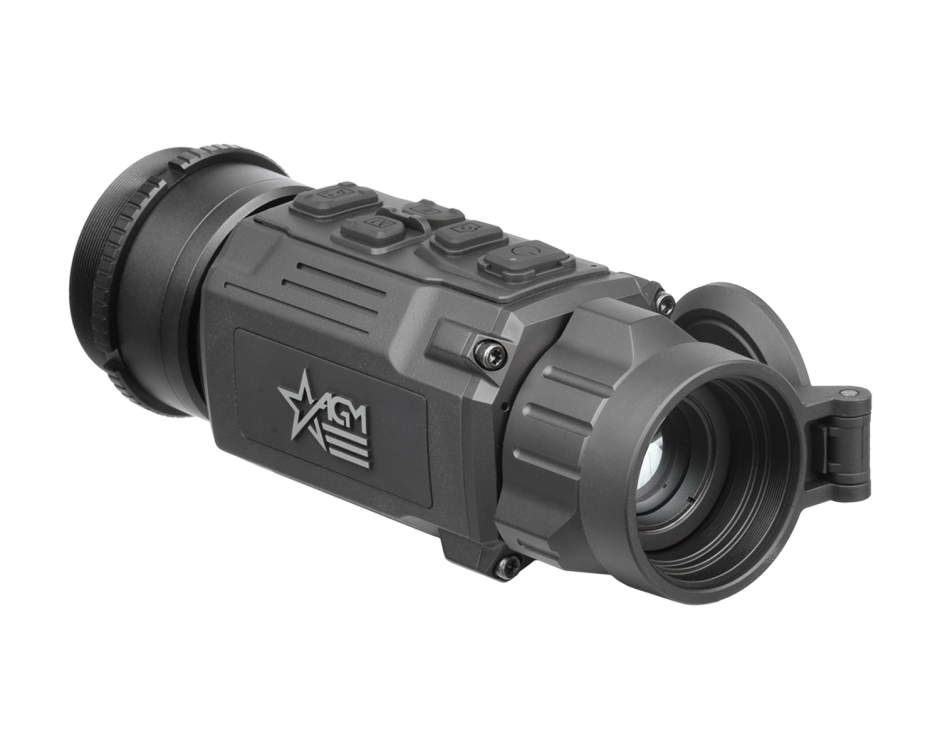

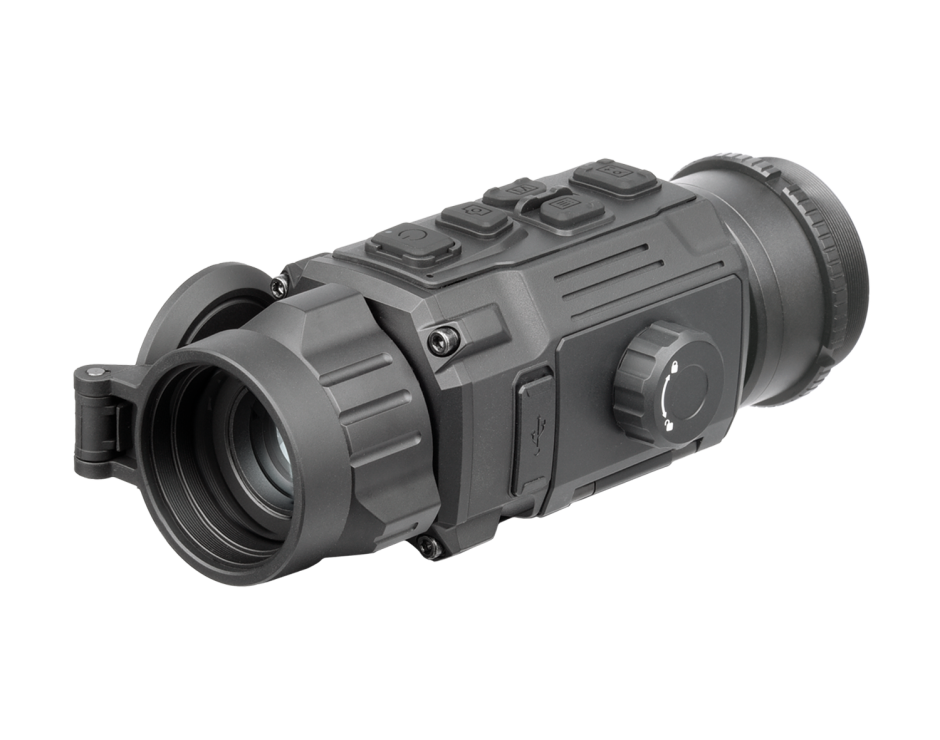

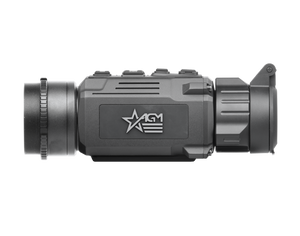

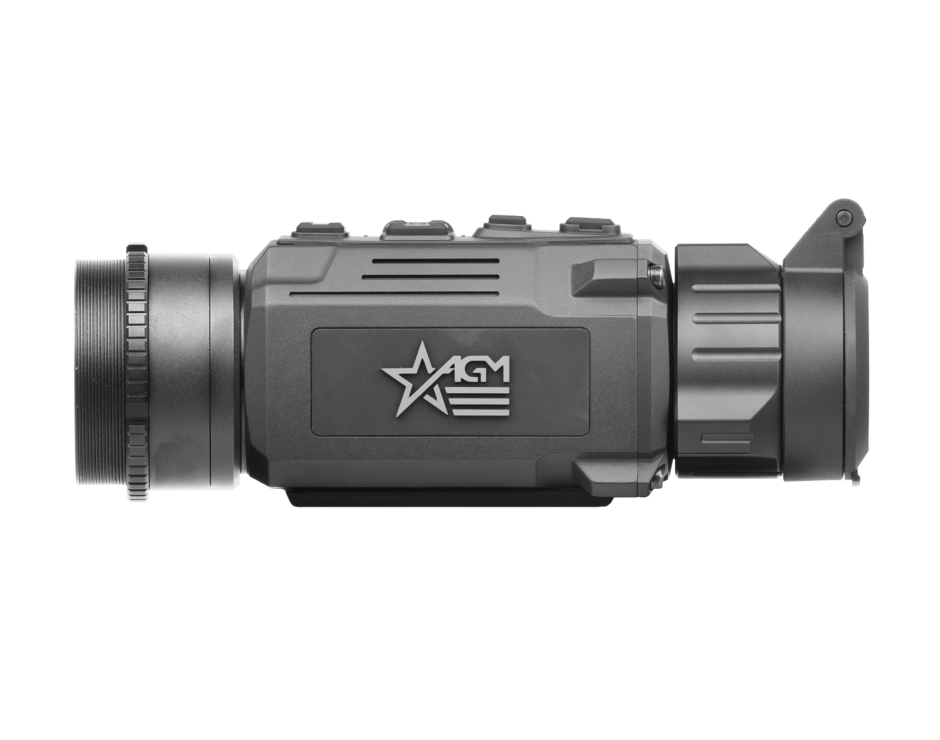

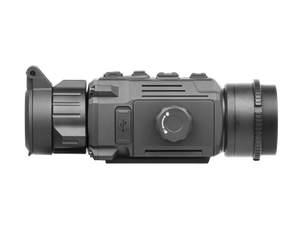

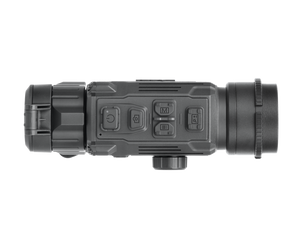

AGM Rattler-C V2 19-256 Thermal Imaging Clip-On

Regular price
$995.00
Sale price
$995.00
Regular price
$765.00
Shipping calculated at checkout.

AGM Rattler-C V2 19-256 Thermal Imaging Clip-On System

The AGM Rattler-C V2 series of thermal clip-ons boasts a industry-leading 12 micron, sub-20mk thermal detectors (NETD 20mK for 384 and 640 models). These physical attributes provide users with some of the best image quality AGM has produced to date with potential detection ranges up to 2600 yards. The Rattler-C V2 thermal clip-ons have a high-sensitivity sensor, which provides a clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The Rattler-C V2 clip-on can easily be attached in front of day scopes to quickly convert a day optic into a thermal imaging device without any special tools or equipment required. Powered replaceable and rechargeable Li-ion battery the AGM Rattler-C V2 provides up to 11 hours of continuous battery life on a single charge (2 batteries included). An external 5V power bank (battery pack) can be easily connected via a USB-C connector for a significant increase of operating time. Onboard Wi-Fi module is also available for live video streaming and video/images recording via mobile application.

Features

  • Quick conversion of daytime optics into thermal imaging scope

  • 12μm high-sensitivity thermal detector (NETD < 20mK for 384 and 640 models)

  • Fast 50Hz imaging

  • High resolution OLED display

  • Adjustable color palettes

  • On-board video/audio recording and image capture

  • Built-in EMMC storage (16 GB)

  • Shot Activated Recording (SAR)

  • Wi-Fi data transmission

  • Stadiametric rangefinder

  • Standby mode

  • 9–11 hours battery life (depending on model)

  • External power supply compatibility

  • Waterproof & shockproof

  • 5-year warranty

Specifications

AGM Rattler-C V2 19-256 — Specifications
Resolution 256 × 192
Detector 12μm VOx Uncooled Focal Plane Array
NETD < 35 mK (25°C, F# = 1.0)
Refresh Rate 50 Hz
Lens System 19 mm; F/1.0
Optical Magnification
Field of View 9.3° × 6.9°
Focus Range 0.5 m to infinity
Exit Pupil 22 mm
Eye Relief 10 mm
Detection Range (6’ object) 1000 m/yd
Display 0.39-inch, OLED, 1024 × 768
Palettes Black hot, White hot, Red hot, Fusion
Flat Field Correction Auto, Manual, External Correction
Scene Mode Cold, Warm
Video/Audio Recording Yes
Image Capture Yes
Standby Mode Yes
Storage Built-in EMMC (16 GB)
Defective Pixel Correction Yes
WiFi Hotspot Yes
Hot Track Yes
Distance Measurement Yes (Stadiametric)
Shot Activated Recording (SAR) Yes
Battery Type 4400mAh Replaceable & Rechargeable Li-ion Battery
Battery Life (Operating, 20°C) 11.5 h (25°C, with hotspot off)
External Power Supply 5 VDC, 2 A, USB Type-C
Operating Temperature Range -30°C to +55°C (-22°F to 131°F)
Protection Level IP67
Max. Recoil 1000 g/0.4 ms
Weight (w/o mount & battery) 0.5 kg (1.10 lb)
Dimensions (w/o mount) 184 × 68 × 67 mm (7.2 × 2.7 × 2.6 in)
Package Includes Thermal Imaging Clip-On, Mount, Two Rechargeable Battery, Charger, USB Cable, Lens Cloth, Manual, Carrying Case
