InfiRay Outdoor RICO GL35R 384 3x 35mm Thermal Scope (LRF)

The RICO G-LRF (GL35) is the first addition to InfiRay Outdoor’s family of Rugged Infrared Compact Optics (RICO) to include an integrated laser rangefinder. Designed as a more compact and affordable alternative to it’s full size RICO Mk1 counterpart, the RICO G-LRF is available in two models; 384x288 35mm and 640x512 50mm.

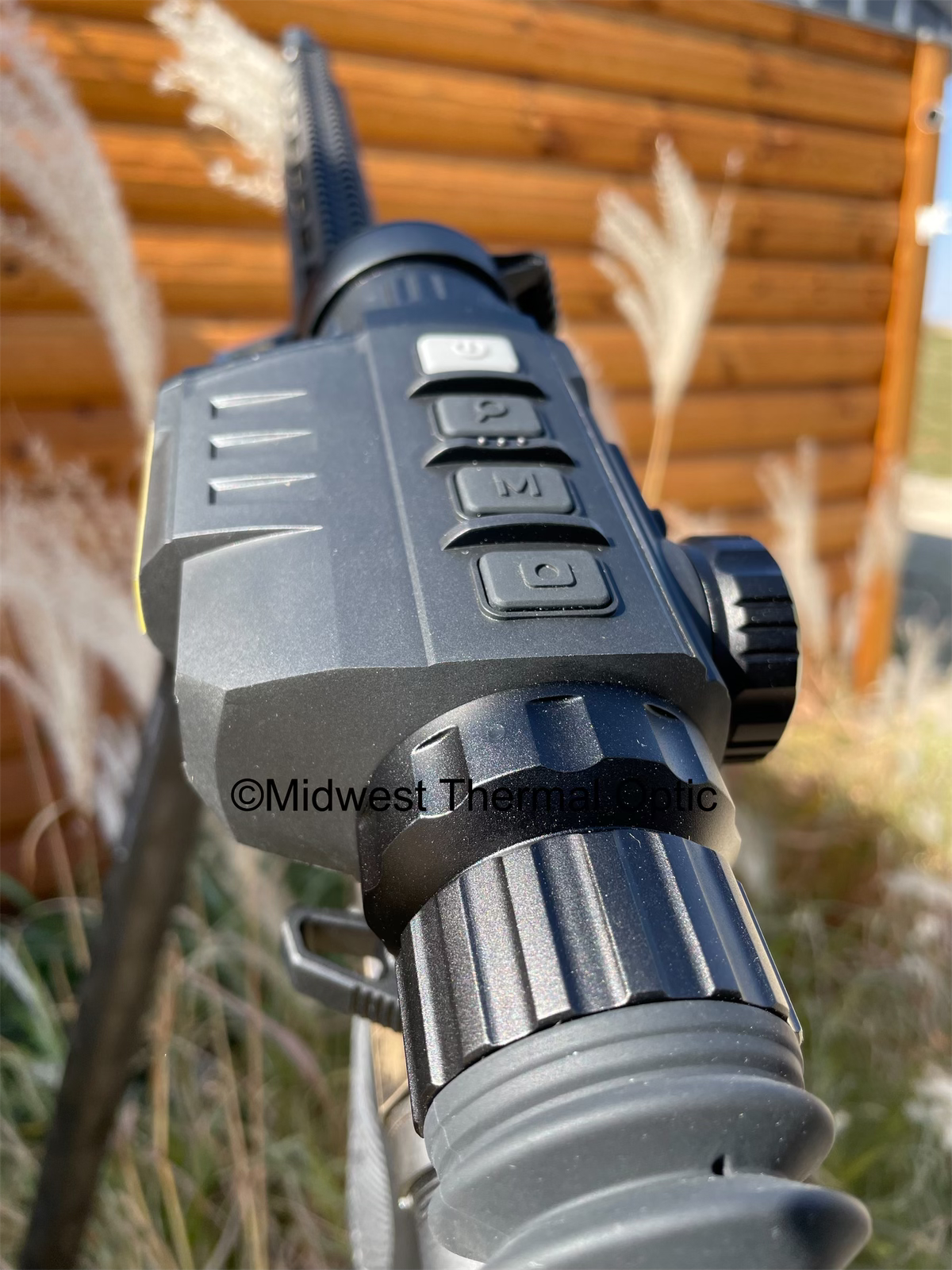

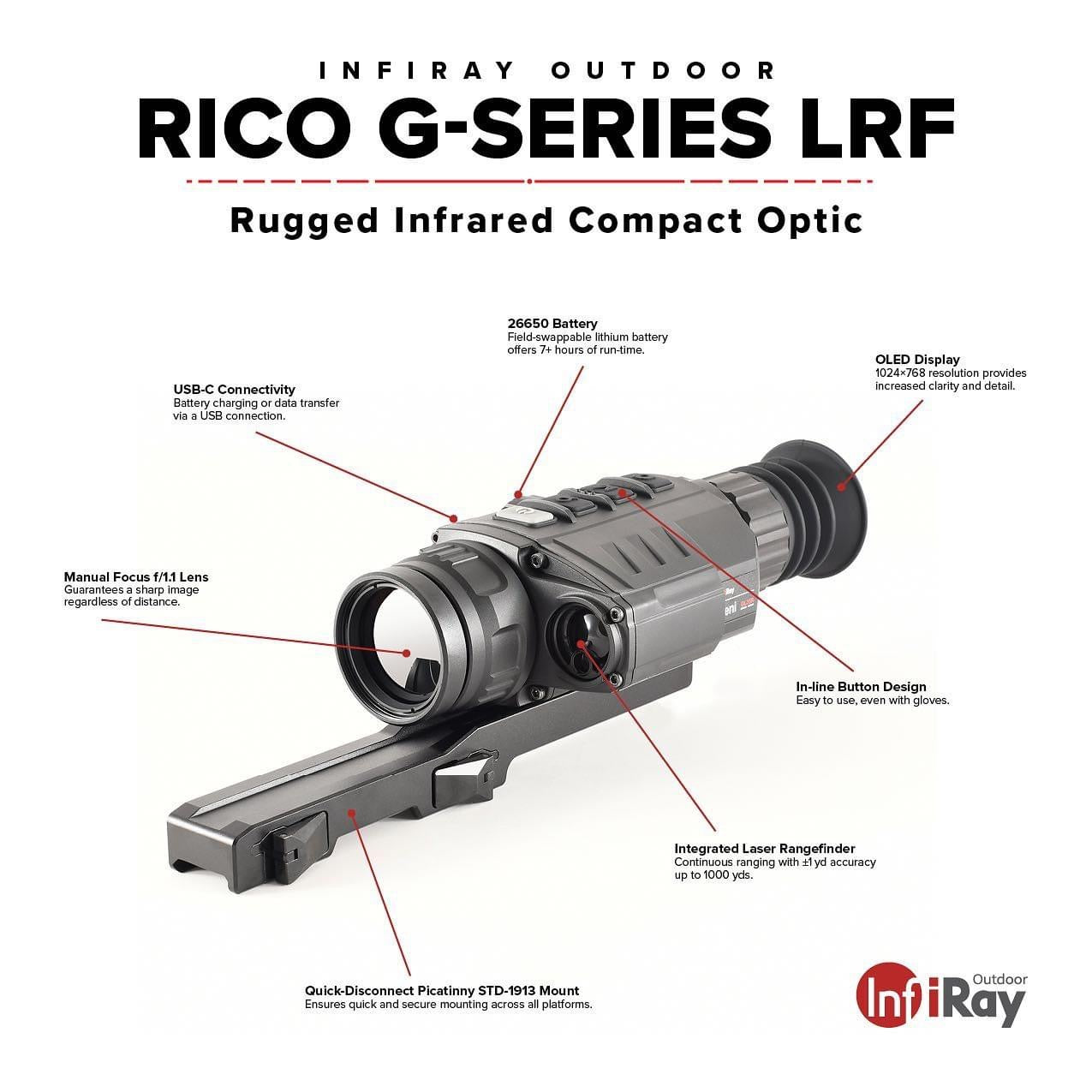

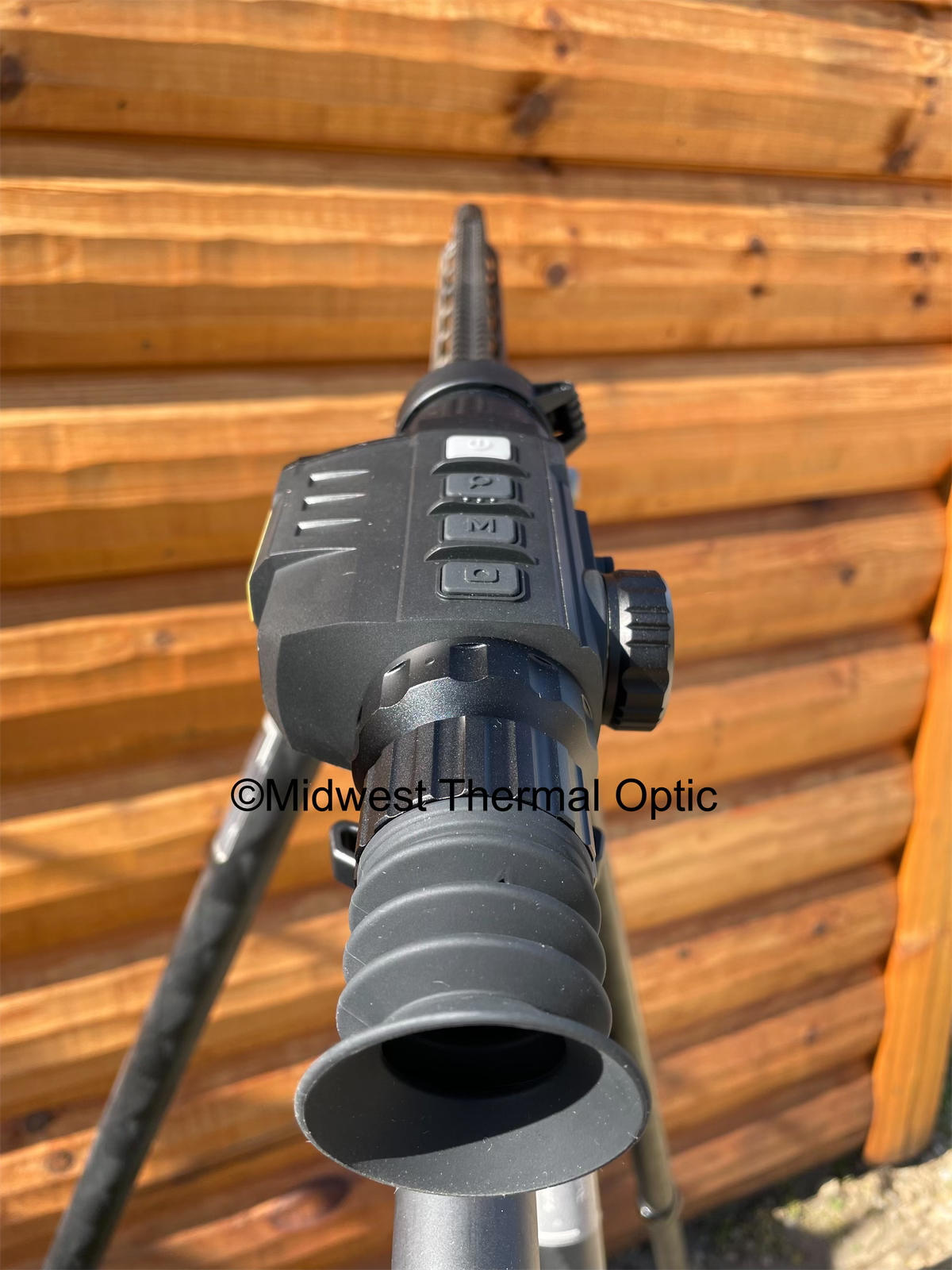

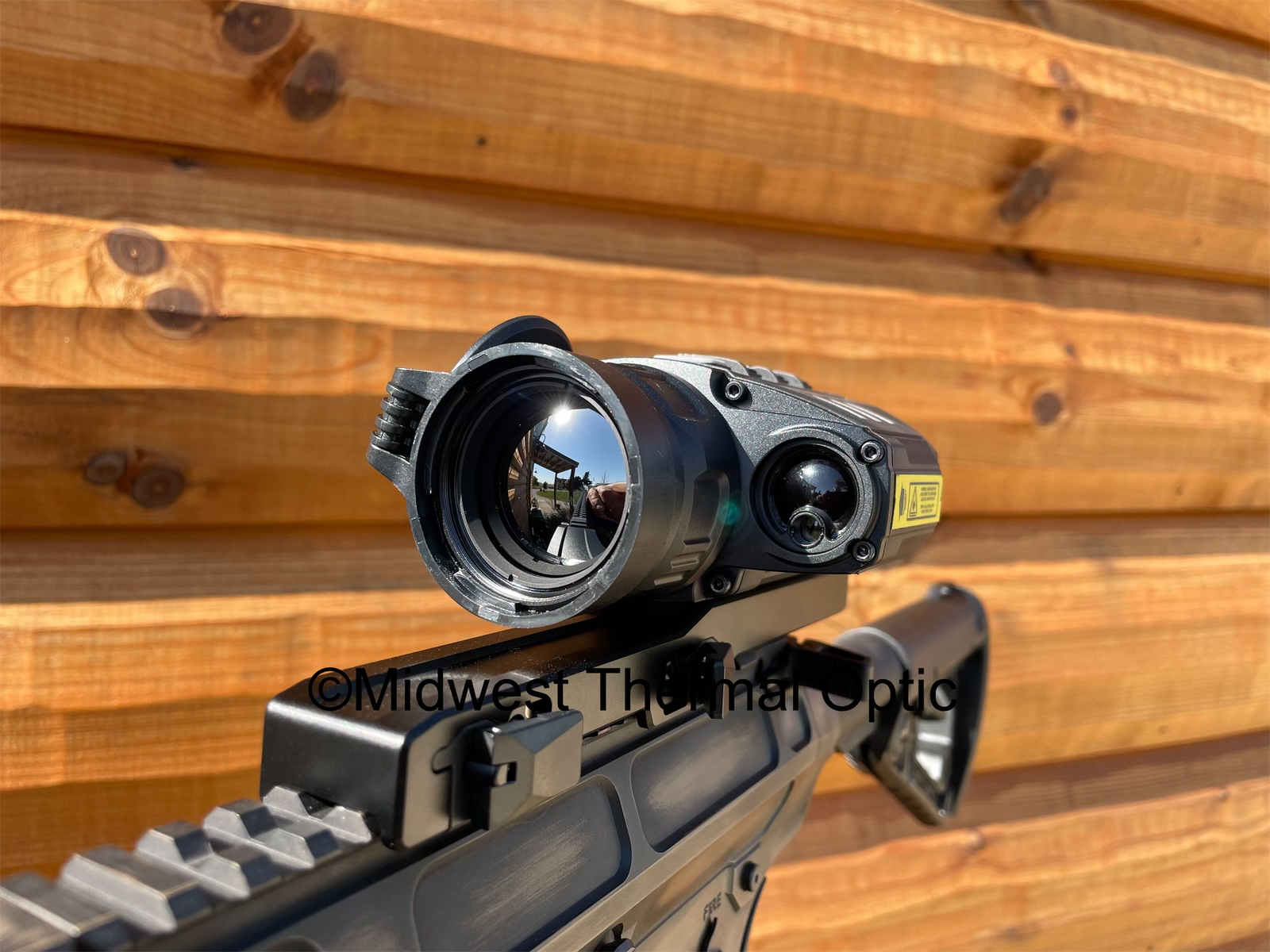

Although smaller in size, the RICO G-LRF still maintains many familiar RICO Mk1 characteristics including a 4 button layout, compatibility with the AD-RQD quick release mount, similar software style and menu functions, high speed germanium objective optics, and an HD OLED display. In addition to the features it carries over from the Mk1, the G-LRF brings never-before-seen features to market for InfiRay Outdoor including a new high density 26650 battery configuration, and InfiRay Outdoor’s newly integrated high performance 905nm LRF micro-module. This advanced class 3R LRF module uses the latest technology in laser ranging to decrease physical laser input receiver size while maintaining accuracy and range capabilities of modules that are much larger, heavier, and more power hungry.

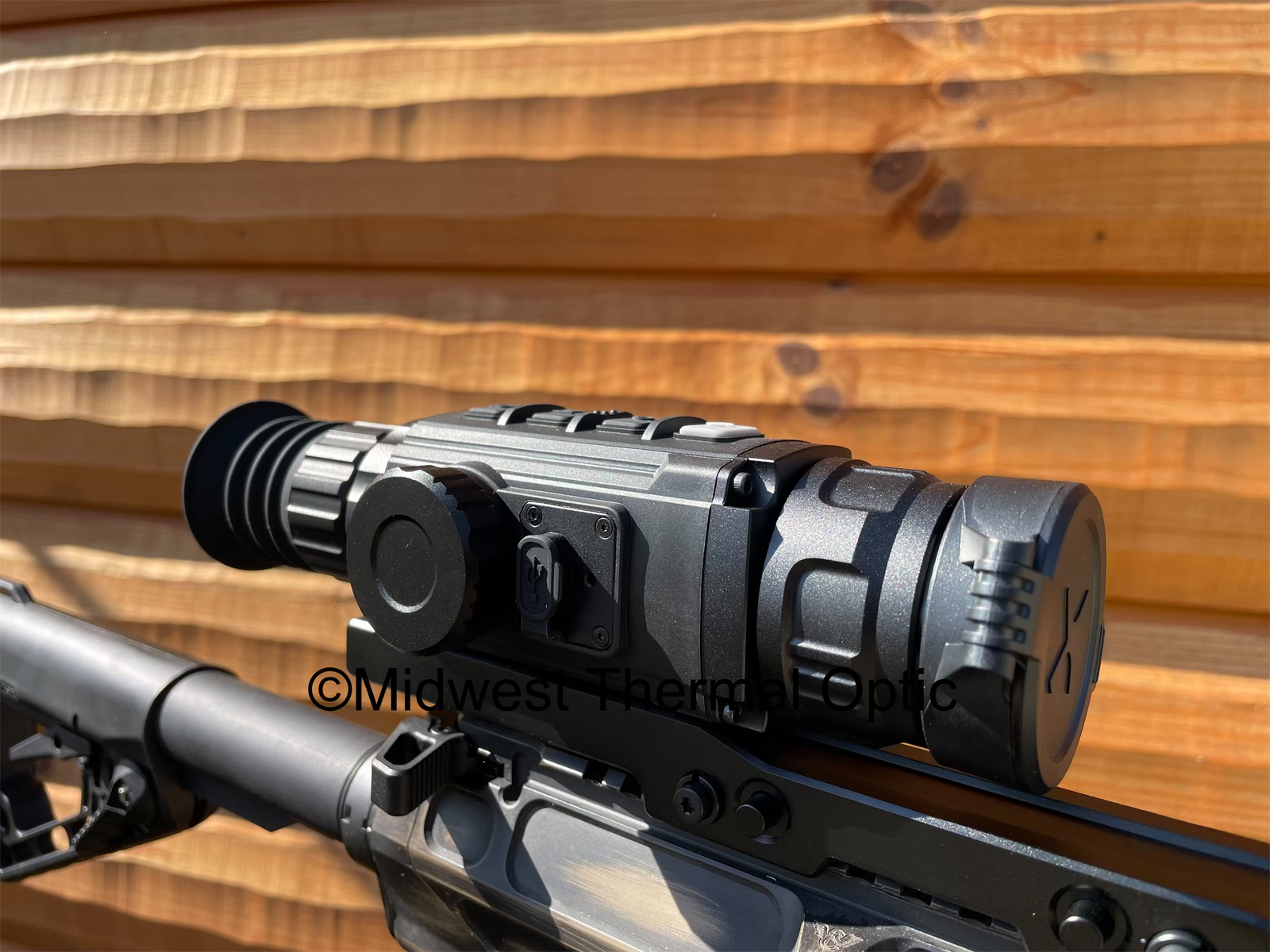

Other notable design characteristics to achieve the desired smaller stature are a smaller chassis, shorter eyepiece focal length, barrel-style manual focus objective optics, and a high density battery configuration. All these features combined make the RICO G-LRF an excellent option for hunters that need no more than 4(GH50R) or 7(GL35R) hours per battery swap and require decreased size and a integrated rangefinder. A single 26650 battery was chosen to power the system as a space saving and high value alternative to multi battery designs. 26650 style batteries are commercial off the shelf and widely available across the globe from premium battery manufactures such as NITECORE.

The RICO G-Series LRF seamlessly blends InfiRay Outdoor’s industry-leading 12μm detector technology, a built-in laser range-finding module and an intuitive user interface in a single product. The G-Series LRF also supports image and video capture, wireless data transmission, electronic compass, multiple reticles, and a 4-7 hour run-time, guaranteeing it’s never been easier to detect, range, and connect on your next hunt.

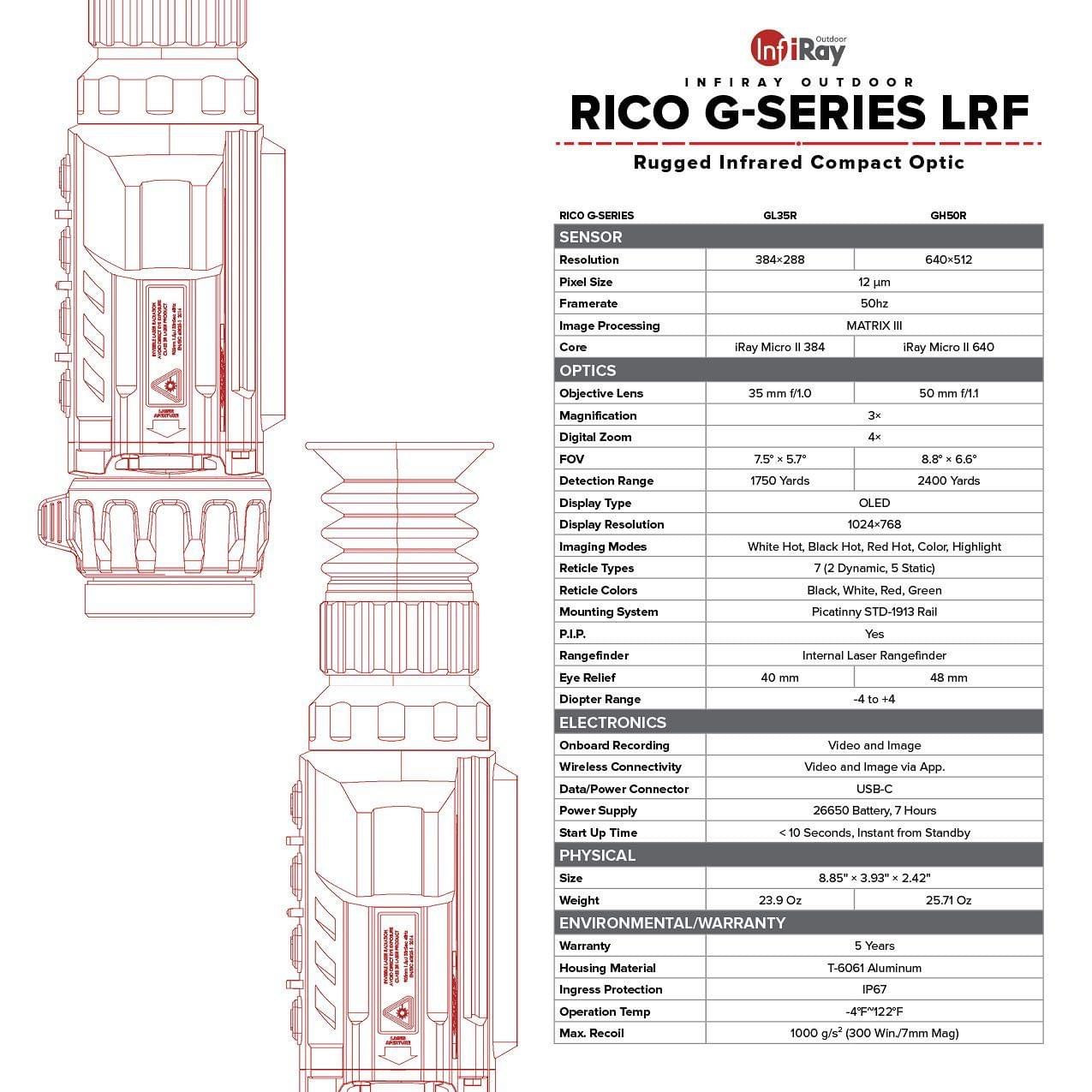

RICO GL35R 384 (LRF) Technical Specifications

Optics

• Objective Focal Length: 35mm f/1.1
• Display Type: OLED
• Eye Relief: 40mm
• Digital Magnification: 4X
• Optical Magnification: 3X
• Detection Range: 1750 Yards
• Objective Lens Material: Germanium
• Horizontal Angular Field of View: 7.5°
• Vertical Angular Field of View: 5.7°
• Objective Diameter: 35mm
• Objective F#: 1.0
• Focusing Mechanism: Manual Focus
• Diopter Range: -4 - +4
• Display Resolution: 1024 × 768

Features & Performance

• Onboard Recording: Video and Image
• Warranty: 5 Years
• Rangefinder: Internal LRF
• Picture-in-Picture: Yes
• Reticle: 8
• Color Palettes: 4
• Stand-by Mode: Yes
• One-Shot Zero: Yes
• User-Updatable Firmware: Yes
• Mobile App: Yes
• Wifi: Yes
• Image Capture: Yes
• Connector Type: USB-C
• Storage Capacity: 32gb
• Power Source: 26650 Battery
• Run Time: 7
• External Power Source: USB-C
• Startup Time: Under 10 Seconds
• Country of Manufacture: China

Environmental Specifications

• Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
• Ingress Protection: IP67
• Operating Temperature Range: -4°F to 122°F

Physical

• Housing Material: Polymer
• Mounting Interface: Picatinny STD-1913 rail

Sensor Specifications

• Sensor Resolution: 384×288
• Sensor Type: InfiRay MICRO II
• Sensor Pixel Size: 12μm
• Thermal Sensitivity: <40mK
• Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
• Spectral Response: 8-12 Microns
• Sensor Frame Rate: 50Hz
• Device Technology: Thermal Imaging

About InfiRay Outdoor

InfiRay Outdoor makes professional outdoor thermal imaging scopes, night vision optics, thermal monoculars, laser rangefinders, and more. From research and development to production and delivery, InfiRay Outdoor is using the most stringent requirements to guarantee quality and provide trustworthy high-quality products to customers in more than 89 countries.
