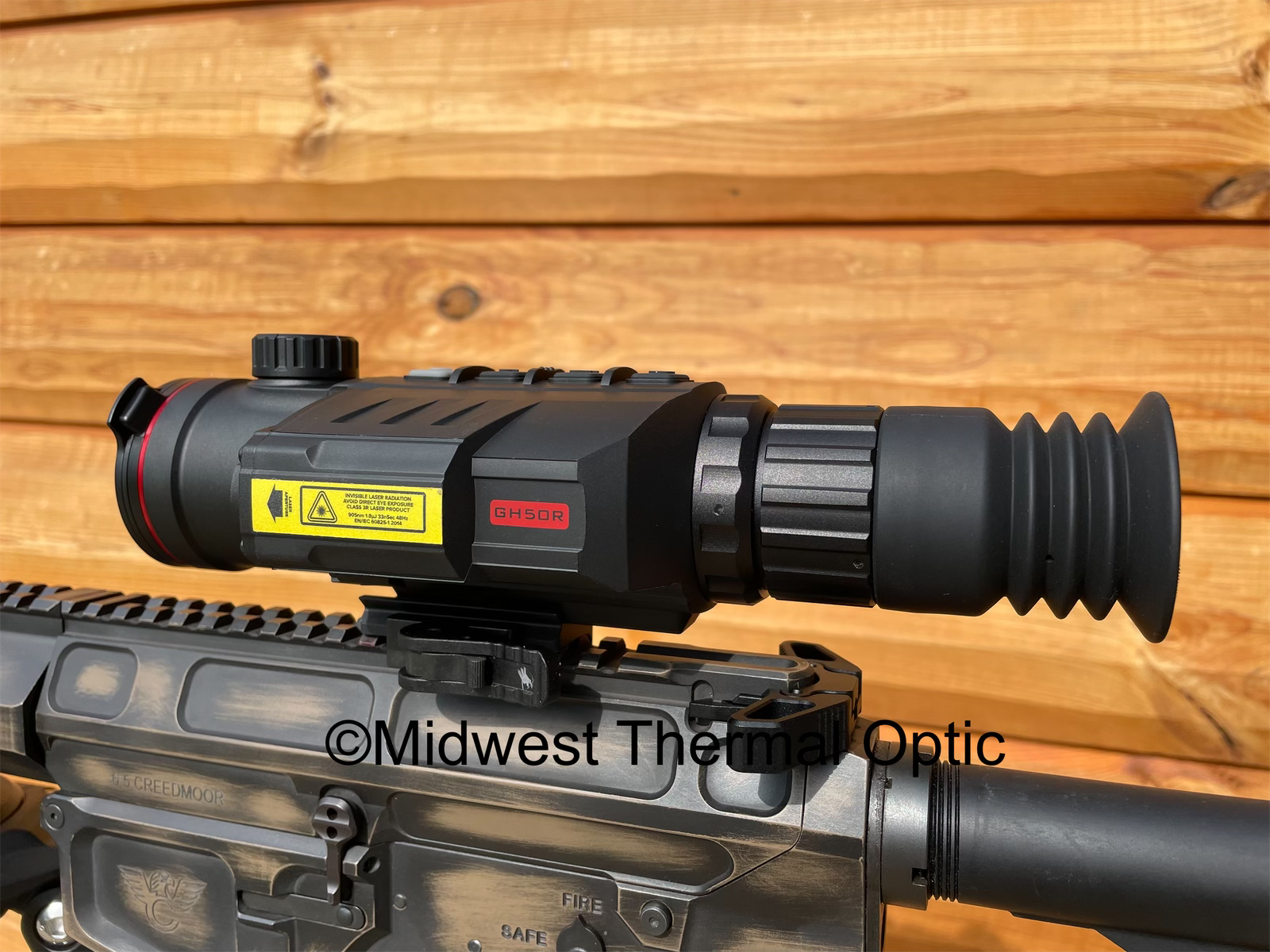

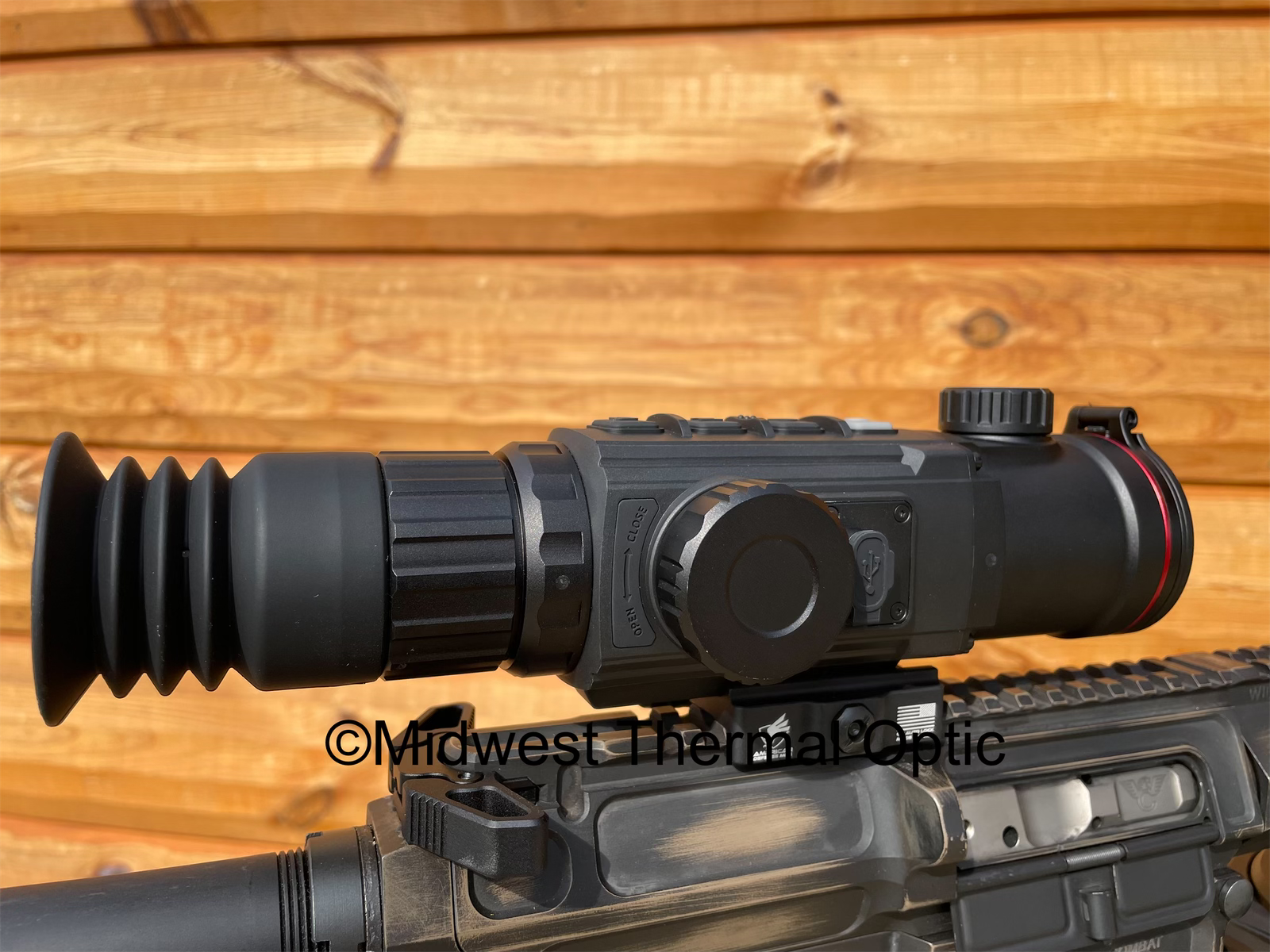

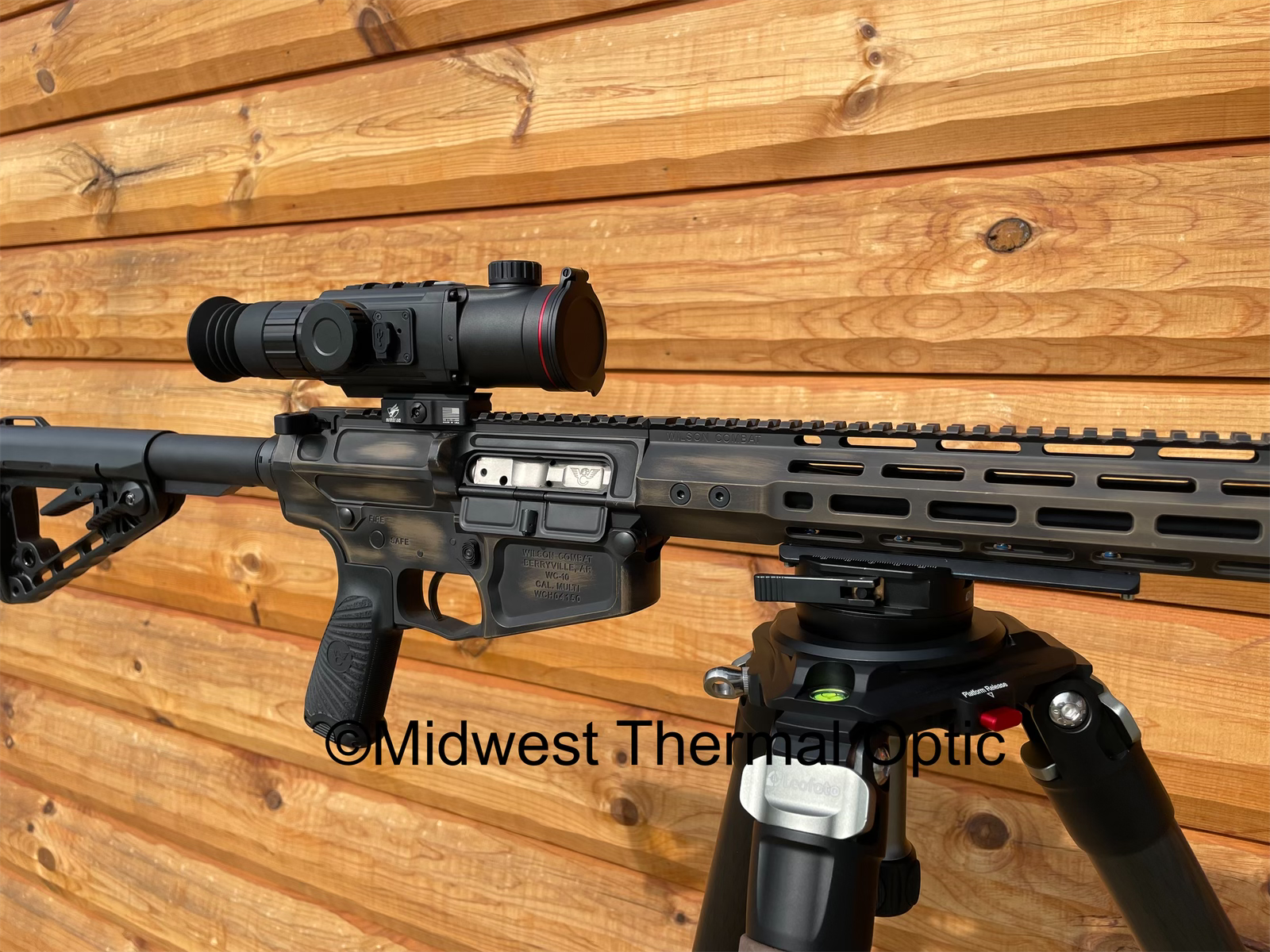

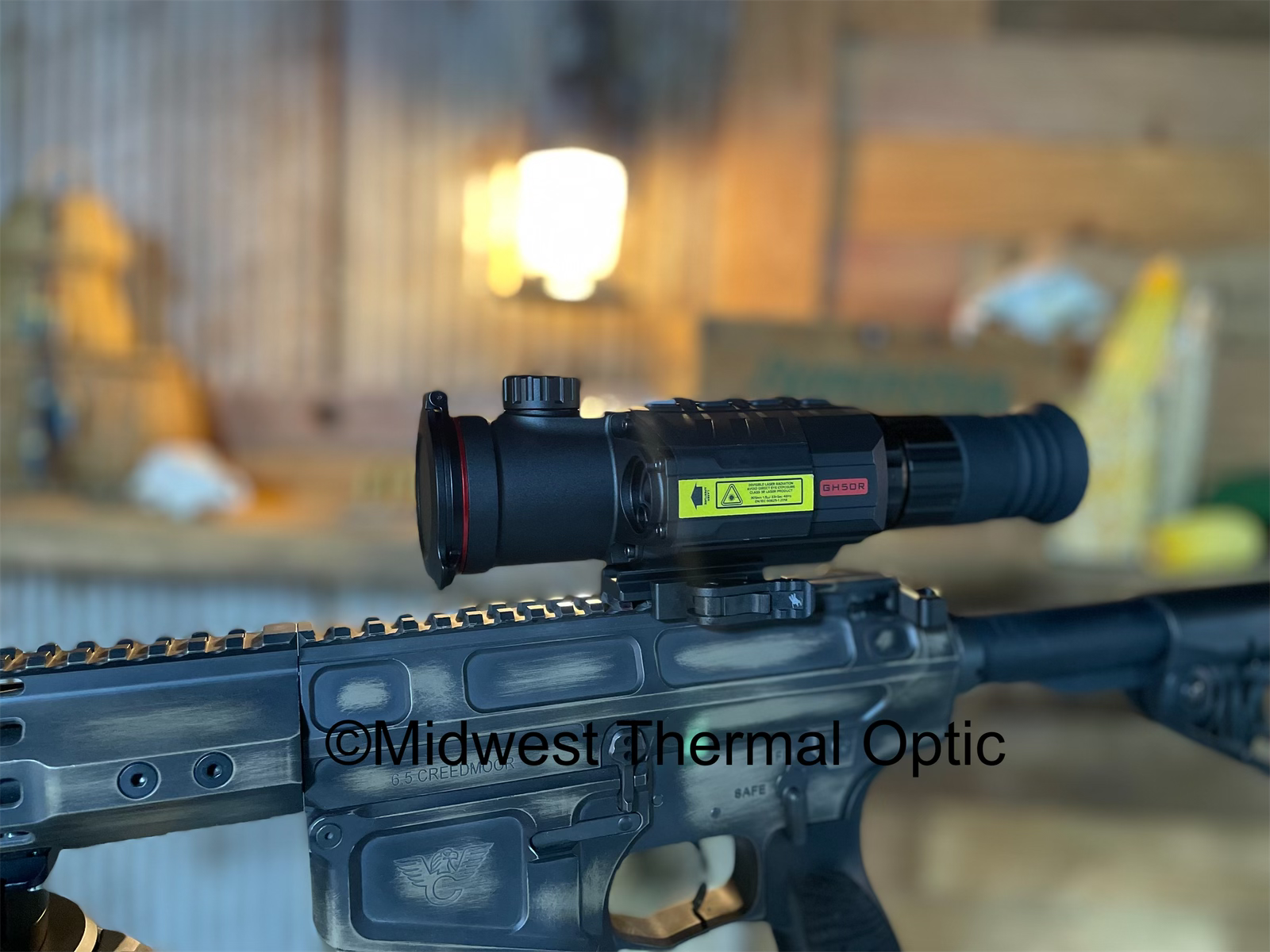

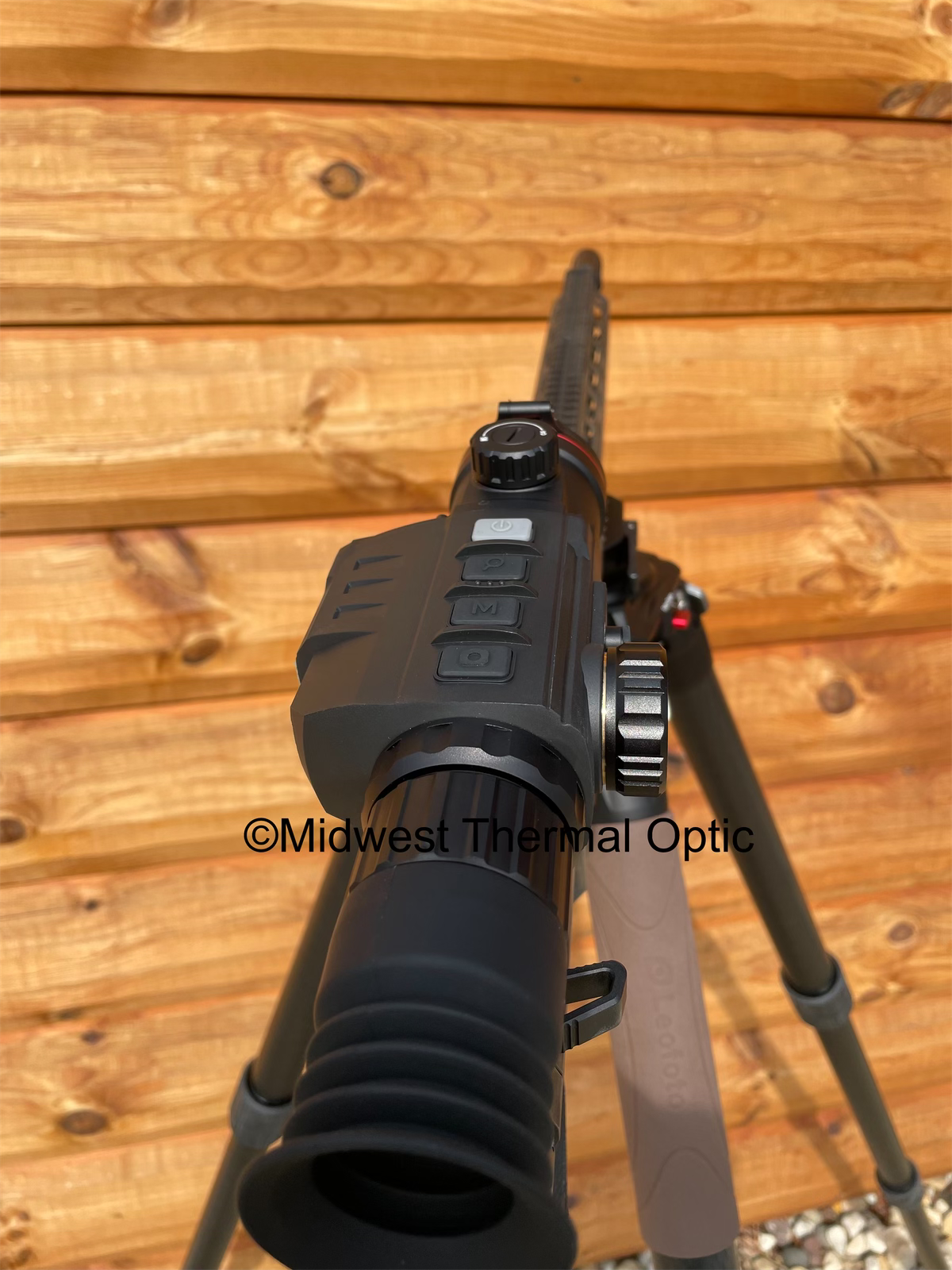

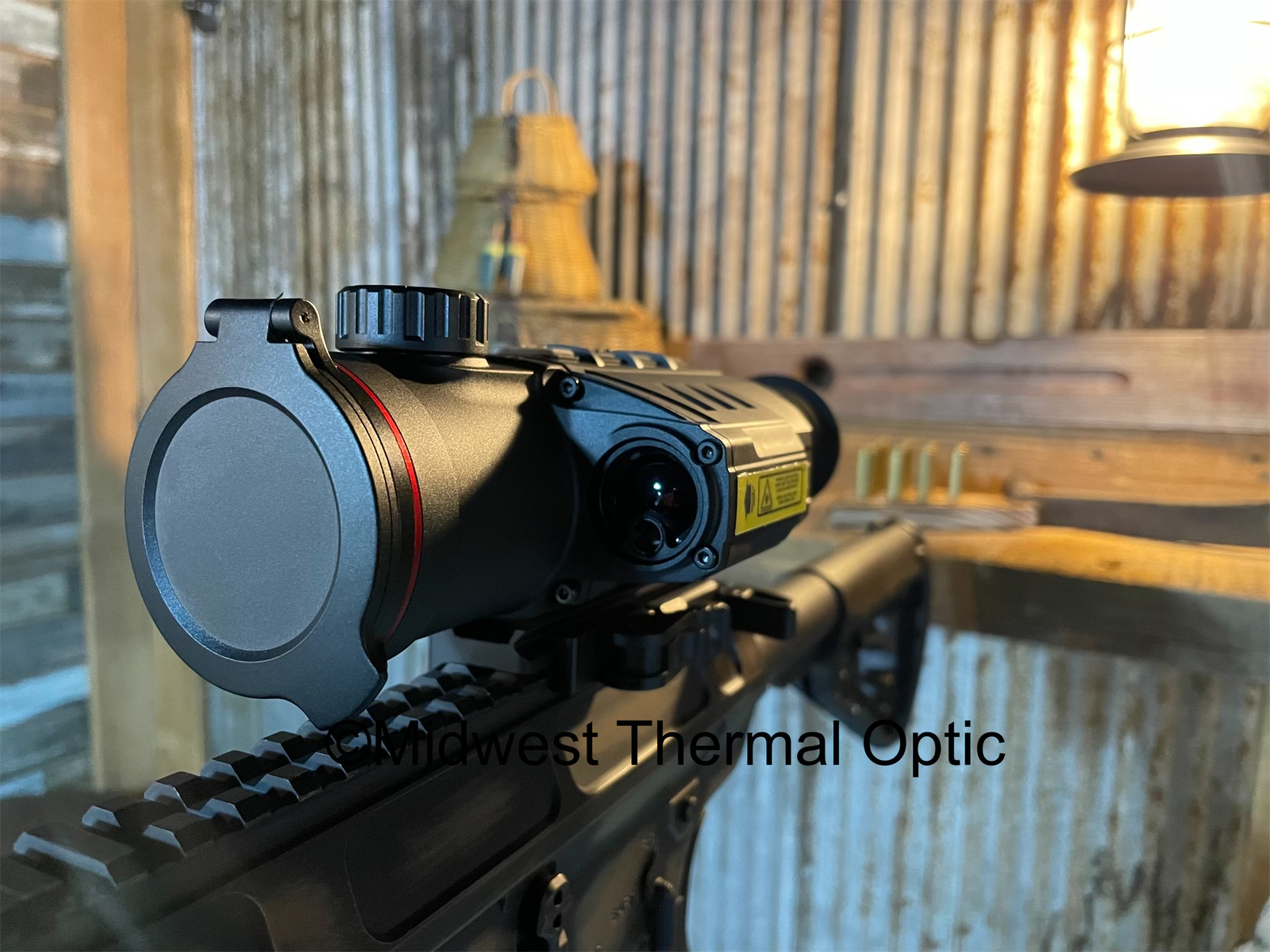

InfiRay Outdoor RICO G-LRF 640 3x 50mm Thermal Scope

The InfiRay Outdoor RICO G-LRF 640 introduces the next generation of thermal functionality, seamlessly combining InfiRay’s industry-leading 12 μm detector technology and a precision laserrange-finding module in a single unit. The RICO G-LRF Series features a 1024×768 AMOLED display toguarantee a crisp, high-contrast image, while the precision laser range-finding module ensures accuratemeasurement to 1000 yards. Additional features include image and video capture with 32GB of storage,wireless streaming, and a field-swappable 26650 battery with a 7-hour run-time.

RICO G-LRF 640 Technical Specifications

Optics

• Detection Range: 2400 Yards
• Optical Magnification: 3X
• Objective Focal Length: 50mm
• Objective Lens Material: Germanium
• Digital Magnification: 4X, stepped
• Focusing Mechanism: Manual Focus
• Display Type: AMOLED
• Vertical Angular Field of View: 6.6°
• Horizontal Angular Field of View: 8.8°
• Objective F#: 1.1
• Objective Diameter: 50mm
• Eye Relief: 48mm
• Diopter Range: -4 - +4
• Display Resolution: 1024×768

Environmental Specifications

• Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
• Operating Temperature Range: -4°F~122°F
• Ingress Protection: IP67

Sensor Specifications

• Sensor Type: InfiRay MICRO II
• Sensor Pixel Size: 12μm
• Thermal Sensitivity: <50mk
• Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
• Spectral Response: 8-12 Microns
• Sensor Frame Rate: 50hz
• Device Technology: Thermal Imaging
• Sensor Resolution: 640×512

Features & Performance

• Wifi: Yes
• Image Capture: Yes
• Mobile App: Yes
• Connector Type: USB-C
• Video Output: Analog RS-170/NTSC
• Connector Output: Power/Data
• Onboard Recording: Yes
• Warranty: 5 Years
• Power Source: 26650 Battery
• Color Palettes: White Hot, Black Hot, Red Hot, Color, Highlight
• Rangefinder: Internal LRF
• Picture-in-Picture: Yes
• User-Updatable Firmware: Yes
• Storage Capacity: 32GB
• Startup Time: Under 10 Seconds
• Run Time: 7
• One-Shot Zero: Yes
• Stand-by Mode: Yes
• Reticle: 7 (2 Dynamic, 5 Static)
• External Power Source: USB-C
• Country of Manufacture: China

Physical

• Mounting Interface: Picatinny STD-1913 rail
• Length: 8.85
• Width: 3.93
• Height: 2.42
• Weight: 25.71
• Housing Material: Polymer
