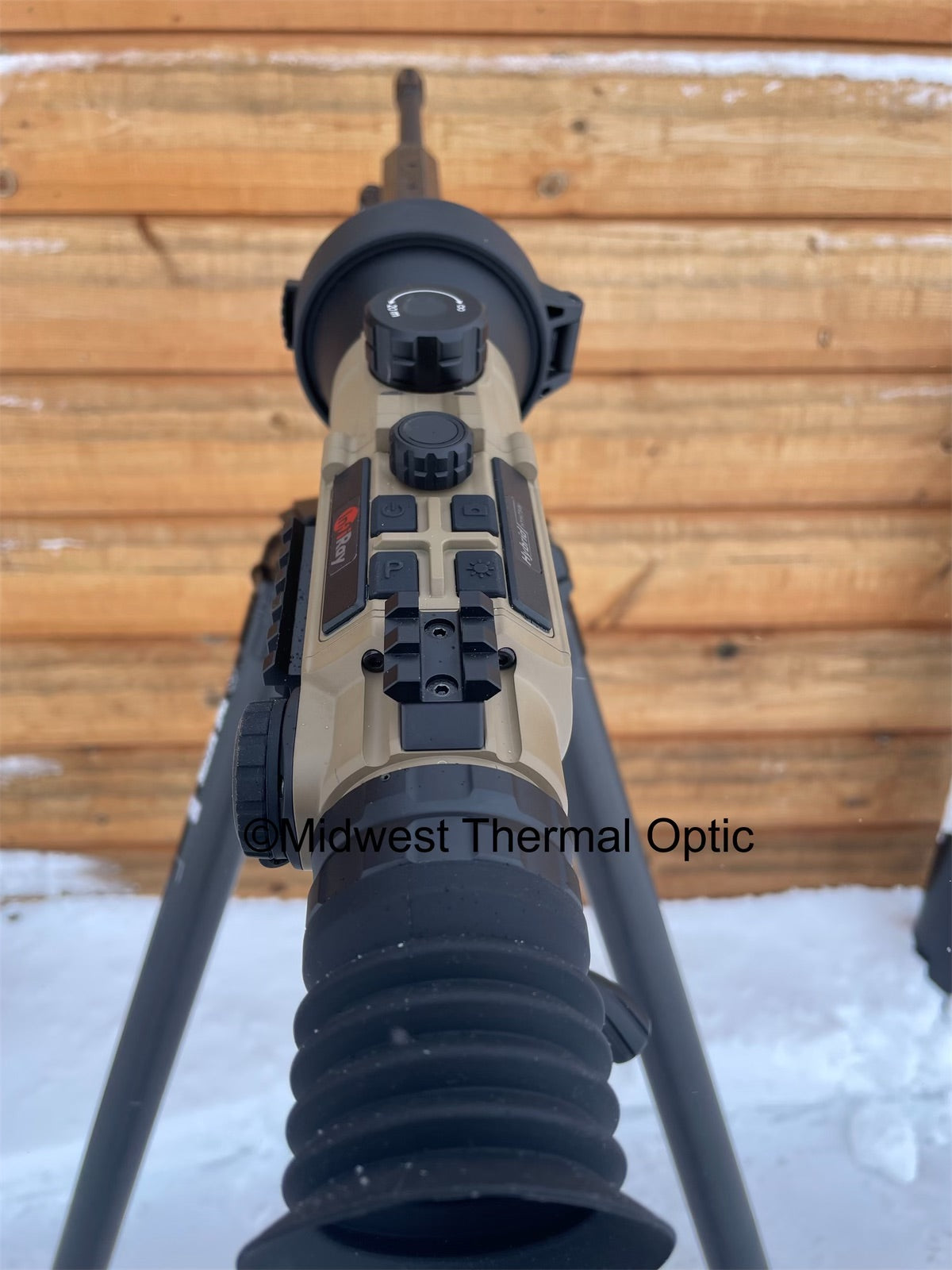

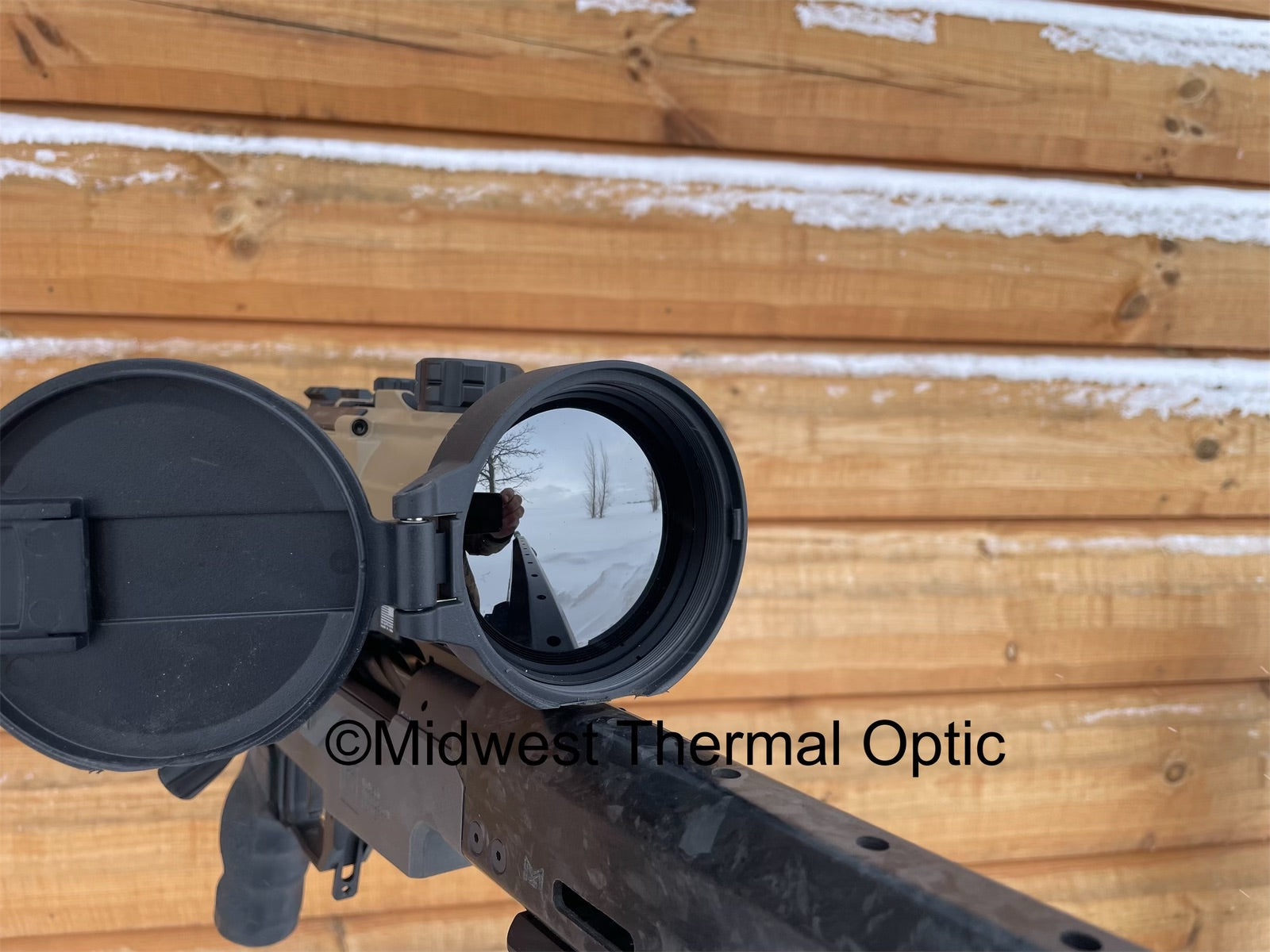

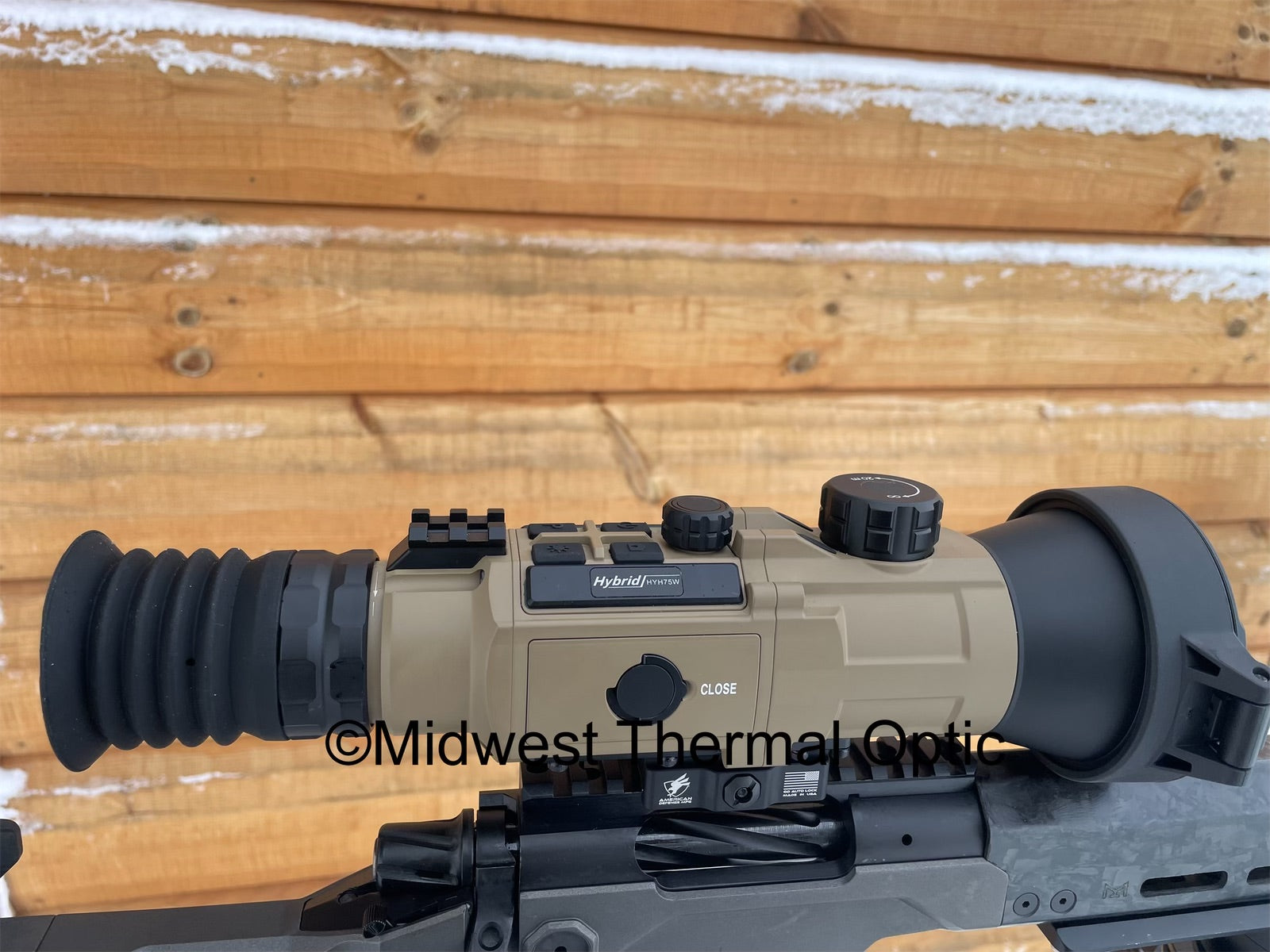

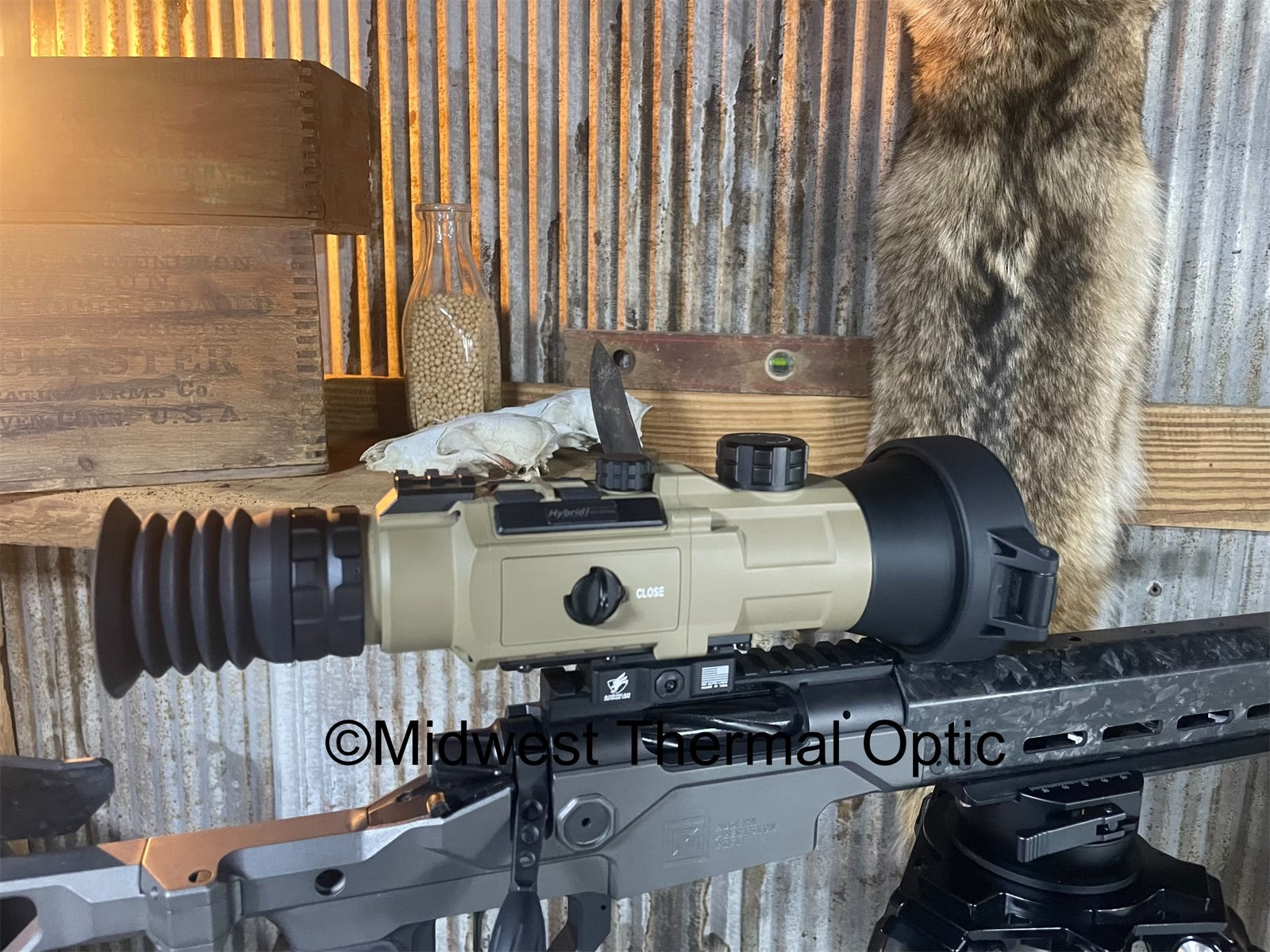

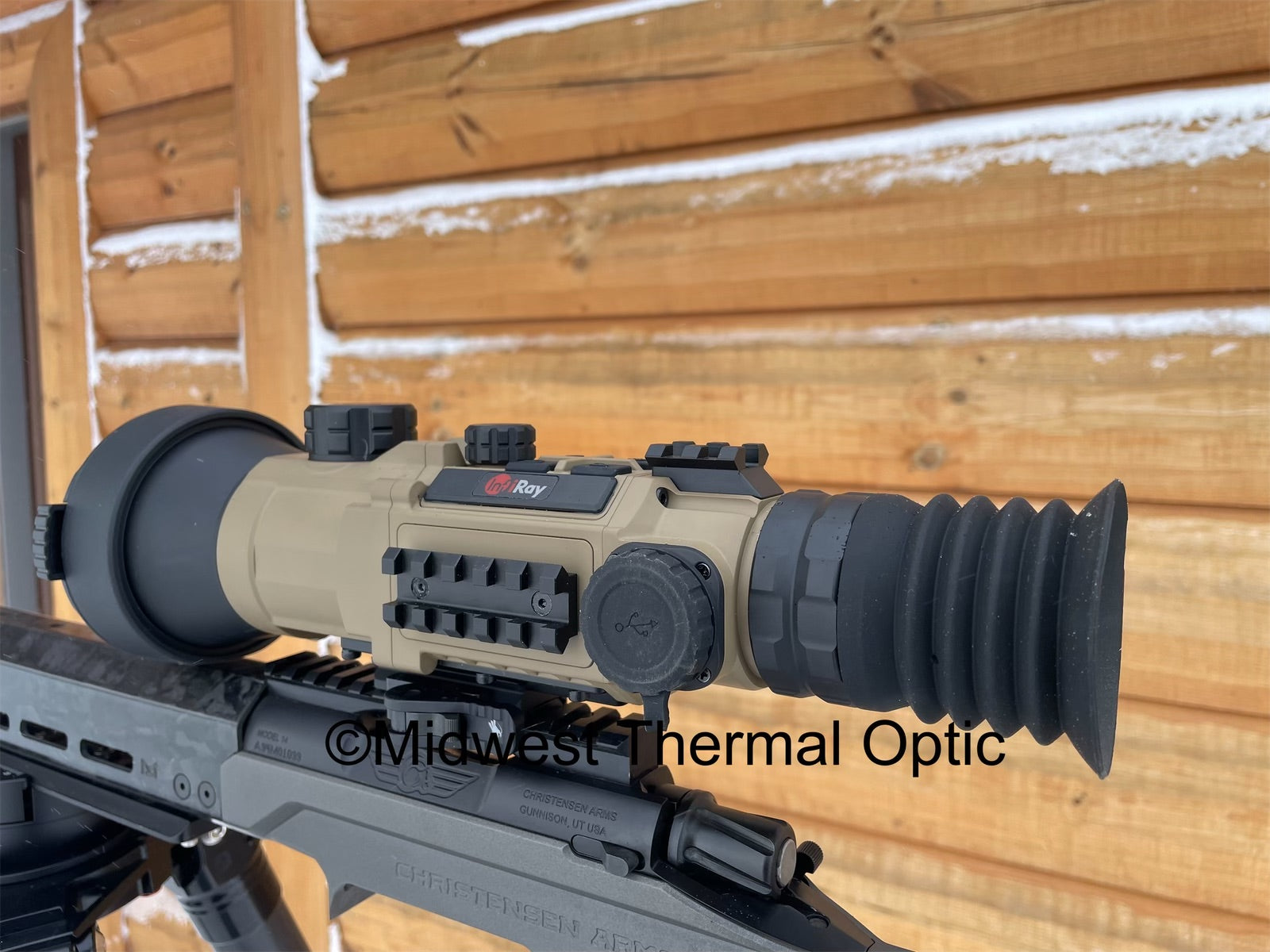

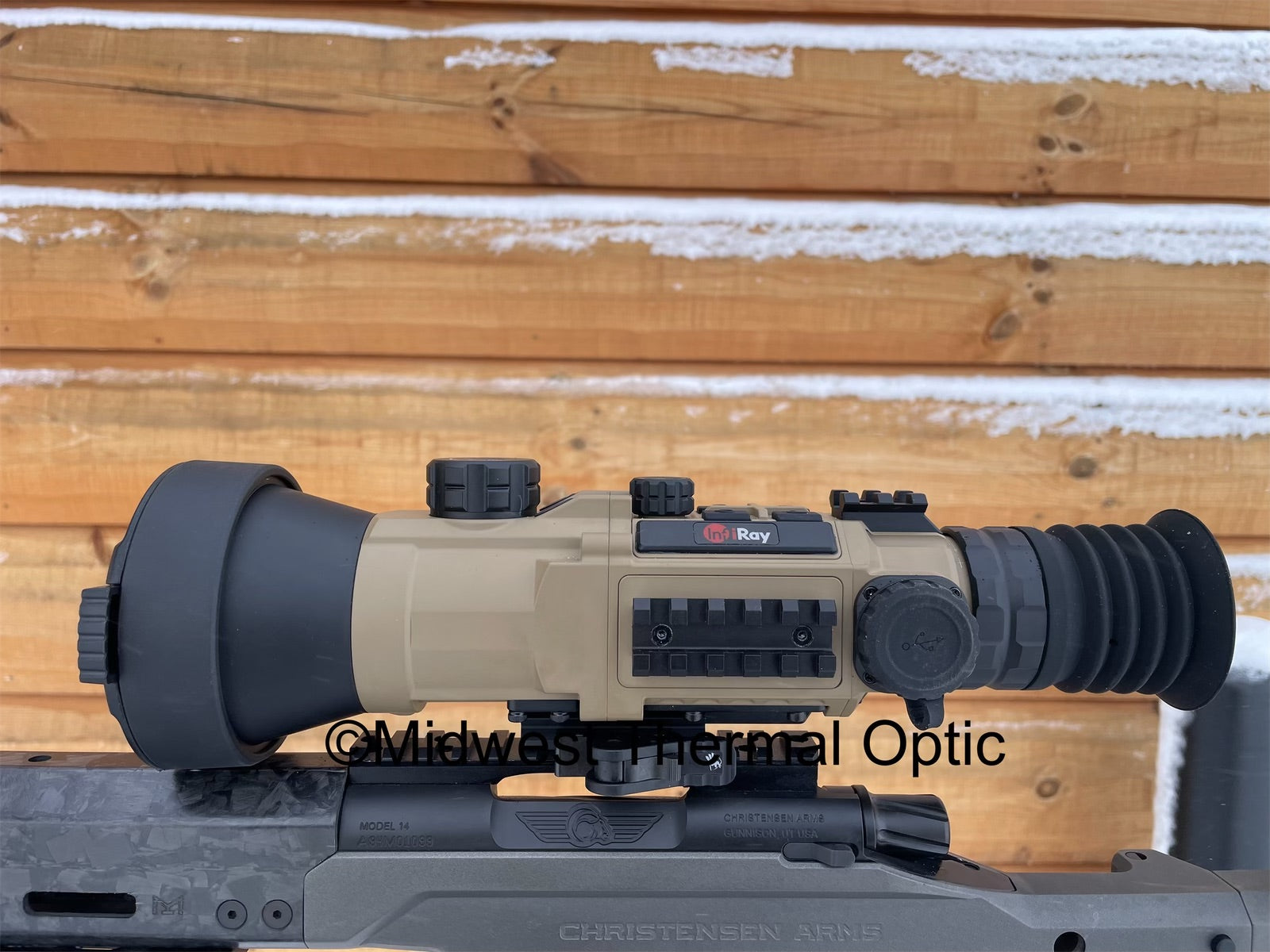

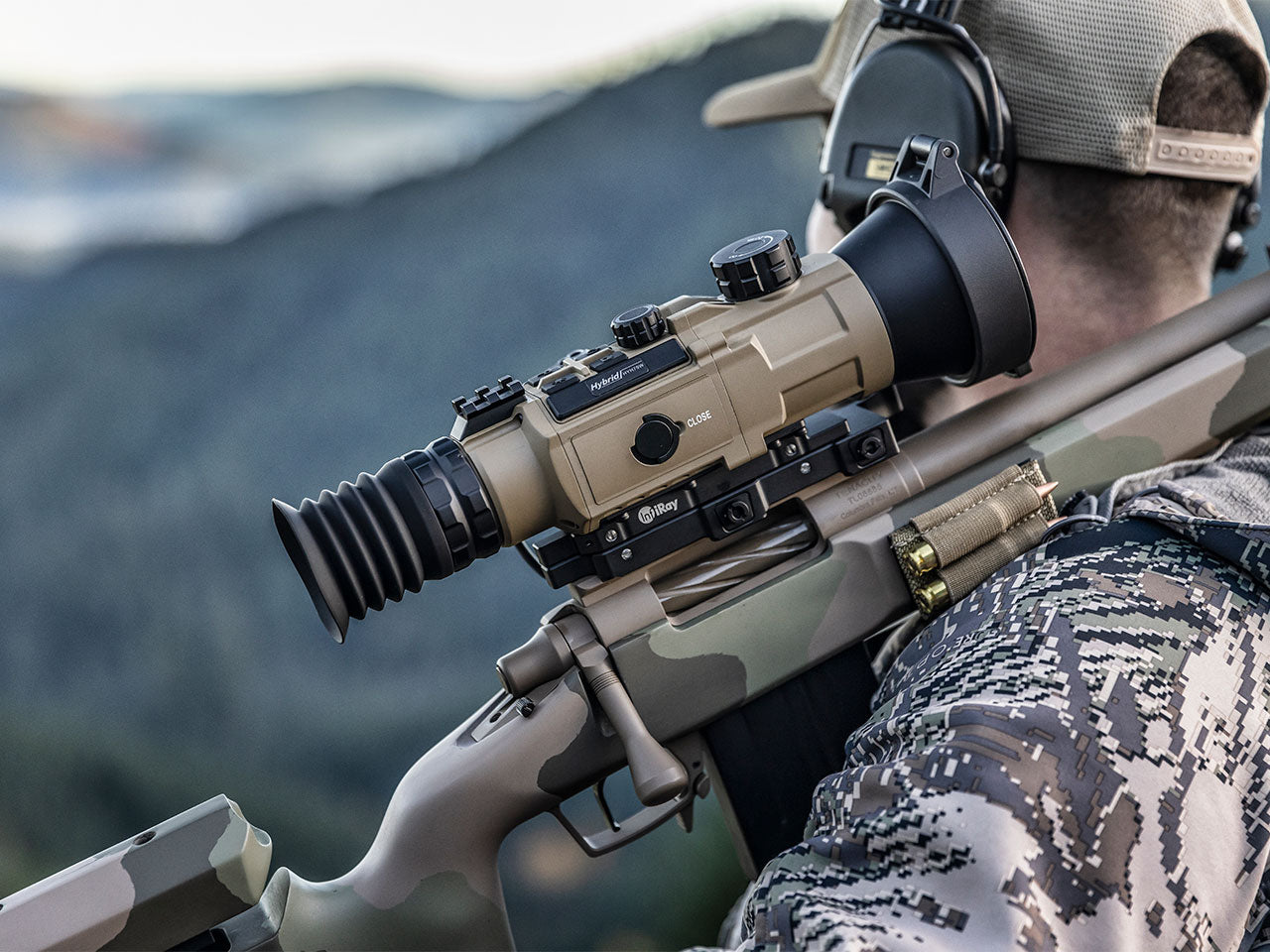

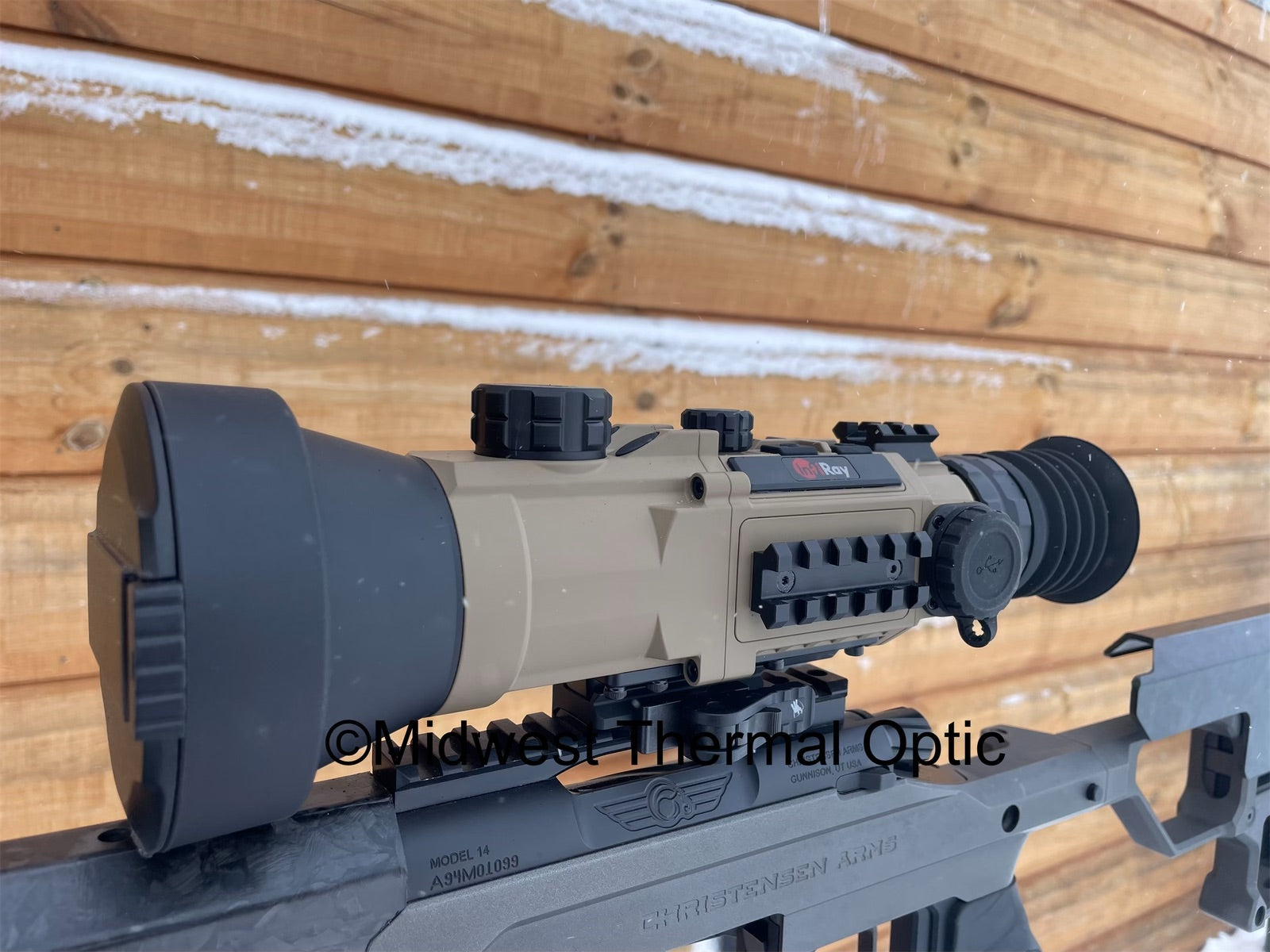

InfiRay Outdoor RICO HYBRID 640 4x 75mm Multifunction Thermal Scope

The InfiRay Outdoor RICO HYBRID 640 4x 75mm fuses the capabilities of a thermal clip-on and a thermal weapon sight to create a new breed of thermal device. The HYBRID gives you never-before-seen versatility and performance, boasting a 3,600 yard detection range as a dedicated thermal sight, or compatibility with day optics up to 10× as an inline clip-on sight. The combination of the HYBRID’s low-distortion orthoscopic eyepiece and a 1.03-inch large-format 2560×1920 display provides comfortable viewing as a dedicated sight while still maintaining the pixel density and resolution for use as a clip-on optic. The HYBRID also unlocks advanced features such as compatibility with a 1,000 yard laser rangefinder, a custom reticle generator, Bluetooth remote, and an onboard ballistic solver.

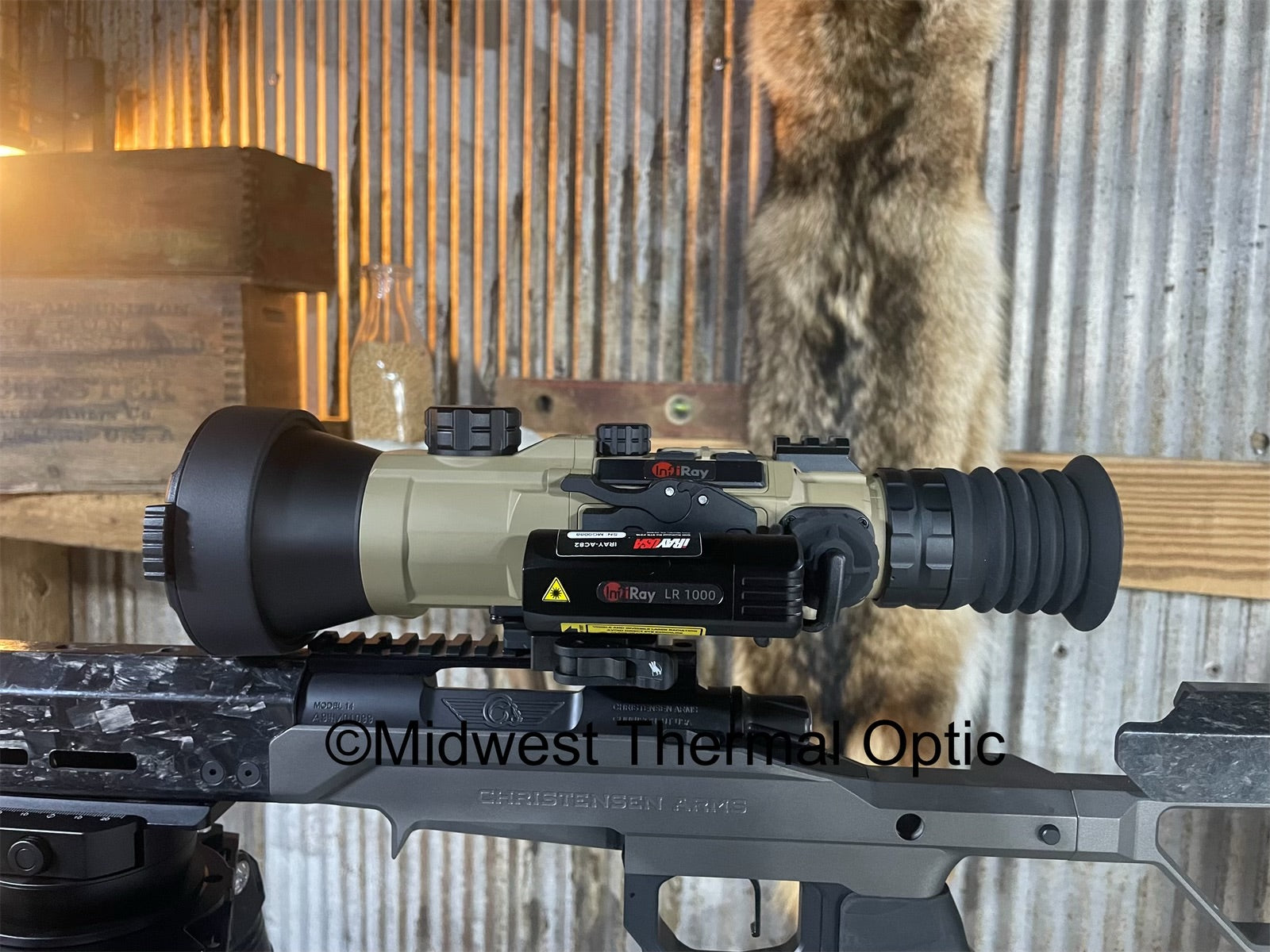

The ILR-1000-2 Laser Rangefinder (AC82) connects to the HYBRID via USB-C (data and power), providing real-time ranging data that can even integrate with user-supplied ballistics data and apply hold-over on a custom reticle. See page 45 for details.

PLEASE NOTE: The HYH50W and HYH75W both use a IBP-1 type battery (4400mAh). THE IBP-1 battery that ships with the HYH50W is the same battery used by the RICO Mk1 and RICO Pro Series. The battery that ships with the HYH75W is an enhanced IBP-1 that features the FDE ceramic coated finish and improved ingress protection. The HYH75W will run on the original IBP-1 battery, but will not be IP67 weatherproof in this configuration. For best results, always use the batteries that shipped with the product.

RICO HYBRID 640 Technical Specifications

Optics

• Objective Focal Length: 75mm
• Detection Range: 3600 Yards
• Optical Magnification: 4X
• Digital Magnification: 8X
• Objective Lens Material: Germanium
• Horizontal Angular Field of View: 5.9°
• Vertical Angular Field of View: 4.4°
• Objective Diameter: 75mm
• Objective F#: 1.0
• Focusing Mechanism: Manual Focus
• Eye Relief: 60mm
• Diopter Range: -4 to +2
• Display Type: AMOLED
• Display Resolution: 2560x1920

Features & Performance

• Power Source: USB-C External, IBP-1H Li-ion Battery Pack
• Reticle: 9 (7 Static, 1 DIY, 1 BDC)
• Color Palettes: White Hot, Black Hot, Red Hot, Iron Red, Rainbow, Outline
• Rangefinder: ILR-1000-2 LRF (Optional/Not Included)
• Stand-by Mode: Yes
• One-Shot Zero: Yes
• Picture-in-Picture: Yes
• Wifi: Yes
• Image Capture: Yes
• Mobile App: Yes
• User-Updatable Firmware: Yes
• Connector Type: USB-C
• Connector Output: Power/Data
• Onboard Recording: Yes
• Storage Capacity: 64GB
• Run Time: 6+
• External Power Source: USB-C
• Warranty: 5 Years
• Startup Time: <10 Seconds, Instant from Standby
• Country of Manufacture: China

Environmental Specifications

• Operating Temperature Range: -4°F~122°F
• Ingress Protection: IP67
• Recoil Rating: 1000 g/s² (300 Win./7mm Mag)

Physical

• Weight: 45.08 Oz.
• Height: 3.58
• Width: 4.13
• Length: 12.20
• Housing Material: Magnesium Alloy
• Mounting Interface: Picatinny MIL-STD 1913 Rail

Sensor Specifications

• Device Technology: Thermal Imaging
• Sensor Type: InfiRay MICRO II
• Sensor Resolution: 640×512
• Sensor Pixel Size: 12μm
• Sensor Frame Rate: 50hz
• Thermal Sensitivity: <25mk
• Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic

About InfiRay Outdoor

InfiRay Outdoor makes professional outdoor thermal imaging scopes, night vision optics, thermal monoculars, laser rangefinders, and more. From research and development to production and delivery, InfiRay Outdoor is using the most stringent requirements to guarantee quality and provide trustworthy high-quality products to customers in more than 89 countries.
