What Are Thermal Optics and How Do Thermal Scopes Work?
When you hear the terms thermal optics, thermal scopes, or thermal riflescopes, they all point to one incredible piece of technology — a tool that lets you see heat instead of light.
Whether you’re out hunting hogs at night, doing tactical surveillance, or inspecting equipment, thermal optics open up a whole new way to see the world.
🌡️ What Is a Thermal Scope?
A thermal scope is an advanced imaging device that detects infrared radiation — the natural heat energy that every object gives off — and turns it into a visible image.
Instead of relying on daylight or a flashlight, a thermal scope allows you to see heat signatures even in total darkness, fog, smoke, or heavy brush. That’s why thermal scopes have become so popular among hunters, tactical professionals, and outdoor enthusiasts.
🔍 How Thermal Optics Work
Here’s the science made simple:
-
Every living creature and object emits infrared energy (heat).
-
A thermal scope’s special lens focuses that infrared energy onto a thermal sensor (usually called a microbolometer).
-
The sensor measures temperature differences and converts them into a digital signal.
-
The scope’s processor and display transform those signals into a clear thermal image — usually in grayscale or vibrant color palettes like white-hot, black-hot, or rainbow.
The result? You can spot animals, people, or vehicles by their heat signature, no matter the lighting conditions.
🎯 What’s Inside a Thermal Riflescope?

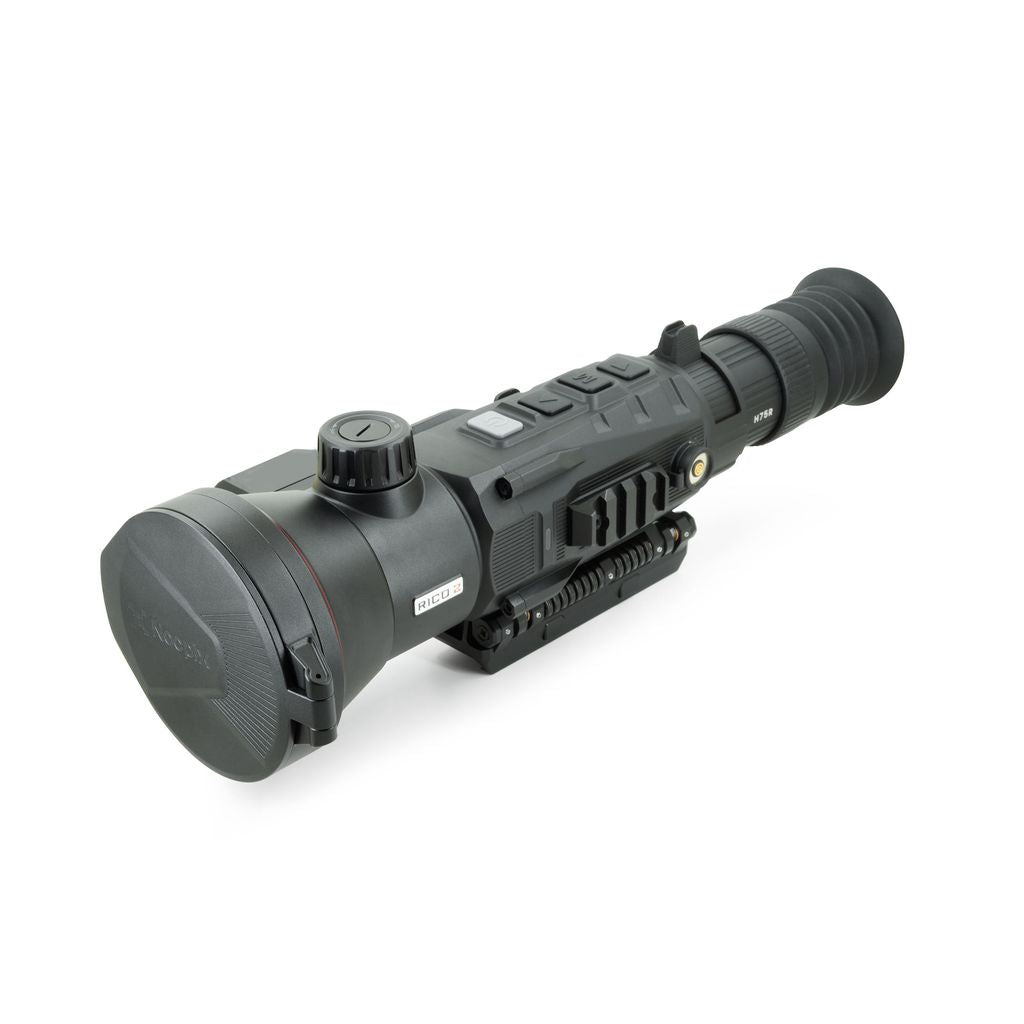

A thermal riflescope combines thermal imaging technology with traditional rifle scope functions for precision shooting.
Key components include:
-
Germanium lens – focuses infrared radiation (normal glass won’t work).
-
Thermal sensor (microbolometer) – detects heat differences.
-
Display screen – shows the thermal image.
-
Digital reticle – for accurate aiming and zeroing.
-
Rechargeable battery – powers the electronics.
Many modern thermal riflescopes also feature built-in video recording, Wi-Fi streaming, and digital zoom.
🌙 Thermal Scopes vs. Night Vision
Thermal imaging and night vision often get lumped together, but they’re very different.
| Feature | Thermal Optics | Night Vision |
|---|---|---|
| Works in total darkness | ✅ Yes | ❌ Needs some light |
| Detects heat | ✅ Yes | ❌ No |
| Sees through smoke/fog | ✅ Better | ⚠️ Limited |
| Image type | Heat-based (infrared) | Light-based (amplified) |
| Detail | Outlines & shapes | Visual detail, color, texture |
Thermal scopes are best for detection, while night vision is better for identifying fine details like facial features or colors.
🦌 Why Hunters Love Thermal Optics
For hunters, thermal scopes are game-changers. They make it easier to:
-
Spot animals at night or hidden in brush.
-
Track movement across open fields.
-
Identify heat trails or fresh tracks.
-
Stay stealthy — no visible light needed.
They’re especially useful for hog hunting, coyote hunting, and predator control — where most activity happens after dark.
⚙️ Key Specs to Consider
If you’re shopping for a thermal riflescope or handheld thermal optic, here are a few specs that really matter:
-
Resolution: Higher pixel counts (e.g., 640×480) give clearer images.
-
Detection range: How far the scope can pick up heat signatures.
-
Refresh rate: Measured in Hz — higher rates (50–60Hz) mean smoother tracking.
-
NETD sensitivity: Lower numbers detect smaller temperature differences.
-
Battery life: Longer runtime = more hours in the field.
⚠️ Thermal Limitations to Know
-
Can’t see through glass: Thermal energy doesn’t pass through regular glass, so windows appear opaque.
-
Reduced detail: You’ll see heat shapes, not facial features.
-
Weather impact: Heavy rain or extreme humidity can shorten range.
-
Legal restrictions: Always check your state or local laws before hunting with thermal scopes.
🔋 Common Uses for Thermal Optics
-
Hunting & wildlife observation
-
Search and rescue operations
-
Law enforcement & security
-
Farm and property surveillance
-
Industrial inspections (electrical, HVAC, etc.)
🧠 Final Thoughts
Thermal optics have changed the game for hunters, tactical users, and outdoor professionals. By seeing heat instead of light, thermal scopes give you unmatched visibility in total darkness, helping you detect what the naked eye can’t.
If you’re considering investing in one, focus on resolution, detection range, and battery life — those three specs make the biggest difference in real-world performance.
